I-12kV yeSaphuli seSekethe yaNgaphakathi enokutsalwa

II-12kV yeSaphuli seSekethe yaNgaphakathi enokutsalwa(Imodeli: ZN63 (VS1)-12) i-high-performance medium-voltage vacuum breaker circuit breaker eyenzelwe izigaba ezintathu ze-AC 50Hz iinkqubo zokuhambisa amandla. Ibonisa indlela yokusebenza edibeneyo kunye nomzimba we-breaker, ukubonelela ngesakhiwo esihlangeneyo, ukusebenza kakuhle kokutshintsha, kunye nobomi benkonzo ende. I-breaker inokufakwa njengeyunithi yokuhoxiswa kwaye ihambelana ngokupheleleyo ne-KYN28 kunye nezinye iinkqubo ze-switchgear medium-voltage.

Iyilwe ngetekhnoloji yokuphazamiseka kwevacuum ephezulu, iI-12kV yeSaphuli seSekethe yaNgaphakathi enokutsalwainika ukhuseleko oluthembekileyo ngokuchasene nomthwalo ogqithisiweyo kunye neesekethe ezimfutshane ngelixa uxhasa imisebenzi yokutshintsha rhoqo. Isetyenziswa ngokubanzi kwizitishi ezingaphantsi, amaziko oshishino, izakhiwo zorhwebo, amaziko ombane, imisebenzi yezemigodi, kunye neeprojekthi zeziseko ezingundoqo apho kufuneka ukhuseleko lwe-medium-voltage oluthembekileyo.

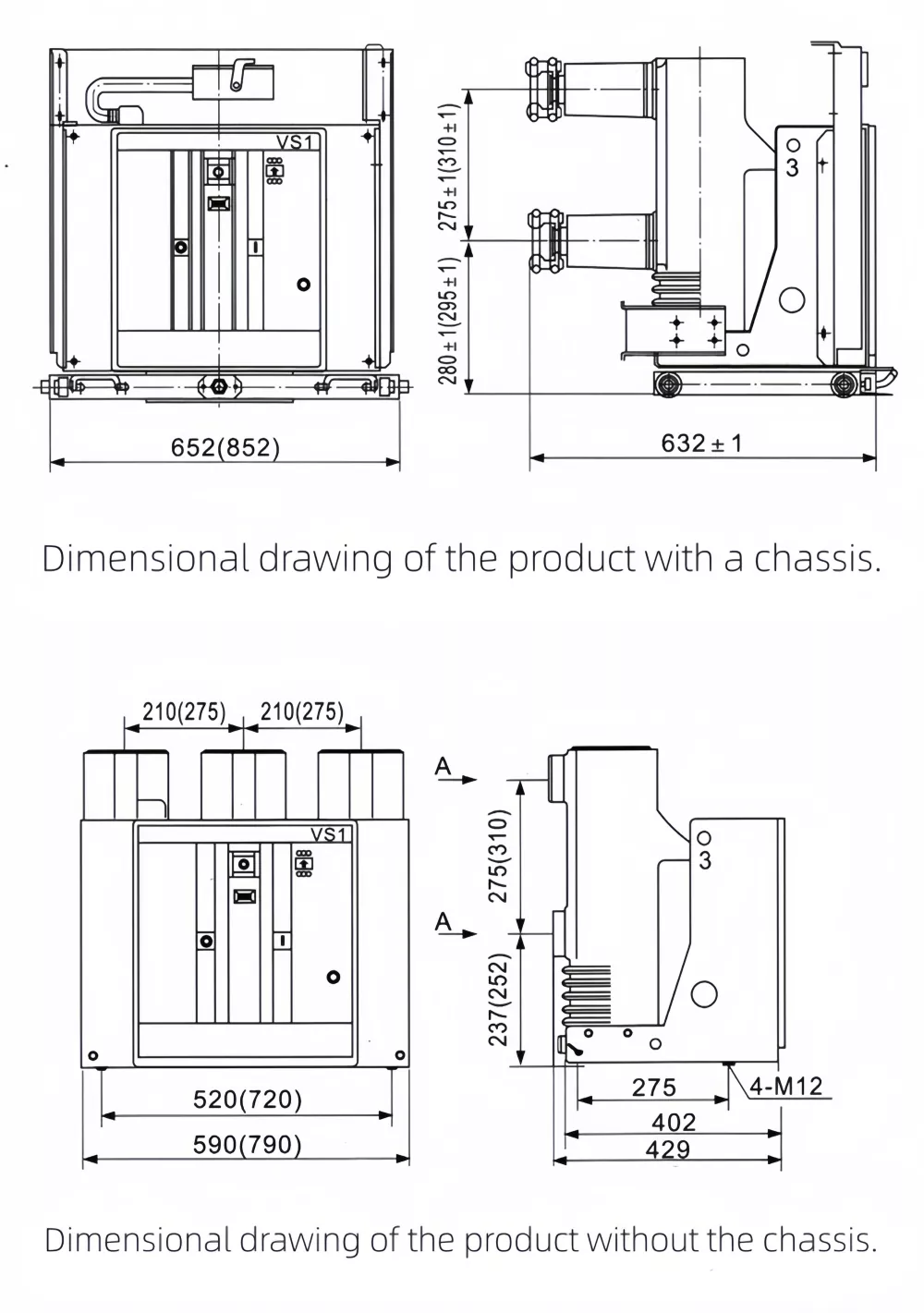

Imilinganiselo yeMveliso

Iimpawu zeMveliso

• Indlela yokusebenza edibeneyo kunye ne-breaker body yofakelo oludibeneyo.
• Itekhnoloji ye-vacuum interrupter iqinisekisa ukuphela kwe-arc ngokukhawuleza, ukugcinwa okuphantsi, kunye nobomi obude bombane.
• Indibano yepali efakwe ngokupheleleyo ibonelela ngokusebenza simahla kunye nokuthembeka okuphuculweyo kokugquma.
• Ixhasa ulungelelwaniso lofakelo olungaguqukiyo nolurhoxiswayo lokudibanisa i-switchgear eguquguqukayo.
• Ukunyamezela ngoomatshini ukuya kuthi ga kwimijikelo ye-10,000 yokusebenza.
• Ifanelekile kwimisebenzi yokutshintsha rhoqo kwiindawo ezibango zoshishino.
• Ukusebenza kakuhle kwe-insulation kunye namandla azinzileyo e-dielectric.
• Iyahambelana ne-KYN28 kunye nezinye i-medium-voltage metal-clad switchgear.

IiParameters zobuGcisa

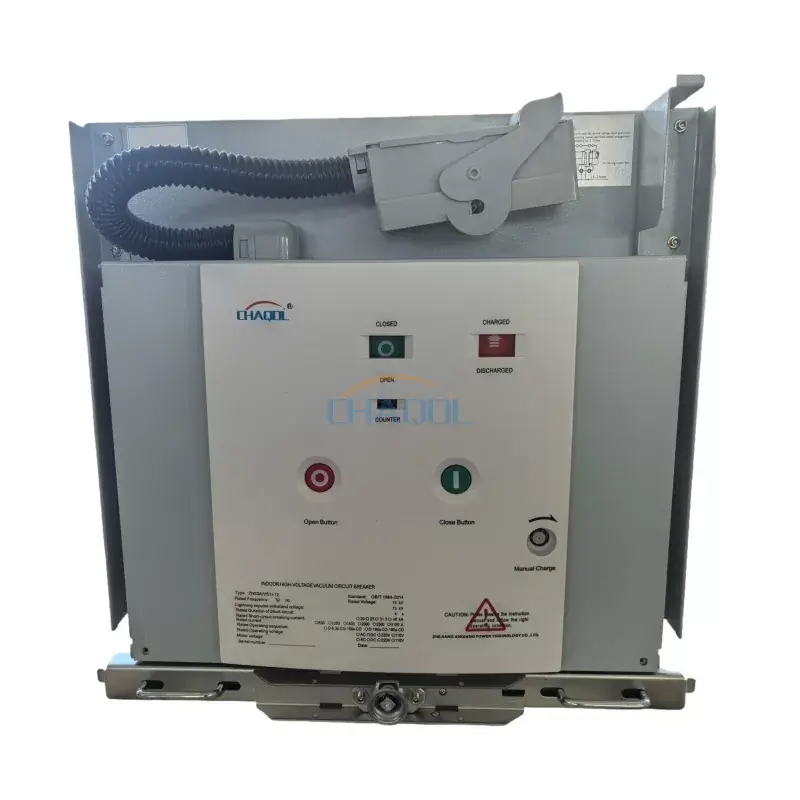

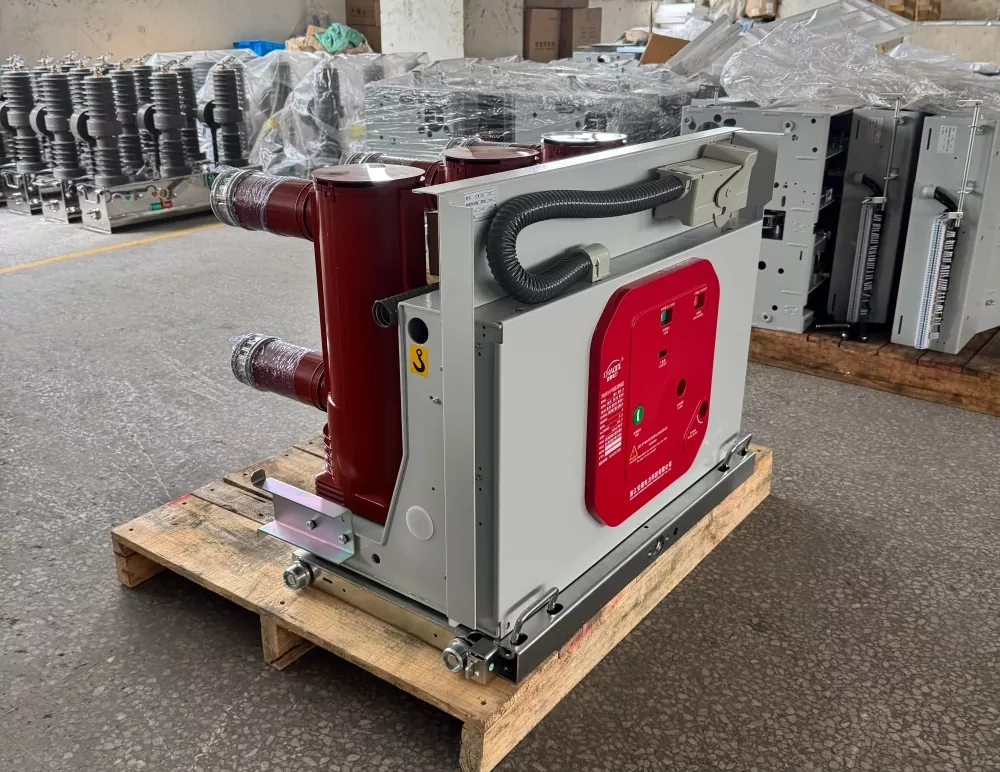

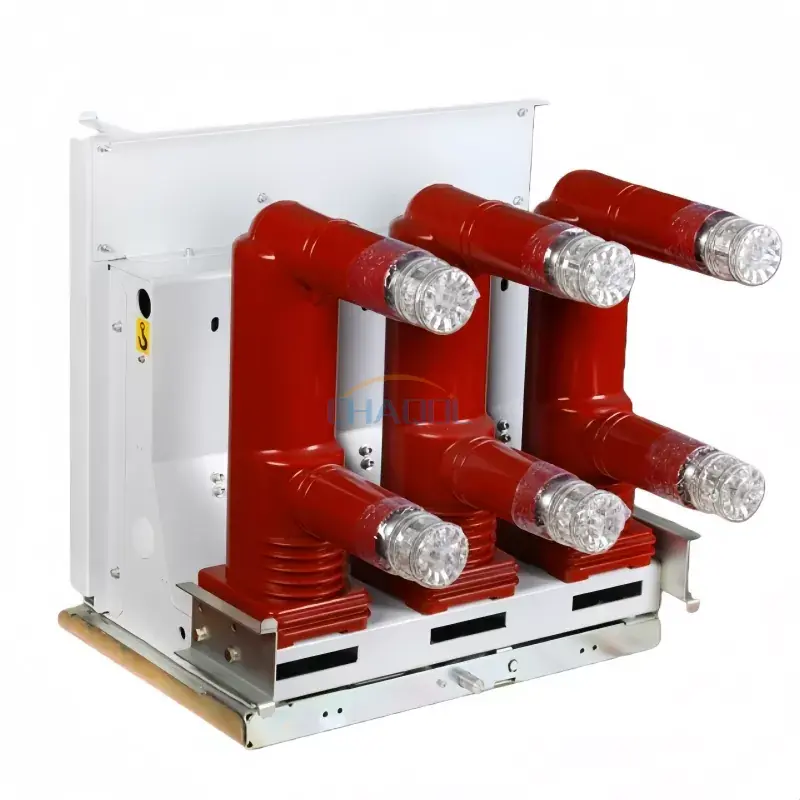

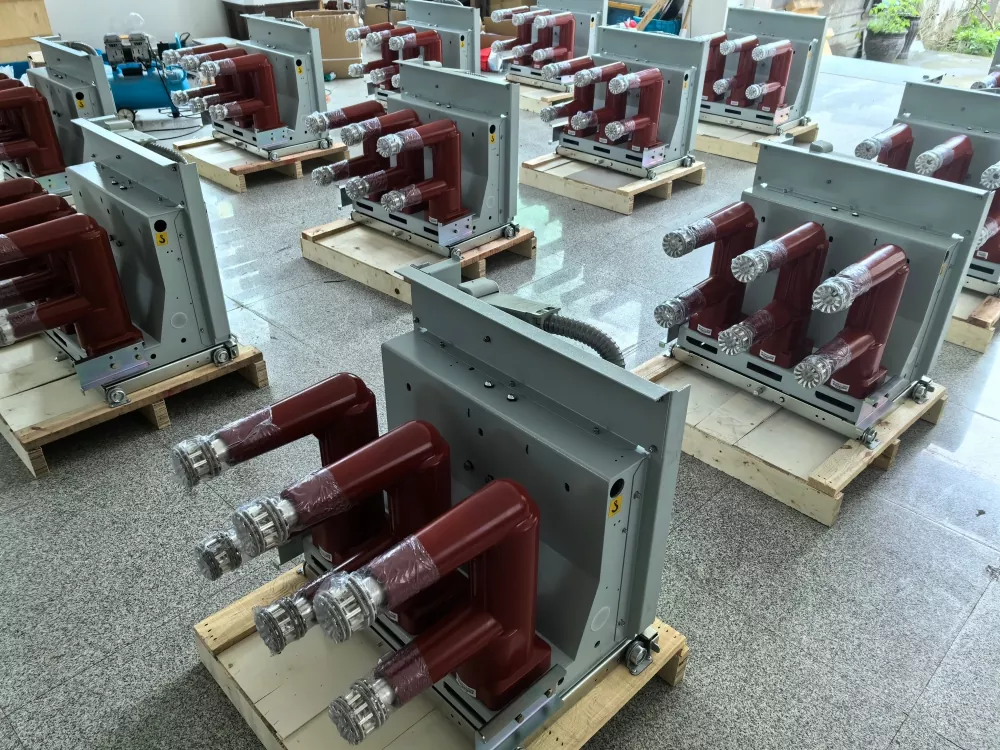

Iifoto zeMveliso eyiyo

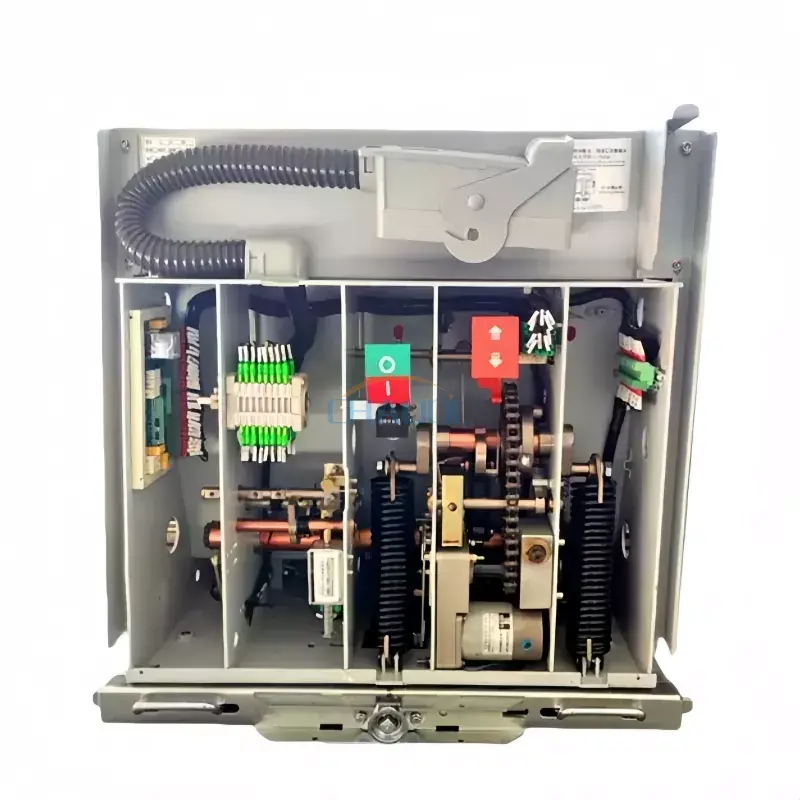

Iimpawu zoLwakhiwo

I-breaker ithatha i-modular structure edibanisa indlela yokusebenza kunye ne-vacuum interrupter, ukunciphisa indawo yokufakela ngelixa iphucula ukuzinza kokusebenza. Isiphazamisi sevacuum esitywiniweyo sisusa ngokufanelekileyo ulondolozo olunxulumene ne-arc kwaye sinikezela ngokusebenza okugqwesileyo kokugquma kubomi baso benkonzo.

Uyilo lwayo olurhoxiswayo lwenza ukutshintshwa ngokukhawuleza kunye nokugcinwa okufanelekileyo ngaphandle kokuchaphazela yonke indibano ye-switchgear, inceda ukunciphisa ixesha lokunciphisa kunye neendleko zokugcinwa kwiinkqubo zokusasazwa kwe-voltage medium.

Usetyenziso

II-12kV yeSaphuli seSekethe yaNgaphakathi enokutsalwaisetyenziswa ngokubanzi kwiinkqubo zombane ze-medium-voltage ezifuna ukukhuselwa okuthembekileyo kunye nokusebenza ngokutshintsha rhoqo.

• Isixhobo sokutshintsha amandla ombane aphakathi (KYN28 Series)
• Izitishi eziluncedo
• Izityalo zamandla
• Amaziko okuvelisa amashishini
• Imisebenzi yemigodi
• Izityalo zeMetallurgical
• Amaziko okulungisa imichiza
• Izakhiwo zorhwebo
• Iiprojekthi zamandla ahlaziyekayo
• Uthungelwano lokuhambisa amandla

Indawo yokusebenza

• Ubushushu be-Ambient: -10°C ukuya +40°C (ugcino lwehle ukuya ku -30°C)
• Ukuphakama kofakelo: Ukuya kuthi ga kwi-1000m (ukuphakama okuphezulu kufumaneka xa uceliwe)
• Ubuninzi be-seismic intensite: 8 degrees
• Ifanele imo engqongileyo engenabungozi bomlilo, imingcipheko yogqabhuko-dubulo, iigesi ezinobungozi, ungcoliseko olumandla, kunye nokungcangcazela okugqithisileyo.

Kutheni Khetha le Mveliso?

• uyilo Compact ukurhoxiswa ukugcinwa lula
• Itekhnoloji yesiphazamisi sevacuum yasimahla
• Ubomi obude benkonzo yoomatshini kunye nombane
• I-insulation ethembekileyo kunye nokusebenza kokutshintsha
• Ifanelekile kwimisebenzi yokutshintsha rhoqo
• Iyahambelana nesixhobo sokutshintsha esiphakathi sombane ophakathi
• Iindleko zokugcinwa okuphantsi kunye nokuthembeka okuphezulu kokusebenza

Imibuzo ebuzwa qho

Yintoni i-12kV yeSaphuli-mthetho seSekethe yaNgaphakathi eNgarhoxiswayo?

Yi-medium-voltage vacuum circuit breaker eyenzelwe ukukhusela nokulawula izixhobo zombane ngokuphazamisa ukugcwala kunye nemisinga emfutshane kwiinkqubo zokuhambisa amandla angaphakathi.

Ngaba esi saphuli sinokusetyenziswa nge-KYN28 switchgear?

Ewe. Ihambelana ngokupheleleyo ne-KYN28 yentsimbi-i-clad switchgear kunye nezinye iinkqubo ezifanayo ze-medium-voltage switchgear.

Ziziphi iingenelo zoyilo olunokurhoxiswa?

Ulwakhiwo olurhoxiswayo luvumela ukutshintshwa okukhawulezayo, ukugcinwa lula, ukunciphisa ixesha lokuphumla, kunye nokuphuculwa kokhuseleko lokusebenza xa kuthelekiswa nama-breaker-mounted-mounted breakers.

Ngaba esi siqhekeza sifanelekile ukuba sitshintshe rhoqo?

Ewe. Ngobomi boomatshini bokusebenza ukuya kuthi ga kwi-10,000 kunye netekhnoloji yokuphazamiseka kwe-vacuum ehlala ixesha elide, yenzelwe usetyenziso olufuna ukutshintshwa rhoqo.

Ngawaphi amashishini aqhele ukusebenzisa le mveliso?

Isetyenziswa ngokubanzi kwizitishi ezingaphantsi, amaziko ombane, amaziko emizi-mveliso, imigodi, isinyithi, ukusetyenzwa kweekhemikhali, iiprojekthi zeziseko zophuhliso, kunye neenkqubo zokusasaza amandla orhwebo.
