I-12KV yaNgaphandle yokuDiba iSwitshi

Model:GW9-12

I-Anqiang Power ye-12KV yangaphandle yokuqhawula i-switch ingasetyenziselwa ukusebenza kwesigaba esisodwa kwiinkqubo zomgca wesigaba sesithathu. Sisixhobo sokutshintsha i-pole-high-voltage esisetyenziswa ngokubanzi kwiigridi zamandla zangaphandle ze-12KV ukuvula nokuvala iisekethe phantsi kweemeko zokungabikho komthwalo. Ibonisa i-hook yokudonsa esisigxina kunye ne-self-locking mechanism, kwaye iqhutywe ngentonga ye-hook e-insulated ukuze usebenze ngokuguquguqukayo kunye nokuthembeka.

Thumela uMbuzo

Ingcaciso yeMveliso

I-12KV yaNgaphandle yokuDiba iSwitshiyenzelwe ukwahlukaniswa okuthembekileyo kweenkqubo zamandla ombane ophakathi phantsi kweemeko zokungabikho komthwalo. Yamkela i-vertical single-break structure kunye ne-stable mechanical performance kunye nomgama ocacileyo wokuvula, ukuqinisekisa ukugcinwa okukhuselekileyo kunye nokuhlolwa kwemigca yokusabalalisa kunye neendawo ezincinci.

Olu ngcelele lweziqhawulo zangaphandle lusetyenziswa kakhulu kuthungelwano lwamandla oluyi-10kV–15kV. Isakhiwo sidibanisa isakhelo esisisiseko esiqinileyo, i-insulators yokuxhasa amandla aphezulu, kunye ne-knife-type conductive blade system. Ngomatshini wokuzivala owomeleziweyo, uqinisekisa ukusebenza okuzinzileyo naphantsi komoya onamandla, ungcoliseko, kunye nokuguquguquka kobushushu.

Izinto eziluncedo kwisakhiwo

Uyilo lokuvula oluthe nkqo lwekhefu elinye kunye nesenzo esicacileyo soomatshini
Inkqubo yokudibanisa i-Knife-switch yokwahlukana okuthembekileyo kombane
Isakhiwo sokuzivalela ukuthintela ukusebenza ngengozi
Uyilo lokugquma ukuchasana nongcoliseko lwemekobume erhabaxa yangaphandle
Ulungelelwaniso olukhethwayo lwemilinganiselo eyahlukeneyo yangoku kunye neemfuno zofakelo

Iifoto zeMveliso

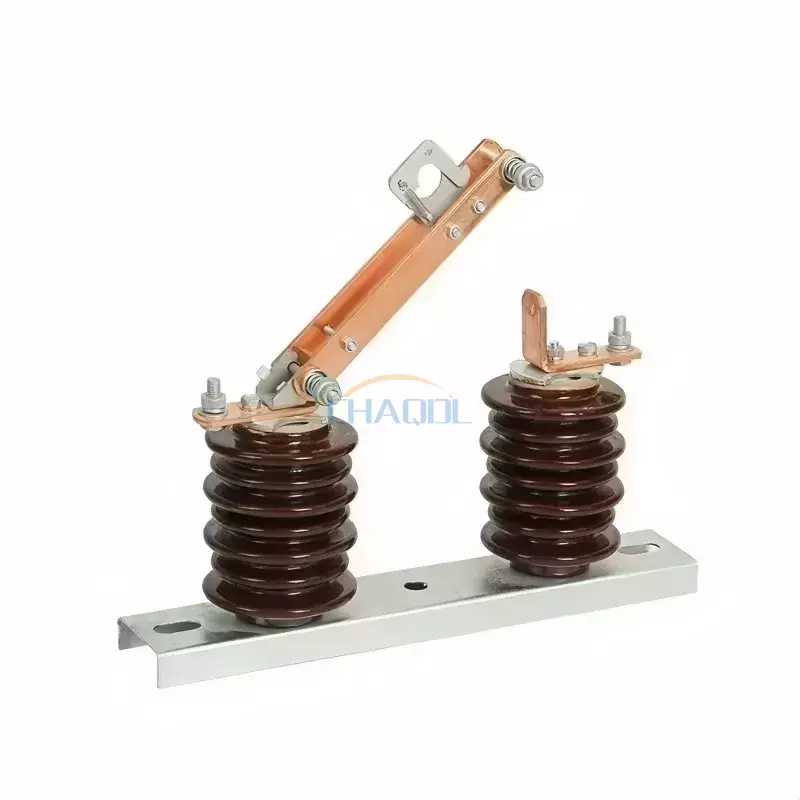

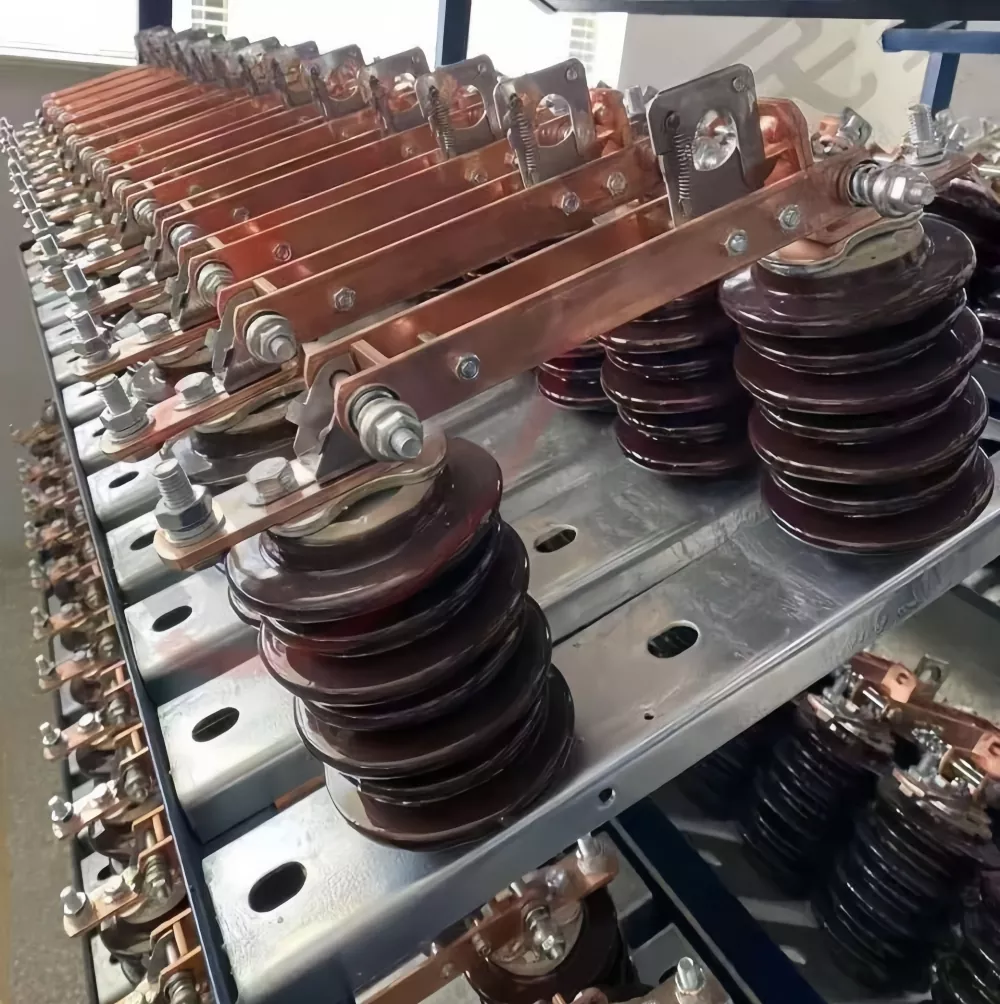

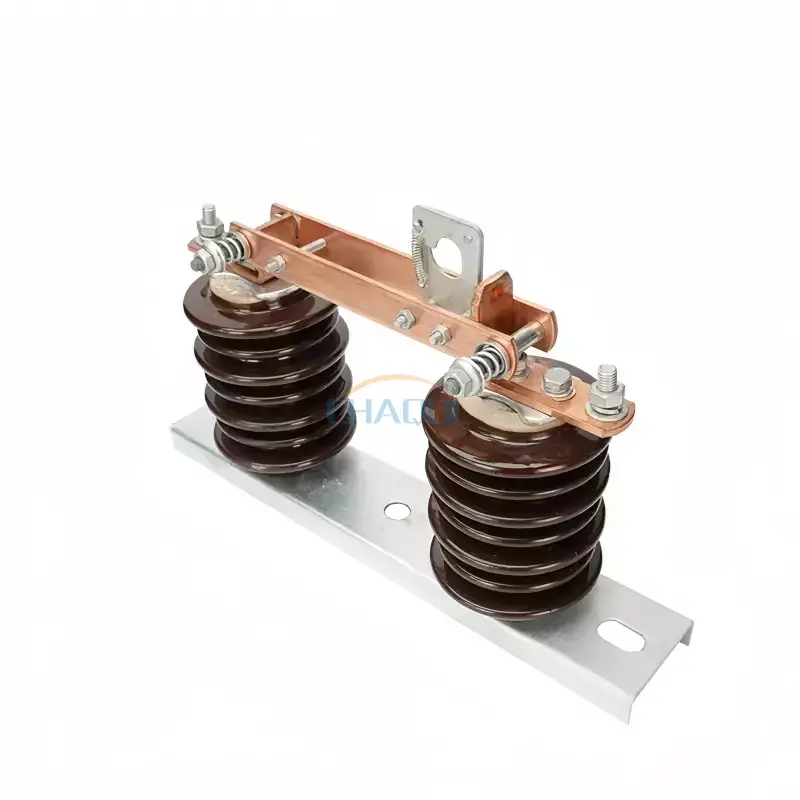

12KV Outdoor Disconnecting Switch

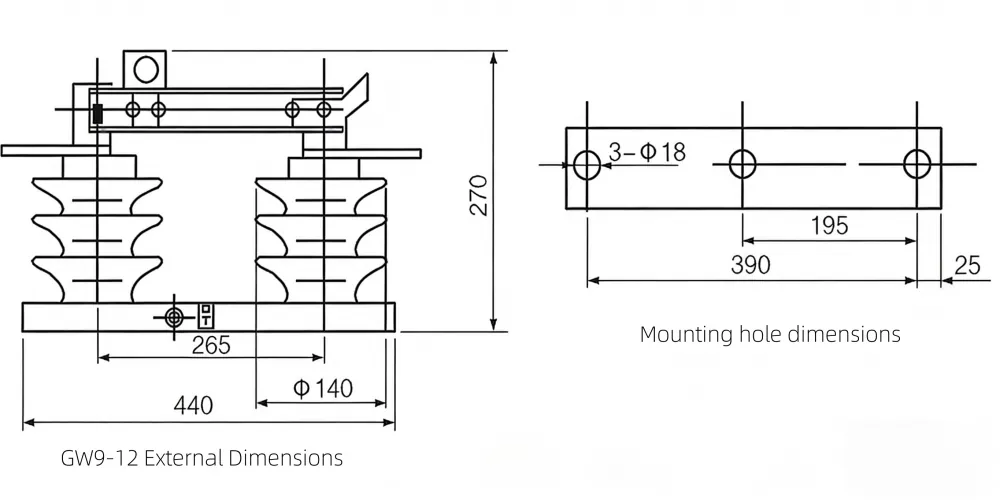

Product Dimensions Diagram

12KV Outdoor Disconnecting Switch Dimensions Diagram

Iiparamitha zobuGcisa

Igama leProjekthi		Ixabiso leParameter
Umbane olinganisiweyo		10KV	15KV
Ubuninzi bombane osebenzayo		12Kv	17.5KV
Inqanaba lokufakwa kwe-insulation	Umzuzu o-1 wokuphindaphinda kwamandla ombane	42/48KV	55/65KV
	Impembelelo yombane imelana nombane	75/85 KV	105/120KV
Ilinganiswe rhoqo		50 Hz
Ikalwe ngoku		200/400A	630/1250A
I-4s inikwe ixesha elifutshane lokumelana nangoku		6.3/12.5kA	20/31.5kA
Umgama weCreepage		300mm	380mm
Ubomi bomatshini		2000 amaxesha
Incopho elinganisiweyo ukumelana yangoku		16/31.5kA		50/80kA

UmGaqo wokuSebenza

Indlela yokusebenza yale ntoI-12KV yaNgaphandle yokuDiba iSwitshiisekelwe kwi-insulating hook stick manual. Ngethuba lokusebenza, intonga ye-hook idibanisa isixhobo sokukhiya, iqhube i-shaft ejikelezayo kunye ne-conductive blade. Xa uvula, i-self-locking mechanism ikhutshwe, ivumela i-blade ukuba ijikeleze kwindawo ehlala yedwa. Ngexesha lokuvala, i-mechanism iphinda idibanise kwaye ivale ngokuzenzekelayo, iqinisekisa uxinzelelo oluzinzileyo kunye nokuqhubekeka kombane okukhuselekileyo xa kufuneka.

Uyilo luqinisekisa ukuhlukana okucacileyo phakathi kwamazwe aphilayo kunye neendawo ezizimeleyo, ukunciphisa umngcipheko wokusebenza kunye nokuphucula ukhuseleko lokugcinwa kwabaqhubi bokusabalalisa.

Iimeko zeSicelo

Uthungelwano losasazo lwe-10kV kunye ne-15kV
Izikhululo zasedolophini nezisemaphandleni
Iinkqubo zokwahlula amandla kwimizi-mveliso
Amacandelo okugcina umgca ongaphezulu
Amanqaku oqhagamshelwano lwegridi yamandla ahlaziyekayo

Ukuthelekisa kunye neeMveliso ezifanayo

Into	I-12KV yethu yangaphandle yokuDityaniswa iSwitch	IMveliso yoMgangatho weMarike
Ulwakhiwo	Ikhefu elinye lokuvula ngokuthe nkqo kunye nenkqubo yokutshixa eyomeleziweyo	Ulwakhiwo oluthe nkqo olusisiseko ngaphandle kokutshixa okomeleziweyo
Ukusebenza kwe-insulation	Izithinteli zokuchasana nongcoliseko ezilungiselelwe iimeko ezingqongileyo ezinzima	Ukufakwa kweporcelain okusemgangathweni
Ukhuseleko lomsebenzi	Indlela yokuzitshixa ikhusela ukutshintsha ngempazamo	Ukutshixa ngesandla ngaphandle kokhuseleko lwesibini
Ubomi benkonzo	2000+ imisebenzi yoomatshini	Ukunyamezela komjikelo ophantsi
Imfuneko yokugcina	Uyilo lokugcinwa okuphantsi kunye nokumelana nokubola	Ukugcinwa rhoqo kuyafuneka

FAQ

1. Ngowuphi owona msebenzi uphambili wolu ciko lokuqhawula?

Isetyenziselwa ukwahlula iisekethi zombane kwiinkqubo zamandla ze-10kV–15kV xa kukho amandla ombane kodwa kungekho msinga womthwalo, ukuqinisekisa ukugcinwa okukhuselekileyo kunye nokuhlolwa kwezixhobo kunye neentambo zothumelo.

2. Ngaba i-12KV yangaphandle yokuDityaniswa kweSwitch ingaqhutywa phantsi komthwalo?

Hayi. Olu hlobo lokutshintsha luyilelwe kuphela umsebenzi ongenamthwalo. Ukutshintshela phantsi komthwalo kungonakalisa abafowunelwa kunye nokukhusela inkqubo yokhuseleko.

3. Yeyiphi imeko-bume eyilungeleyo?

Imveliso yenzelwe izitishi zangaphandle, iinkqubo zokusasazwa kwamashishini, kunye neendawo ezinamazinga aphezulu ongcoliseko, ukufuma, okanye ukuhluka kobushushu.

4. Zeziphi iindlela zokusebenza ezikhoyo?

Ixhasa zombini ukusebenza ngesandla usebenzisa i-insulating hook stick kunye nokusebenza okukhethiweyo okuqhutywa yimoto, ngokuxhomekeke kwiimfuno zeprojekthi.

5. Iqinisekisa njani ukusebenza ngokukhuselekileyo?

Umatshini wokuzitshixa wangaphakathi kunye nesakhiwo esicacileyo somatshini wokuzihlukanisa kunceda ukuthintela ukutshintsha ngengozi, ukuphucula ukhuseleko lokusebenza kunye nokuthembeka.

6. Luluphi ugcino olufunekayo?

Ukuhlolwa okuqhelekileyo koqhagamshelwano, iindawo zokugquma, kunye nokudibanisa oomatshini kunconywa. Uyilo lunciphisa ukugcinwa rhoqo phantsi kweemeko eziqhelekileyo zokusebenza.
