I-36kV ye-Indoor High Voltage Circuit Breaker

Model:ZN85-40.5

I-36kV ye-Indoor High Voltage Circuit Breaker i-indoor high-voltage switchgear ezimeleyo ephuhliswe ngu-Anqiang Power. Ifanelekile kwiinkqubo ezintathu ze-AC 50Hz. Le ngqungquthela yesiphaluka ibonisa idizayini yemodyuli, ixhotyiswe nge-spring operating mechanism, kwaye ixhasa ukugcinwa kwamandla ombane okanye okwenziwa ngesandla. Ngokukodwa ifanelekile kwi-switchgear esisigxina okanye ehoxisiweyo (KYN61-40.5).

Thumela uMbuzo

Ingcaciso yeMveliso

II-36kV ye-Indoor High Voltage Circuit Breaker(Umzekelo:I-I-ZN85-40.5) i-medium-voltage vacuum circuit breaker eyenzelwe ukukhuselwa okuthembekileyo kunye nokutshintshwa kweenkqubo zokuhambisa umbane. Ibandakanya ulwakhiwo oluthe nkqo oludityanisiweyo olunendlela yokusebenza yasentwasahlobo edibeneyo, inciphisa kakhulu ubunzulu bofakelo ngelixa igcina amandla abalaseleyo omatshini kunye nokuzinza kokusebenza.

Yenzelwe ukuhanjiswa kwamandla kwimizi-mveliso, izitishi, oomatshini bombane, imisebenzi yezemigodi, kunye nezibonelelo zorhwebo ezinkulu, iI-36kV ye-Indoor High Voltage Circuit Breakeribonelela ngokuxhomekeke ekutshintsheni komthwalo oqhelekileyo wangoku, ukulayisha ngokugqithisileyo, kunye nempazamo yangoku yesekethe emfutshane. Ulwakhiwo lwayo olulungele ukugcinwa, ubomi benkonzo ende, kunye nokusebenza okuphezulu kokuqhekeka kuyenza ibe sisisombululo esifanelekileyo kwiinkqubo zanamhlanje ze-medium-voltage switchgear.

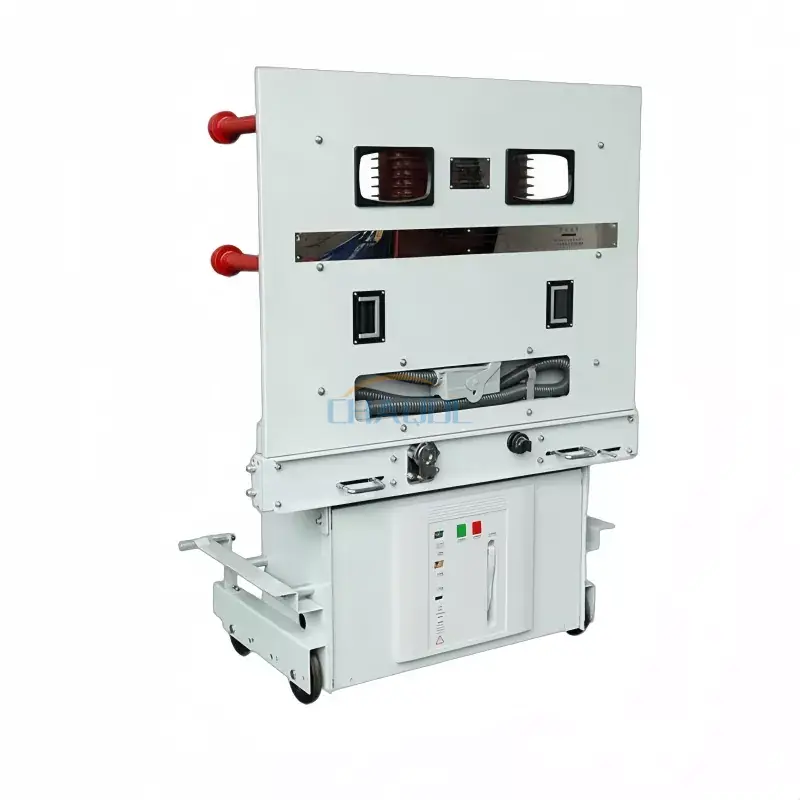

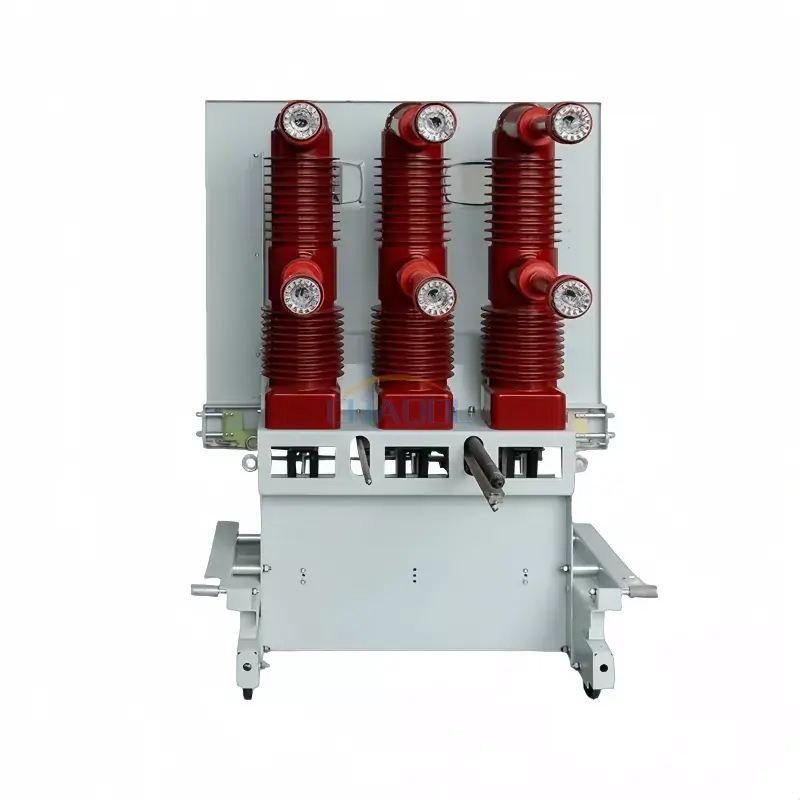

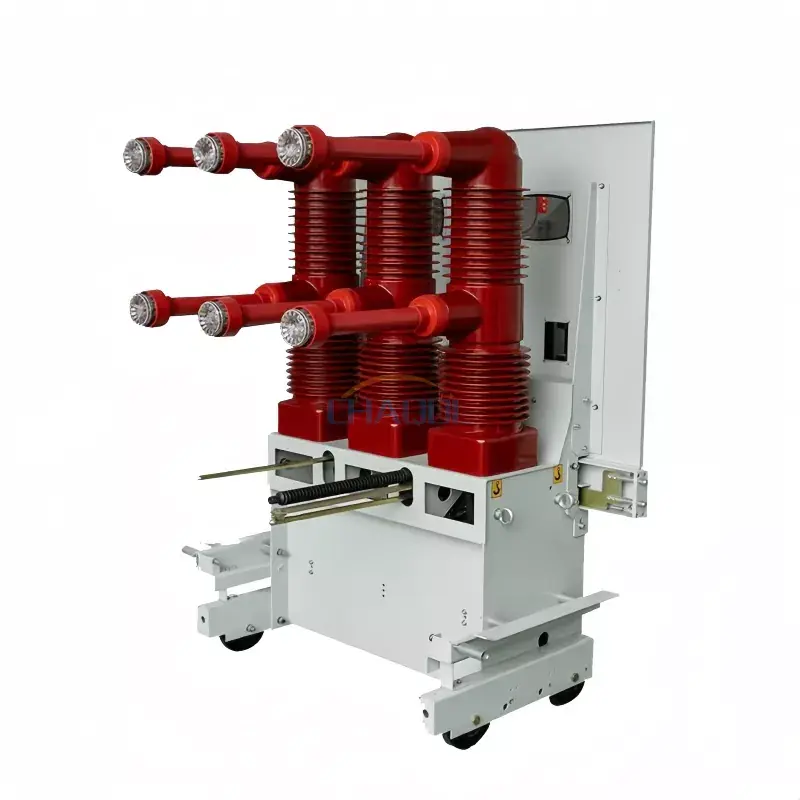

Iifoto zeMveliso

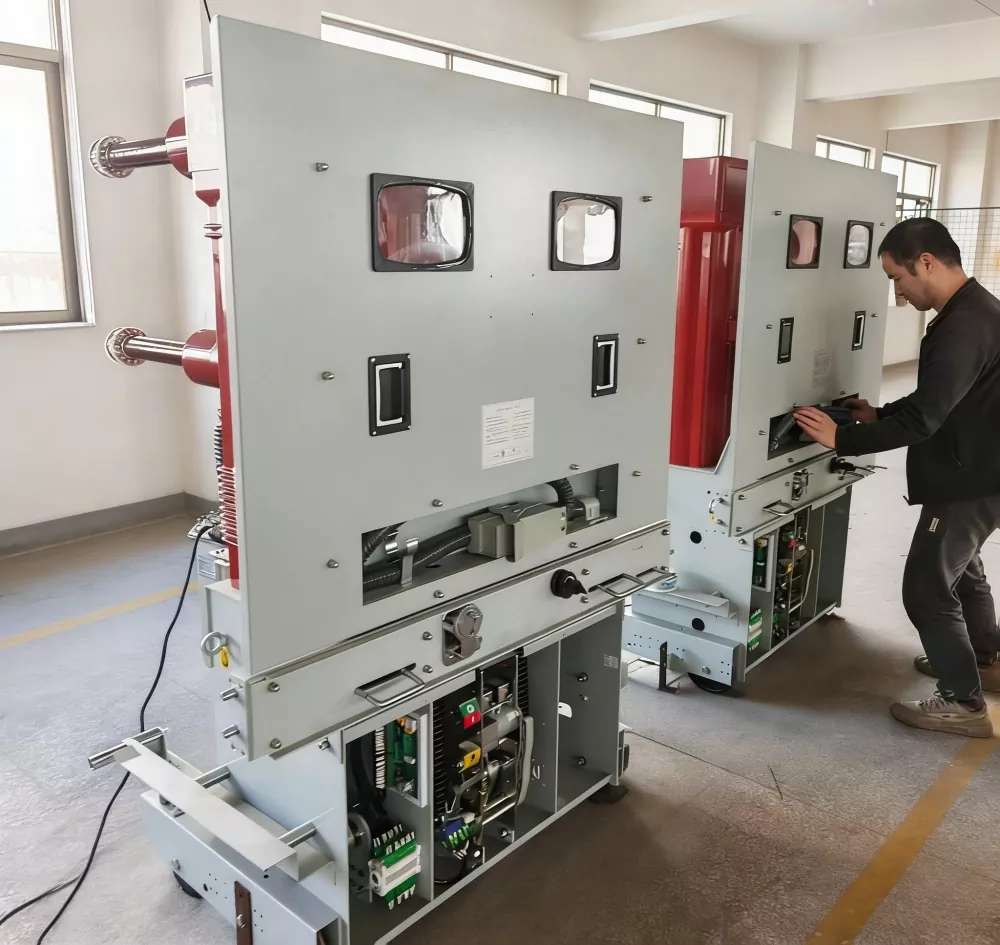

36kV Indoor High Voltage Circuit Breaker

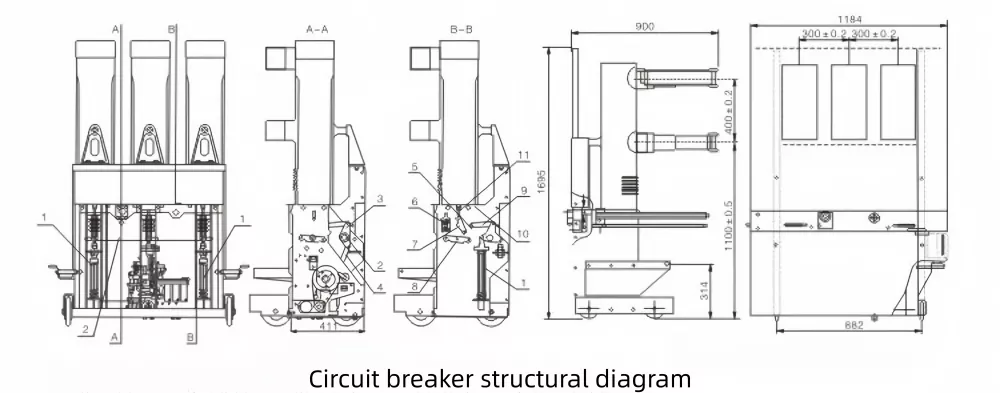

Product Dimensions Diagram

36kV Indoor High Voltage Circuit Breaker Dimensions

1. Ukuvula iNtwasahlobo
2. I-Shaft engundoqo
3. Ingalo yoMbindi wePole yeCrank
4. Intonga yoThutho
5. Ipleyiti yokuDibanisa yoThutho
6. Qhagamshelana noNtwasahlobo
7/8/9. Iipleyiti zokuQhagamshela zoThutho
10. I-Side Pole Crank Arm
11. Intonga-Isiphelo seSpherical Bearing

Ezona mpawu

Ulwakhiwo oluthe nkqo oluxhonywe nkqo lunciphisa ubunzulu bofakelo lwesitshixo.
Isiphazamisi se-vacuum esisebenza kakhulu sinikezela ukuphela kwe-arc ngokukhawuleza, ukubuyiswa okugqwesileyo kwe-insulation, kunye nokuphazamiseka okuthembekileyo.
Ukugcinwa kwasimahla kwendlela yokusebenza yasentwasahlobo ixhasa ukuya kuthi ga10,000 imisebenzi yoomatshini, ukunciphisa iindleko zokusebenza.
Inkqubo yothumelo oluzinzileyo iqinisekisa ukuvulwa nokuvala ukusebenza kakuhle kunye nokuthembeka okuphezulu kokusebenza.
Uyilo olukhaphukhaphu lwenza lula ukufakela, ukugunyazisa, kunye nokugcinwa kwezixhobo.
Ifanelekile kwimisebenzi yokutshintsha rhoqo ekufuneni izicelo zombane ophakathi.
Iyahambelana nezityalo zamandla, izitishi, amaziko emizi-mveliso, amashishini emigodi, kunye nothungelwano losasazo oluluncedo.

Usetyenziso oluqhelekileyo

II-36kV ye-Indoor High Voltage Circuit Breakerisetyenziswa ngokubanzi kukhuseleko lwamandla ombane ophakathi kunye nolawulo kwi:

Izityalo zokuvelisa amandla
Izitishi zombane
Amaziko okuvelisa amashishini
Imisebenzi yemigodi
Izityalo zePetrochemical
Iinkqubo zokurhweba kunye nokuhanjiswa kwamandla kweziseko zophuhliso
Iiphaneli ze-switchgear eziphakathi kwe-voltage

IiParameters zobuGcisa

Ipharamitha	Ixabiso
Ulinganiso lweVoltage	36 / 40.5 kV
Ireyithwe rhoqo	50 Hz
Ikalwe ngoku	1250 / 1600 / 2000 A
Ilinganiswe ngexesha elifutshane ukumelana nokwangoku	25 / 31.5 kA
Ilinganiswe Incopho Melana yangoku	63 / 80 kA
Ilinganiswe ngoBude beSekethe emfutshane	4 s
Ilinganiswe ngoMvulo oMfutshane weSekethe yangoku	25 / 31.5 kA
Ilinganiswe kwiSekethe emfutshane eyenza yangoku	63 / 80 kA
Ulandelelwano lokuSebenza olukalwe	O-0.3s-CO-180s-CO
Ixesha lokuvula	<80 ms
Ireyithwe kwiMisebenzi yokuQothulwa kweSekethe emifutshane	Amaxesha angama-20
Single Capacitor Bank Ukutshintshela yangoku	630 A
Ukutshintshela umva kwiBhanki yeCapacitor yangoku	400 A
Ukuma koMbane wokuQinisekisa umbane (imizuzu eyi-1)	95 kV
Impulse yoMbane imelana neVoltage	185 kV
Ubomi boomatshini	10,000 amaxesha

Iingenelo

Ubuchule obugqwesileyo bokuphazamiseka kwesekethe emfutshane kuthungelwano lwe-medium-voltage.
Amandla aphezulu e-dielectric kunye nokubuyiswa ngokukhawuleza kwe-insulation emva kokuphazamiseka kwangoku.
Iimfuno zolondolozo oluphantsi ngenxa yesiphazamisi sevacuum esitywiniweyo kunye nokulungiswa kwendlela yasentwasahlobo.
Umzobo obambeneyo uvumela ukufakwa kwiikhabhathi ze-switchgear ezixineneyo.
Ubomi obude benkonzo yoomatshini kunye nombane bunciphisa iindleko zobunini zizonke.
Ukusebenza okuthembekileyo phantsi kweemeko zokutshintsha rhoqo.

Kutheni Khetha iimveliso zethu?

YethuI-36kV ye-Indoor High Voltage Circuit Breakeriveliswa phantsi kweenkqubo zolawulo olungqongqo lwekhwalithi kusetyenziswa iziphazamisi ze-vacuum zeprimiyamu kunye nezinto ezichanekileyo zoomatshini. Yonke iyunithi ifumana uvavanyo olubanzi lwefektri ngaphambi kokuthunyelwa ukuze kuqinisekiswe ukusebenza kombane okuzinzileyo kunye nokuthembeka kokusebenza kwexesha elide.

I-OEM kunye nolungelelwaniso olulungelelanisiweyo luyafumaneka, kubandakanywa imisinga elinganisiweyo eyahlukeneyo, amandla ombane osebenzayo, imilinganiselo yokufakela, abafowunelwa abancedisayo, kunye nezisombululo zokuthelekisa i-switchgear ukwanelisa iimfuno ezahlukeneyo zeprojekthi kwihlabathi liphela.

FAQ

1. Isetyenziselwa ntoni i36kV Indoor High Voltage Circuit Breaker?

Yenzelwe ukukhusela nokulawula iisistim zombane ze-voltage eziphakathi ngokutshintsha umthamo oqhelekileyo wangoku, ukulayisha ngokugqithisileyo, kunye nombane okhoyo wesiphaluka esifutshane. Isetyenziswa kakhulu kwizitishi ezisezantsi, kumaziko ombane, amaziko emizi-mveliso, kwimisebenzi yezemigodi, kunye nesixhobo sokutshintsha amandla ombane aphakathi.

2. Ziziphi iingenelo eziphambili ze-vacuum circuit breaker?

Izaphuli zesekethe ze-vacuum zibonelela ngokuphela kwe-arc ekhawulezayo, ukubuyiswa okugqwesileyo kwe-insulation, ubomi obude bomatshini, iimfuno zokugcinwa okuphantsi, imilinganiselo edibeneyo, kunye nokuthembeka okuphezulu kokusebenza. Zinobuhlobo nokusingqongileyo kuba azifuni i-oyile yokugquma okanye igesi ye-SF6.

3. Ziziphi iireyithingi zombane kunye nezangoku ezikhoyo?

Le modeli ixhasa ii-voltages ezilinganisiweyo ze36kV kunye ne-40.5kV, ngokhetho lwangoku olukaliwe lwe1250A, 1600A, kunye no-2000A. Izakhono ezahlukeneyo zokuqhawula ziyafumaneka ukuhlangabezana neemfuno ezahlukeneyo zokuhambisa amandla.

4. Ingafakelwa phi i-36kV Indoor High Voltage Circuit Breaker?

Ilungele i-switchgear yangaphakathi ye-medium-voltage efakwe kwizikhululo ezincinci, kwimizi-mveliso, iinkqubo zamandla asetyenziswayo, izakhiwo zorhwebo, iiprojekthi zamandla ahlaziyekayo, kunye nezibonelelo zemigodi.

5. Ngaba i-breaker circuit ingenziwa ngokwezifiso?

Ewe. I-OEM kunye nezisombululo ezilungiselelwe ziyafumaneka, kubandakanywa ukulinganiswa kwangoku, amandla ombane osebenzayo, abafowunelwa abancedisayo, imilinganiselo yofakelo, izincedisi zokulawula, kunye nokuhambelana kwe-switchgear ngokwemigaqo yeprojekthi.

6. Bude kangakanani ubomi benkonzo yoomatshini?

I-breaker circuit inikezela ubomi bomatshini ukuya kuthi ga10,000 imijikelo yokusebenza, ukuqinisekisa ukusebenza okuthembekileyo kwexesha elide ngelixa kuncitshiswa iindleko zokugcina kunye nokutshintshwa.

7. Ngaba imveliso iyahambelana nemigangatho yehlabathi?

I-breaker circuit yenziwe kwaye ivavanywe ngokwemigangatho ye-IEC esebenzayo ye-medium-voltage vacuum circuit breakers. Izatifikethi ezongezelelweyo kunye neemfuno zobugcisa ezenziwe ngokwezifiso zinokubonelelwa ngokusekelwe kumthengi okanye kwiinkcazo zeprojekthi.

8. Ngaba lo mqhekezi wesekethe unokudityaniswa kwiinkqubo ezikhoyo zokutshintsha?

Ewe. Yenzelwe ukudityaniswa lula kwiiphaneli ezahlukeneyo ze-medium-voltage switchgear. Iqela lethu lobunjineli linokubonelela ngemilinganiselo yokuxhoma eyenziwe ngokwezifiso kunye nenkxaso yobugcisa kwi-retrofit okanye iiprojekthi zofakelo olutsha.
