Uhlobo lwe-17.5KV olusisigxina lwe-Indoor Circuit Breaker

IUhlobo lwe-17.5KV olusisigxina lwe-Indoor Circuit Breakeryenzelwe iinkqubo zokuhambisa amandla ombane aphakathi ezifuna ukutshintsha okuthembekileyo, ukhuseleko nolawulo. Yamkela indlela yokusebenza ye-VET edibeneyo kunye noyilo lwe-vacuum circuit breaker, ukubonelela ngemilinganiselo edibeneyo, ukusebenza okuzinzileyo, kunye nobomi benkonzo ende. Isakhiwo sepali esitywiniweyo sinciphisa iimfuno zokugcina ngelixa siphucula ukuthembeka kwe-insulation kunye nokhuseleko lokusebenza.

Yenzelwe iinkqubo zamandla zanamhlanje, iUhlobo lwe-17.5KV olusisigxina lwe-Indoor Circuit Breakeriyahambelana ne-metal-clad switchgear kunye ne-XGN esisigxina yangaphakathi ye-AC yentsimbi-efakwe kwi-switchgear. Isetyenziswa ngokubanzi kwizitishi ezingaphantsi, amaziko oshishino, izakhiwo zorhwebo, uthungelwano oluluncedo, kunye neeprojekthi zamandla ahlaziyekayo apho kufuneka ukhuseleko lombane ophakathi.

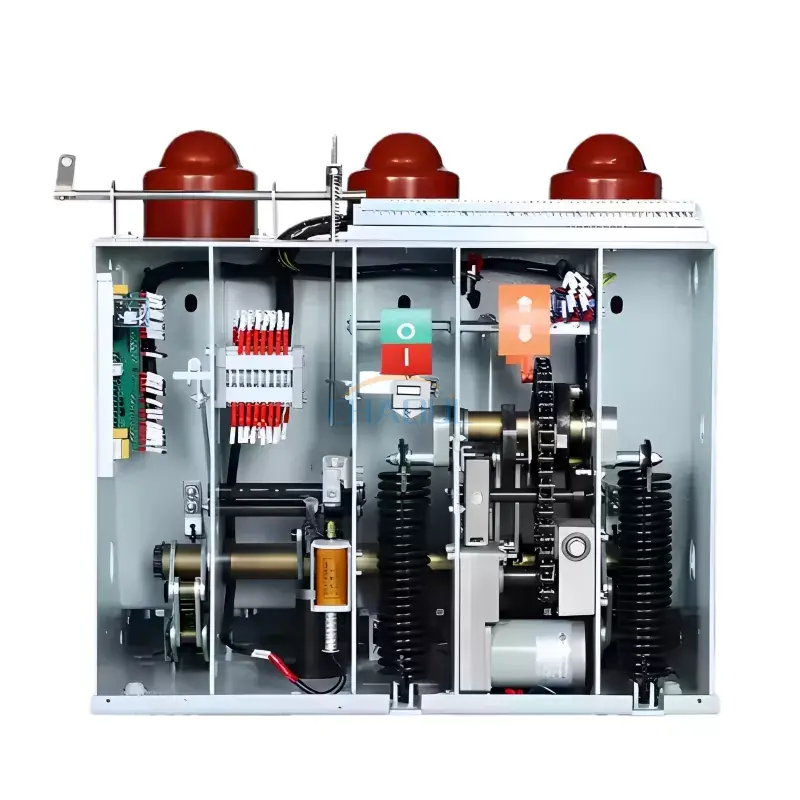

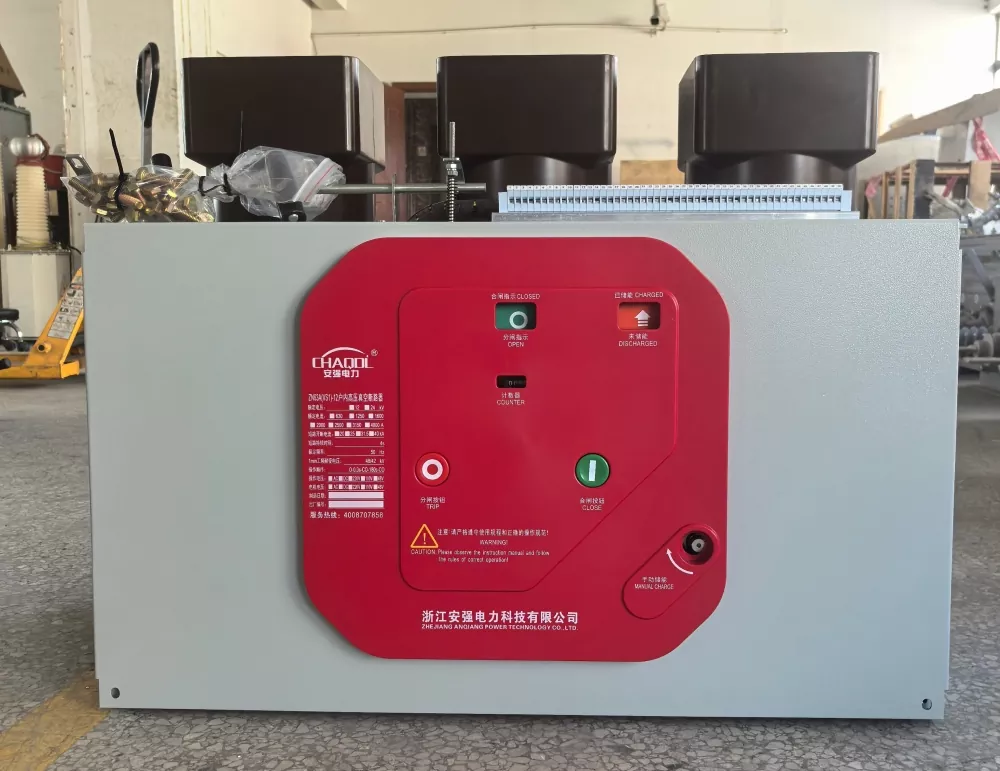

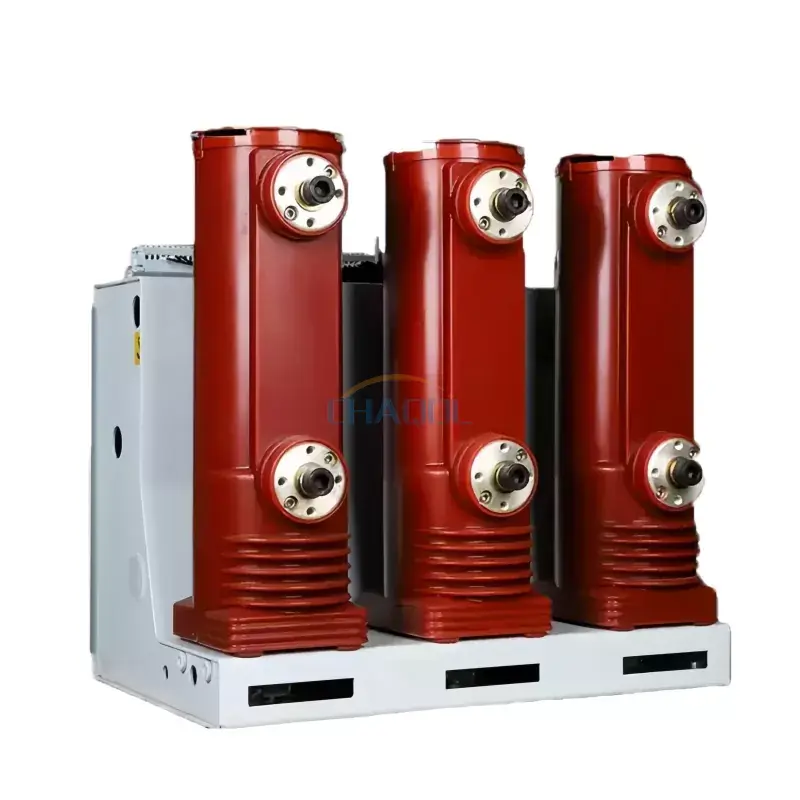

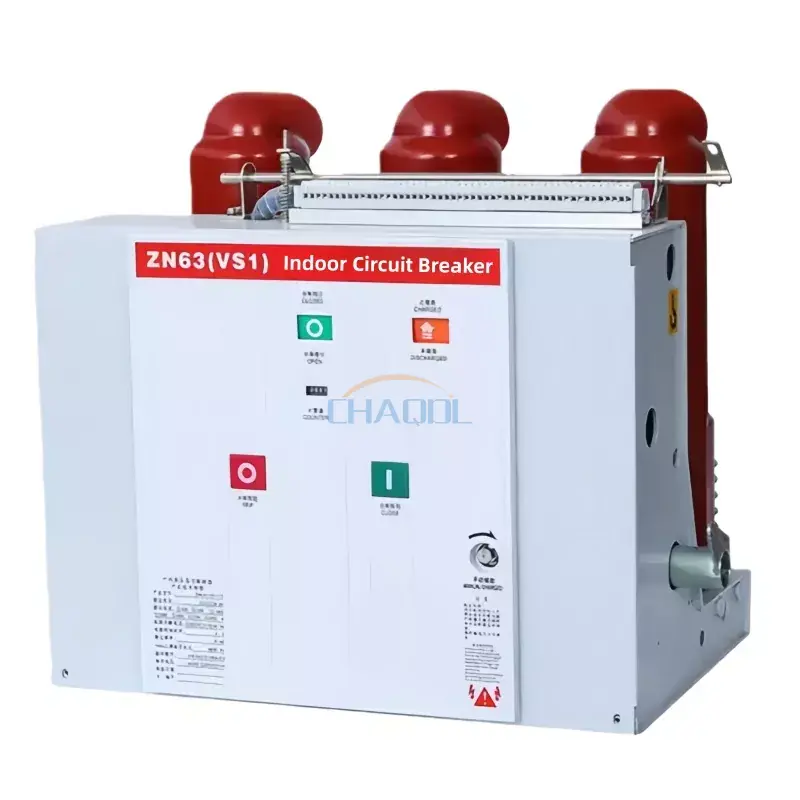

Iifoto zeMveliso eyiyo

Iimpawu zeMveliso

• Indlela yokusebenza yeVET edibeneyo iqinisekisa ukuvulwa nokuvala okuzinzileyo.
• Itekhnoloji yokuphazamiseka kwevacuum etywinwe ngokupheleleyo ibonelela ngokusebenza simahla kunye nobomi obude bombane.
• Isakhiwo sohlobo olusisigxina olusisigxina sinciphisa indawo yokufakela ngelixa siphucula ukuthembeka okupheleleyo.
• IUhlobo lwe-17.5KV olusisigxina lwe-Indoor Circuit BreakerIbonelela ngokugqwesileyo kwe-dielectric insulation, ukuphela kwe-arc ngokukhawuleza, kunye nokunxiba okuphantsi konxibelelwano.
• Ixhasa imisebenzi yokutshintsha rhoqo kunye nobomi boomatshini ukuya kuthi ga kwimijikelezo yokusebenza eyi-10,000.
• Iyahambelana nochungechunge lwe-KYN olurhoxiswayo lokutshintshela kunye ne-XGN esisigxina yokutshintsha.
• Ukuthembeka okuphezulu phantsi komsebenzi oqhubekayo woshishino.
• Ufakelo olulula kunye neendleko eziphantsi zokugcinwa komjikelo wobomi.

IiParameters zobuGcisa

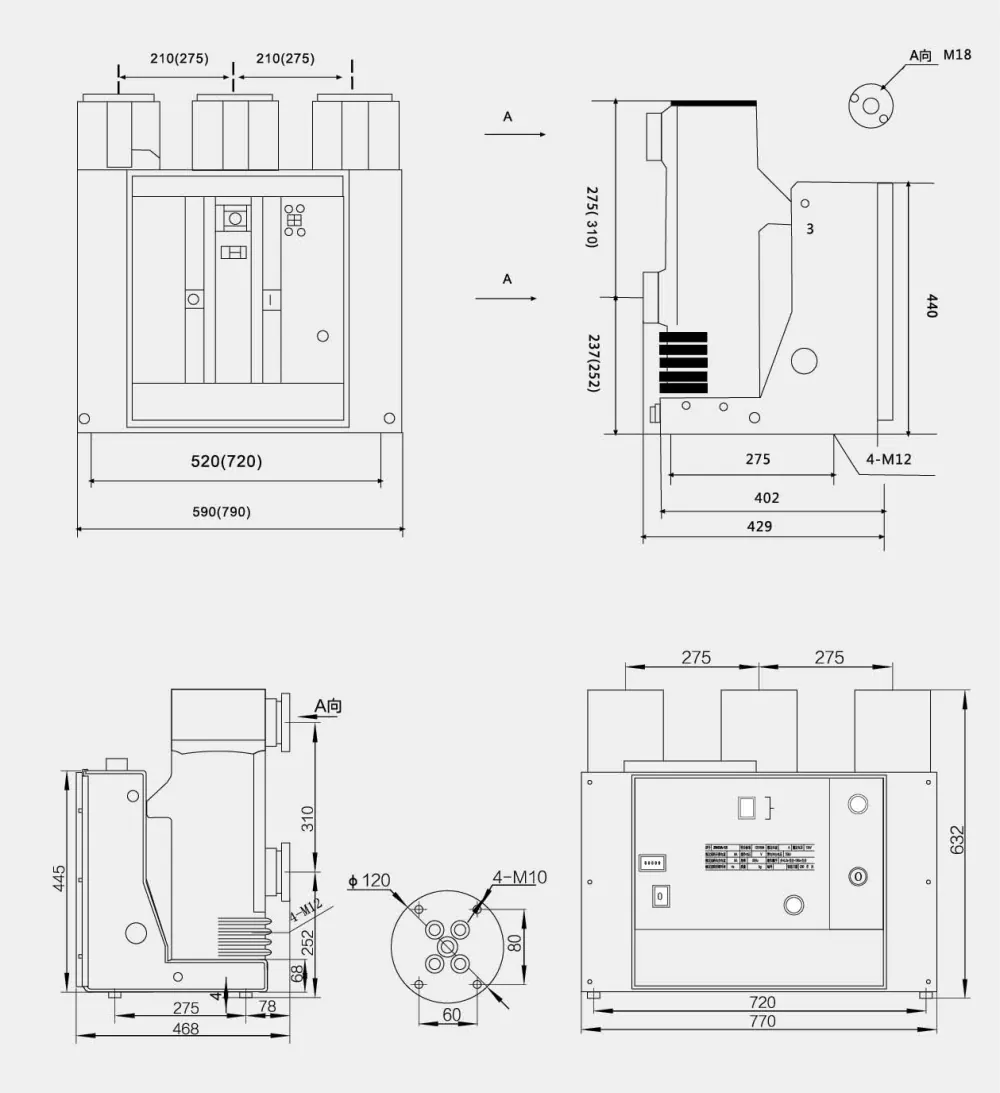

Imilinganiselo yeMveliso

Uyilo loLwakhiwo

I-breaker circuit idibanisa indlela yokusebenza kunye ne-vacuum interrupter kwi-compact fixed-mounted structure. Iindibano zepali ezifakwe ngokupheleleyo ziphucula ukusebenza kwe-insulation ngelixa zikhusela izinto zangaphakathi kuthuli, ukufuma, kunye nokungcoliseka kwendalo. Olu luyilo lwandisa kakhulu ukuthembeka kokusebenza kunye nokunciphisa iimfuno zesiqhelo zokugcinwa.

Indlela yokusebenza yasentwasahlobo iqinisekisa ukuvulwa ngokukhawuleza kunye nokuvala izenzo kunye nokuhanjiswa komatshini okuzinzile, okwenza i-breaker ilungele ukusebenza kwexesha elide kwiinkqubo ze-switchgear medium-voltage.

Usetyenziso

IUhlobo lwe-17.5KV olusisigxina lwe-Indoor Circuit Breakerisetyenziselwa kakhulu ukutshintsha, ukhuseleko, kunye nolawulo kwiinkqubo zokuhambisa umbane ophakathi.

• Medium-voltage metal-clad switchgear
• I-XGN yentsimbi yangaphakathi efakwe kwi-switchgear
• Izitishi eziluncedo
• Izityalo zokuvelisa amandla
• Amaziko okuvelisa amashishini
• Imisebenzi yemigodi
• Amashishini esinyithi
• Amaziko okulungisa imichiza
• Izakhiwo zorhwebo
• Iinkqubo zokuhanjiswa kwamandla ahlaziyekayo

Indawo yokusebenza

• Ubushushu be-Ambient: -10°C ukuya +40°C (ugcino lwehle ukuya ku -30°C)
• Umphakamo wofakelo: ≤1000m (ubude obuphezulu bufumaneka ngesicelo)
• Umyinge wemihla ngemihla wokufuma okunxulumeneyo: ≤95%
• Ubuninzi be-seismic intensite: 8 degrees
• Ifanele imo engqongileyo engenabungozi bomlilo, imingcipheko yogqabhuko-dubulo, iigesi ezinobungozi, ungcoliseko olumandla, kunye nokungcangcazela okugqithisileyo.

Kutheni Khetha le Mveliso?

• Isiphazamisi sevacuum esitywiniweyo esingenalugcino
• Uyilo lokufakela olusisigxina oluqinileyo
• Ubomi obude benkonzo yombane kunye noomatshini
• Ukuthembeka okuphezulu kwe-insulation
• Ikhono eligqwesileyo lophazamiseko lwesekethe emfutshane
• Iyahambelana nesixhobo sokutshintsha esiphakathi sombane ophakathi
• Ukusebenza okuzinzileyo phantsi kweemeko zokutshintsha rhoqo
• Iindleko eziphantsi zokusebenza nokugcinwa kwazo

Imibuzo ebuzwa qho

Isetyenziselwa ntoni i-17.5KV Type Fixed Circuit Breaker?

Isetyenziselwa ukukhusela nokulawula izixhobo zombane ezine-voltage ephakathi ngokuphazamisa ukugcwala kunye nemisinga emfutshane yesekethe kwizitishi, amaziko oshishino, kunye neenkqubo zokuhambisa amandla.

Sesiphi isixhobo sokutshintsha esi siqhekezayo sihambelana naso?

Ifanelekile kwi-KYN series metal-clad withdrawable switchgear kunye ne-XGN esisigxina yangaphakathi ye-AC yentsimbi-efakwe kwi-switchgear.

Ziziphi iingenelo zetekhnoloji yokuphazamiseka kwevacuum?

Iziphazamisi ze-vacuum zibonelela ngokuphela kwe-arc ngokukhawuleza, ubomi obude bombane, ukugcinwa okuncinci, ukusebenza okuphezulu kwe-insulation, kunye nokusebenza kobume bendalo ngaphandle kwegesi ye-SF6.

Ngaba i-breaker ingakwazi ukusingatha imisebenzi yokutshintsha rhoqo?

Ewe. Ngobomi bomatshini obufikelela kwi-10,000 yokusebenza kunye nenkqubo yokusebenza ehlala ixesha elide, ifaneleka kakuhle kwizicelo ezifuna ukutshintshwa rhoqo.

Ngawaphi amashishini aqhele ukusebenzisa le mveliso?

Isetyenziswa kakhulu kwizitishi ezisetyenziswayo, ukuveliswa kwemizi-mveliso, imigodi, isinyithi, ukusetyenzwa kweekhemikhali, izibonelelo zorhwebo, kunye neenkqubo zokusasaza amandla avuselelekayo.
