I-11KV ye-Oli eTshinyiweyo yeTransformer

Model:S11-M-(30-2500)

Amandla e-Anqiang yifektri yaseTshayina eyi-11KV entywiliselwe i-oyile ye-oyile. Umthamo olinganisiweyo wezi ziguquli ezifakwe kwioli zingenziwa ngokwezifiso ngokweemfuno zabathengi, ukusuka kwi-30KVA ukuya kwi-2500KVA. Iimveliso zibonakalisa ukusebenza kakuhle kunye nelahleko ephantsi, ukugcina ukusetyenziswa kombane okubalulekileyo kunye neendleko zokusebenza. Zisetyenziswa ngokubanzi kuphuculo lwegridi yamandla, izitishi, amashishini epetrochemical, kunye neeprojekthi zolwakhiwo lwenethiwekhi yomsesane.

Thumela uMbuzo

Ingcaciso yeMveliso

II-11KV ye-Oli eTshinyiweyo yeTransformer(S11-M-(30-2500)) yi-transformer yokusabalalisa izigaba ezintathu eyenzelwe uthungelwano oluthembekileyo lwangaphandle kunye nokuhanjiswa kwamandla ngaphakathi. Yamkela i-oyile etywinwe ngokupheleleyo isakhiwo sokucwiliswa kweoli kunye nokusebenza kokupholisa okuphezulu, ukuqinisekisa ukusebenza okuzinzile phantsi kweemeko zomthwalo wexesha elide.

Yakhelwe ngondoqo we-silicon yentsimbi epholileyo kunye ne-oxygen-free windings yobhedu, ihambisa ukuxhathisa olomeleleyo kwi-short-circuit, ilahleko yamandla aphantsi, kunye nokusebenza okugqwesileyo kolawulo lwamandla ombane, iyenza ilungele umzi-mveliso, usetyenziso, kunye neenkqubo zamandla ezisisiseko.

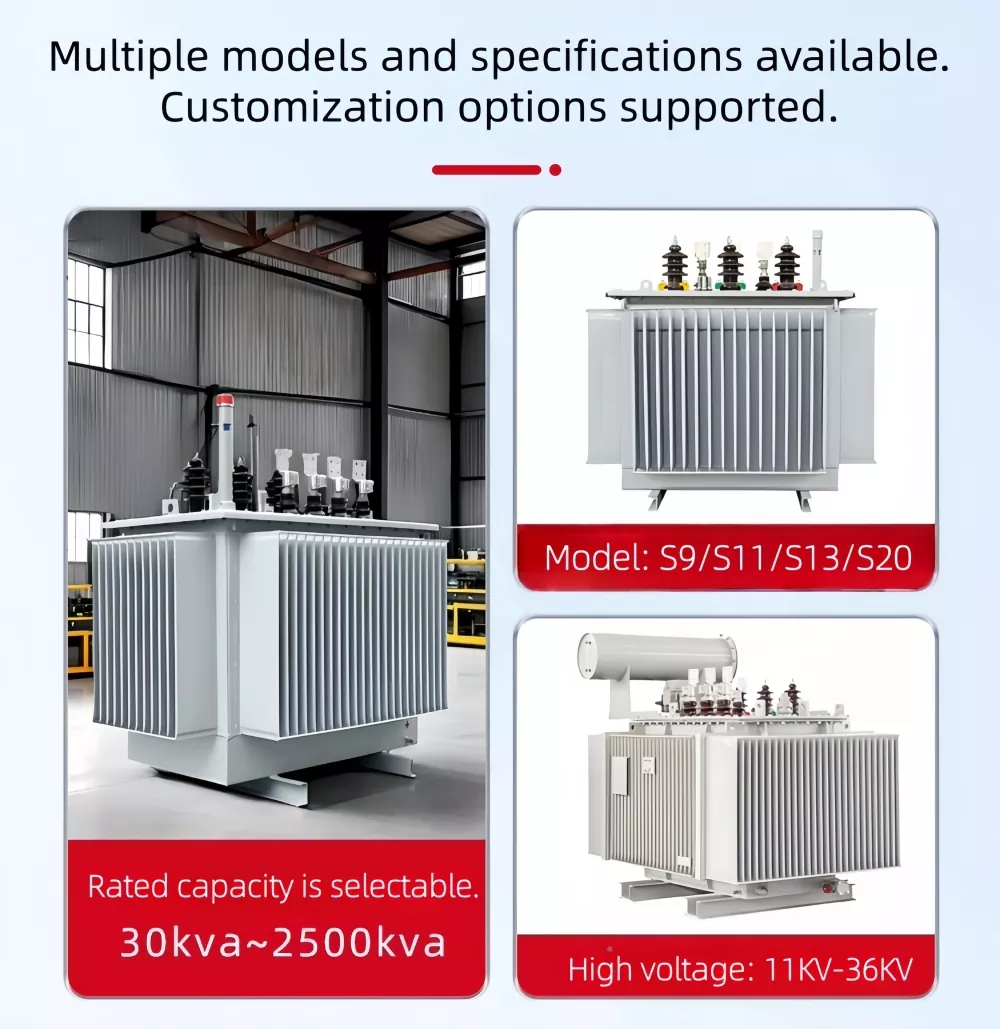

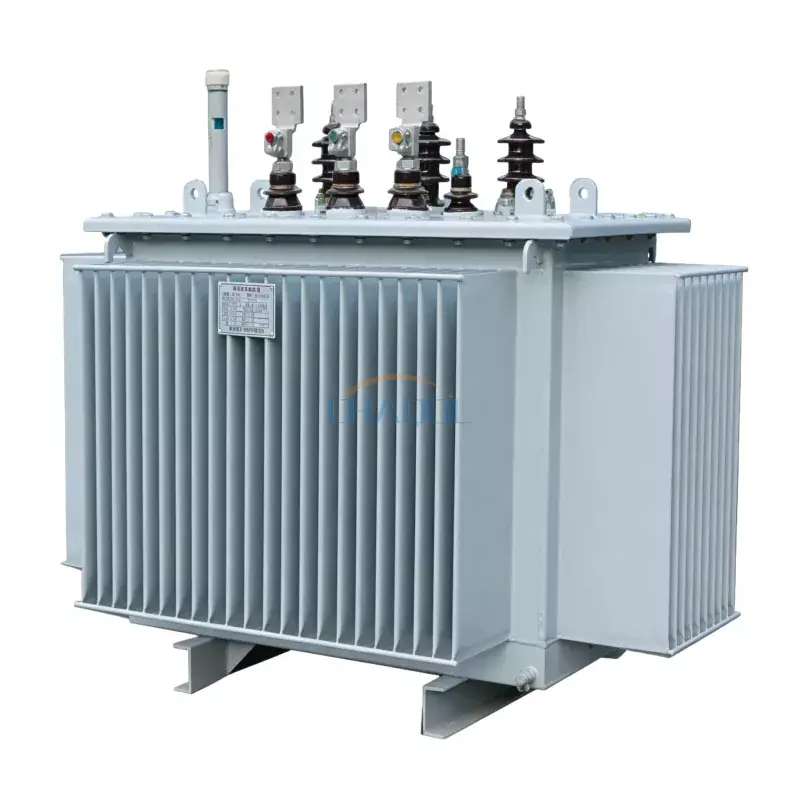

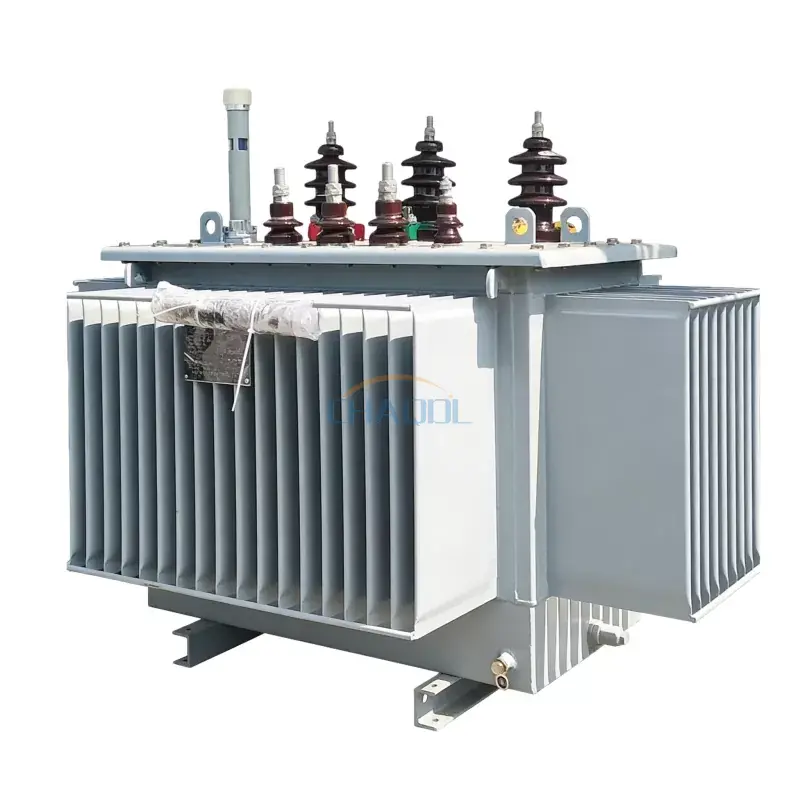

Iifoto zemveliso

11KV Oil Immersed Transformer

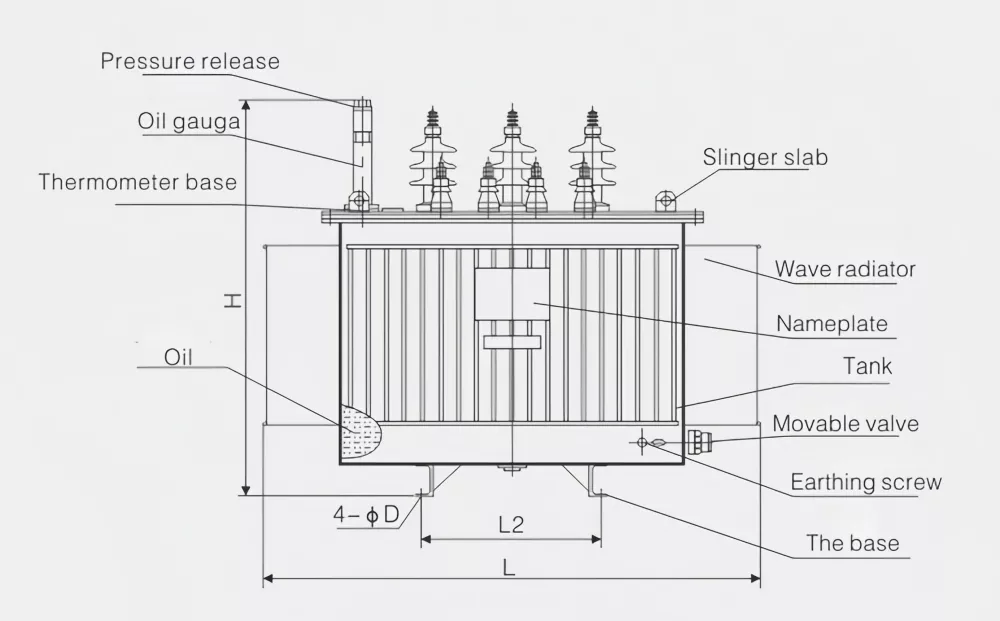

Isishwankathelo sesakhiwo semveliso

11KV Oil Immersed Transformer Structure

Iimpawu eziphambili zobugcisa

Uyilo oluntywilisiweyo olutywiniweyo ngokupheleleyo lokuphucula ukuzinza kwe-insulation
Undoqo wentsimbi yesilicon epholileyo kunye nesekethe yemagnethi ephuculweyo
I-oxygen-free copper winding yokunciphisa ilahleko yokuxhathisa
Ubunakho bomthwalo owomeleleyo kunye namandla omatshini aphezulu
Ifanelekile kumgama omde kunye nokuhanjiswa kwamandla obunzima

Kwiinkqubo zegridi zanamhlanje, iI-11KV ye-Oli eTshinyiweyo yeTransformerikhethwa ngokubanzi kwibhalansi yayo phakathi kokusebenza kakuhle kweendleko kunye nokuthembeka kokusebenza, ngakumbi kwizitishi zangaphandle kunye nothungelwano lwamandla oshishino.

IiNgcaciso zobuGcisa

Iiparamitha zokusebenza ze-S11 uhlobo lwe-10/11KV ioli entywiliselwe i-transformer.

Umthamo olinganisiweyo (kVA)	Indibaniselwano yombane (kV)		Akukho mthwalo ulahlekileyo (W)	Ilahleko yomthwalo (W)	Akukho mthwalo wangoku (%)	Ukuphazamiseka kwexesha elifutshane (%)
Umthamo olinganisiweyo (kVA)	uxinzelelo oluphezulu	uxinzelelo oluphantsi	Akukho mthwalo ulahlekileyo (W)	Ilahleko yomthwalo (W)	Akukho mthwalo wangoku (%)	Ukuphazamiseka kwexesha elifutshane (%)
30	6 6.3 10 10.5 11	0.4	100	630/600	2.3	4.0
50			130	910/870	2.0
63			150	1090/1040	1.9
80			180	1310/1250	1.9
100			200	1580/1500	1.8
125			240	1890/1800	1.7
160			280	2310/2200	1.6
200			340	2730/2600	1.5
250			400	3200/3050	1.4
315			480	3830/3650	1.4
400			570	4520/4300	1.3
500			680	5410/5100	1.2
630			810	6200	1.1	4.5
800			980	7500	1.0
1000			1150	10300	1.0
1250			1360	12800	0.9
1600			1640	14500	0.8
2000			2280	17820	0.6	5.0
2500			2700	20700	0.6	5.0

Iindlela ezizezinye zeTransformer zethu kuShishino

Xa kuthelekiswa nezisombululo zemarike eziqhelekileyo, iI-11KV ye-Oli eTshinyiweyo yeTransformerinikeza ukusebenza okulinganayo ngakumbi ekusebenzeni, ukuqina, kunye nokulawulwa kweendleko zobomi.

Into yokuthelekisa	Isiguquli sethu se-S11 se-Oli eNtwilisiweyo	Isiguquli seS9 esisemgangathweni	Isiguquli sodidi olomileyo
Izinto ezingundoqo	Intsimbi ye-silicon epholileyo	Intsimbi ye-silicon eqhelekileyo	Silicon steel / epoxy resin
Ilahleko yaMandla	Ilahleko ephantsi engenamthwalo	Ilahleko ephezulu	Phakathi ukuya kwilahleko ephezulu
Indlela yokupholisa	Ukupholisa i-oyile yendalo	Ukupholisa ioli	Ukupholisa umoya
Ubomi Benkonzo	Ubomi benkonzo ende	Phakathi	Phakathi
Isondlo	Iindleko zokulungisa eziphantsi	Phakathi	Ukugcinwa okuphezulu kwiindawo ezinothuli

Iimeko zeSicelo

II-11KV ye-Oli eTshinyiweyo yeTransformerisetyenziswa ngokubanzi kwiigridi zamandla ezilalini, kwimizi-mveliso yemizi-mveliso, imisebenzi yezemigodi, iindawo zorhwebo, kunye nezikhululo eziluncedo apho uguqulo lwamandla ombane oluzinzileyo kunye nokusebenza ngokuqhubekayo kufuneka.

FAQ

I-Q1: Iyintoni inzuzo ephambili ye-oyile entywiliselwe i-transformer?
A: Ibonelela ngokusebenza ngcono kokupholisa, umthamo ophezulu wokugcwala, kunye nobomi benkonzo obude xa kuthelekiswa nolunye uhlobo olomileyo.

I-Q2: Ngaba i-11KV ye-Oli yokuMbhaptiza iTransformer ilungele ukusetyenziswa ngaphandle?
A: Ewe, yenzelwe zombini izitishi zangaphakathi kunye nangaphandle kunye nokhuseleko lofakelo olufanelekileyo.

I-Q3: I-oyile ifuna ukutshintshwa kaninzi kangakanani?
A: Phantsi kweemeko eziqhelekileyo zokusebenza, i-oyile ye-transformer inokuhlala iminyaka emininzi, kodwa uvavanyo lwezihlandlo luyacetyiswa endaweni yokutshintshwa rhoqo.

I-Q4: Yintoni eyenza le modeli isebenze ngakumbi kuneziguquli ezindala?
A: Uyilo lwe-S11 lunciphisa ilahleko yokungabikho komthwalo kwaye luphucula ukusebenza kakuhle kwamandla xa kuthelekiswa nemodeli ye-S9 endala.

I-Q5: Ngaba inokusingatha imithwalo enzima yemizi-mveliso?
A: Ewe, i-transformer yenzelwe ukulayisha okuphezulu kwimizi-mveliso kunye nezicelo eziluncedo ezinokumelana nesantya esifutshane.
