I-10KV ye-Amorphous Alloy Dry Type Transformer

Model:SBH15-H-(30-2500)/10

Amandla ka-Anqiang ngumvelisi waseTshayina we-10KV amorphous alloy dry type transformers. Iziguquli zisebenzisa i-amorphous alloy cores, ezinciphisa ilahleko yokungathwali mthwalo ngaphezu kwe-75% xa kuthelekiswa neziguquli ezineentsimbi eziqhelekileyo ze-silicon. Iimveliso zisetyenziswa kakhulu kwiifektri, izakhiwo, izikolo, amashishini amashishini kunye nemigodi, ukuveliswa kwamandla e-photovoltaic, oololiwe abahamba ngesantya esiphezulu, izitishi, kunye nezinye izicelo.

Thumela uMbuzo

Ingcaciso yeMveliso

II-10KV ye-Amorphous Alloy Dry Type Transformer(SBH15-H-(30-2500)/10) yenzelwe i-insulation non-oil-immersed structure, ukuqinisekisa ukusebenza okukhuselekileyo, ukunciphisa umngcipheko womlilo, kunye nokuphuculwa kokusebenza kokusingqongileyo. Yamkela itekhnoloji ephambili ye-amorphous alloy core, enciphisa kakhulu ilahleko yokungathwali kunye nokuphucula ukusebenza kakuhle kwamandla kwiinkqubo zanamhlanje zokuhambisa amandla.

Xa kuthelekiswa neeyunithi eziqhelekileyo zokuntywiliselwa kweoli, iI-10KV ye-Amorphous Alloy Dry Type Transformerinikezela ukusebenza okuzinzileyo kwiindawo ezibangwayo ezifana nezakhiwo zorhwebo, izityalo zoshishino, iinkqubo zamandla ahlaziyekayo, kunye nothungelwano lwamandla asezidolophini apho ukhuseleko kunye nokugcinwa okuphantsi kubaluleke kakhulu.

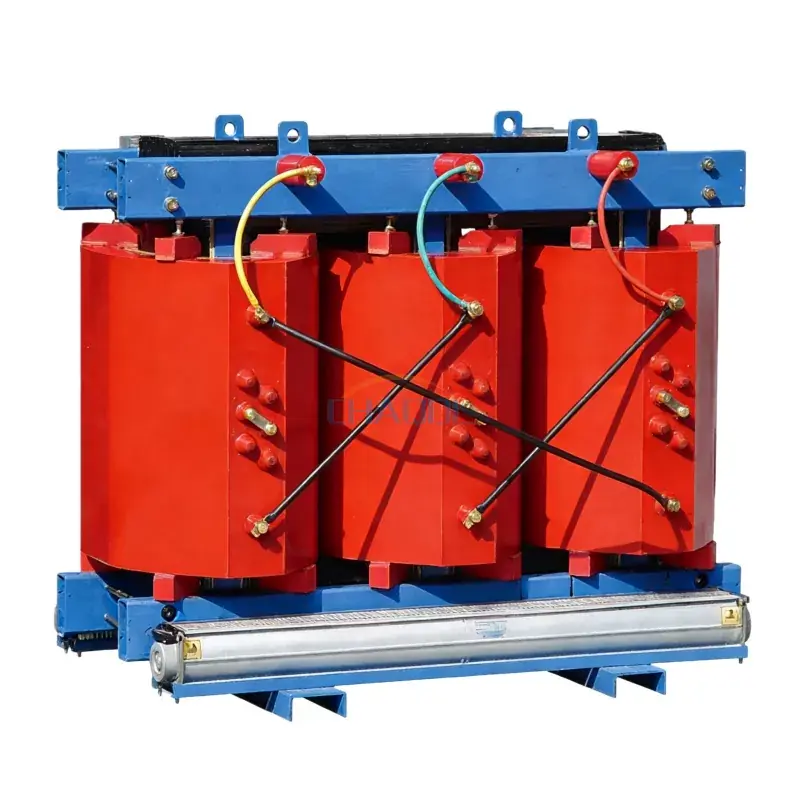

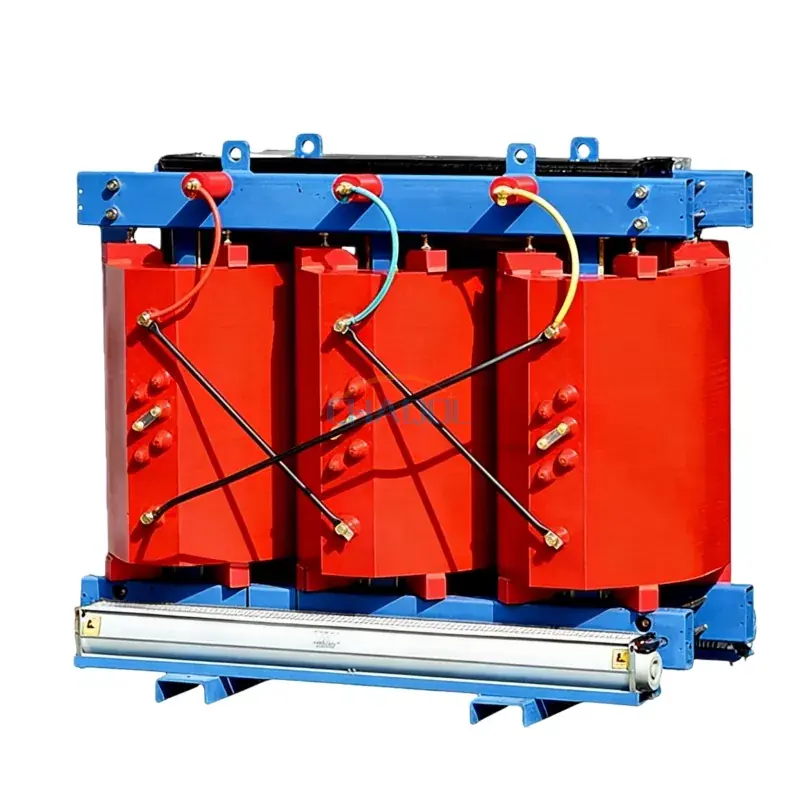

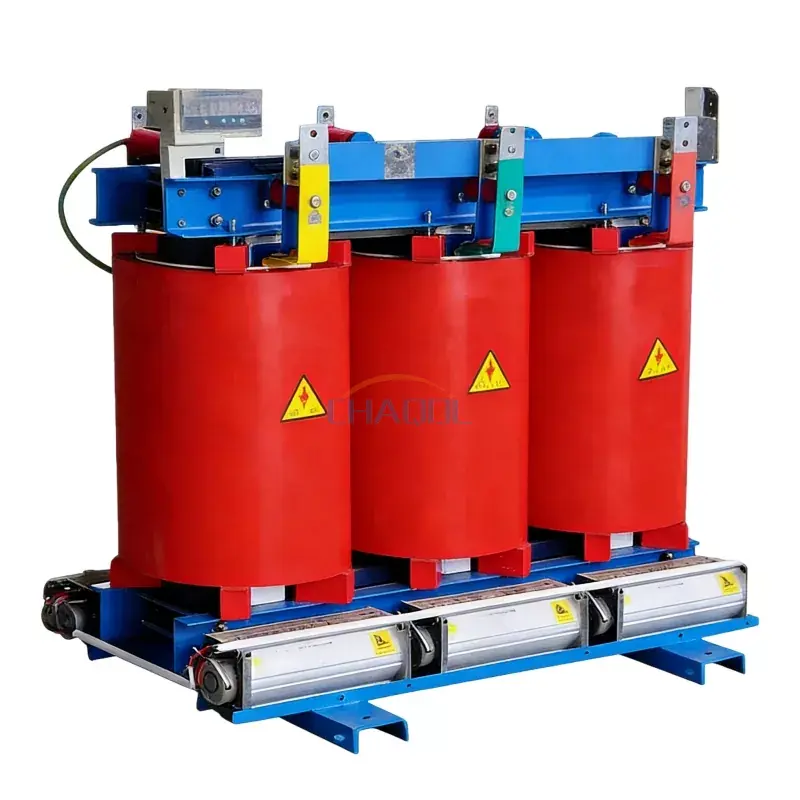

Imveliso yokubonisa imifanekiso

10KV Amorphous Alloy Dry Type Transformer

Iimpawu eziphambili

Ukonga amandla e-amorphous alloy core kunye ne-ultra-low no-load loss
Inkqubo yokufakelwa kohlobo olomileyo ngaphandle kweoli yokukhusela, ukuphucula ukhuseleko lomlilo
Umthamo owomeleleyo wokulayisha kunye neendlela zokupholisa umoya zendalo kunye nokunyanzeliswa
Isakhiwo esibambeneyo esifanelekileyo kwizitishi zangaphakathi kunye nofakelo oluvaliweyo
Ukusebenza kwengxolo ephantsi yezicelo zasedolophini nezorhwebo

Uyilo lwesakhiwo sokuI-10KV ye-Amorphous Alloy Dry Type Transformerivumela ukutshatyalaliswa kobushushu obusebenzayo kunye nokusebenza okuzinzile kwamagnetic, ukuqinisekisa ubomi obude benkonzo kunye nokunciphisa iindleko zokusebenza ngexesha.

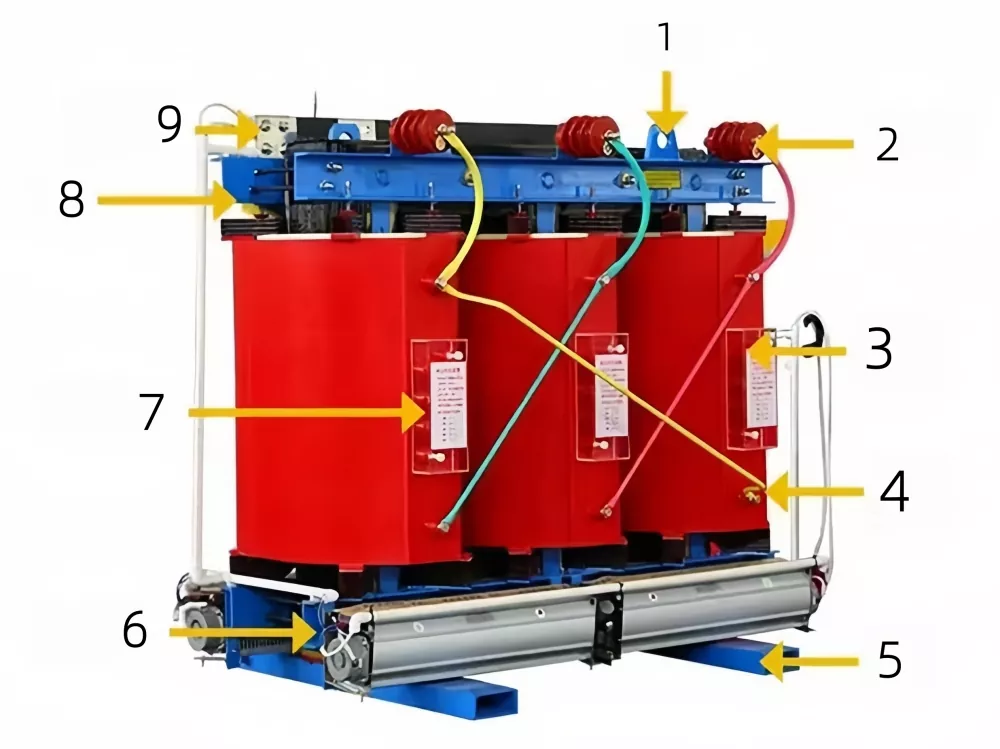

ISazobe sokuchongwa kweCandelo

10KV Transformer Components Diagram

Inombolo yesiriyeli	Igama
1	Iringi (umthambo)
2	Itheminali ene-voltage ephezulu
3	Isinxibelelanisi sempompo enevoltage ephezulu
4	Intonga yokudibanisa i-high-voltage
5	Isiseko
6	Grounding screw
7	Isidibanisi sombane ophezulu
8	Amalungu okubamba
9	I-low-voltage output copper busbar

Iiparamitha zobuGcisa

Ukusebenza kweI-10KV ye-Amorphous Alloy Dry Type Transformerilungiselelwe ilahleko ephantsi kunye neenkqubo eziphezulu zokusasazwa kakuhle. Itheyibhile engezantsi ibonisa eyona nkcazelo yombane kunye neyoomatshini kuluhlu oluhlukeneyo lwamandla.

Umthamo olinganisiweyo (kVA)	Umbane olinganisiweyo (kV)		Akukho mthwalo wangoku (%)	Ilahleko (W)		Impembelelo yombane (%)	Imilinganiselo (mm) Ubude * Ububanzi * Ubude
Umthamo olinganisiweyo (kVA)	Uxinzelelo oluphezulu	Uxinzelelo oluphantsi	Akukho mthwalo wangoku (%)	Akukho mthwalo	Layisha	Layisha	Imilinganiselo (mm) Ubude * Ububanzi * Ubude
30	20±2*2.5	0.4	1.7	40	600	5.5	10007801060
50			1.3	55	960		10308501110
80			1.0	75	1375		10609001115
100			1.0	90	1650		11109101170
160			0.7	120	2420		12209101235
200			0.7	145	2860		12909201275
250			0.7	165	3355		13609201310
315			0.5	200	4015		13808601415
400			0.5	240	4730		15109001490
500			0.5	290	5665		16409001545
630			0.3	370	6820	6	174011201550
800			0.3	450	8250		207012301595
1000			0.3	530	11330		226013501635
1250			0.2	620	13200		236013501695
1600			0.2	750	15950		253013901775
2000			0.2	900	19410		275014501900
2500			0.2	1080	22220		290015102000

Iimeko zeSicelo

OkuI-10KV ye-Amorphous Alloy Dry Type Transformerisetyenziswa kakhulu ekuhanjisweni kwamandla kwimizi-mveliso, iinkqubo zemetro, izakhiwo zorhwebo, izibhedlele, amaziko edatha, kunye neendawo ezihlaziywayo zamandla. Isakhiwo sayo sohlobo olomileyo lwenza ukuba lufaneleke ngokukodwa kwiindawo ezifuna imigangatho ephezulu yokhuseleko lomlilo kunye nokuthembeka kokusebenza okuqhubekayo.

Kutheni ukhetha le modeli?

Ngezinto eziphambili eziphuculweyo kunye noyilo oluphambili lokupholisa, iI-10KV ye-Amorphous Alloy Dry Type Transformerkunciphisa ilahleko yamandla kakhulu ngelixa igcina imveliso yombane ezinzileyo. Sisisombululo sexesha elide esineendleko ezifanelekileyo kwiiprojekthi ezigxile ekusebenzeni kwamandla kunye neziseko zombane ezizinzileyo.

Umguquli wethu vs abakhuphisana nabo kuShishino

Xa uthelekisa iI-10KV ye-Amorphous Alloy Dry Type Transformerngeendlela ezizezinye zemarike ezisemgangathweni, iyantlukwano engundoqo emininzi iyacaca ekusebenzeni, ukuqina, kunye neendleko zomjikelo wobomi.

Into yokuthelekisa	Yethu iAmorphous Alloy Dry Type Transformer	Traditional Silicon Steel Dry Transformer	Isiguquli esintywiliselwe ngeoyile (Uhlobo lweMarike oluQhelekileyo)
Izinto ezingundoqo	I-amorphous alloy ephantsi-ilahleko engundoqo	I-silicon yentsimbi engundoqo	I-silicon yentsimbi engundoqo
Ilahleko yaMandla	Ilahleko ephantsi kakhulu engenamthwalo	Ilahleko ephakathi	Ilahleko ephezulu
Ukhuseleko	Akukho oyile, uyilo lokumelana nomlilo	Uhlobo olomileyo, ukhuseleko oluphakathi	Ukuvuza kweoyile kunye nomngcipheko womlilo
Isondlo	Ukugcinwa okuphantsi	Ulondolozo oluphakathi	Ukugcinwa okuphezulu
Umsebenzi wobomi	Ubomi benkonzo ende	Phakathi	Phakathi

FAQ

I-Q1: Yintoni eyenza i-amorphous alloy transformer isebenze ngakumbi?
A: Isakhiwo esisisiseko se-amorphous sinciphisa kakhulu ilahleko ye-hysteresis, okukhokelela ekusetyenzisweni kwamandla okungaphantsi kokungabikho komthwalo xa kuthelekiswa ne-cores ye-transformer yesiqhelo.

I-Q2: Ngaba lo mguquleli ufanelekile ukufakelwa kwangaphakathi?
A: Ewe, uyilo lohlobo olomileyo lwenzelwe ngokukodwa iimeko zangaphakathi ezinje ngezikhululo ezincinci, izakhiwo zorhwebo, kunye nezibonelelo zemizi-mveliso.

I-Q3: Ingaba i-transformer ifuna kaninzi kangakanani ukugcinwa?
A: Iimfuno zokugcinwa zincinci ngenxa yokungabikho kweoli ye-insulating kunye nesakhiwo esizinzile senkqubo yokucima okomileyo.

I-Q4: Yeyiphi inzuzo ephambili xa kuthelekiswa ne-oyile-i-immered transformers?
A: Iphelisa imingcipheko yomlilo kunye nokuvuza ngelixa ibonelela ngokuhambelana okusingqongileyo okungcono kunye nofakelo olulula.

I-Q5: Ngaba inokusingatha iimeko zokugcwala?
A: Ewe, iyunithi isekela ukupholisa umoya okunyanzeliswayo, ukuvumela ukusebenza okwethutyana kokugqithiswa ukuya kuthi ga kwi-50% ngokuxhomekeke kuqwalaselo.
