IGuquli yeSixhobo iluphucula njani uKhuseleko lweNkqubo yoMbane?

Inkcazo: Iziguquli zesixhobozizinto ezibalulekileyo kwiinkqubo zombane zanamhlanje. Baphucula ukhuseleko, baqinisekisa umlinganiselo ochanekileyo, kwaye bakhusela izixhobo kwiingozi zombane ophezulu. Eli nqaku liphonononga indlela abaguquli besixhobo abasebenza ngayo, izibonelelo zabo, iintlobo, iingcebiso zokufakela, kunye neendlela eziqhelekileyo zokusombulula ingxaki, ukubonelela ngezisombululo kwimingeni yehlabathi yokwenene ejongene neenjineli zombane kunye nabaphathi bamaziko.

Isiqulatho

• Intshayelelo
• Yintoni isiGuquli seSixhobo?
• Iintlobo zeZiguquleli zesixhobo
• Iingenelo zokuSebenzisa iZiguquleli zesixhobo
• Iingcebiso zoFakelo kunye neZenzo ezilungileyo
• Ukusombulula imiba eqhelekileyo
• FAQ
• Isiphelo kunye noQhagamshelwano

Intshayelelo

Kwindawo yobunjineli bombane, ukhuseleko kunye nokuchaneka kubalulekile. Iinkqubo zamandla ombane aphezulu zibeka umngcipheko hayi kwizixhobo kuphela kodwa nakubasebenzi. Iziguquli zesixhobo zisebenza njengabalamli abakhuselayo, zinyusa amandla ombane aphezulu okanye amanqanaba akhoyo ngoku kumaxabiso alawulekayo nanokulinganiswa kwiimitha, iireyilayi kunye nezixhobo zokubeka iliso. Ngokuqonda indima yabo, iinjineli zinokunyusa ukusebenza kwenkqubo ngelixa zigcina imigangatho engqongqo yokhuseleko.

Yintoni isiGuquli seSixhobo?

Isixhobo sokuguqula isixhobo sisixhobo esinciphisa i-voltage ephezulu okanye yangoku ukuya kwinqanaba elisezantsi, elisemgangathweni, elivumela umlinganiselo okhuselekileyo kunye nokubeka iliso. Isebenza ngeenjongo eziphambili ezimbini:

• Umlinganiselo:Ukubonakaliswa ngokuchanekileyo kwamandla ombane kunye nombane kwiimitha kunye neenkqubo zokubeka iliso.
• Ukhuseleko:Iireyiyidi zokhuselo kunye nezinye izixhobo zokhuselo ngokuzikhetha kumbane ophezulu.

Amacandelo aphambili abandakanya:

• Ukujija okuphambili
• Ukujija okwesibini
• Undoqo (izinto zemagneti)
• Inkqubo ye-insulation

Abaguquli besixhobo bahlelwa ngokweendidi ezimbini eziphambili:

1. Iinguqu zangoku (CTs)
2. Umbane/Iziguquleli ezinokwenzeka (VTs/PTs)

Iintlobo zeZiguquleli zesixhobo

Iinguqu zangoku (CTs)

I-transformers yangoku yenzelwe ukulinganisa amanqanaba aphezulu ngoku ngokuvelisa umlinganiselo ophantsi wangoku kwi-winding yesibini. Izicelo eziphambili ziquka:

• Ukulinganisa amandla
• Ukhuseleko lwangoku
• Ukujongwa komgangatho wamandla

Iziguquli zombane (VTs/PTs)

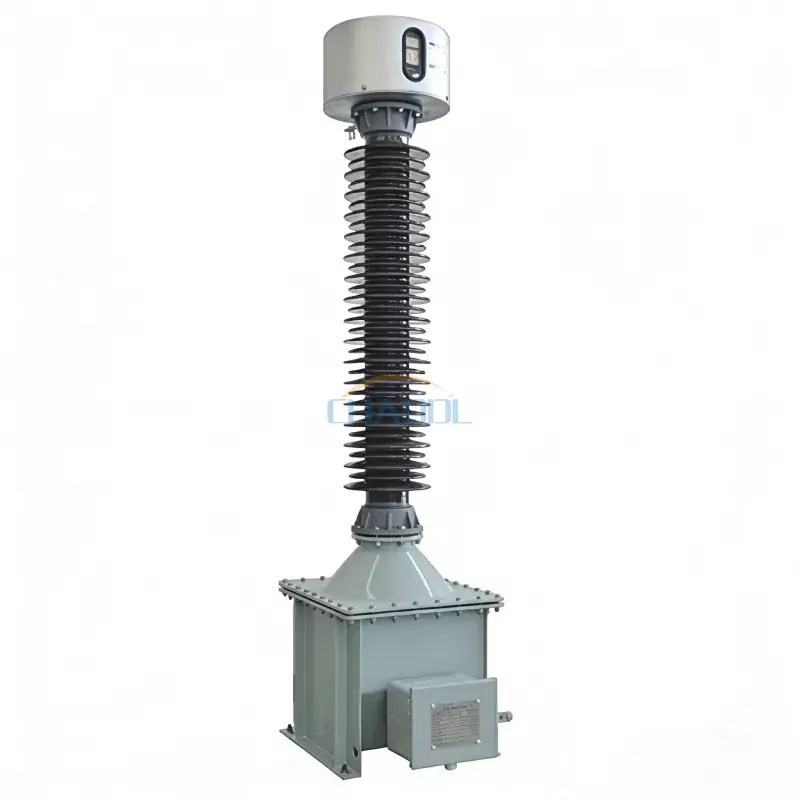

I-voltage transformers, eyaziwa ngokuba ngabaguquli abanokubakho, inciphisa amandla ombane aphezulu ukuya kwinqanaba elikhuselekileyo, elinokulinganiswa. Ziyimfuneko kwi:

• Umlinganiselo wombane
• Umsebenzi wokudlulisa
• Ukujongwa kwenkqubo yamandla

Itheyibhile yokuthelekisa

Iingenelo zokuSebenzisa iZiguquleli zesixhobo

Iziguquli zesixhobo zibonelela ngeenzuzo ezininzi, kubandakanya:

• Ukhuseleko olomeleziweyo:Ikwahlula izixhobo zokulinganisa kunye nabasebenzi kumbane ophezulu.
• Imilinganiselo echanekileyo:Yenza ufundo oluchanekileyo lwemitha kunye neenkqubo zolawulo.
• Ukhuseleko lweNkqubo:Ikhusela umonakalo kwiireyilayi kunye nezixhobo zokubeka iliso.
• Ukuguquguquka:Ixhasa usetyenziso olwahlukeneyo lwevoltage kuwo wonke amacandelo oshishino kunye nezinto eziluncedo.

Iingcebiso zoFakelo kunye neZenzo ezilungileyo

Ukufakwa ngokufanelekileyo kuqinisekisa ukuthembeka kwexesha elide kunye nokuchaneka. Iinkqubo eziphambili ziquka:

• Beka i-transformer kwiindawo ezomileyo, kwiindawo ezinomoya
• Qinisekisa ukusekwa okufanelekileyo kokhuseleko
• Qinisekisa iimpawu zepolarity ukuthintela iimpazamo kwiingcingo
• Gcoba rhoqo ukuthotywa kwe-insulation
• Landela izikhokelo zomenzi wokulinganisa umthwalo

Ufakelo olufanelekileyo lukwanciphisa imingcipheko yokutshisa, ukufundwa okungalunganga, kunye nexesha lokunciphisa inkqubo.

Ukusombulula imiba eqhelekileyo

Ngaphandle koyilo olomeleleyo, abaguquli besixhobo banokuhlangabezana neengxaki. Imiba eqhelekileyo ibandakanya:

• Ufundo olungachanekanga ngenxa yeempazamo zesekethe yesibini
• Ukungaphumeleli kwe-insulation kubangela iisekethe ezimfutshane
• Uqhagamshelo oluxeliweyo olukhokelela kwimilinganiselo engachanekanga
• Umonakalo wokusingqongileyo njengokungena kokufuma

Amanyathelo asisiseko okusombulula ingxaki:

1. Jonga iingcingo kunye noqhagamshelwano lwepolarity
2. Hlola i-insulation kunye ne-grounding
3. Vavanya iziphumo zesibini zangoku / zevoltage ngezixhobo ezilinganisiweyo
4. Tshintsha iiyunithi ezonakeleyo ngokukhawuleza

FAQ

Umbuzo: Ngaba izixhobo zokuguqula izixhobo ziyakwazi ukusingatha iimeko zokugcwala?

A: Uninzi lwenzelwe ukugcwala okugqithisileyo, kodwa ukulayisha ngaphezulu ngokuqhubekayo kungonakalisa isixhobo. Soloko ulandela imida ebekiweyo.

Q: Kufuneka zivavanywe kangaphi iziguquli zesixhobo?

Uvavanyo lwesiqhelo luyacetyiswa rhoqo ngonyaka, kujongwe rhoqo kwiindawo ezirhabaxa.

Umbuzo: Ngaba ii-CTs kunye nee-VT ziyatshintshana?

Hayi, ii-CTs zilinganisa okwangoku, ngelixa ii-VT zilinganisa umbane. Ukusebenzisa enye endaweni kwenye kunokukhokelela ekufundweni okungachanekanga kunye nomonakalo wezixhobo.

Isiphelo kunye noQhagamshelwano

Iziguquli zesixhobo zibalulekile kwiinkqubo zombane ezikhuselekileyo nezithembekileyo. Ukususela kumlinganiselo ochanekileyo ukuya ekukhuselweni kwezixhobo, indima yabo ayinakugqithiswa. Ukukhetha iinguqu ezikumgangatho ophezulu, ukuzifaka ngokuchanekileyo, kunye nokugcina ukuhlolwa rhoqo kuqinisekisa ukusebenza kakuhle kwenkqubo.

Kubaguquli bezixhobo zeprimiyamu kunye nesikhokelo seengcali,Amandla Anqiangliqabane lakho olithembileyo.Qhagamshelana nathinamhlanje ukuphonononga uluhlu lwethu olupheleleyo lweemveliso kunye nezisombululo.
