12kV Indoor SF6 Load Break Switch

Model:FLN36-12

I-12KV yangaphakathi ye-SF6 yokuqhawula umthwalo wokutshintsha owenziwe ngu-Anqiang Power yi-multi-functional switchgear edibanisa ukutshintshwa komthwalo, ukutshintsha komhlaba, kunye ne-disconnector kwiyunithi enye. Igcinwe kwindawo evalwe ngokupheleleyo kwaye iqiniswe kwi-epoxy resin enclosure, ezaliswe yi-0.045 MPa yegesi ye-SF6. Imveliso ine-insulation egqwesileyo kunye nokutshintsha amandla.

Thumela uMbuzo

Ingcaciso yeMveliso

I-12kV yangaphakathi ye-SF6 yokuLawulwa kwe-Load Break Switch (imodeli ye-FLN36-12D) sisixhobo sokutshintsha i-medium-voltage eyenzelwe iinkqubo zokuhambisa amandla angaphakathi. Idibanisa ukutshintshwa komthwalo kunye nemisebenzi yokumisa ngaphakathi kwegumbi lokugquma igesi le-SF6 elitywiniweyo, liqinisekisa ukusebenza okuzinzileyo kwe-dielectric kunye nokuphela kwe-arc ethembekileyo phantsi kweemeko zokusebenza rhoqo.

Isetyenziswa ngokuqhelekileyo kwiiyunithi eziphambili zendandatho (RMU), i-switchgear efakwe kwisinyithi, i-gas-insulated switchgear (GIS), kunye neendawo ezisezantsi. Idlala indima ephambili ekuhlukaniseni amacandelo angalunganga, ukuqinisekisa ukugcinwa okukhuselekileyo, kunye nokuphucula ukuthembeka kwenethiwekhi yokusabalalisa ngokubanzi.

Product Overview

Yenzelwe iinkqubo zokusasaza iiklasi ze-12kV, olu tshintsho luthatha isakhiwo sezinto ezintathu ("vala - evulekile - umhlaba"), ukuvumela ukuhlukaniswa okukhuselekileyo nokubonakalayo. Uyilo lwetanki olutywiniweyo lwe-SF6 lunciphisa impembelelo yokusingqongileyo kwaye luqinisekise uzinzo lwexesha elide lokugquma nakwindawo yokufuma ephezulu okanye enothuli yangaphakathi.

Kwizicelo ezisebenzayo, i12kV Indoor SF6 Load Break Switchisetyenziswe ngokubanzi kwiindawo ezincinci zemizi-mveliso, amagumbi okuhambisa izinto eziluncedo, kunye neepaneli zombane ezidibeneyo apho ukulungiswa kwendawo kunye nokhuseleko olusebenzayo luyimfuneko ebalulekileyo.

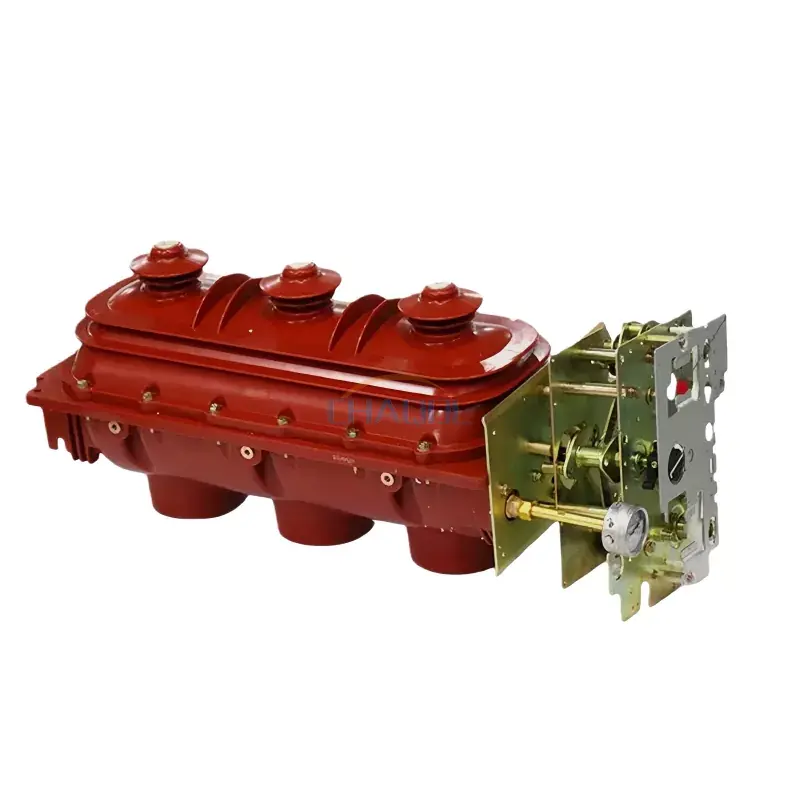

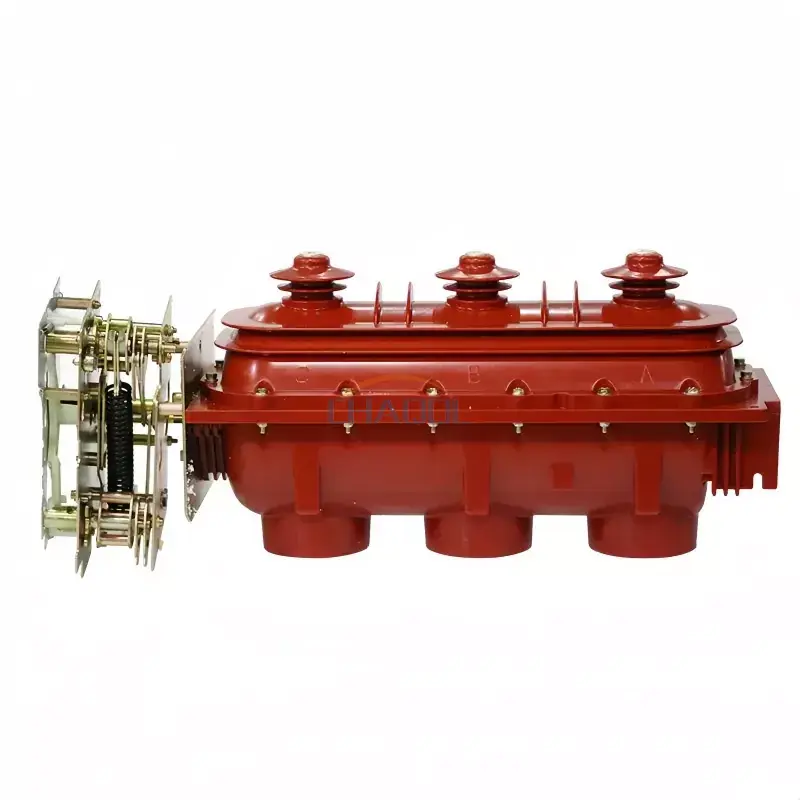

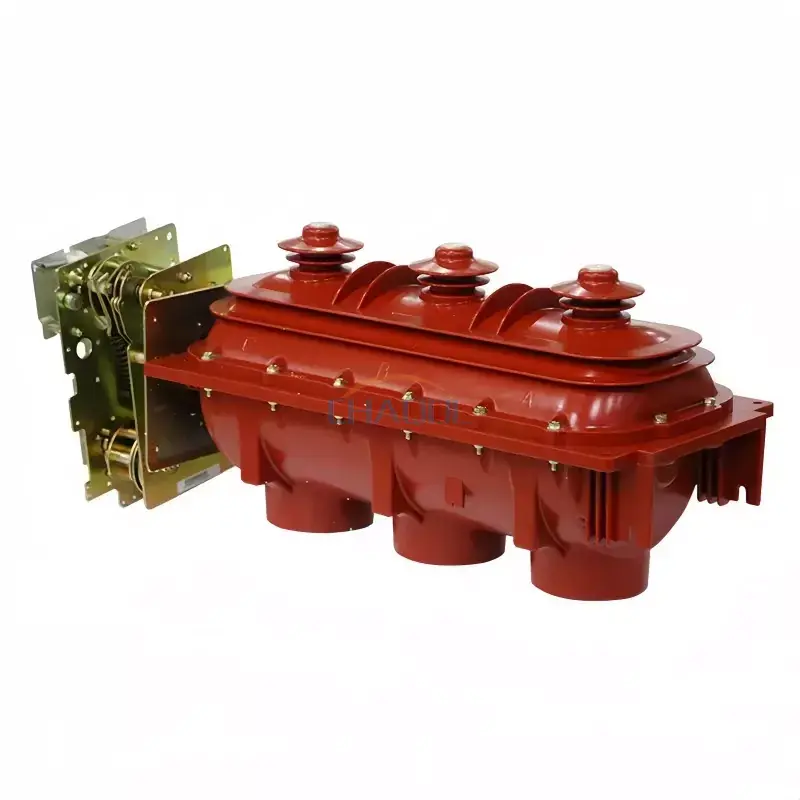

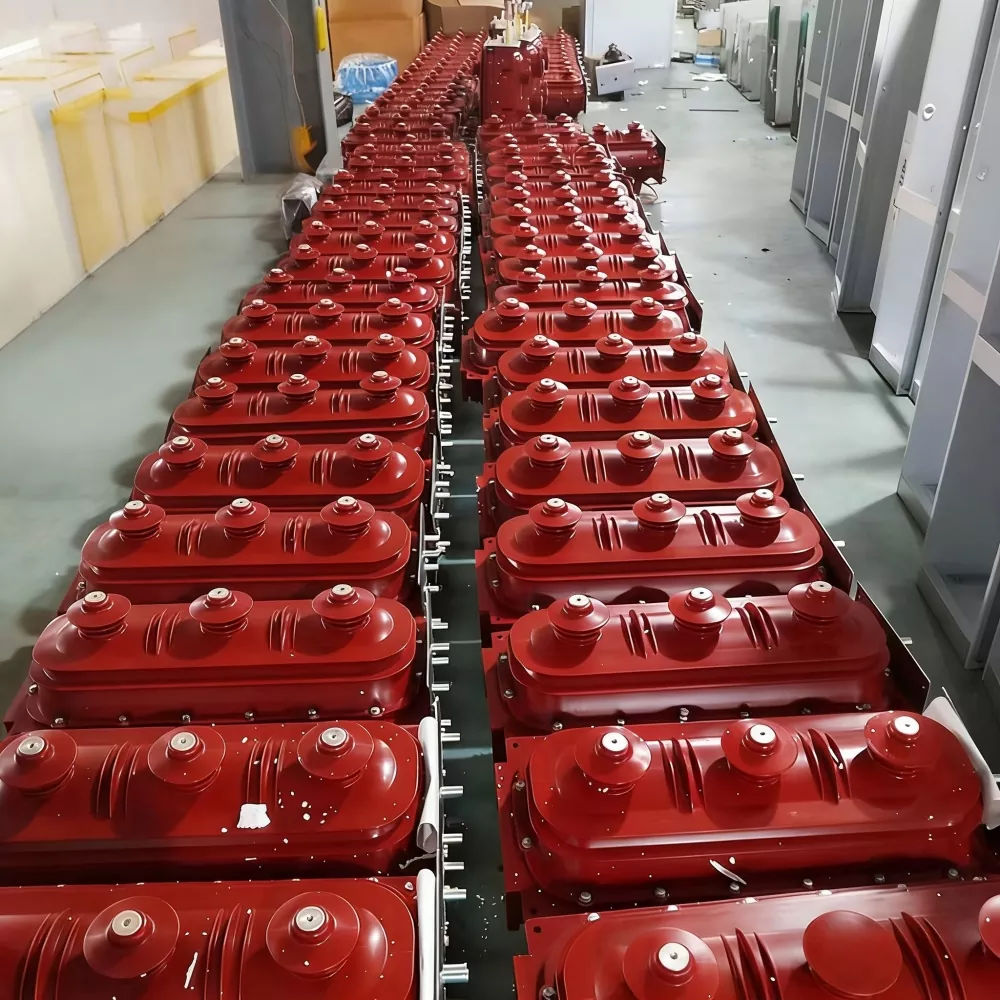

Iifoto zemveliso

12kV Indoor SF6 Load Break Switch

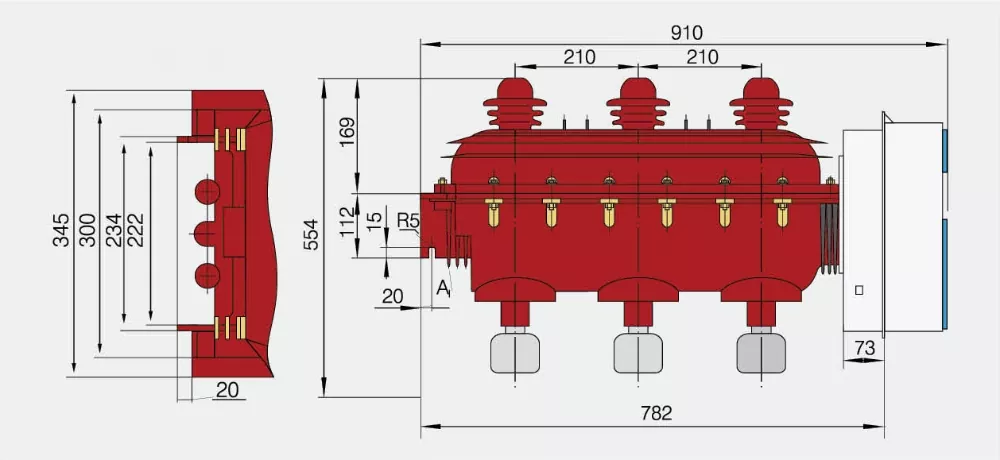

Umzobo wemilinganiselo yeemveliso

12kV Indoor SF6 Load Break Switch

Izinto eziluncedo kwezobuGcisa

Enye yeenzuzo eziphambili ze12kV Indoor SF6 Load Break Switchsisakhiwo saso esivalwe ngokupheleleyo segesi, esinciphisa umngcipheko we-oxidation kunye nongcoliseko kumalungu okuqhuba. Oku kuphucula kakhulu ubomi benkonzo kwaye kunciphisa ukugcinwa rhoqo.

Inkqubo yokutshintsha ilungiselelwe amandla aphezulu e-dielectric, eyenza ukuphazamiseka okukhuselekileyo kwemithwalo yemithwalo kunye nokulungelelaniswa kokukhusela i-short-circuit xa kudibaniswa ne-high-voltage fuses okanye i-relays yokukhusela.

Ukongeza, inika ukusebenza koomatshini okuzinzileyo kunye netorque yokusebenza engaguqukiyo, iyenze ilungele ukutshintshwa okuphindaphindiweyo kwiindawo ezizenzekelayo zokusasaza.

Iiparamitha zobuGcisa

Igama leProjekthi	Ixabiso leParameter
Umbane olinganisiweyo	12 kV
Ilinganiswe rhoqo	50 Hz
Ikalwe ngoku	630 A
Ilinganiswe ixesha elifutshane lokumelana nokutshintsha komthwalo	20/3 KA/S
Ilinganiswe ixesha elifutshane lokumelana nokutshintsha komgangatho	20/2 KA/S
Umzuzu o-1 wokuphindaphinda kwamandla ombane	42/48 KV
Impembelelo yombane imelana nombane	75/85 KV
Ubomi bomatshini	2000 amaxesha
Uxinzelelo lwerhasi olukalwe nguSF6 (uxinzelelo lwegeyiji kuma-20℃)	0.04-0.05 Mpa
Uchaso oluphambili lwesekethe	≤80 μΩ
Isantya sokuvula kunye nokuvala	≥ 2.6 m/s
Ukutshintsha ungqamaniso (ukuvulwa nokuvala)	≤ 6
Ireyithi yokuvuza kwerhasi yeSF6	≤ 0.01

I-Fuse Technical Parameters

Umzekelo	Umbane olinganisiweyo	I-Fuse rated okwangoku	Ireyithiwe yangoku yefizi element
I-SDLAJ	12kv	40A	6.3/10/16/20/25/31.5/40
SFLAJ	12kv	100A	50/63/71/80/100
SKLAJ	12kv	125A	125

Iimeko zeSicelo

I12kV Indoor SF6 Load Break Switchisetyenziswa ngokubanzi kuthungelwano losasazo lwesibini, iinkqubo zamandla emizi-mveliso, kunye nezisombululo zesubstation ezixineneyo. Ilungele ngokukodwa izicelo ezifuna ukusebenza ngokutshintsha rhoqo, ukhuseleko oluphezulu lodwa, kunye nendawo yokufakela i-compact.

Iimeko zokusetyenziswa eziqhelekileyo ziquka iiyunithi eziphambili zeringi, izitishi esele zilungisiwe, amaziko osasazo asezidolophini, kunye neenkqubo zokuqokelelwa kwamandla ahlaziyekayo.

FAQ

I-Q1: Yintoni umsebenzi oyintloko?
A: Isetyenziselwa ukutshintshwa komthwalo wangoku, ukwahlula amacandelo angalunganga, kunye nokuqinisekisa ukugcinwa okukhuselekileyo kwiinkqubo zokusasaza ngaphakathi kwe-12kV medium-voltage. Isakhiwo se-SF6 esitywiniweyo sibonelela ngokutshabalala okuzinzile kwe-arc kunye nobomi obude benkonzo.

Q2: Iphi i-12kV Indoor SF6 Load Break Switch edla ngokusetyenziswa?
A: Isetyenziswe ngokubanzi kwiiyunithi eziphambili zendandatho (RMU), i-gas-insulated switchgear, i-substations esele yenziwe ngaphambili, kunye neenkqubo zokusasazwa kwamashishini apho i-compact design kunye nokuthembeka okuphezulu kuyadingeka.

I-Q3: Ziziphi iingenelo zeteknoloji yokugquma i-SF6?
A: Igesi ye-SF6 inika amandla agqwesileyo e-dielectric kunye nekhono lokucima i-arc, ephucula ukhuseleko lokutshintsha, ukunciphisa iimfuno zokugcina, kunye nokuphucula ukuzinza kokusebenza kwiinkqubo zombane ophakathi.

I-Q4: Ngaba inokusebenza ngeefusi zokukhusela?
A: Ewe, ngokuqhelekileyo idibaniswe kunye ne-high-voltage fuses ukubonelela ngokhuseleko lwesiphaluka esifutshane kunye nokuphucula ukulungelelaniswa kwenkqubo kwiinethiwekhi zokusabalalisa.

I-Q5: Ngaba esi sixhobo sifanelekile kwimisebenzi yokutshintsha rhoqo?
A: Ewe, yenzelwe iimeko zokusebenza rhoqo kwimizi-mveliso kunye neenkqubo zamandla asetyenziswayo, ukuqinisekisa ukusebenza ngoomatshini kunye nombane ozinzileyo kusetyenziso lwexesha elide.
