Ukutshintsha koMlayisho weVoltage yaNgaphakathi

Model:FZN25-12/FZR25-12D

Amandla ka-Anqiang ngumvelisi waseTshayina wokutshintsha komthamo wamandla aphezulu wangaphakathi. Ukutshintsha komthwalo wethu kubonisa uyilo olukhethekileyo lolwakhiwo, apho igumbi lokucima i-arc limelana nombane ophezulu ngexesha lokuvala nokuvula. Ke ngoko, zixinene kwaye zikhaphukhaphu, zivumela ukusebenza ngaxeshanye kokubini ukunxibelelana okukodwa kunye ne-arc yokucima unxibelelwano.

Thumela uMbuzo

Ingcaciso yeMveliso

Olu tshintsho lomthwalo wombane ophezulu wangaphakathi yi-FZN25 kunye ne-FZRN25 imodeli evela kwi-Anqiang Electric Power. Ifanelekile kwisigaba sesithathu se-AC 50Hz inethiwekhi yendandatho kunye nonikezelo lwamandla okuphela kunye nezixhobo zoshishino, ezisebenza njengolawulo lomthwalo kunye nesixhobo sokukhusela isiphaluka esifutshane. Ukutshintshwa komthwalo kusetyenziselwa ukutshintsha imithwalo, ukuvala i-loop currents, kunye nokutshintsha i-transformers engekho-load kunye ne-cable charges currents; umtshintshi odibeneyo unokuphazamisa nayiphi na ikhoyo ngoku ukuya kwi-rated short-circuit current. I-Indoor High Voltage Load Switch isebenzisa uqhagamshelwano oluzimeleyo olusebenza ngokuthe ngqo kunye ne-vacuum interrupter linkagement, kwaye ibonakalisa zombini umsebenzi wezandla kunye nombane.

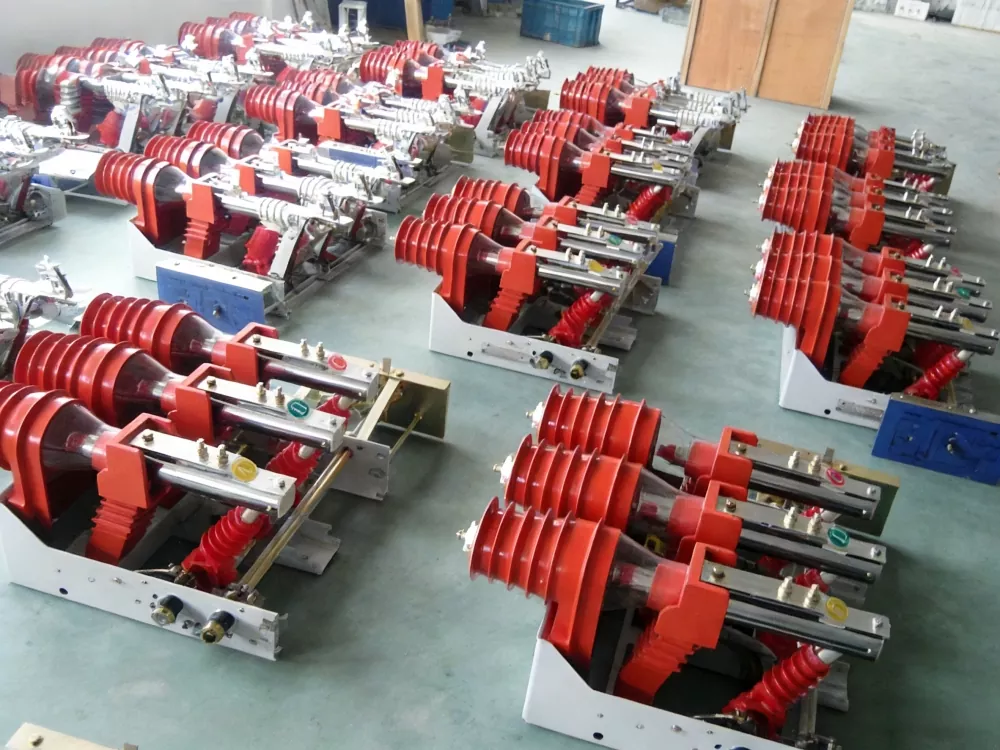

Iifoto zemveliso

Indoor High Voltage Load Switch

IiParameters zobuGcisa

Igama leProjekthi	Ixabiso leParameter
Igama leProjekthi	FZN25-12D/T630-20	FZRN25-12D/T125-31.5
Umbane olinganisiweyo	12 KV
Ilinganiswe rhoqo	50 HZ
Ireyithwe uzinzo oluguquguqukayo lwangoku	50 KA	—
Ithelekelelwe ngumthwalo osebenzayo wokwaphulwa kwangoku	630 A	125 A
Ilinganiswe ngokuqhawuka kwelophu evaliweyo	630 A	125 A
Ukutshaja kwekheyibhile kunye nokwaphuka kwangoku	10 A
Ukucima i-transformer engalayishwanga (umthamo)	1250 KVA
Ilinganiswe ngesantya soqhawulo lomsinga omfutshane	—	31.5 KA
Udluliselo olulinganisiweyo lwangoku	—	Ngowama-2000 A
Imodeli ye-Fuse	—	I-SDLAJ-12
Impembelelo yemveliso yamandla	—	2-5 J (Phakathi)
Ireyithwe kwi-short-circuit making current	50 KA
Ilinganiswe ngozinzo oluguquguqukayo lwangoku lweswitshi yokumisa	50 KA
I-Grounding switch 2S, i-thermal stable current	20 KA
I-voltage encedisayo yesekethe ilinganiswe	AC/DC220,110
Ubomi bomatshini	10,000 amaxesha

Umzobo wemilinganiselo yeemveliso

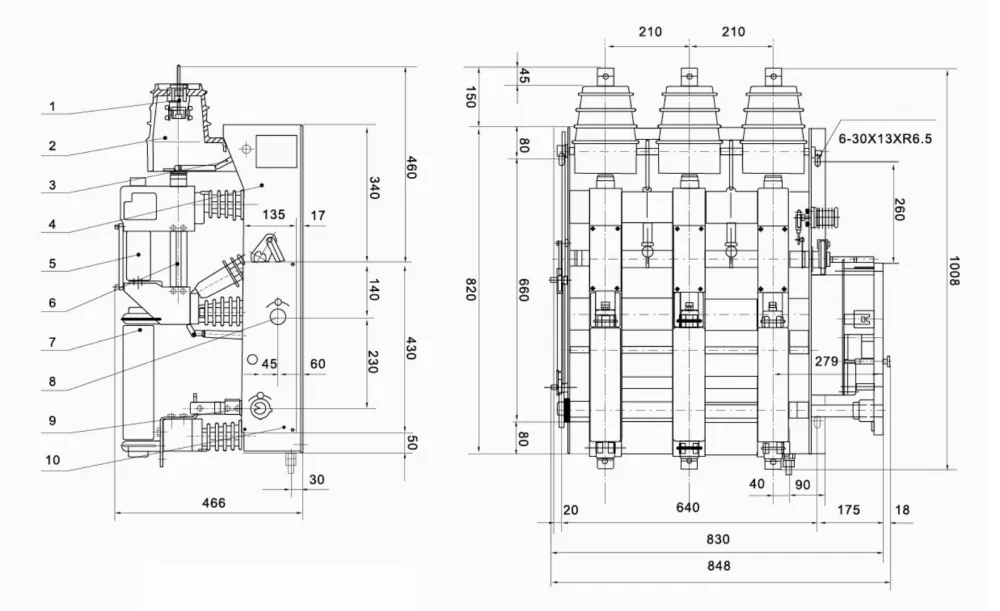

I-FZRN25-12D/125-31.5 IsiXhobo esiDityanisiweyo soMlayisho we-Vacuum-Fuse: Ulwandlalo kunye nemilinganiselo yokuFakelo

Indoor High Voltage Load Switch

1. Uqhagamshelwano olungapheliyo

2. I-insulating cover

3. Ivalve

4. Isakhelo

5. Isiphazamisi sevacuum

6. Isilinda esiqhubayo

7. Fuse

8. Ishaft yokugcina amandla

9. I-shaft yokutshintsha umhlaba

10. Iphaneli yokulawula

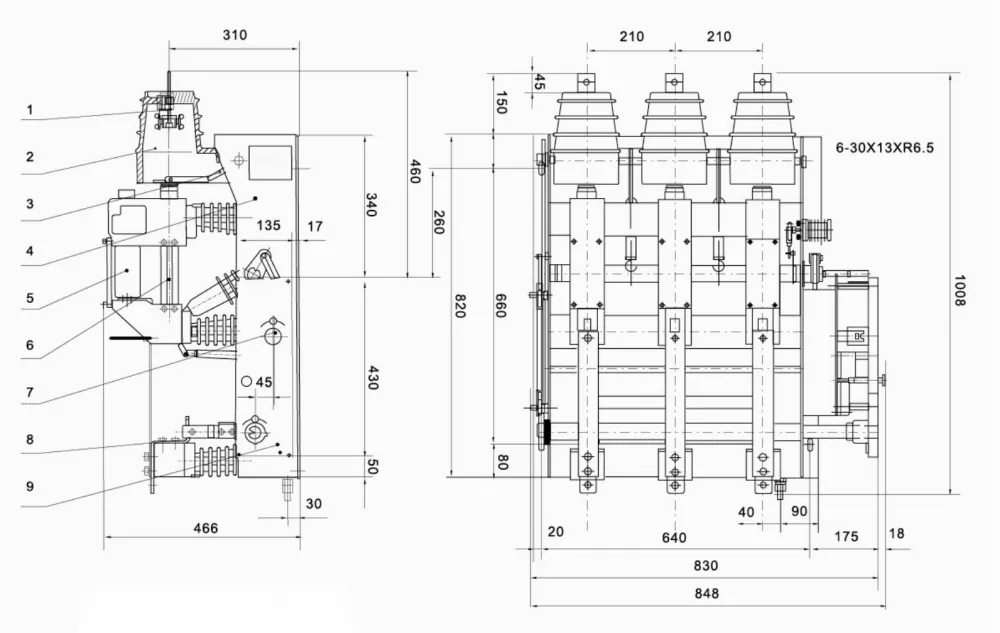

FZN25-12D/T630-20 Ukutshintsha koMlayisho weVacuum: Ulwandlalo kunye nemilinganiselo yokuFakela

Indoor High Voltage Load Switch

1. Uqhagamshelwano olungapheliyo

2. I-insulating cover

3. Ivalve

4. Isakhelo

5. Isiphazamisi sevacuum

6. Isilinda esiqhubayo

7. Ishaft yokugcina amandla

8. I-shaft yokutshintsha umhlaba

9. Iphaneli yokusebenza
