24kV Pole Mounted SF6 Load Break Switch

Model:FLW34-24

Amandla ka-Anqiang ngumthengisi we-China we-24KV i-pole efakwe kwi-SF6 yokutshintsha umthwalo wekhefu. Le iswitshi yekhefu yomthwalo we-SF6 efakwe kwipali ifanelekile kwii-voltages ezilinganisiweyo ze-11KV, i-24KV, kunye ne-33KV, kunye ne-630A yangoku kunye ne-50 / 60Hz. Sinokwenza kwaye siphuhlise iimveliso ngokweemfuno zeparamitha yamandla omsebenzisi.

Thumela uMbuzo

Ingcaciso yeMveliso

Ipali ye-24KV inyuswe kwi-SF6 yokutshintshwa komthwalo wekhefu, imodeli ye-FLW34-24 / 630-20, yenzelwe ukutshintsha kunye nokuphazamisa imisinga yomthwalo kunye nemisinga yomthwalo ogqithisiweyo kuthungelwano lokuhambisa amandla, kwaye inokwahlula ngokuzenzekelayo amacandelo angalunganga eentambo zamandla. 24kV Pole Mounted SF6 Load Break Switch inokusebenza ngesandla, ngombane, okanye ukude. Umlawuli we-elektroniki ugcinwe kwi-enclosure yensimbi engenasici, efanelekile kwiimeko zemozulu ezahlukeneyo, kwaye inokwamkela iimodem ezinocingo kunye neentambo zokulawula kude. Uyilo lwayo olulula olufakwe kwipali luqinisekisa ukufakwa lula kunye nokukhawuleza, ukunciphisa iindleko zokwakha.

Uhlobo lweMveliso

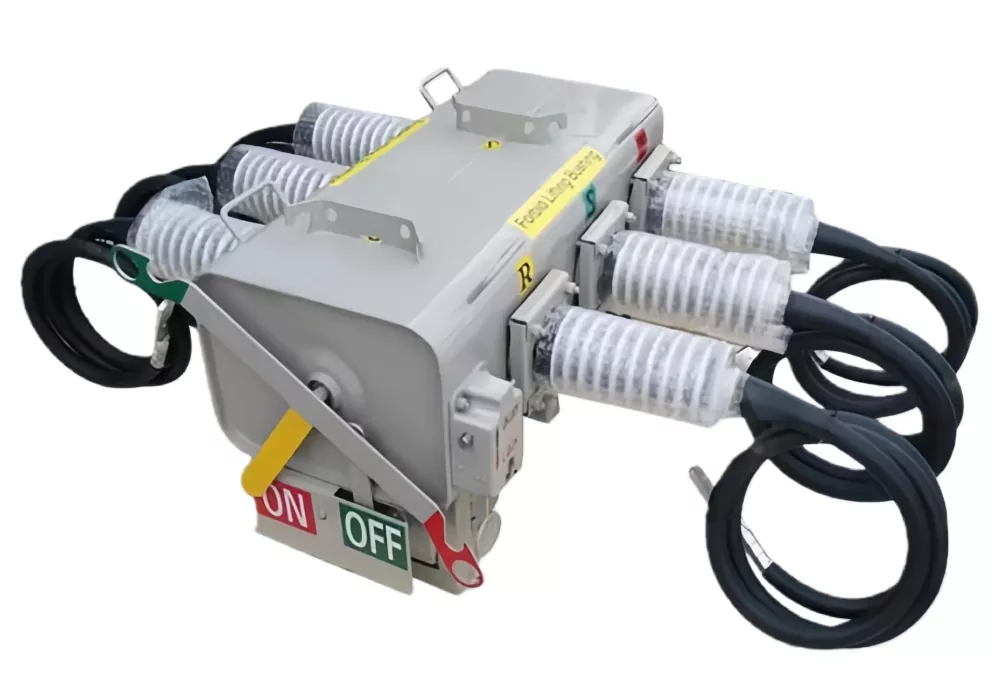

1.I-Ceramic bushing, i-cable outlet ebunjiweyo.

24kV Pole Mounted SF6 Load Break Switch

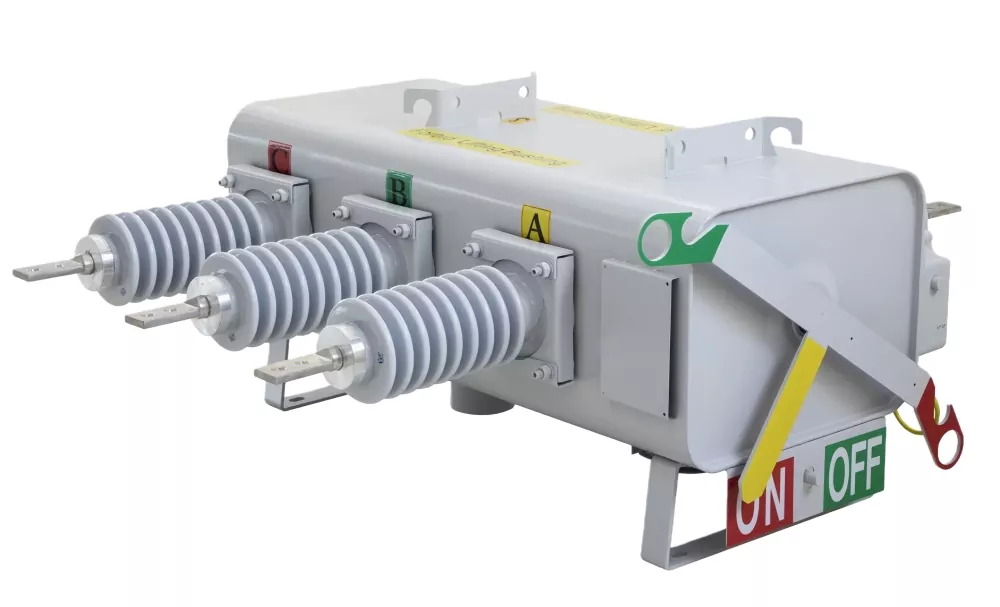

2. I-sleeve yerubha edibeneyo, eneetheminali zocingo zokuvelisa.

24kV Pole Mounted SF6 Load Break Switch

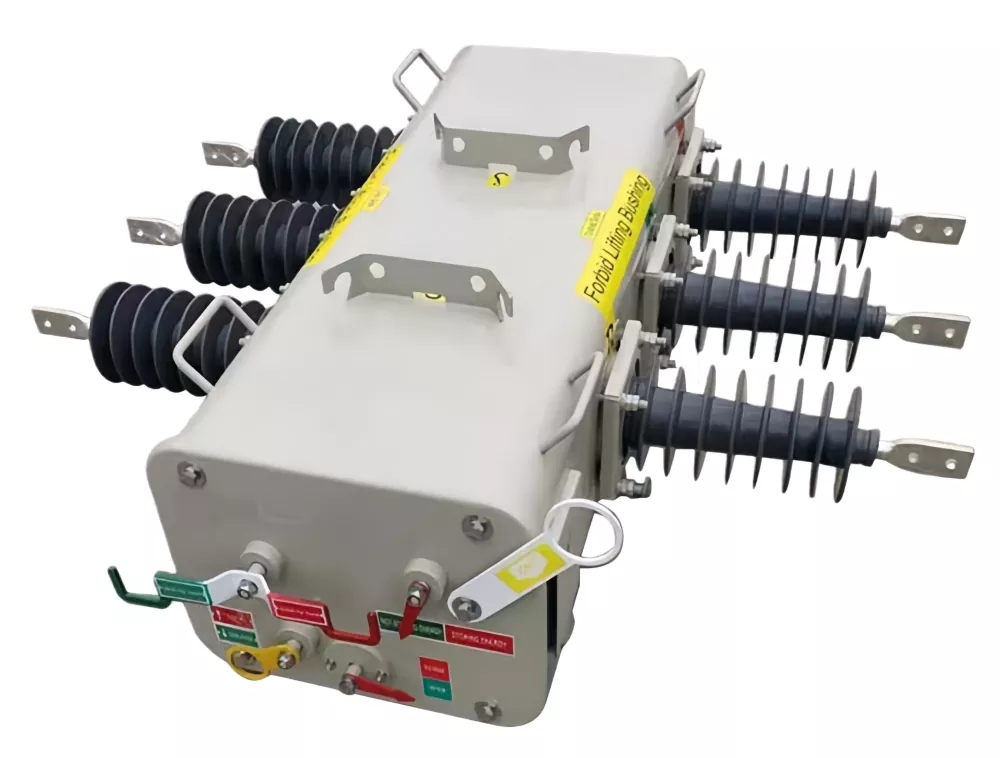

I-3.I-sleeve yeCeramic, i-wiring terminals yoqhagamshelwano oluphumayo.

24kV Pole Mounted SF6 Load Break Switch

IiParameters zobuGcisa

Umbane olinganisiweyo	11/24/33KV
Amandla alinganisiweyo	5060Hz
Ikalwe ngoku	630A
Ilinganiswe ngokwaphukayo (0.05 MPa/20℃)	630A
Incopho ukumelana yangoku	50kA
Ilinganiswe ngexesha elifutshane lokuvala okwangoku	50kA
Ilinganiswe ngexesha elifutshane lokumelana nangoku	20/4KA/s
Ukutshaja kwekheyibhile kunye nokwaphuka kwangoku	25A
Uluhlu lokutshaja kunye nolophukayo lwangoku	16A
Ilinganiswe ngokuqhawuka kwelophu evaliweyo	630A
Uchulumanco lwangoku	21A
Ilinganiswe kwimijikelo yangoku yokwaphuka	≥400 amaxesha
Umlinganiselo wokuvuza kwerhasi	≤1% ngonyaka
Isiqulatho sokufuma segesi ye-SF6 ekunikezelweni kwemizi-mveliso	≤150ppm
SF6 isiqulatho segesi ukufuma kwixabiso lokusebenza	≤300ppm
Umsebenzi wokuzinza komatshini	6000 amaxesha
I-voltage yokusebenza ereyithiweyo kunye ne-axiliary circuit voltage rated voltage	DC220/110/48/24 AC220/110
Indawo ebiyelweyo kunye nenqanaba lokhuseleko lomlawuli	IP44

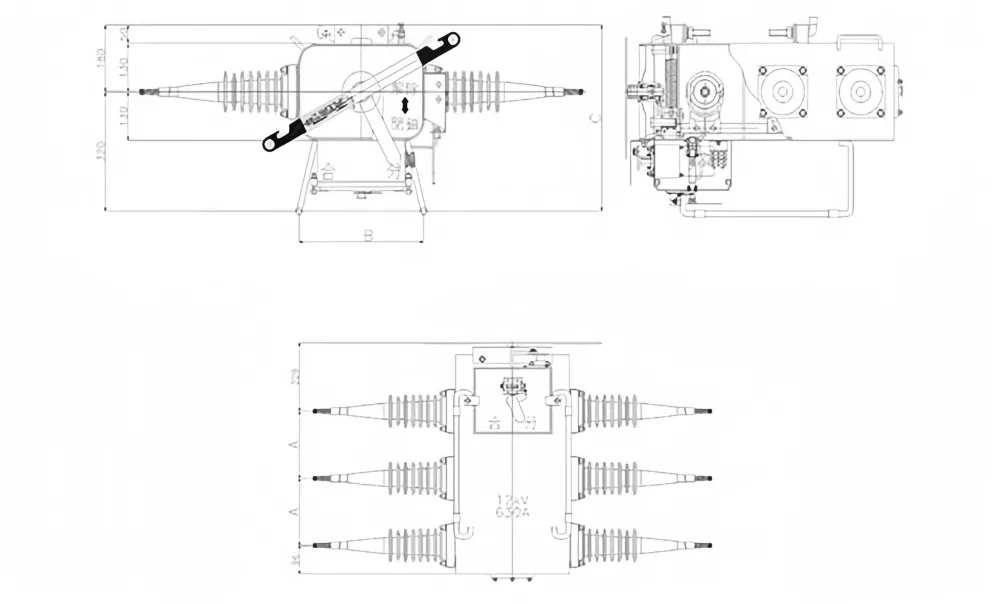

Imilinganiselo yemveliso

24kV Pole Mounted SF6 Load Break Switch

Imilinganiselo yangaphandle(mm)				Imilinganiselo yokuhlohla(mm)	Umgama we-creepage ye-bushing(mm)
	A	B	C	W*H
11KV	250	435	500	500*290	556
24KV	300	435	500	500*290	840
33KV	350	435	500	700*290	1250
