I-Voltage yaNgaphandle yokuNxila iSwitch

Model:GW4-12(40.5/72.5/126)

I-Anqiang Power's Outdoor High Voltage Disconnect Switch zisetyenziswa ngokuqhelekileyo izixhobo kwiinkqubo zamandla. Umsebenzi wabo oyintloko kukuhlukanisa i-voltage ngexesha lezixhobo okanye ukulungiswa komgca ukuqinisekisa ukhuseleko. Abakwazi ukuphazamisa umbane wangoku okanye i-short-circuit current kwaye kufuneka isetyenziswe ngokubambisana nabaphuli beesekethe. Xa uvala amandla, i-breaker circuit kufuneka ivulwe kuqala, ilandelwe yi-disconnect switch; xa ubuyisela amandla, umtshintshi wokuqhawula kufuneka uvalwe kuqala, ulandelwe ngumqhubi wesiphaluka.

Thumela uMbuzo

Ingcaciso yeMveliso

II-Voltage yaNgaphandle yokuNxila iSwitchyenzelwe ukwahlukaniswa kwesekethe ethembekileyo kwiinkqubo zamandla ze-AC zangaphandle ukusuka kwi-40.5kV ukuya kuma-220kV. Isetyenziswa ngokubanzi kwizitishi, imigca yokuhambisa, kunye nezikhululo zokutshintsha igridi apho ukuhlukaniswa okubonakalayo kunye nokhuseleko lomatshini lufunekayo phantsi kweemeko eziphezulu zombane.

Olu chungechunge lwe-GW4 luyilwe ngolwakhiwo oluqinileyo oluvulekileyo, luqinisekisa ukusebenza okuzinzile phantsi kweemeko zemozulu ezinzima njengemvula enkulu, umkhenkce, umthwalo womoya, kunye neendawo ezingcolisekileyo. Ixhasa zombini iindlela zokusebenza ngesandla kunye neemoto, ibonelela ngokuguquguquka kumanqanaba ahlukeneyo egridi ezenzekelayo.

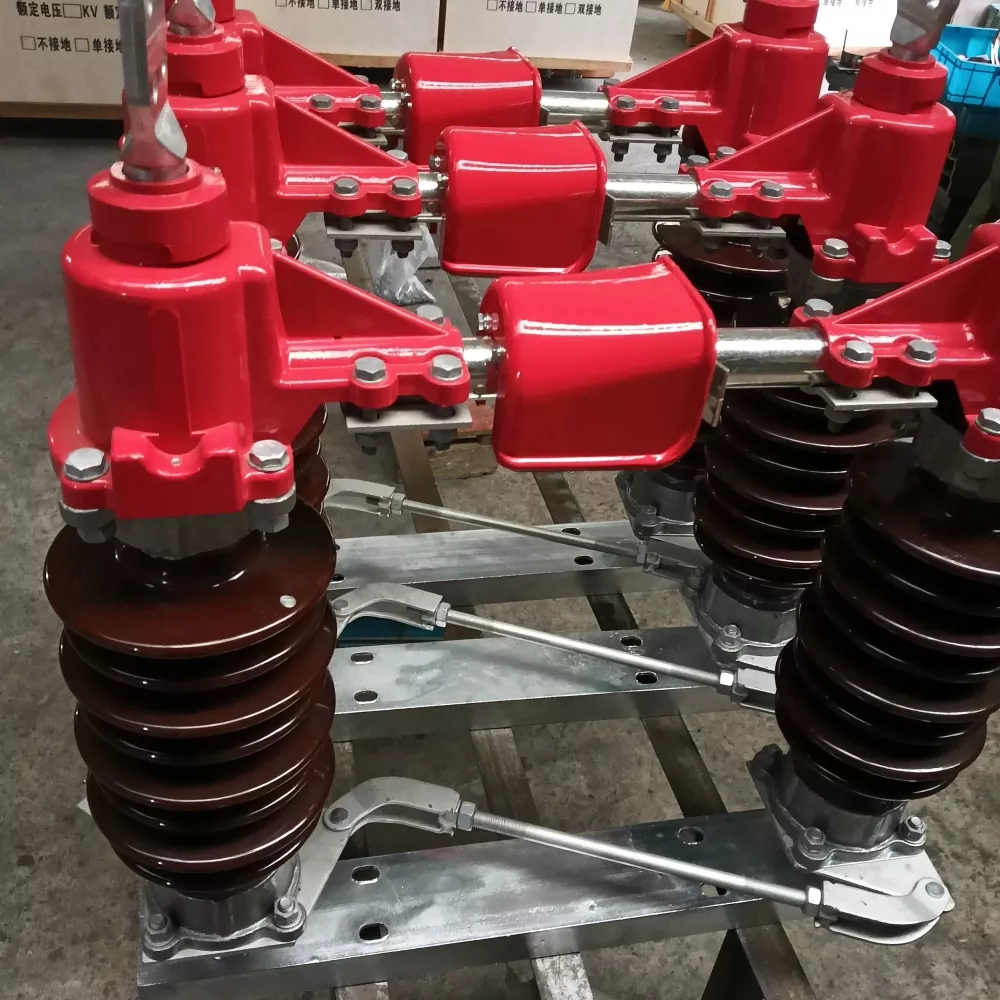

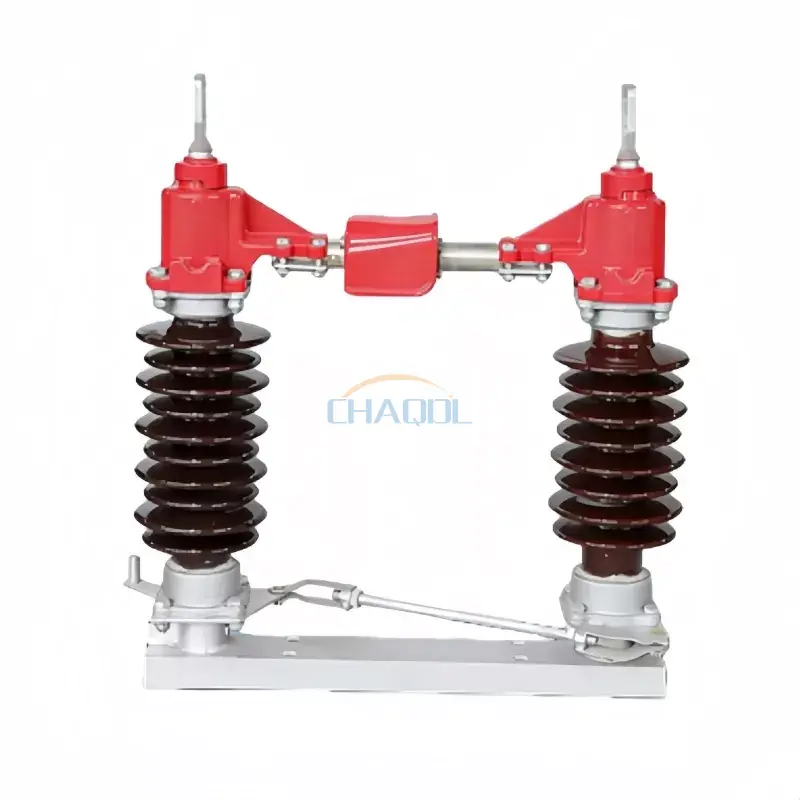

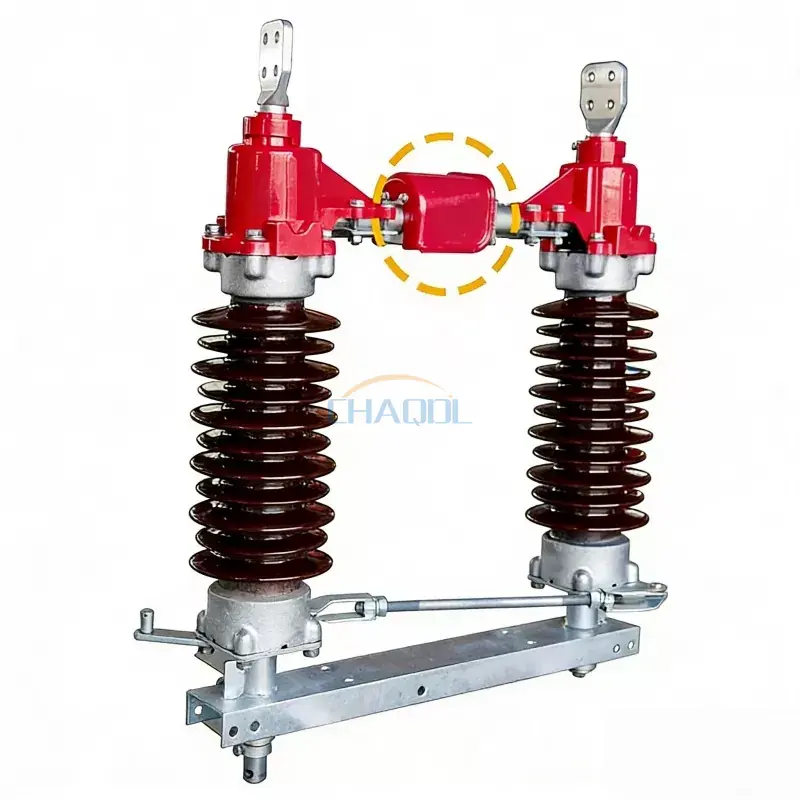

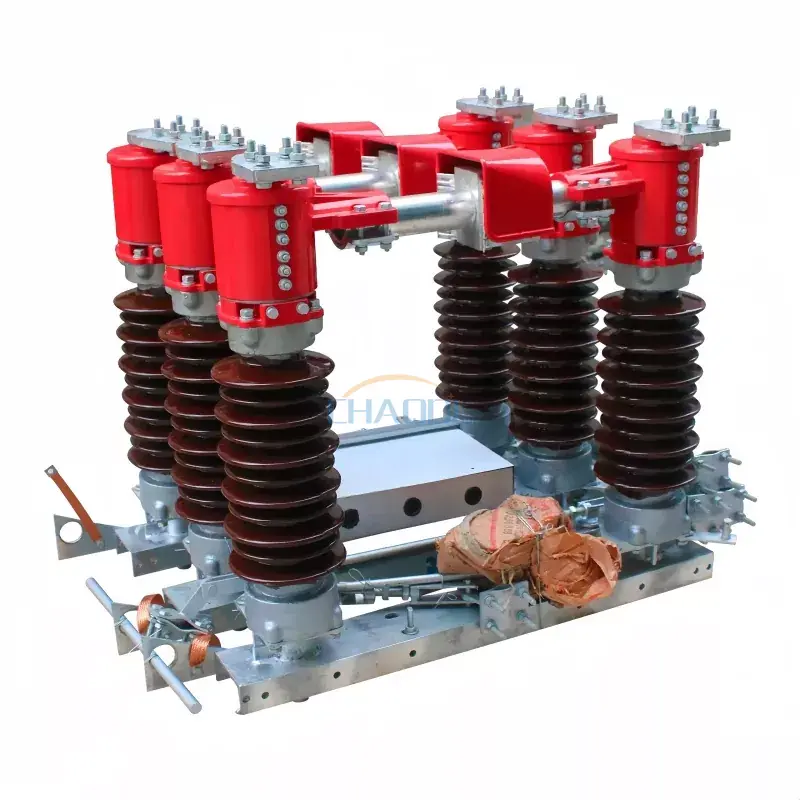

Iifoto zeMveliso

Outdoor High Voltage Disconnect Switch GW4 Series

Uyilo loLwakhiwo kunye neMiba yobuNjineli

Umtshintshi wamkela i-horizontal blade blade isakhiwo kunye ne-porcelain post insulators, iityhubhu eziqhubayo, kunye nesakhelo sesiseko sentsimbi ephezulu. Inkqubo yokudibanisa i-mechanical iqinisekisa ukuvumelanisa ukusebenza kwesigaba sesithathu, ukunciphisa imingcipheko yokungahambi kakuhle ngexesha lokutshintsha.

Xa kuthelekiswa nezahlukanisi eziqhelekileyo, okuI-Voltage yaNgaphandle yokuNxila iSwitchkuphucula ukufana koxinzelelo loqhagamshelwano kunye nokunciphisa i-oxidation kumalungu okuqhuba, ukwandisa kakhulu ubomi benkonzo kwizicelo zangaphandle zexesha elide.

Iiparamitha zobuGcisa

Igama leProjekthi			Ixabiso leParameter
Umbane olinganisiweyo			40.5KV		72.5KV		126KV
Inqanaba lokufakwa kwe-insulation	Umzuzu o-1 wokuphindaphinda kwamandla ombane		95/115 KV		140/160 KV		230/245KV
	Impembelelo yombane imelana nombane		185/215 KV		325/375 KV		550/630 KV
Ilinganiswe rhoqo			50 Hz
Ikalwe ngoku			400/630/1000A		1250/1600/2000A		3150/4000A
Ilinganiswe ngexesha elifutshane lokumelana nangoku			16/20/31.5kA		31.5/40kA		50kA
Incopho elinganisiweyo ukumelana yangoku			40/50/63kA		80/100kA		125kA
Ilinganiswe ngobude bexesha elifutshane			4/2s
Umthamo womatshini olinganisiweyo wetheminali	Umthwalo welongitudinal othe tye		750N		1000N
	Umthwalo osecaleni othe tye		500N		750N
	Amandla amileyo		750N		1000N
Ubomi bomatshini			2000 amaxesha
Indlela esetyenziswa ngesandla		Ngaphandle kokubeka phantsi	I-CS11(F)
		Isiseko esisodwa	CS 8-6D(F)
		Ukusekwa kabini	Main cutter CS14G, umhlaba umsiki CS11
		Ulawulo lwevolthi yesekethe	AC 220/380,DC 220
Indlela yokusebenza eqhutywa yimoto		Umzekelo	CJ5/CJ6
		Amandla ombane weemoto	AC220/380,DC220
		Ulawulo lwevolthi yesekethe	AC220,DC220
		Ixesha lokuvula (le-breaker circuit)	6±1s
Ubunzima bemveliso		Ayisekelwanga	360kg	500kg		700kg
		Isiseko esisodwa	410kg	600kg		800kg
		Ukusekwa kabini	460kg	700kg		900kg

Product Dimensions Diagram

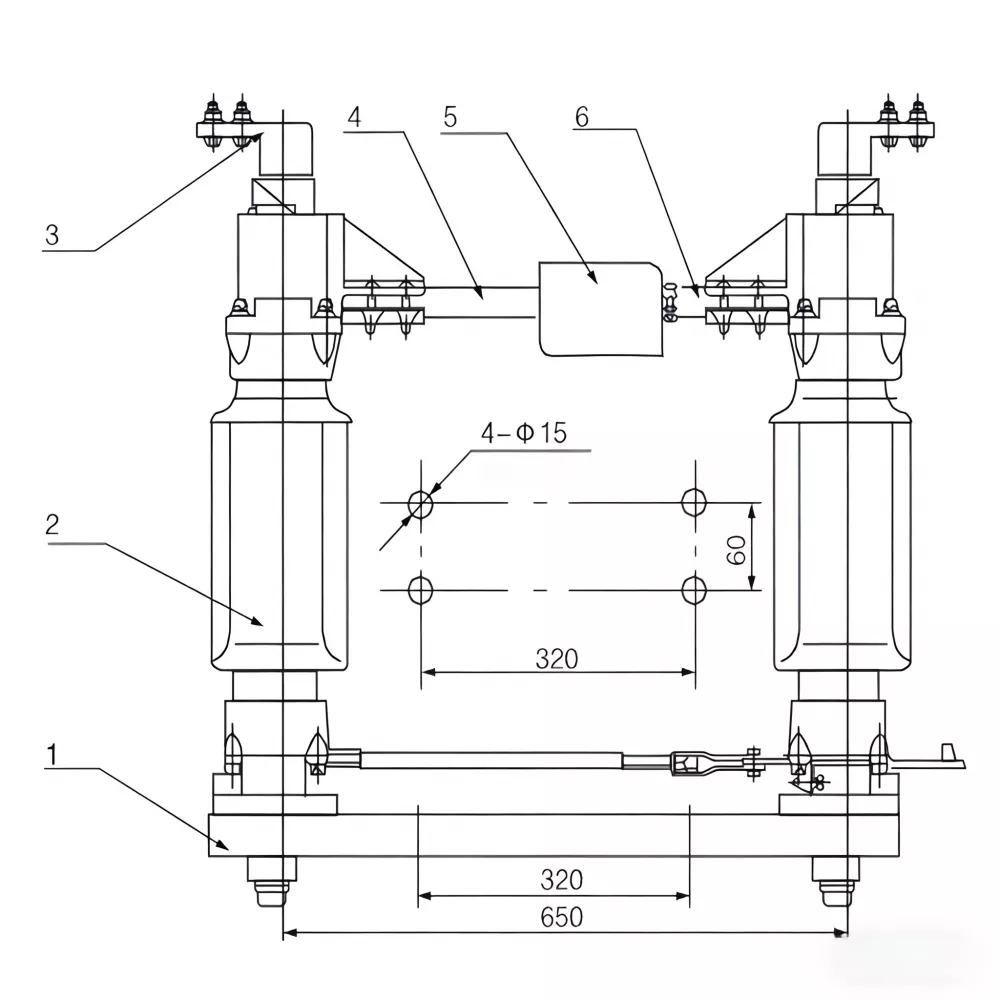

GW4 Series Isishwankathelo sesakhiwo

GW4 Outdoor High Voltage Disconnect Switch Structure

1. Isiseko

2. I-insulator yenkxaso

3. Itheminali yocingo

4. ityhubhu yokuqhuba emileyo

5. Isigqubuthelo samanzi esisikwere

6. ityhubhu ehambisayo ehambayo

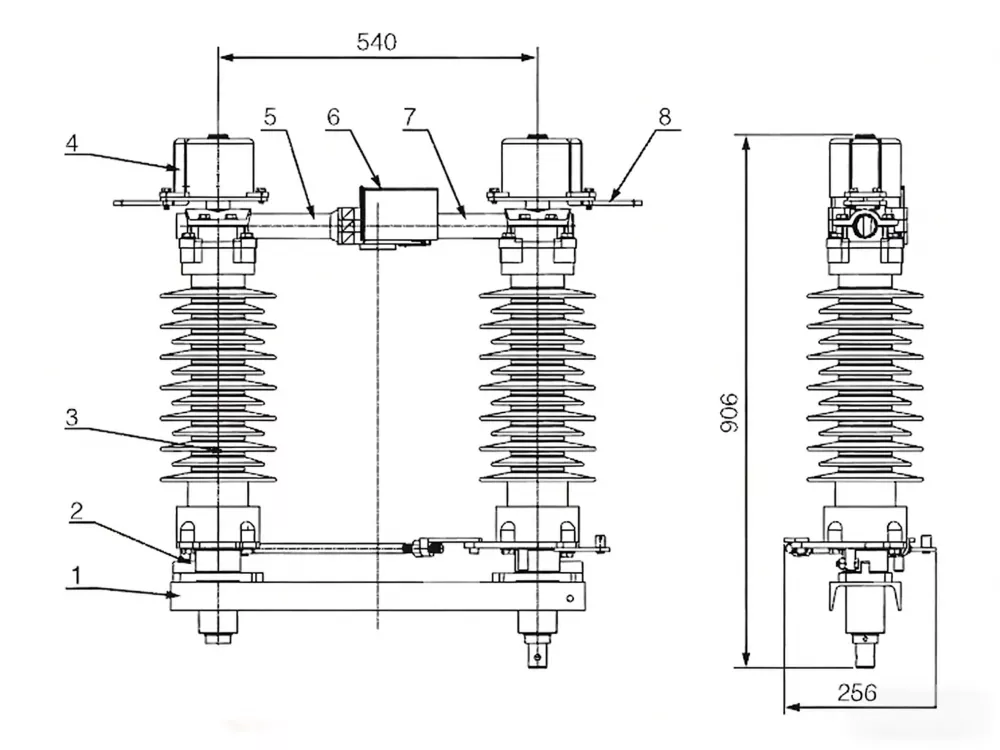

Uqwalaselo lwePoli enye

Single Pole Outdoor High Voltage Disconnect Switch

1. Isibiyeli sentsimbi yomjelo

2. Isiseko senkxaso

3. Isithuba sokugquma

4. Itheminali yokuphuma yasekunene

5. I-cylindrical end conductive rod

6. Isigqubuthelo semvula

7. Xhagamshelana intonga conductive

8. Itheminali yokuphuma ekhohlo

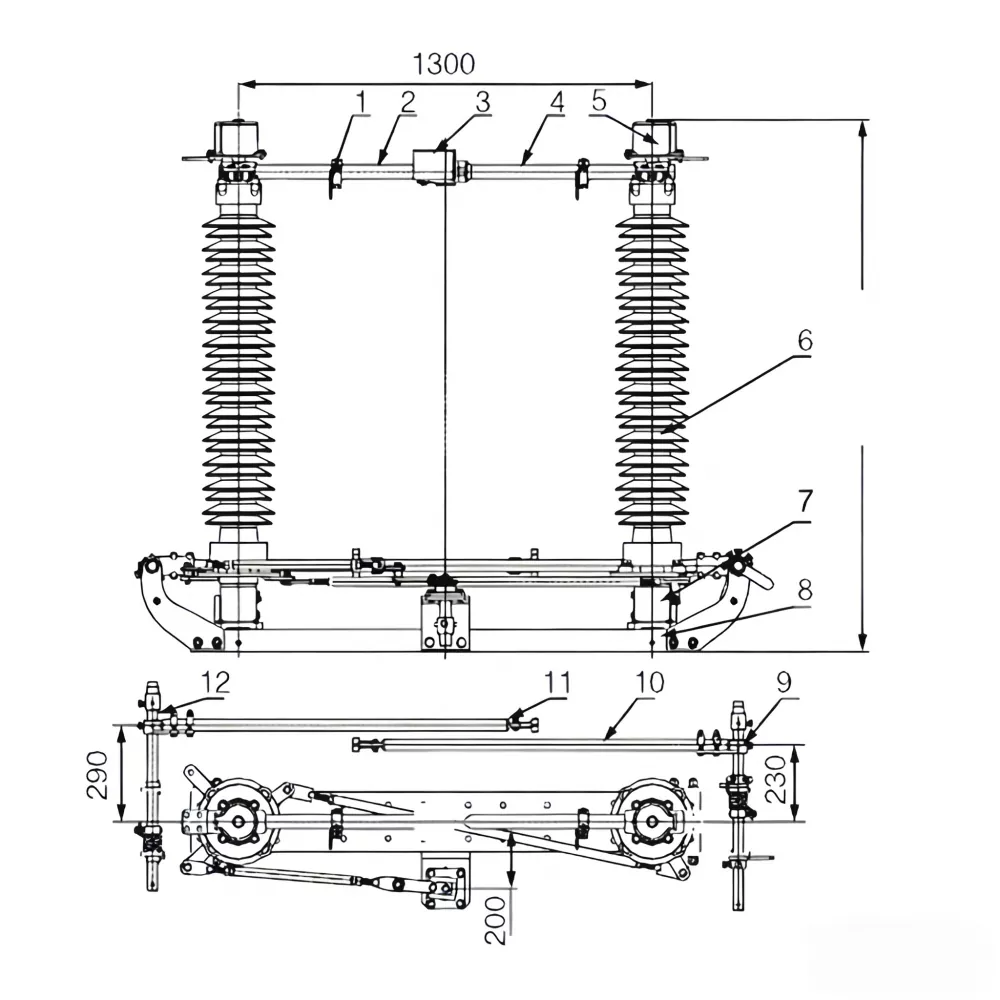

I-126kV yoLwakhiwo loMbane oPhezulu

126kV Outdoor High Voltage Disconnect Switch

1. I-Grounding switch fixed contact

2. Intonga yesikhokelo soqhagamshelwano

3. Isigqubuthelo semvula sensimbi engenasici

4. Intonga ye-cylindrical conductive

5. Ibhloko yetheminali yoqhagamshelo eguquguqukayo

6. Inkxaso yokugquma

7. Ukuthwala izindlu

8. Ukuxhoma isakhelo sesiseko

9. Indibano yokutshintsha isiseko sokunene

10. Umbhobho wentsimbi wokutshintsha umhlaba

11. Iswitshi esezantsi eshukumayo

12. Indibano yokutshintshela ngasekhohlo

UbuNjineli bobuNjineli xa kuthelekiswa neeMveliso eziqhelekileyo

Into yokuthelekisa	GW4 Series Outdoor High Voltage Nqamula Tshintsha	Iimveliso zeMarike eziqhelekileyo
Ukuzinza koLwakhiwo	Isiseko sentsimbi esomeleziweyo kunye nokudibanisa izigaba ezintathu ezihambelanayo	Ukusebenza kwesigaba esizimeleyo kunye nomngcipheko ophezulu wokungahambi kakuhle
Qhagamshelana noMsebenzi	I-Optimized conductive tube kunye nokunciphisa ukuxhathisa kwe-oxidation	Uqhagamshelwano oluqhelekileyo lobhedu olulungele ukunxiba ixesha elide
Ukumelana neMozulu	Yenzelwe imvula, umkhenkce, umoya, kunye nemekobume yongcoliseko	Ukukhuselwa okulinganiselweyo kwiimeko ezinzima zangaphandle
Indlela yokusebenza	Ixhasa ukusebenza ngesandla kunye nemoto	Ubukhulu becala iinkqubo zezandla kuphela
Imfuneko yoLondolozo	Ukugcinwa okuphantsi kunye namaxesha okuhlola amade	Ukugcinwa rhoqo kuyafuneka

Iimeko zeSicelo

ISwitshi yokuNyekisa iVoltage ePhezulu yaNgaphandle isetyenziswa kakhulu apha:

Izitishi zothumelo lombane ophezulu
Uthungelwano lokuhambisa amandla kunye nezikhululo zokutshintsha igridi
Iinkqubo zobonelelo lwamandla kwimizi-mveliso
Izitishi zamandla ahlaziyekayo (iifama zomoya kunye nelanga)
Iinkqubo zamandla kaloliwe kunye neziseko zophuhliso

Amanqaku oFakelo kunye nokuSebenza

Ukulungelelaniswa okufanelekileyo kwe-shaft ejikelezayo kunye nesakhiwo senkxaso ye-insulator kubalulekile ukuqinisekisa ukusebenza kakuhle komatshini. Isakhelo esisisiseko kufuneka sisekelwe ngokukhuselekileyo, kwaye indlela yokusebenza kufuneka ivavanywe phambi kokunika amandla ukuqinisekisa ukusebenza ngokukhuselekileyo kokutshintsha phantsi kweemeko ezingenamthwalo.

FAQ

I-Q1: Nguwuphi owona msebenzi uphambili wale Outdoor High Voltage Disconnect Switch?
Inika ukuhlukaniswa okubonakalayo kweesekethe eziphezulu ze-voltage ukuqinisekisa ukugcinwa okukhuselekileyo kunye nokusebenza kwenkqubo.

I-Q2: Ngaba olu tshintsho lusebenza phantsi kweemeko zemozulu zangaphandle ezinzima?
Ewe, yenzelwe iimeko zangaphandle ezigqithisileyo kubandakanya ungcoliseko, imvula, umkhenkce, kunye neemeko zomthwalo womoya.

I-Q3: Yintoni eyenza ukuba uluhlu lwe-GW4 luhluke kwii-isolator eziqhelekileyo?
Ibonelela ngolungelelwaniso oluphuculweyo lomatshini, ukuxhathisa okuqinileyo kokutya, kunye nobomi obude bokusebenza xa kuthelekiswa neemodeli eziqhelekileyo.

I-Q4: Ngaba ukusebenza kweemoto kuyafumaneka?
Ewe, zombini izixhobo zemanuwali neziqhutywa yimoto zinokumiselwa ngokuxhomekeke kwiimfuno zeprojekthi.

Q5: Ngawaphi amashishini aqhele ukusebenzisa esi sixhobo?
Isetyenziswa kakhulu kuthumelo lwamandla, kwizitishi, iinkqubo zamandla ahlaziyekayo, kunye nothungelwano lombane olunzima lwemizi-mveliso.
