I-40.5KV yangaphandle yokuDityaniswa kweSwitch

Model:GW5-40.5

Amandla ka-Anqiang aphuhliswe ngokuzimeleyo i-40.5KV yangaphandle yokuqhawula umtshintshi ikholomu ephindwe kabini, ikhefu elithe tye, uhlobo lokuvula iziko, kwaye lunokuxhotyiswa ngokutshintsha komhlaba kwelinye okanye kumacala omabini. Sisixhobo sangaphandle se-high-voltage esifanelekileyo kwizicelo ze-AC 50Hz, kunye namanqanaba ombane alinganisiweyo we-40.5KV, 72.5KV, kunye ne-126KV. Singayenza ngokwezifiso ngokwemizobo okanye iimfuno zabathengi.

Thumela uMbuzo

Ingcaciso yeMveliso

Uluhlu lwe-GW5I-40.5KV yangaphandle yokuDityaniswa kweSwitchyenzelwe ukuhanjiswa kwamandla ombane aphakathi naphezulu kunye nothungelwano losasazo olusebenza phantsi kweemeko ze-AC 50Hz. Isetyenziswa ngokubanzi kwizitishi kunye nezikhululo zamandla ukwahlula ngokukhuselekileyo iisekethe phantsi kombane ngaphandle komthwalo wangoku. Isakhiwo samkela i-double-kholamu ethe tyaba yokuvula indlela yokuvula i-V, iqinisekisa ukucoceka kombane okuzinzileyo kunye nokuthembeka okuqinileyo koomatshini kwiindawo ezibuhlungu zangaphandle.

Xa kuthelekiswa nokutshintsha kwesiqhelo, okuI-40.5KV yangaphandle yokuDityaniswa kweSwitchinikeza ukuxhathisa umoya okuphuculweyo, ukusebenza okuphuculweyo kokuchasana nokungcoliseka kwendalo, kunye nenkqubo yoqhagamshelwano ezinzile ngakumbi, iyenza ilungele ukusebenza ixesha elide kwimimandla eselunxwemeni, entlango, kunye nokufuma okuphezulu.

Iimpawu eziphambili zoYilo

Ikholamu ephindwe kabini yesakhiwo sokuvula esithe tyaba esingu-V sokuphucula uzinzo
Uyilo lwepali yemodyuli ene-porcelain ephezulu yamandla okanye i-insulators edibeneyo
Ixhasa iindlela zokusebenza ezenziwa ngesandla kunye neemoto
Ulungelelwaniso lwesiseko olunokuzikhethela: olungenasiseko, lusekelwe kwindawo enye, lusekelwe kabini
Inkqubo yokudibanisa oomatshini phakathi kwencakuba engundoqo kunye nencakuba yokumisa ukhuseleko
Ukomelezwa kokumelana nomhlwa kwinkonzo yangaphandle yexesha elide

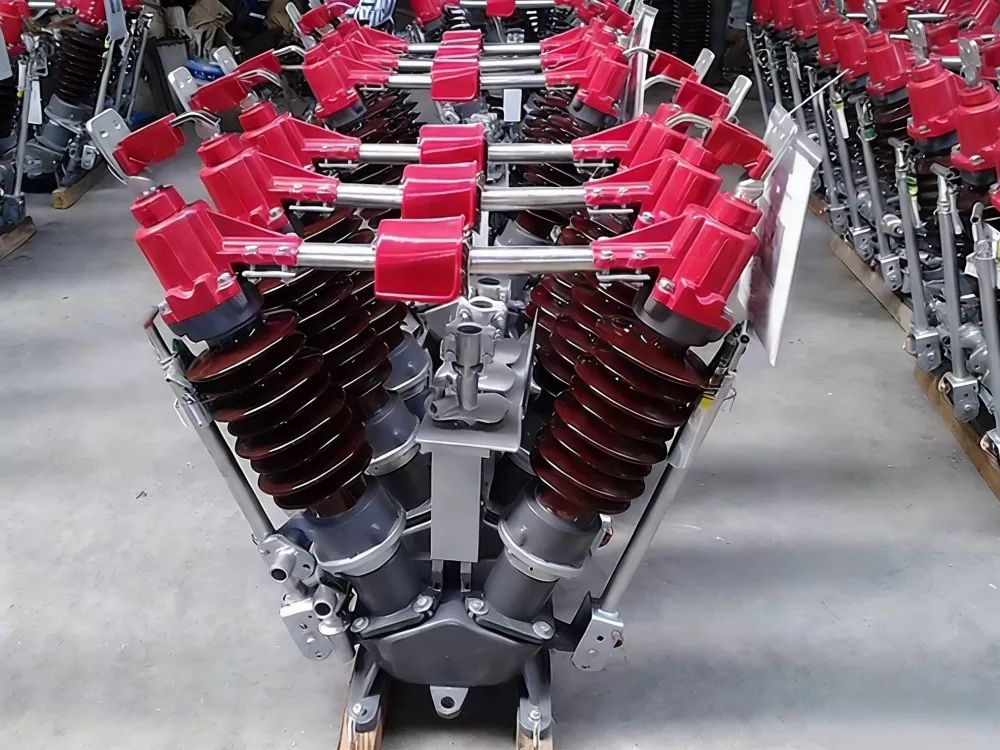

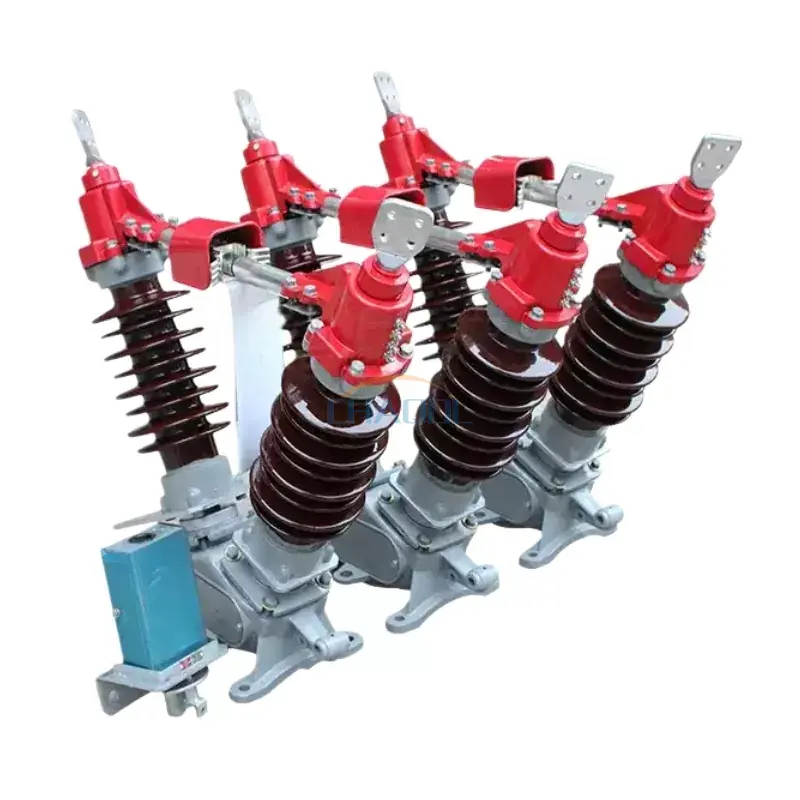

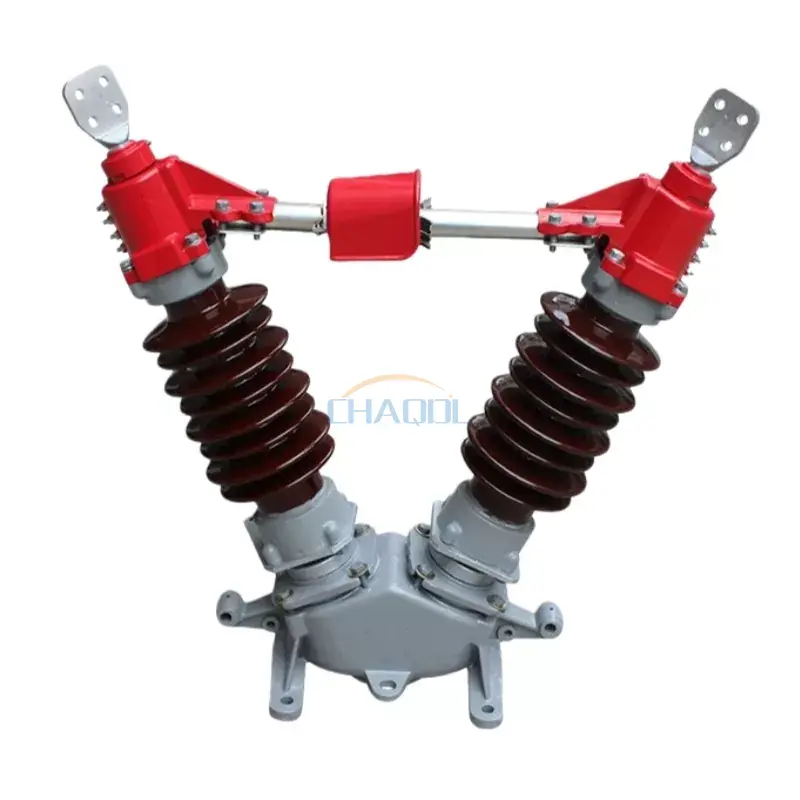

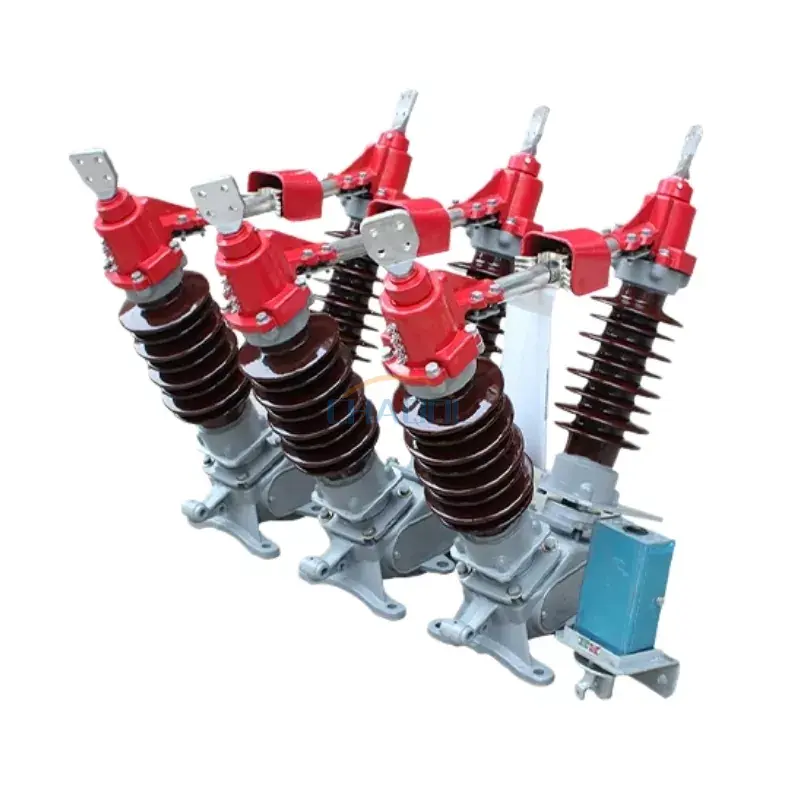

Iifoto zeMveliso eyiyo

40.5KV Outdoor Disconnecting Switch

Iiparamitha zobuGcisa

Igama leProjekthi			Ixabiso leParameter
Umbane olinganisiweyo			40.5KV	72.5KV			126KV
Inqanaba lokufakwa kwe-insulation	Umzuzu o-1 wokuphindaphinda kwamandla ombane		95/115 KV	140/160 KV			230/245KV
	Impembelelo yombane imelana nombane		185/215 KV	325/375 KV			550/630 KV
Ilinganiswe rhoqo			50 Hz
Ikalwe ngoku			630/1250A	1600A			2000A
Ilinganiswe ngobude bexesha elifutshane			4/2s
Umthamo womatshini olinganisiweyo wetheminali	Umthwalo welongitudinal othe tye		750N	1000N
	Umthwalo osecaleni othe tye		500N	750N
	Amandla amileyo		750N	1000N
Umgama weCreepage			1013/1256mm	1813/2248mm
Ubomi bomatshini			2000 amaxesha
Indlela esetyenziswa ngesandla			CS17,CS17G
Indlela yokusebenza eqhutywa yimoto		Umzekelo	CJ5/CJ6
		Amandla ombane weemoto	AC220/380,DC220
		Ulawulo lwevolthi yesekethe	AC220,DC220
		Ixesha lokuvula (le-breaker circuit)	6±1s
Ubunzima bemveliso		Ayisekelwanga	360kg		500kg	800kg
		Isiseko esisodwa	390kg		560kg	900kg
		Ukusekwa kabini	430kg		620kg	1000kg

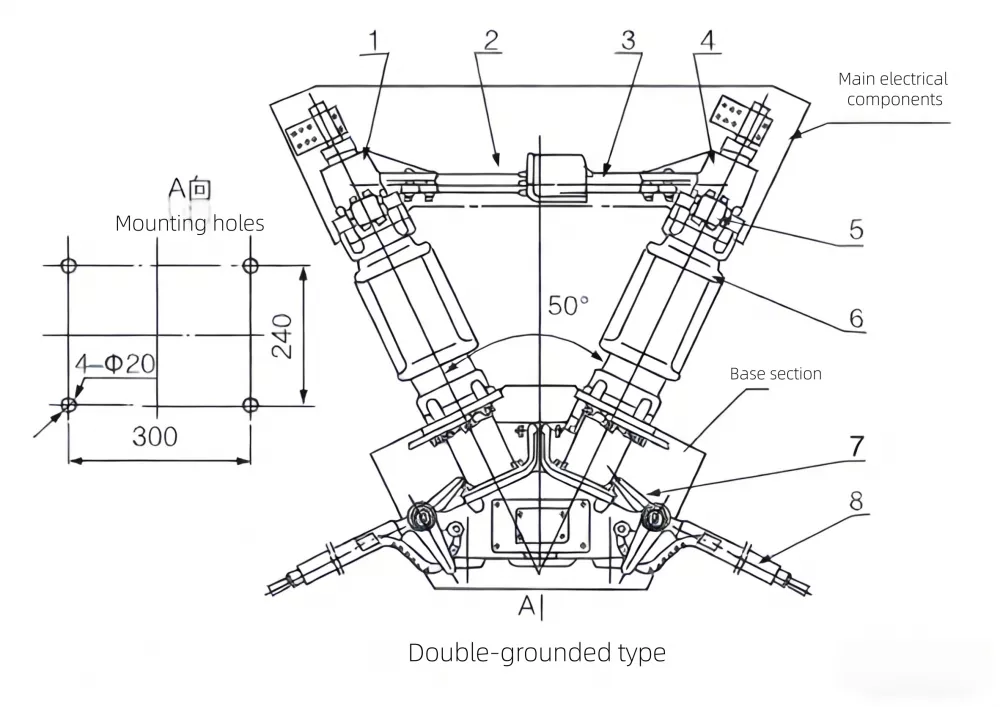

Product Dimensions Diagram

I-GW5-40.5KV yangaphandle iDimensions yeDimensions yoKuqhawula iSwitch

40.5KV Outdoor Disconnecting Switch Dimensions Diagram

1.Ibhloko yetheminali
2. Uqhagamshelwano oluphambili
3. Umnwe ongundoqo woqhagamshelwano
4. Ibhloko yetheminali
5. Umnwe wokudibanisa phantsi
6. I-insulator yokuthumela
7. Umda weplate
8. Ukutshintshela phantsi

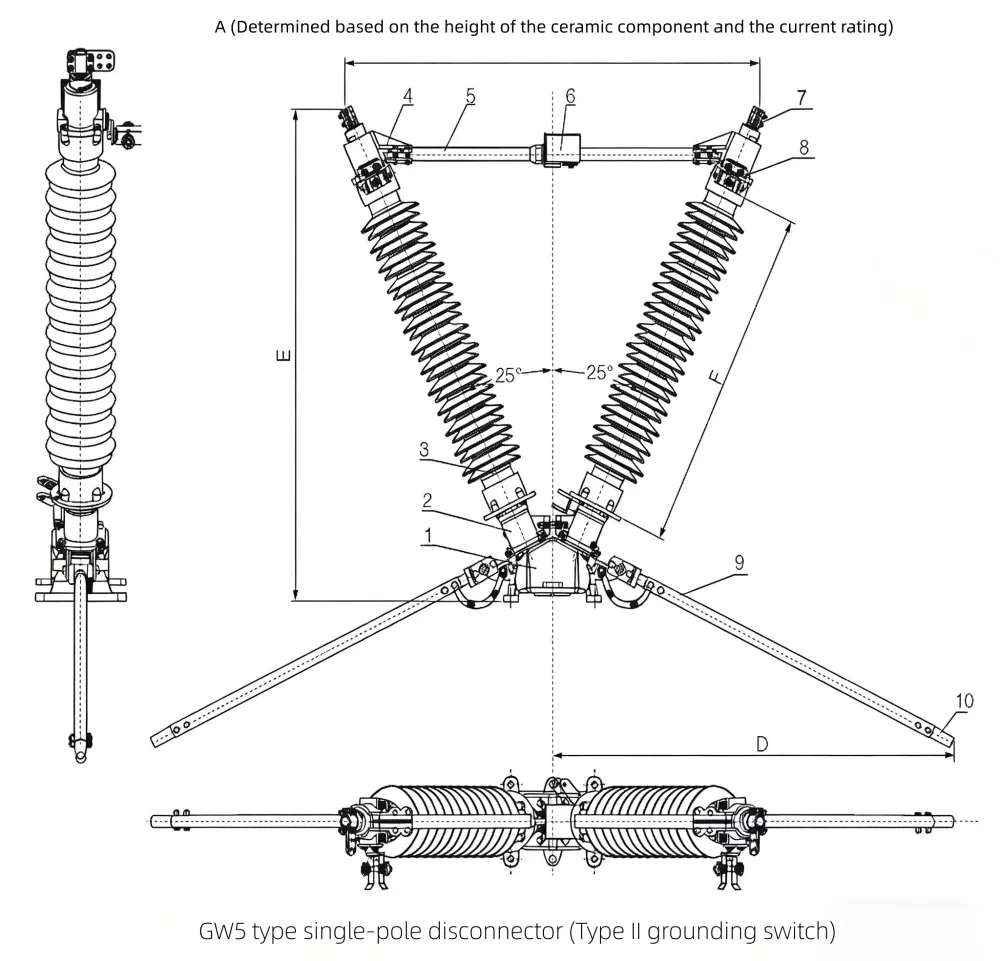

I-GW5-126 yangaphandle Nciphisa iDiyagram yoMlinganiso woTshintsho

Outdoor High Voltage Disconnect Switch Diagram

1. Isiseko
2. Inkxaso
3. Isithuba sokugquma
4. Ibhloko yetheminali
5. Round shaft conductive intonga
6. Intonga ye-square shaft conductive
7. Isibambiso setheminali
8. Grounding switch stationary contact
9. Umbhobho we-aluminium wokutshintsha umhlaba
10. Uqhagamshelwano lokutshintsha phantsi

Ukuthelekisa kunye neeMveliso ezifanayo

Into yoVavanyo	I-GW5 yethu 40.5KV yaNgaphandle yokuDiba iSwitshi	Imodeli yoKhuphiswano eqhelekileyo
Uzinzo lwesakhiwo	Uyilo oluqinisiweyo lwekholamu ephindwe kabini ye-V enokumelana nomoya ophezulu	Isakhiwo sekholamu enye, ukuzinza okuphantsi komatshini
Ukusebenza koqhagamshelwano	Iminwe yoqhagamshelwano yesilivere, ukusabalalisa uxinzelelo oluphuculweyo	Uqhagamshelwano oluqhelekileyo lobhedu, ukunxiba ngokukhawuleza
Ukuqina kwangaphandle	I-anti-corrosion coating + inkqubo ye-insulator eyomeleziweyo	Ukwaleka okusisiseko, ukusebenza kancinci konxweme
Ukusebenza bhetyebhetye	Ixhasa imanuwali + ukusebenza kweemoto ngokhuseleko lokuvala	Ubukhulu becala ukusebenza ngesandla kuphela
Iindleko zokugcina	Phantsi ngenxa yobomi obude boomatshini (imijikelo engama-2000)	Ukugcinwa okuphezulu rhoqo

Iimeko zeSicelo

II-40.5KV yangaphandle yokuDityaniswa kweSwitchisetyenziswa ngokubanzi kwi:

Izitishi ezinombane ophezulu kunye neeswitshi
Iinkqubo zokuzihlukanisa zothutho lwamandla
Uthungelwano lokuhambisa amandla kwimizi-mveliso
Amanqaku oqhagamshelwano lwegridi yamandla ahlaziyekayo (umoya & iifama zelanga)
Iiprojekthi zokuphucula igridi ezidolophini nasemaphandleni

Ngoyilo lwayo oluqinileyo lomatshini kunye nokusebenza kombane okuzinzileyo, le nqakrazo lukhetho oluthembekileyo kubaqhubi abafuna ukhuseleko lwexesha elide kunye nokusebenza kakuhle kwiindawo zangaphandle.
