I-Indoor High Voltage Disconnect Switch

Model:GN19-12

Amandla ka-Anqiang ngumvelisi waseTshayina we-Indoor High Voltage Disconnect Switch. Olu tshintsho lwe-high-voltage disconnect luluhlobo lwangaphakathi, olusetyenziswa ngokukodwa kwiinkqubo zamandla kunye ne-voltage elinganisiweyo ye-12KV kunye ne-AC frequency ye-50Hz okanye ngaphantsi, yokutshintsha okwangoku phantsi kombane kodwa ngaphandle komthwalo.

Thumela uMbuzo

Ingcaciso yeMveliso

Amandla ka-Anqiang enza into ethembekileyoI-I-I-Indoor High Voltage Disconnect Switcheyenzelwe ukwahlukaniswa ngokukhuselekileyo kunye nokwahlulwa kwesekethe kwiinkqubo zokusasazwa kwe-12kV. Uluhlu lwe-GN19 lusetyenziswa ngokubanzi kumagumbi angaphakathi okutshintsha, izitishi, kunye neekhabhathi zolawulo lwamandla emizi-mveliso apho uqhawulo olubonakalayo kunye nokhuseleko lokusebenza lufuneka. Isakhiwo sayo se-pole ezintathu siqinisekisa ukusebenza okuhambelanayo kunye nokusebenza okuzinzileyo komatshini phantsi kweemeko zokutshintsha ngokuphindaphindiweyo.

Isixhobo sakhiwe ngesakhelo esisisiseko esiqinileyo, i-shaft mechanism ejikelezayo, i-porcelain post insulators, kunye ne-high-conductivity copper switch blades. Icandelo ngalinye lenzelwe ukugcina uxinzelelo loqhagamshelwano oluzinzileyo kunye nokunciphisa ukuxhathisa kombane ngexesha lokusebenza, ukuqinisekisa ubomi obude benkonzo kunye nokusebenza okuthembekileyo kokutshintsha kwiinethiwekhi ze-voltage medium.

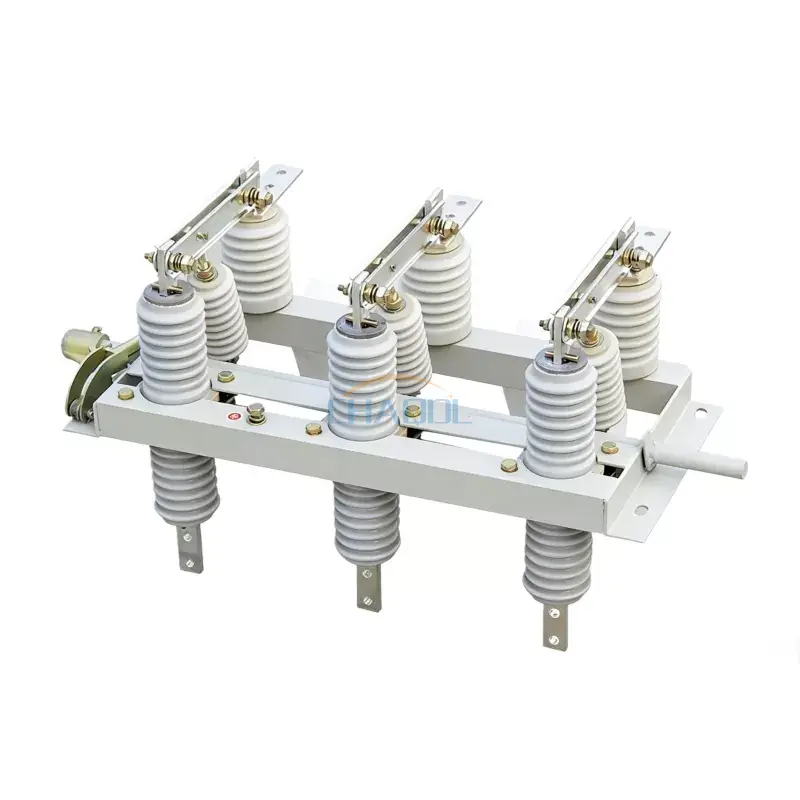

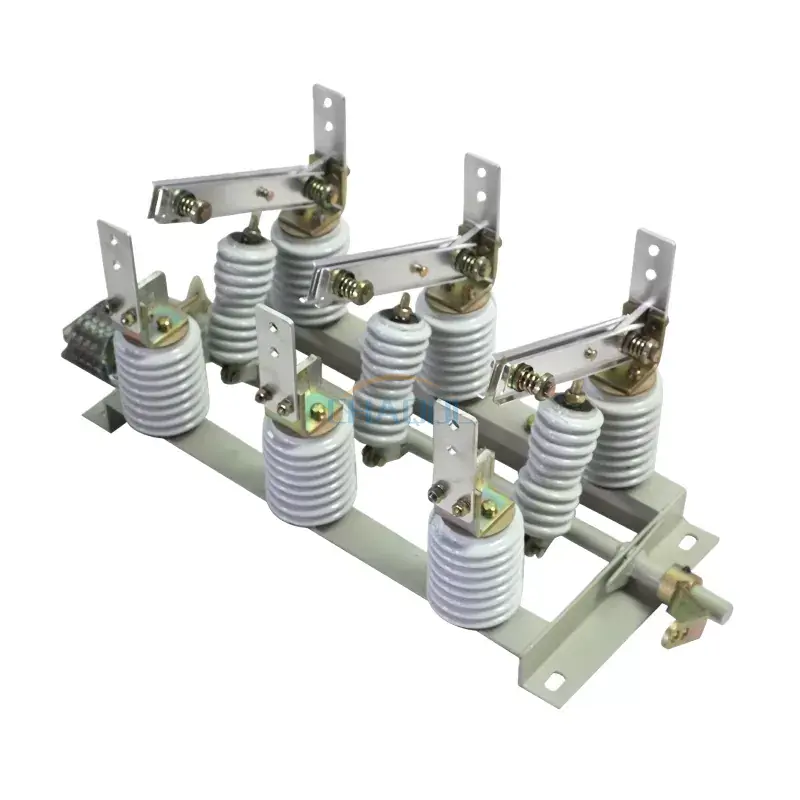

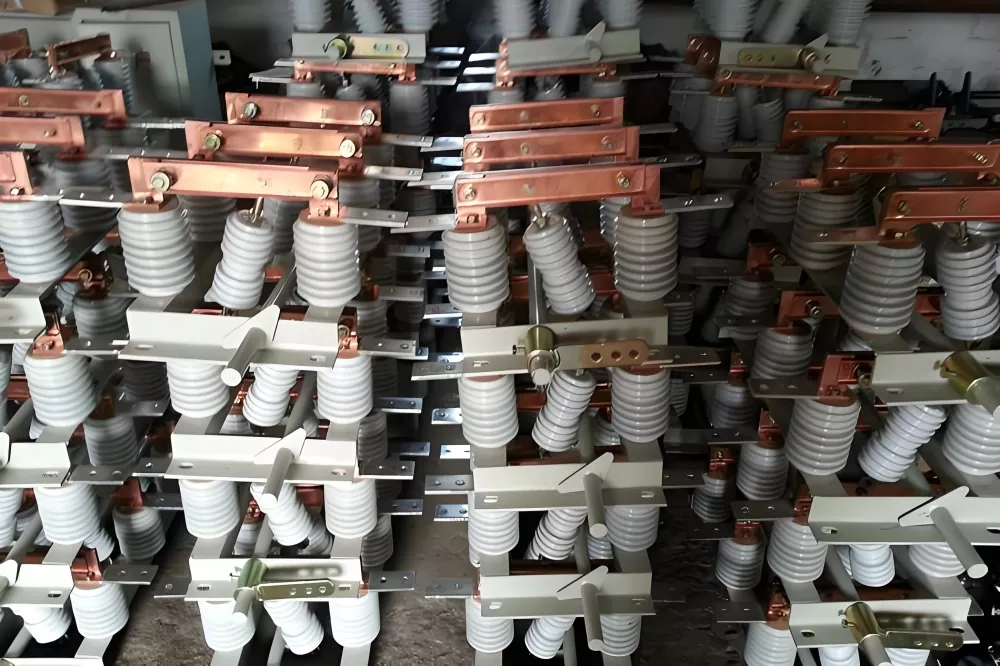

Iifoto zeMveliso

Indoor High Voltage Disconnect Switch

Isishwankathelo soYilo loLwakhiwo

Umtshintshi wamkela i-athomu edibeneyo ye-pali edibeneyo yesakhiwo esinesiseko, inkqubo ye-shaft ejikelezayo, iintonga ezidibanisayo, i-porcelain insulators, kunye ne-alloy switch blades. I-shaft yokusebenza inokudityaniswa ngokuguquguqukayo kwiindlela zokusebenza zemanuwali okanye zeemoto, ezivumela ukufakwa okuguquguqukayo kwiindlela ezahlukeneyo zokutshintsha.

Izahluko ezikhethekileyo ezifana ne-GN19-12W, GN19-12G, GN19-12X, kunye ne-GN19-12ST ziyilelwe iimeko ezahlukeneyo ezibandakanya iindawo ezingcolisekileyo, imimandla yokuphakama okuphezulu, iimfuno zokubonisa amandla ombane, kunye nezicelo zokutshintshela kabini.

Iiparamitha zobuGcisa

Iinkcukacha zokusebenza kombane kwiimodeli zothotho lwe-GN19:

Imodeli kunye neenkcukacha	Umbane olinganisiweyo	Ikalwe ngoku	Ilinganiswe ngexesha elifutshane lokumelana nangoku	Incopho elinganisiweyo ukumelana yangoku
GN19-12/400-12.5	12kV	400A	12.5kA	31.5kA
GN19-12/630-20	12kV	630A	20kA	50kA
GN19-12/1000-31.5	12kV	1000A	31.5kA	80kA
GN19-12/1250-31.5	12kV	1250A	31.5kA	80kA
GN19-12C/400-12.5	12kV	400A	12.5kA	31.5kA
GN19-12C/630-20	12kV	630A	20kA	50kA
GN19-12C/1000-31.5	12kV	1000A	31.5kA	80kA
GN19-12C/1250-31.5	12kV	1250A	31.5kA	80kA

Product Dimensions Diagram

Indoor High Voltage Disconnect Switch Dimensions

Imodeli kunye neenkcukacha	A	B	C	D
GN19-12/400	450	446	185	4-14*24
GN19-12/630	470	446	185	4-14*24
GN19-12/1000/1250	510	500	196	4-18*28
GN19-12C/400	420	690	185	4-14*24
GN19-12C/630	430	690	185	4-14*24
GN19-12C/1000/1250	470	745	196	4-18*28

Izinto eziluncedo zokuSebenza xa zithelekiswa neeMveliso ezifanayo

Kwiiprojekthi zokusasazwa kwamandla ehlabathi, iI-I-I-Indoor High Voltage Disconnect Switchibonisa iingenelo ezicacileyo xa kuthelekiswa nezitshixo zokwahlula eziqhelekileyo ezisetyenziswa ngokuqhelekileyo kwimarike.

Into yokuthelekisa	Uluhlu lwethu lwe-GN19	Iimveliso zoKhuphiswano eziqhelekileyo
Ulwakhiwo loQhagamshelwano	Idizayini yoxinzelelo oludityanisiweyo oluphindwe kabini ngokuxhathisa okuphantsi	Isakhiwo soqhagamshelwano omnye, ilahleko ephezulu yoqhagamshelwano ngokuhamba kwexesha
Ukuqina koomatshini	Umjikelo ophezulu wokunyamezela komatshini ulungele ukusebenza rhoqo	Ubomi bomjikelo omncinci phantsi kweemeko zokutshintsha rhoqo
Ukuthembeka kweInsulation	I-porcelain insulator yokuqina okuphezulu kunye nomgama oqiniweyo we-creepage	Uyilo lweporcelain olusemgangathweni olunokumelana nongcoliseko olusezantsi
Ukuguquguquka kokusingqongileyo	Ixhasa ungcoliseko, ukuphakama okuphezulu, kunye nokwahluka kwesalathisi	Iinketho ezilinganiselweyo zokwenza ngokwezifiso
Imfuneko yoLondolozo	Ukugcinwa okuphantsi kunye nokusebenza okuzinzileyo kwexesha elide	Ifuna ukuhlolwa rhoqo kunye nohlengahlengiso

Iimeko zeSicelo

Olu tshintsho lweNgxowa-mali oluPhezulu lweNgxowa-mali lusetyenziswa kakhulu apha:

Izitishi zombane kunye namagumbi okuhambisa
Iinkqubo zamandla okwenziwa kwemizi-mveliso
Iiyunithi eziphambili zeringi (RMU) kunye neendibano zokutshintsha izixhobo
Uthungelwano lweziseko ezingundoqo zasezidolophini nasemaphandleni
Iinkqubo zokuhlanganisa amandla ahlaziyekayo

Amanqaku oFakelo kunye nokuSebenza

Ufakelo olululo luqinisekisa ukusebenza kakuhle kwe-Indoor High Voltage Disconnect Switch. Isixhobo kufuneka sifakwe kwisakhelo sesiseko esizinzile kunye nokulungelelaniswa okuchanekileyo kwe-shaft ejikelezayo. Umatshini wokusebenza kufuneka ujongwe ukuba unxibelelano olugudileyo lomatshini phambi kokuba inkqubo isebenze.

FAQ

I-Q1: Nguwuphi owona msebenzi uphambili wolu tshintsho?
Isetyenziselwa ukwahlula ngokukhuselekileyo iisekethe zombane kunye nokubonelela ngenqaku elibonakalayo lokuqhawula kwiinkqubo zombane ophakathi.

I-Q2: Ngaba inokusetyenziswa ngaphandle?
Le modeli yenzelwe ngokukodwa ukusetyenziswa kwangaphakathi. Usetyenziso lwangaphandle lufuna iindawo ezivaliweyo ezilinganiselwe ngokukodwa okanye iinguqulelo zangaphandle zokutshintsha.

I-Q3: Yintoni eyenza imveliso yakho yahluke kwiinketho eziqhelekileyo zemarike?
Xa kuthelekiswa noyilo oluqhelekileyo, le Indoor High Voltage Disconnect Switch ibonelela ngobomi obuphuculweyo boomatshini, uyilo olungcono lokugquma, kunye nokuguquguquka ngakumbi.

I-Q4: Ngaba ukwenza ngokwezifiso kuyafumaneka?
Ewe, iireyithingi ezahlukeneyo zangoku, iinguqulelo zobude, kunye nolungelelwaniso lwesalathisi lunokwenziwa ngokweemfuno zeprojekthi.

I-Q5: Ifuna kangaphi ukugcinwa?
Ngaphantsi kweemeko eziqhelekileyo, ukuhlolwa ngezikhathi ezithile kwanele ngenxa yesakhiwo sayo esizinzileyo somatshini kunye nezixhobo ezichasene ne-corrosion.
