Uhlobo lweTanki ye-66KV SF6 Isaphuli seSekethe

I-Tank ye-66KV Uhlobo lwe-SF6 I-Circuit Breaker (iModel: LW36-66) i-high-voltage yangaphandle ye-circuit breaker eyenzelwe i-66KV yokuhanjiswa kwamandla kunye neenkqubo zokuhambisa kunye ne-frequency elinganisiweyo ye-50Hz AC. Ukusebenzisa igesi ye-SF6 njengesixhobo sokugquma kunye nokucima i-arc, ibonelela ngokutshintsha okuthembekileyo, ukuphazamiseka kokuphazamiseka, kunye nokukhusela izitishi, iigridi zamandla asetyenziswayo, izibonelelo zoshishino, kunye neeprojekthi zamandla ahlaziyekayo. I-breaker circuit ingasetyenziselwa njenge-breaker tie yebhasi kunye ne-capacitor bank switching applications.

Eyilwe nge-compact live-tank structure, i-LW36-66 inciphisa indawo yokufakela ngelixa ihambisa ukusebenza kombane okugqwesileyo kunye nokuthembeka kokusebenza kwexesha elide. Indlela yayo yokusebenza yasentlakohlaza ephucukileyo, inqanaba lokuvuza eliphantsi le-SF6, kunye noyilo olulungele ukulungiswa kuyenza ibe sisisombululo esifanelekileyo kuthungelwano lwale mihla olunombane ophezulu olufuna ukusebenza ngokukhuselekileyo, okusebenzayo kunye nozinzo.

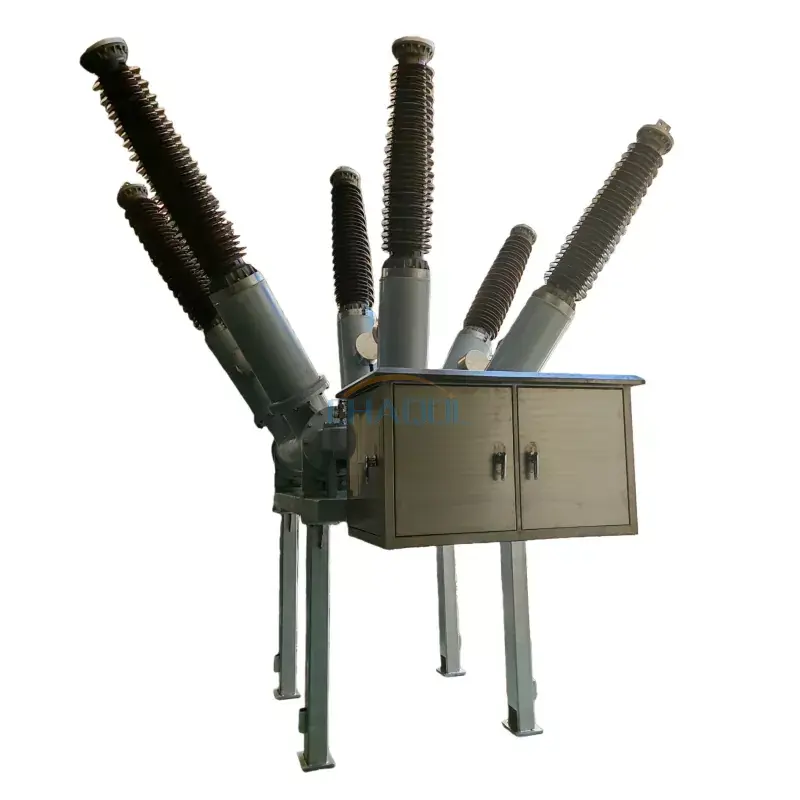

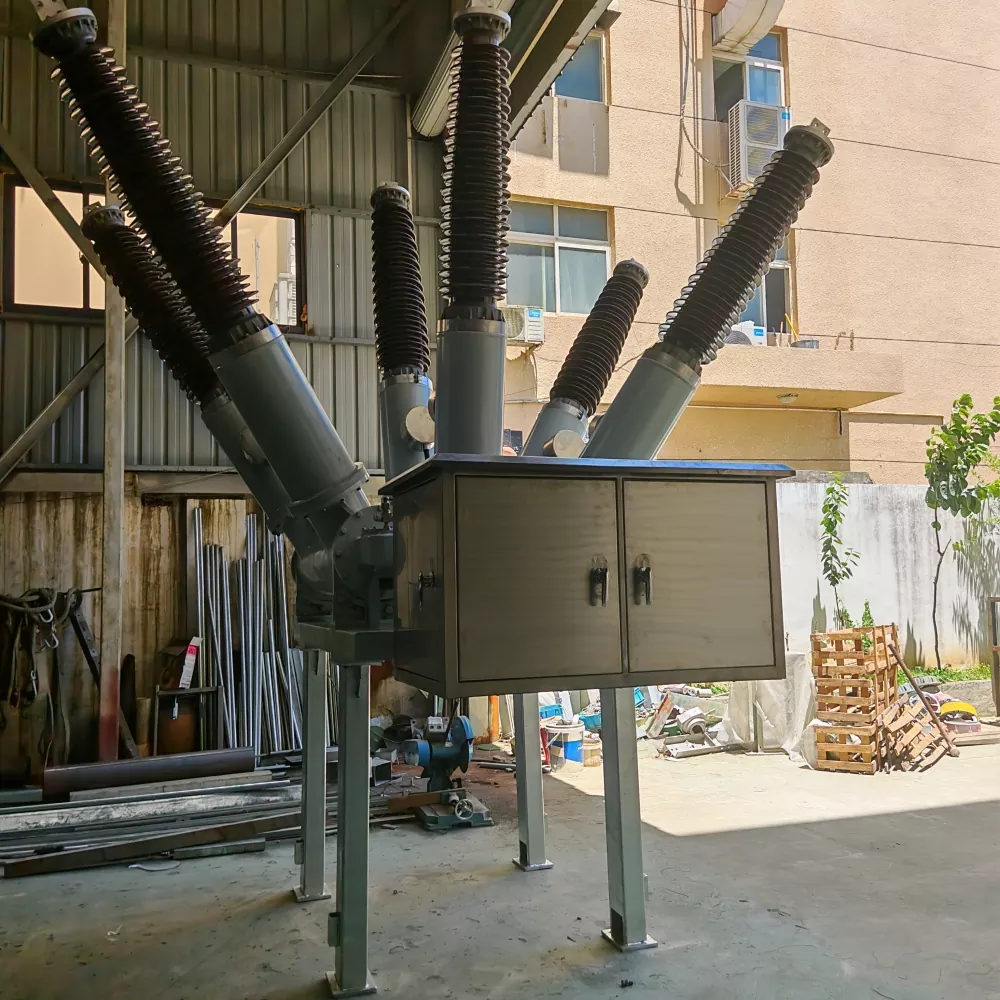

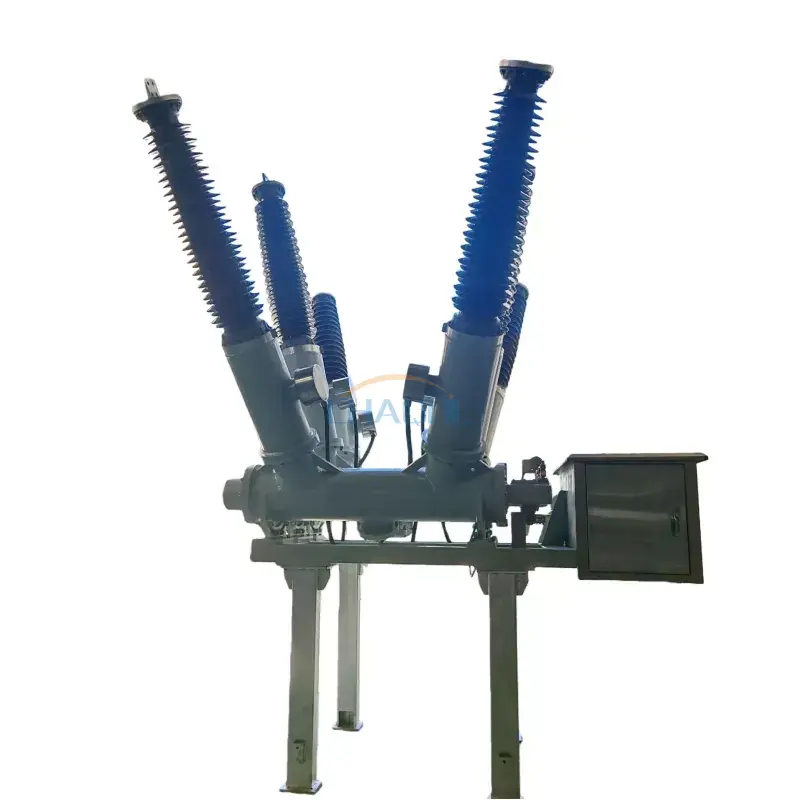

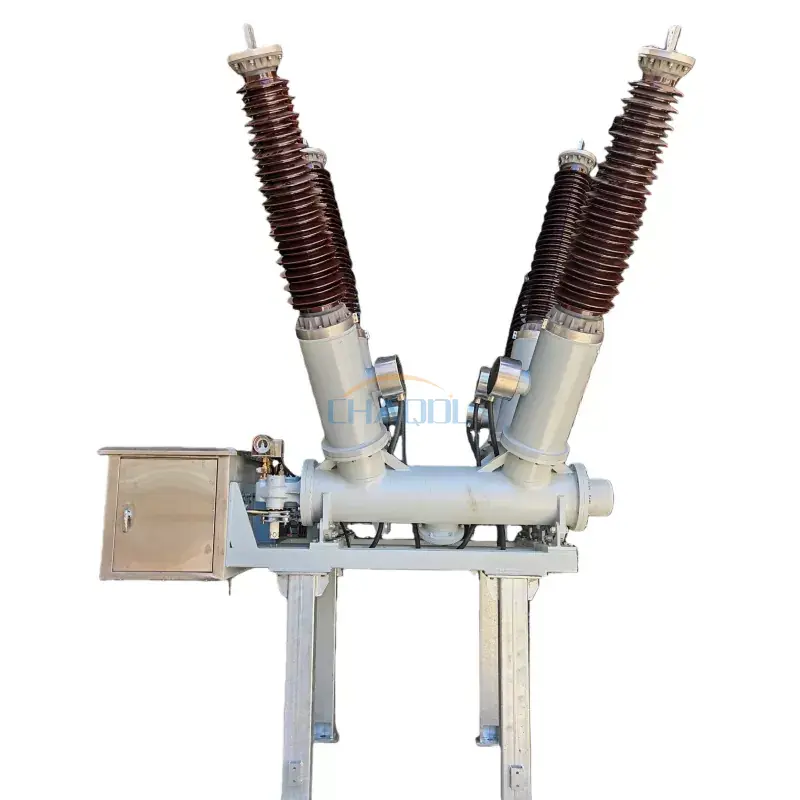

Eyona Ifoto yeMveliso

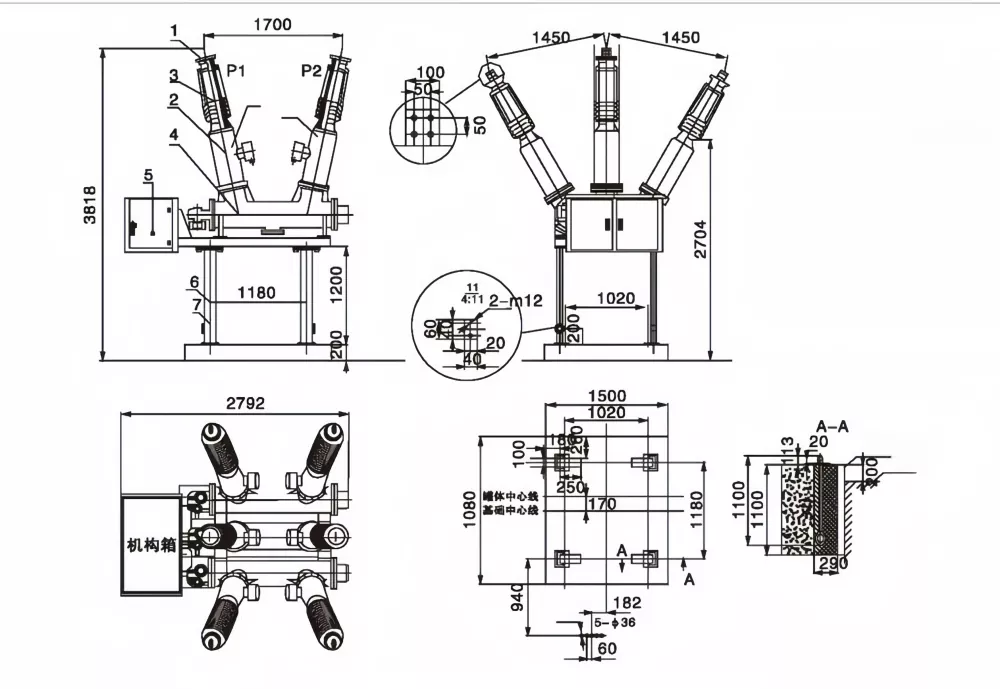

Product Dimensions Diagram

Ulwakhiwo olungundoqo

• Ibhloko yeSilver-plated i-aluminiyam yesigaba esisodwa sokuqhuba umbane.
• Amandla aphezulu e-porcelain aphumayo bushing kunye nokusebenza okuphezulu kwe-insulation.
• I-transformer yangoku eyakhelwe ngaphakathi (CT) yokukhusela kunye nokulinganisa.
• Igumbi lokucima i-arc le-SF6 elixhonywe phantsi elinokuphazamiseka okuphezulu.
• Ikhabhinethi ye-Mechanism edibanisa indlela yokusebenza yasentwasahlobo kunye namacandelo olawulo lwesibini.
• Inkxaso yentsimbi yentsimbi enesitayile esinzima sofakelo oluzinzileyo.
• Iitheminali ezininzi ezisezantsi zokuphucula ukhuseleko lokusebenza.

Iimpawu zeMveliso

• Ikalwe ngoku ukuya kuthi ga3150A, ilungele izicelo zokuhambisa umthwalo onzima.
• Itekhnoloji yokugquma igesi ye-SF6 ephucukileyo iqinisekisa amandla abalaseleyo edielectric kunye nokuphela kwe-arc ethembekileyo.
• Ukunyamezela kombane okude kunye ne-31.5kA yesiphazamiso sokuphazamiseka kunye nokuya kuthi ga kwi-10,000 yemisebenzi yomatshini.
• Izinga lokuvuza kwerhasi ye-SF6 yonyaka ngaphantsi kwe-0.5%, ukunciphisa iimfuno zokugcinwa kunye nokuqinisekisa ukuthembeka kokutywinwa kwexesha elide.
• IUhlobo lweTanki ye-66KV SF6 Isaphuli seSeketheyenzelwe iimeko ezimandla zangaphandle, ixhasa iNqanaba le-IV loNgcoliseko kunye namaqondo obushushu akwi-Ambient ukusuka ku-40°C ukuya +40°C.
• Ukwakhiwa kohlobo lwetanki edibeneyo kunciphisa indawo yokufakela ngelixa uphucula uzinzo lomatshini.
• Ifanelekile ukujongwa kude, i-substation automation, kunye nosetyenziso lwegridi yanamhlanje.

IiNgcaciso zobuGcisa

IiNgcaciso zeNdlela yokuSebenza

Usetyenziso

IUhlobo lweTanki ye-66KV SF6 Isaphuli seSeketheisetyenziswa ngokubanzi kwiinkqubo zokuhanjiswa kwamandla ombane aphezulu kunye nokusabalalisa apho ukutshintshwa okuthembekileyo kunye nokukhusela kubalulekile.

• Izikhululo ezingama-66KV
• Uthungelwano oluluncedo kunye nothungelwano losasazo
• Izityalo zokuvelisa amandla
• Ukuhlanganiswa kwegridi yamandla ahlaziyekayo
• Iinkqubo zokuhambisa amandla kwimizi-mveliso
• Ukutshintsha kwebhanki ye-Capacitor
• Iqhina lebhasi kunye nokhuseleko lokutya
• Igridi ehlakaniphile kunye neeprojekthi ezizenzekelayo ezizenzekelayo

UmGaqo wokuSebenza

I-66KV Tank Type SF6 Circuit Breaker isebenzisa igesi yesulfure hexafluoride (SF6) njenge-insulating kunye ne-arc-quenching medium. Xa abafowunelwa behlukana ngexesha lomsebenzi wokutshintsha, i-arc yombane yenziwa. I-high-pressure SF6 igesi ipholisa ngokukhawuleza kwaye ikhuphe i-arc, ivumela ukuba i-fault current iphazamiseke ngokukhuselekileyo nangempumelelo. I-motor-charged spring operating mechanism inikezela ngokukhawuleza ukuvula nokuvala imisebenzi, iqinisekisa ukukhuselwa okuthembekileyo kwiinkqubo zombane eziphezulu.

Imibuzo ebuzwa qho

Yintoni i-66KV yeTanki yoHlobo lweSF6 yeSekethe yeSaphuli esetyenziselwa yona?

Isetyenziselwa ukutshintsha, ukukhuselwa, kunye nokuphazamiseka kwempazamo kwiinkqubo ze-66KV zokuhambisa kunye nokusabalalisa, ukuncedisa ukugcina ukusebenza okukhuselekileyo nokuthembekileyo kweendawo ezincinci kunye neegridi zamandla.

Zeziphi izinto eziluncedo kwi-SF6 yohlobo lwetanki ye-breaker circuit?

Iitanki zohlobo lwe-SF6 izaphuli zesekethe zibonelela ngokugqwesileyo kokusebenza kwe-insulation, umthamo omkhulu wokuphazamiseka, ubume obubambeneyo, iimfuno eziphantsi zogcino, kunye nobomi benkonzo yoomatshini ende.

Ngaba le ngqungquthela yesiphaluka ingasetyenziselwa ukutshintsha ibhanki ye-capacitor?

Ewe. I-LW36-66 ifanelekile ukutshintshwa kwebhanki ye-capacitor, izicelo zokubopha ibhasi, kunye nokukhusela umgca we-high-voltage transmission.

Ngaba i-breaker circuit ifanelekile kwiindawo ezinqabileyo zangaphandle?

Ewe. Yenzelwe ukusebenza ngokuthembekileyo phantsi kweemeko zeNqanaba le-IV loNgcoliseko kunye namaqondo obushushu aphakathi ukusuka ku-40°C ukuya ku-+40°C, oko kuyenza ifaneleke ukufuna ufakelo lwangaphandle.
