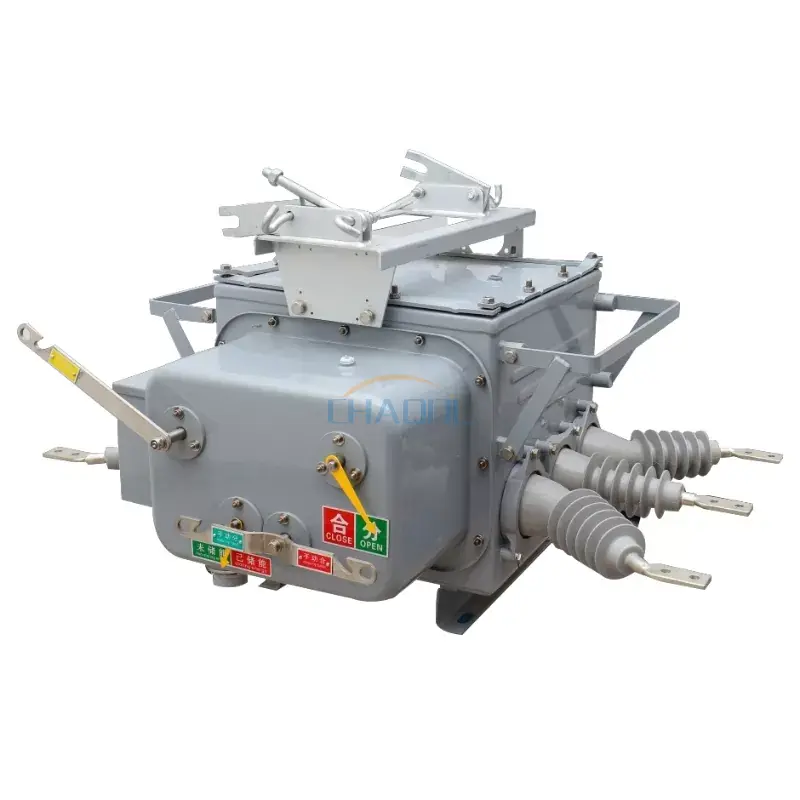

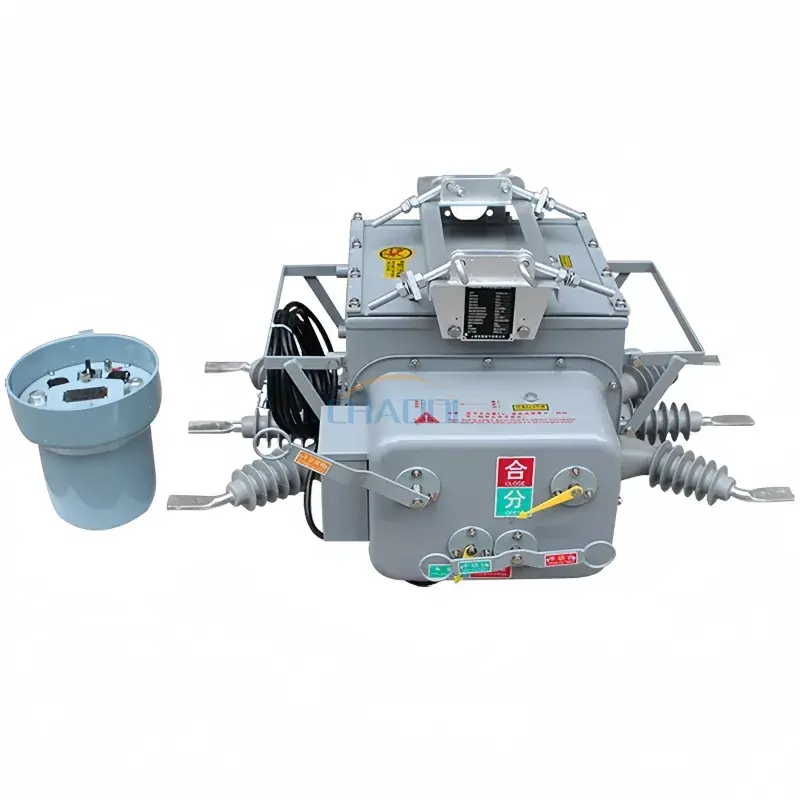

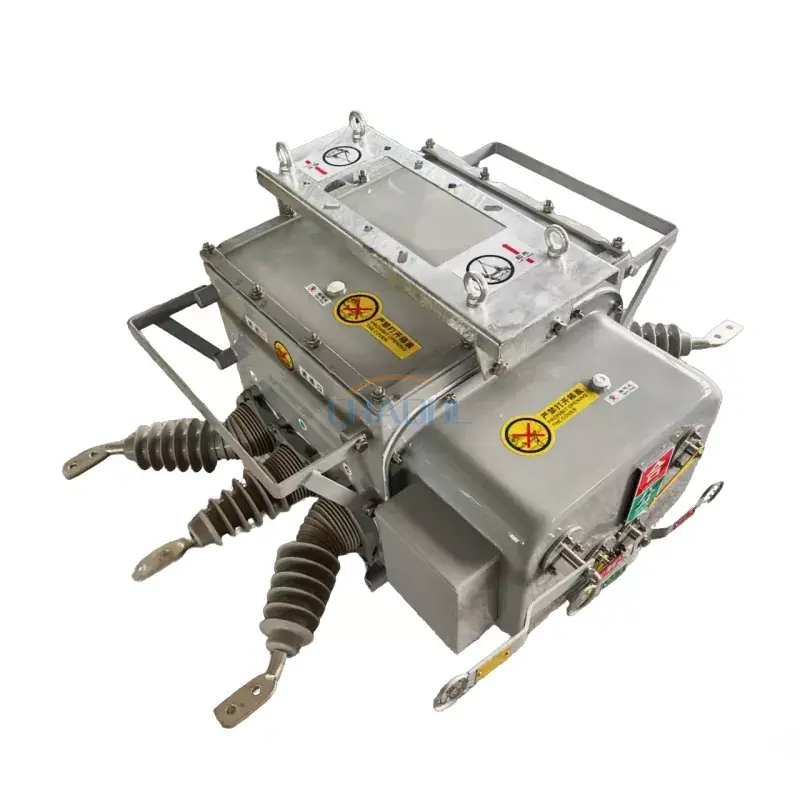

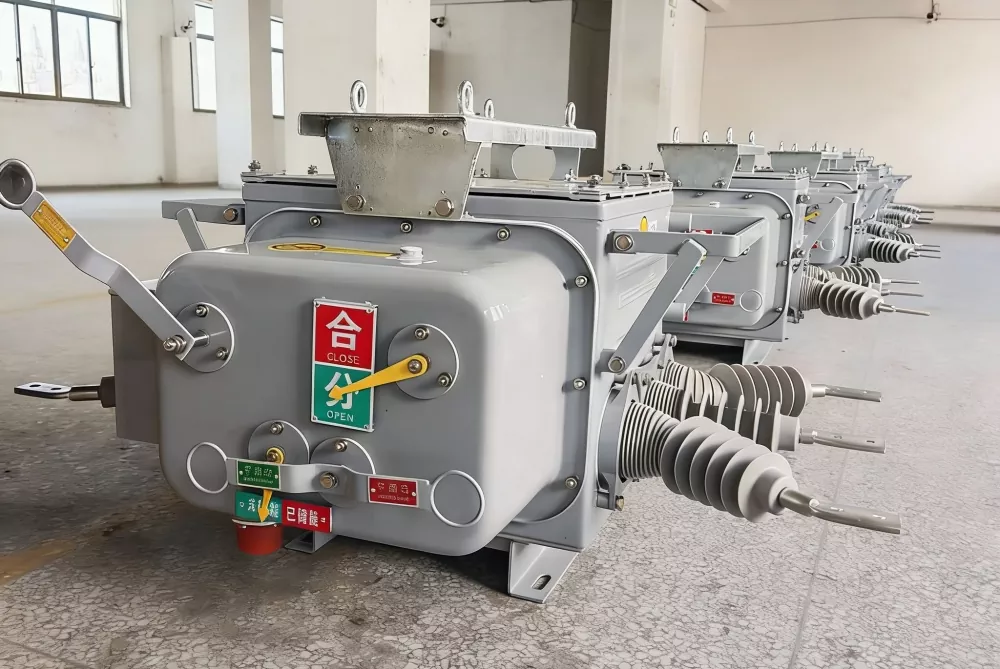

I-12KV yePoli yaNgaphandle eNyunyiweyo yeSekethe yeSaphuli

Model:ZW20-12F

Amandla ka-Anqiang ngumvelisi waseTshayina we-12kV yangaphandle ye-pali efakwe i-breaker circuit. Esi sixhobo sokuhambisa amandla sangaphandle sifakwe kwipali sinomthamo olinganisiweyo we-12kV kwaye sisebenza kwisigaba sesithathu se-AC 50Hz. Ibonisa ubuchule obubalaseleyo bokuvala kwakhona xa isetyenziswa kunye nomlawuli, ihlangabezana neemfuno zeenkqubo zokusasaza ezizenzekelayo. Isetyenziselwa ubukhulu becala ukuvula nokucima imisinga yomthwalo kunye nemisinga yesekethe emfutshane kwiinkqubo zamandla e-10kV, kwaye isetyenziswa kwizitishi ezincinci kunye neenkqubo zokusasaza amashishini kunye nemigodi.

Thumela uMbuzo

Ingcaciso yeMveliso

Anqiang Amandlaibonisa uthotho lweZW20-12F, isizukulwana esilandelayoI-12KV ipali yangaphandle ifakwe i-breaker circuityenzelwe izigaba ezintathu ze-AC 50Hz iinkqubo zokusasaza ngaphezulu. Yenziwe ngobuchwephesha betekhnoloji yokuphazamiseka kwevacuum ephucukileyo kunye ne-SF6 evalwe ngegesi evalekileyo (uyilo lwegauge eyi-zero gauge), esi saphuli-mthetho sidibanisa ngaphandle komthungo imisebenzi ye-vacuum circuit breaker, i-recloser, kunye ne-sectionalizer. Ingaba usebenzisa inethiwekhi yombane yasemaphandleni, inkqubo yokusabalalisa ipaki yemizi-mveliso, okanye iprojekthi ye-automation yegridi ehlakaniphile, i-ZW20-12F inikezela ukhuseleko oluthembekileyo kunye namandla okulawula okude.

I-ZW20-12F vs I-Traditional Outdoor Breaker

ZW20-12F Iqhekeza langaphandle

Uyilo oluPhakathi lwePole-Mounted

✓ SF6 irhasi zero zero gauge yoxinzelelo– Ikhuselekile & eco-friendly
✓ Isidibanisi se-Aviation se-wiring yesibini-Ukudityaniswa komlawuli olula
✓ Isakhiwo esitywiniweyo esingenakulungiswa
✓ Yakhelwe ukuhanjiswa kweenkqubo ezizenzekelayo (DA).

Umqhekezi weNdabuko

I-Oli eqhelekileyo / i-SF6 Breaker

✓ Ifuna ulondolozo lwamaxesha ngamaxesha
✓ Ukusebenza koxinzelelo lwegesi ephezulu
✓ Iingcingo zolawulo ezinobunzima
✓ Ukuvalwa kokusebenza okulinganiselweyo

📍 Isicelo kunye neSikhokelo soKhetho: Iimeko zelizwe lokwenyani

✅ Imeko 1: i-10kV Rural Electrification Network (Iingcingo eziPhezulu)
SebenzisaZW20-12Fnjengesona sixhobo sokukhusela kwimigca yesebe. Ngomlawuli ozenzekelayo wokuzisondeza, ucoca iimpazamo zexeshana kwaye unciphise ixesha lokucima. Isidibanisi senqwelomoya senza lula iingcingo zentsimi.

✅ Imeko yesi-2: Inkqubo yoSasazo lweePaka zoShishino
I-ZW20-12F ibamba i-630 / 1000A yomthwalo wangoku kwaye iphule iimpazamo ezimfutshane ukuya kwi-25kA. Uyilo lwayo olungenalo ukugcinwa lunciphisa iindleko zokusebenza zokuhanjiswa kwamandla efektri.

✅ Imeko yesi-3: I-Smart Grid Automation (I-Automation Feeder)
Xa idityaniswe nomlawuli we-automation we-feeder, i-ZW20-12F ixhasa ukubekwa esweni okude, ukwahlukaniswa kwempazamo, kunye nokubuyiselwa kwenkonzo - ilungele iiprojekthi ezizenzekelayo zokusasaza.

📋 IiNgcaciso zobuGcisa – Uhlobo oluvavanyiweyo (GB/T 1984 / IEC 62271-100)

Iprojekthi	Ixabiso leParameter
Umbane olinganisiweyo	12kV
Ilinganiswe rhoqo	50Hz
Ikalwe ngoku	630/1000 A
Ilinganiswe ngesantya soqhawulo-jikelezo lwangoku	20/25 kA
Incopho elinganisiweyo ukumelana yangoku	50/63 kA
Ilinganiswe ngexesha elifutshane lokumelana nangoku	20/25 kA
Ilinganiswe kwi-short-circuit yangoku	50/63 kA
Ulandelelwano lokusebenza olukalwe	Vula - 0.3 imizuzwana - Vala - 180 imizuzwana - Vula - Vala
Ubomi bomatshini	10,000 amaxesha
Ilinganiswe kwimijikelo yangoku yokwaphuka	10,000 amaxesha
Ireyithwe umthamo wokophuka kwesekethi emfutshane	Amaxesha angama-30
SF6 gas rated uxinzelelo	0Mpa

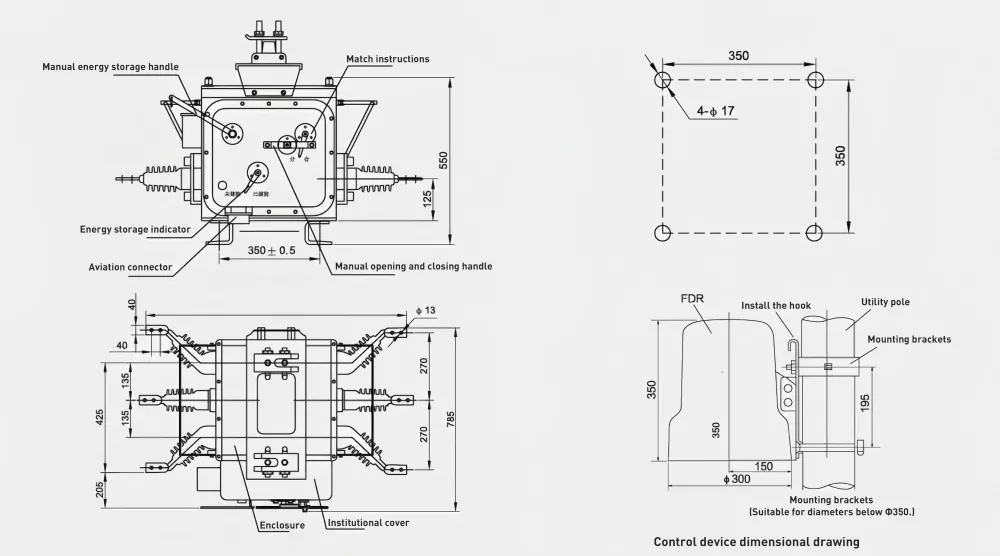

📐 Ubungakanani beMveliso kunye noKwahlulwa kwecandelo

ZW20-12F outdoor pole mounted circuit breaker dimensions

ZW20-12F uYilo loomatshini- 1. Isiphazamisi se-vacuum, 2. Indlela yokusebenza yasentwasahlobo, 3. I-transformers yangoku, 4. i-SF6 evaliweyo evaliweyo, 5. Isinxibelelanisi se-Aviation (ulawulo lwesibini), 6. Umqheba wokusebenza we-Manual, 7. I-terminal yokumisa, 8. Isibiyeli sokuxhoma i-Pole, 9. Igumbi le-Arcing.

I-ZW20-12F iquka aicwecwe, uyilo olukhaphukhaphuleyo ixhonywe ngqo kwiipali zekhonkrithi. Iisinxibelelanisi somoyayenza lula i-wiring yentsimi phakathi kwe-breaker kunye nomlawuli ohlakaniphile, ukunciphisa kakhulu ixesha lofakelo xa kuthelekiswa neebhloko ze-terminal zendabuko.

🏭 Kutheni i-Anqiang Power? -Iqabane lakho elithembekileyo labaphuli beesekethe bangaphandle

Umzi-mveliso ngqo- Akukho mntu ophakathi, ixabiso elingcono kunye nexesha lokukhokela (iintsuku eziyi-15-25).
Uhlobo luvavanyiwe- I-GB / T 1984, i-IEC 62271-100, iqinisekiswe ngokupheleleyo.
Ulungelelaniso lulungile-Ukudityaniswa komlawuli, iireyithingi ezikhethekileyo zangoku, uphawu lwe-OEM.
Iimbekiselo zehlabathi- Inikezelwe kuMzantsi-mpuma Asia, kuMbindi Mpuma, eAfrika, eMzantsi Melika.

📌 Iingxelo zeprojekthi yokwenyani:

✅ Indoneshiya– 500+ iiyunithi ze-ZW20-12F ezibekwe kwiprojekthi yokufakelwa kombane emaphandleni kwiJava yonke naseSumatra (2023–2025).

✅ Filipayinzi– iiseti ezingama-300 ze-ZW20-12F ezinezilawuli zokuziphinda ezizenzekelayo ezibonelelwe kwi-NGCP ukuze kuphuculwe i-10kV feeder automation upgrade.

Imibuzo ebuzwa qho

I-Q1: Uthini umahluko phakathi kwe-ZW20-12F kunye nezaphuli zemveli zangaphandle?
A: ZW20-12F features SF6 gas zero gauge design pressure (ekhuselekileyo & eco-friendly), i-aviation connector for lula controller integration, kunye nesakhiwo esitywiniweyo esingenakugcinwa. Izaphuli zemveli zifuna ukugcinwa rhoqo kwaye zineecingo ezintsonkothileyo.

I-Q2: Ngaba esi siqhekeza sinokusetyenziswa kunye nesilawuli sokubuyisela ngokuzenzekelayo?
A: Ewe. I-ZW20-12F yenzelwe ukuhanjiswa ngokuzenzekelayo. Xa idityaniswe nesilawuli sokubuyisela kwakhona, ixhasa ukucocwa kwempazamo ngokuzenzekelayo kunye nokulandelelana okuphindaphindiweyo (Vula - 0.3s - Vala - 180s - Vula - Vala).

Q3: Yintoni ubomi bomatshini be-ZW20-12F?
A: I-10,000 lemisebenzi yoomatshini phantsi kweemeko zenkonzo eqhelekileyo, enkosi kumatshini wokucoca oqinileyo kunye nesiphazamiso esitywiniweyo.

I-Q4: Ngaba ukugcinwa kwe-breaker-free? Ithetha ntoni le nto?
A: Ewe. Irhasi ye-SF6 ivalwe kuxinzelelo lwe-zero gauge, isusa isidingo sokuzaliswa kwerhasi ngamaxesha athile. Isiphazamisi sevacuum asifuni ukulungiswa koqhagamshelwano. Oku kunciphisa kakhulu iindleko zokusebenza.

Q5: Ngaba ubonelela ngenkonzo ye-OEM/ODM?
A: Ngokuqinisekileyo. Sinikezela ngophawu lwesiko, uhlengahlengiso oluthile lwangoku, kunye nokuhlanganiswa komlawuli. Iisampulu zangaphambi kokuveliswa ziyafumaneka ngexesha elikhokelayo leentsuku ezingama-7-10.

📩 Ngaba ufuna isisombululo esilungiselelweyo okanye uluhlu lwamaxabiso?

Sixelele ukalisho lwakho lwangoku, iimfuno zomlawuli, kunye nobuninzi ekujoliswe kuko. Siza kuphendula kwiiyure ezingama-24.
