I-126KV yangaphandle ye-SF6 Isaphuli seSekethe

I-126KV yangaphandle ye-SF6 ye-Circuit Breaker (imodeli ye-LW36-126) sisixhobo sokutshintsha i-high-voltage transmission-class eyenzelwe i-substations yegridi yamandla, iinkqubo zokuhanjiswa kwe-utility, kunye nothungelwano lombane omkhulu wezoshishino. Isetyenziselwa ngokubanzi ukulawula, ukukhuselwa, kunye nokutshintshwa komthwalo wangoku, ukugqithiswa kwangoku, kunye nephutha le-short-circuit current, kwaye inokusebenza njenge-tie circuit breaker kwiinkqubo zamandla ezidibeneyo.

Le 126KV yangaphandle ye-SF6 Circuit Breaker ithatha i-sulphur hexafluoride (SF6) igesi njenge-arc-quenching kunye ne-insulation medium, idibaniswe nekholomu enye, ikhefu elilodwa kwisakhiwo sepali. Ngethuba lokuphazamiseka, umgaqo wokucima i-arc ye-self-energy uvelisa ukuhamba kwegesi ye-speed-speed ngaphakathi kwegumbi le-arc ukupholisa ngokufanelekileyo kunye nokucima i-arc, ukuqinisekisa ukusebenza ngokuzinzile phantsi kweemeko eziphezulu.

Ixhotyiswe nge-CT eqhutywa yi-CT-driven motor spring operating mechanism kunye nenqanaba elithathu lenkqubo yokudibanisa oomatshini, i-LW36-126 ibonelela ngokusebenza okuchanekileyo kokutshintsha, ukuthembeka okuphezulu koomatshini, kunye nozinzo olugqwesileyo lwexesha elide lokufuna imeko yangaphandle.

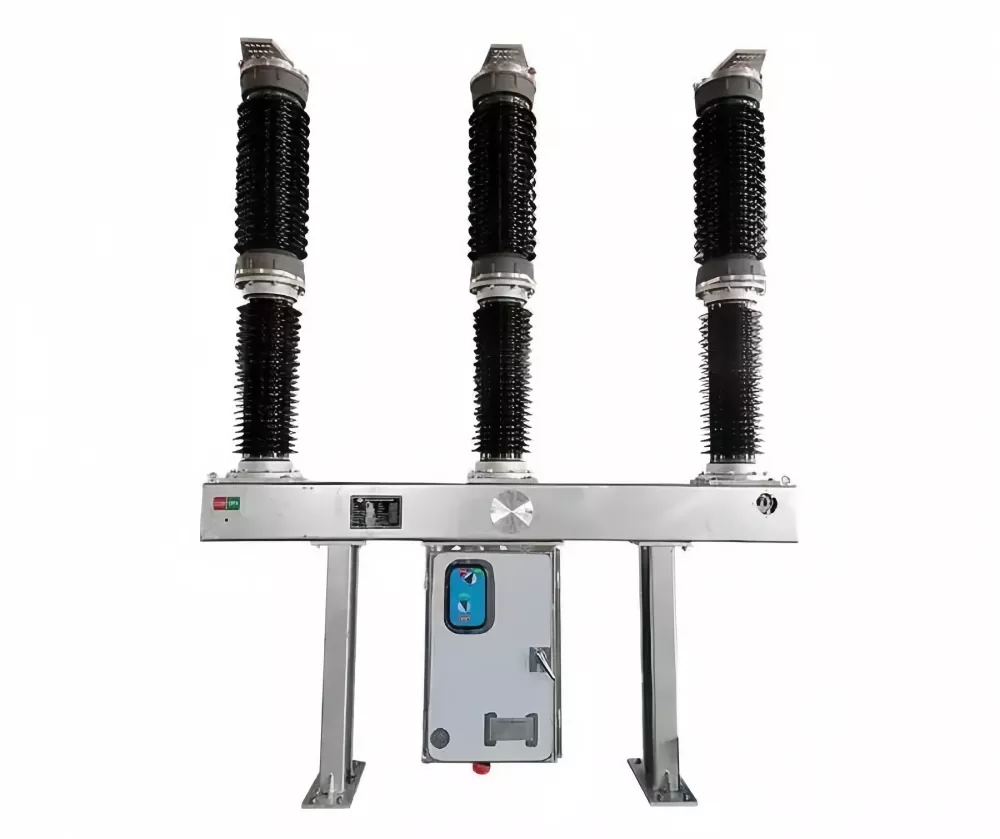

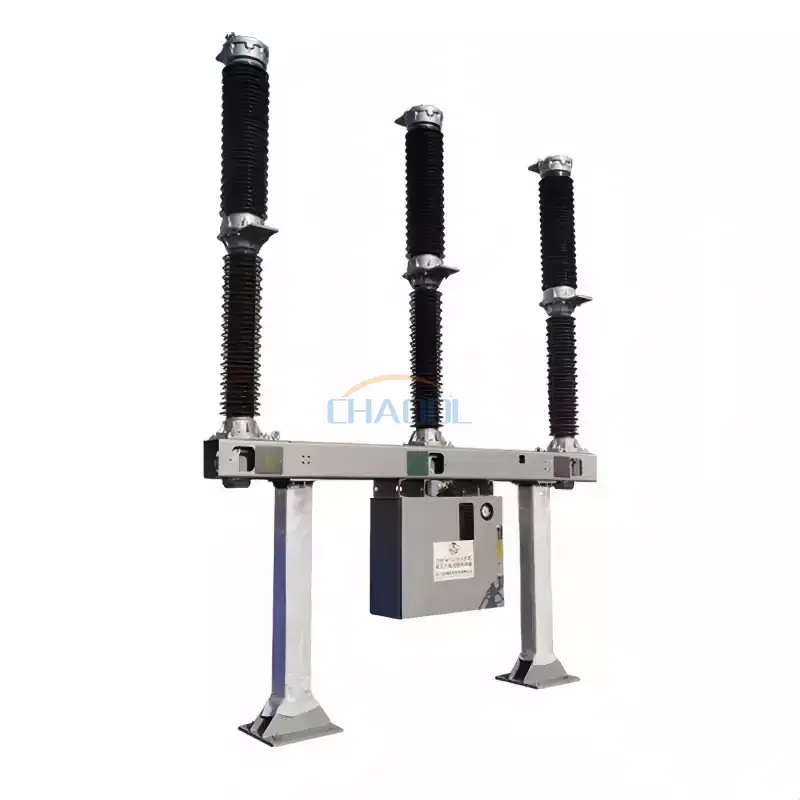

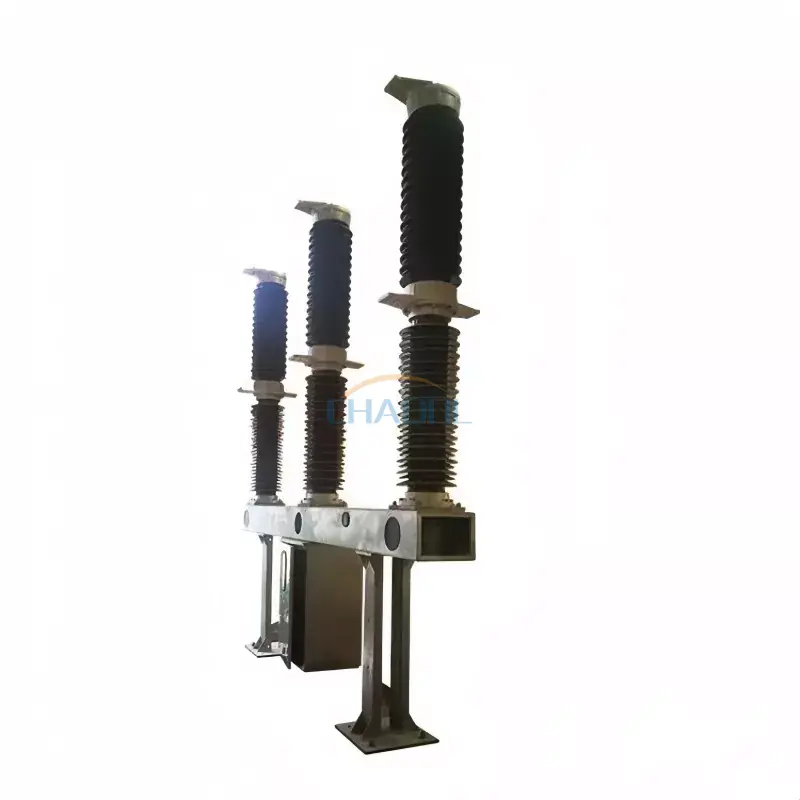

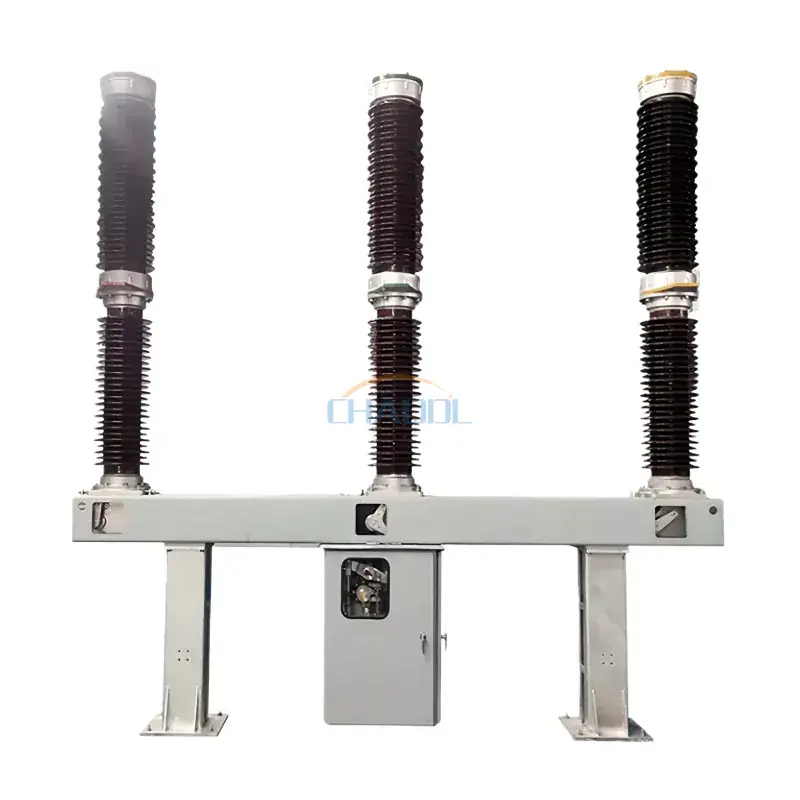

Imbonakalo yeMveliso

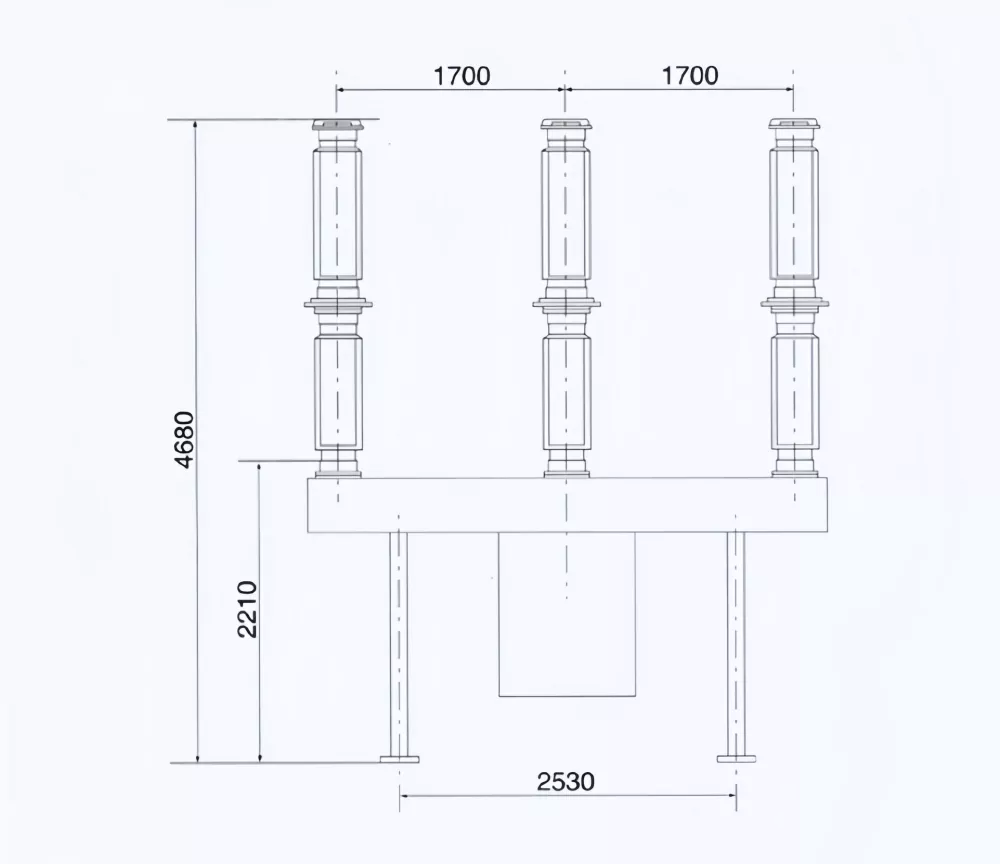

Product Dimensions Diagram

Indawo yokusebenza

• Ukuphakama kofakelo: ≤ 3000 yeemitha ngaphezu komgangatho wolwandle
• Ubushushu be-Ambient: -30°C ukuya +40°C
• Esona santya somoya: ≤ 34 m/s
• Inqanaba longcoliseko: Udidi III (25 mm/kV)

IiParameters zobuGcisa

Iimpawu zeMveliso

• Ukugquma kwegesi ye-SF6 ephucukileyo iqinisekisa ukuphela kwe-arc egqwesileyo kunye nokusebenza kwe-dielectric.
• Ikholamu enye, uyilo lwepali yekhefu elinye kunciphisa ubunzima bomatshini kunye nokuphucula ukuthembeka.
• Umthamo ophezulu wokophuka ukuya kuthi ga kwi-40kA yokuphazamiseka kwinqanaba lothumelo.
• Indlela yokusebenza yasentwasahlobo eqhutywa yi-CT iqinisekisa ukusebenza okuzinzileyo nokuchanekileyo.
• Ilungele imeko yangaphandle erhabaxa enokumelana okuqinileyo nongcoliseko, umoya, kunye nokwahluka kobushushu.
• Ubomi obude boomatshini kunye neemfuno zokugcinwa okuphantsi kwabaqhubi begridi.
• Iyahambelana ne-automation ye-substation yanamhlanje kunye neenkqubo zokulawula kude.

Ulwakhiwo lweMveliso kunye noMgaqo wokuSebenza

I-126KV yangaphandle ye-SF6 ye-Circuit Breaker iqukethe igumbi lokucima i-arc eligcwele igesi ye-SF6, ukuhlanganiswa kwe-transformer yangoku, indlela yokusebenza, isakhiwo sokuxhasa i-insulating, kunye ne-steel enclosure system. Igesi ye-SF6 isebenza njenge-insulation kunye ne-arc-quenching medium, inika amandla aphezulu e-dielectric kunye nokubuyisela ngokukhawuleza emva kokuphazamiseka.

Ngexesha leemeko eziphosakeleyo, indlela yokusebenza iqhubela umnxibelelwano ohambayo ukuba ahlukane, ivelise ukuhamba kwegesi ye-SF6 ephezulu ngaphakathi kwegumbi le-arc. Oku kuhamba komoya kupholisa ngokukhawuleza kwaye kukhuphe i-arc, iqinisekisa ukuphazamiseka okukhuselekileyo kwee-voltage fault currents. Inkqubo yonxibelelano yoomatshini enamanqanaba amathathu iqinisekisa ukusebenza ngokuhambelana kwepali kunye nokuqhekeka okuphezulu.

Usetyenziso

• Izitishi zothumelo lombane ophezulu
• Iinkqubo zothungelwano lwegridi yamandla
• Uthungelwano oluluncedo kunye nothungelwano losasazo
• Amandla ombane kunye nezikhululo zamandla obushushu
• Iinkqubo zamandla ombane aphezulu kwimizi-mveliso
• Amaziko amakhulu kunye neeprojekthi zamandla
• Iinkqubo zamandla kaloliwe nezothutho

Imibuzo ebuzwa qho

Yintoni naI-126KV yangaphandle ye-SF6 Isaphuli seSeketheisetyenziselwe?

Isetyenziselwa ukuphazamisa nokulawula umbane ophezulu we-voltage kuthungelwano lothumelo, ukuqinisekisa ukusebenza okukhuselekileyo kweendawo ezincinci kunye neenkqubo zamandla ngexesha leempazamo okanye ukutshintshwa kwemisebenzi.

Kutheni igesi ye-SF6 isetyenziswa kwii-breakers zesekethe?

Irhasi ye-SF6 ine-insulation egqwesileyo kunye neempawu zokucima i-arc, ivumela ukuphazamiseka okusebenzayo kombane we-voltage ephezulu ngelixa igcina ubungakanani besixhobo esibambeneyo.

Ngaba i-LW36-126 ifanelekile ukufakwa ngaphandle?

Ewe. II-126KV yangaphandle ye-SF6 Isaphuli seSeketheyenzelwe ngokukodwa izitishi zangaphandle kwaye zinokusebenza ngokuthembekileyo phantsi kweemeko ezirhabaxa zokusingqongileyo.

Zeziphi iingenelo ngaphezu kwezaphuli zesekethe zemveli?

Xa kuthelekiswa ne-oyile-based breakers, i-SF6 i-circuit breakers inikezela ngokuthembeka okuphezulu, ukugcinwa okuphantsi, ukuphela kwe-arc ngokukhawuleza, kunye nokusebenza okungcono phantsi kweemeko eziphezulu zombane.
