I-24kV yePole iNyuselwe iSaphuli seSekethe saMandla ombane oPhezulu

I-24kV Pole Mounted High Voltage Circuit Breaker yi-ZW32-24 series outdoor vacuum breaker circuit breaker eyenzelwe iinkqubo zokuhambisa amandla ombane ophakathi. Isetyenziselwa ngokubanzi ukutshintsha imisinga yomthwalo, ukuphazamisa imisinga yomthwalo ogqithisiweyo, kunye nokucoca iimpazamo ezimfutshane kuthungelwano lombane. Ebonisa iteknoloji yokuphazamiseka kwe-vacuum ephezulu, i-corrosion-resistant structure, kunye neendlela zokusebenza ezithembekileyo, lo mqhekezi wesekethe uqinisekisa ukusebenza okukhuselekileyo kunye nozinzo kwiindawo ezincinci, izibonelelo zoshishino, iiprojekthi zamandla avuselelekayo, kunye neenkqubo zokuhambisa izinto eziluncedo.

Njengomvelisi oqeqeshiweyo we-24kV ye-vacuum vacuum breaker circuit, sibonelela ngezisombululo ezomeleleyo nezisebenza kakhulu kumbane, iikontraki zombane, iiprojekthi ze-EPC, kunye nabaqhubi benethiwekhi yokusasaza kwihlabathi liphela.

Yintoni iPali ye-24kV eMounted High Voltage Circuit Breaker?

I-24kV pole mounted vacuum circuit breaker (VCB) sisixhobo sangaphandle sokutshintsha okuphakathi-voltage esifakwe kwiipali zoncedo ukukhusela iinkqubo zokuhambisa amandla ekugqithiseni, kwiisekethe ezimfutshane, nakwiimpazamo zombane. I-breaker isebenzisa iziphazamisi ze-vacuum ukucima ii-arcs ngokukhawuleza nangokukhuselekileyo, ukubonelela ngokusebenza okugqwesileyo kunye nobomi obude benkonzo.

Xa kuthelekiswa nezaphuli zesekethe ze-oyile zemveli kunye ne-SF6 zezaphuli zesekethe, i-vacuum breakers ibonelela ngezibonelelo ezibalulekileyo kubandakanya iimfuno eziphantsi zogcino, ubuhlobo bendalo, ukuthembeka okuphezulu kokusebenza, kunye nobomi obude bomatshini.

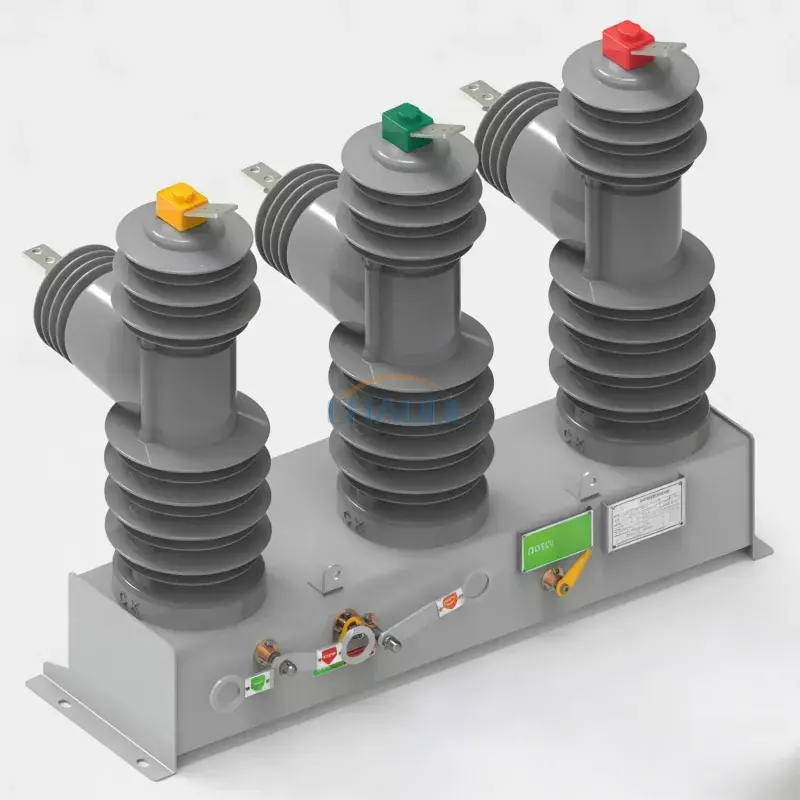

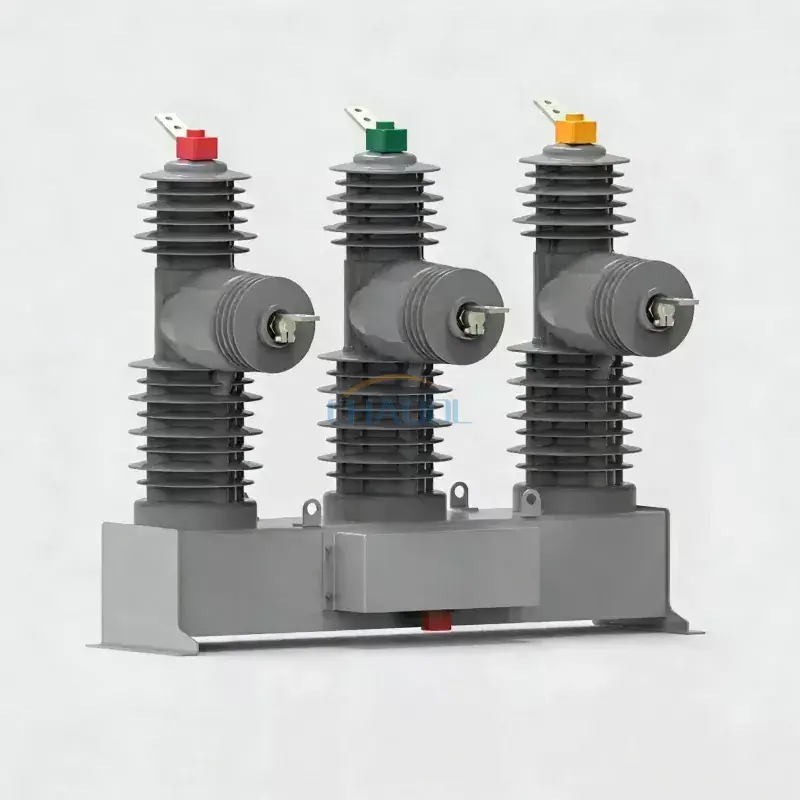

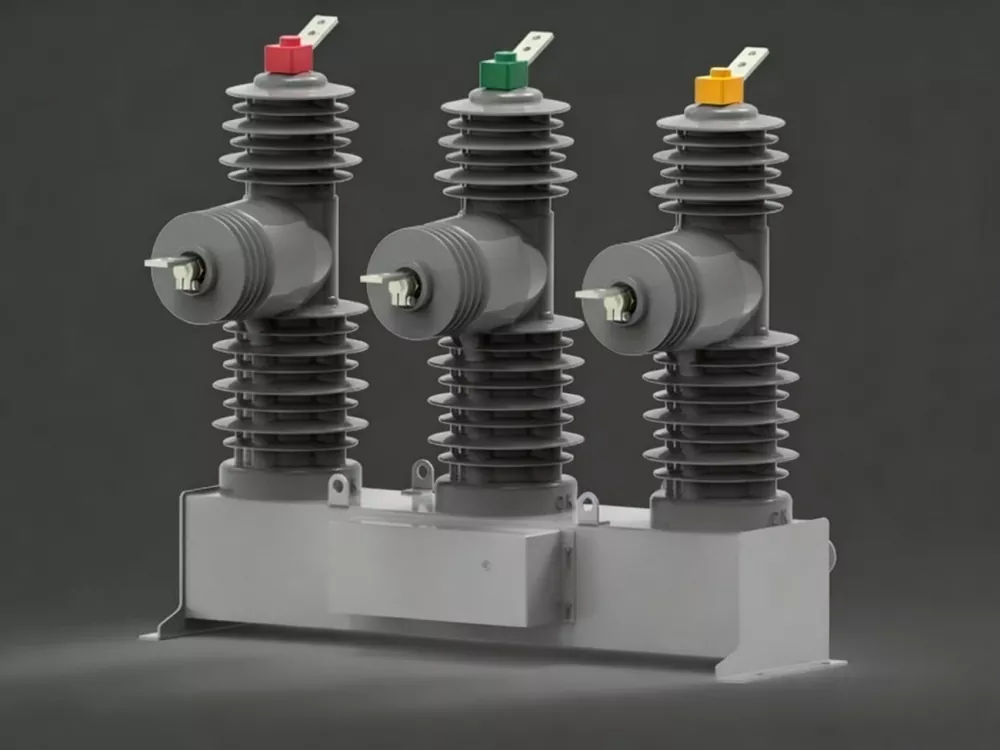

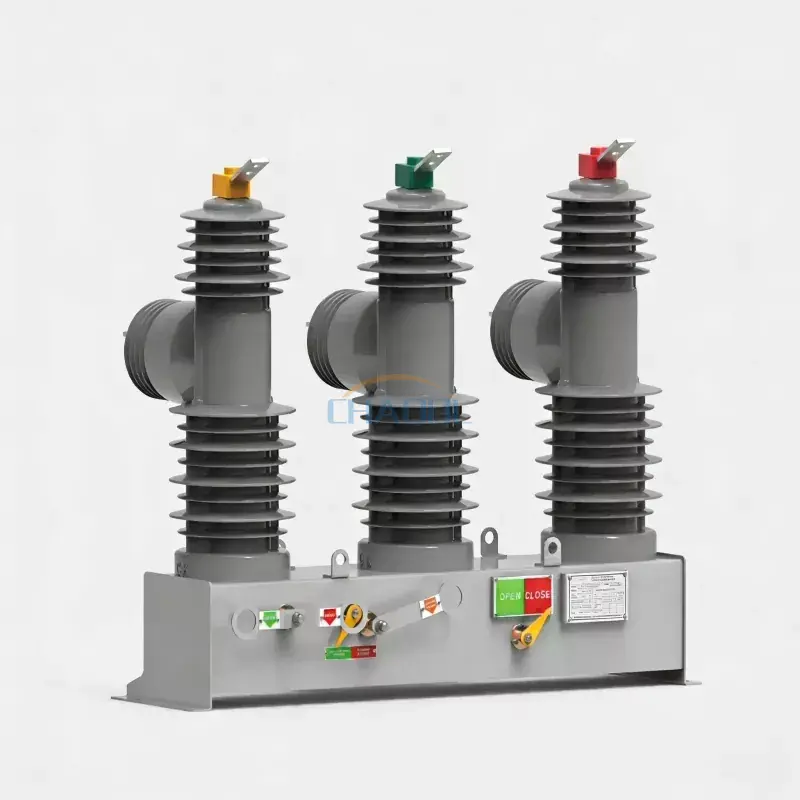

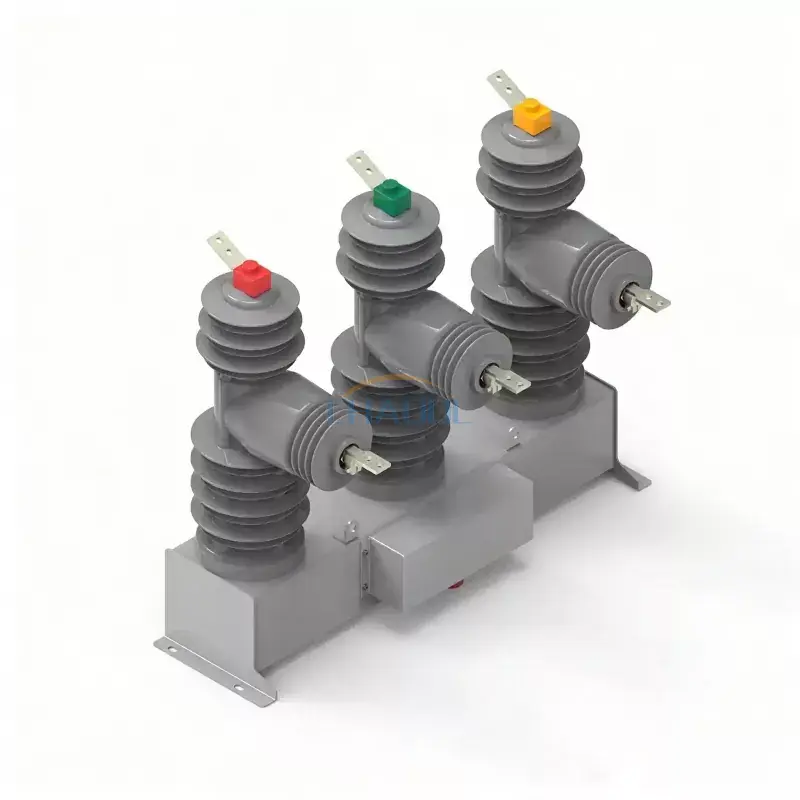

Umzobo wembonakalo

I-compact pole-mounted structure yenzelwe ukufakwa kwangaphandle kunye nokusebenza kwexesha elide kwiimeko ezifunekayo zokusingqongileyo. Ulwakhiwo lwayo oluqinileyo luqinisekisa ukuxhathisa okugqwesileyo kumanzi, uthuli, imitha ye-ultraviolet kunye nokuhlwa.

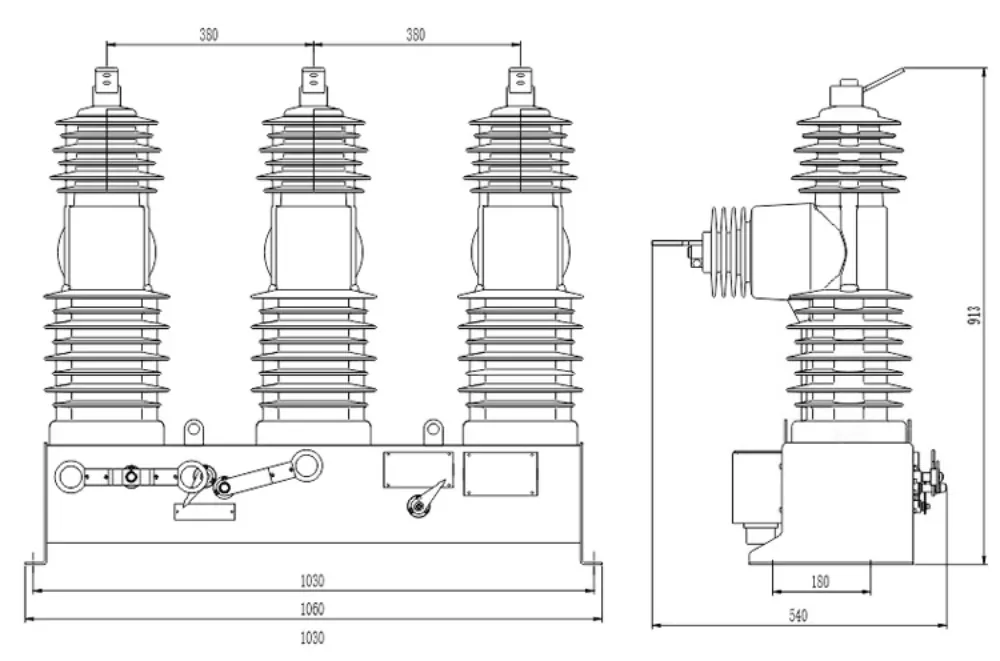

Product Dimensions Diagram

Uyilo oluphuculweyo lwesakhiwo lunciphisa iimfuno zendawo yokufakela ngelixa ugcina ukusebenza okuphezulu kokugquma kunye nokhuseleko lokusebenza. Ubungakanani becompact bukwanciphisa iindleko zothutho kunye nofakelo.

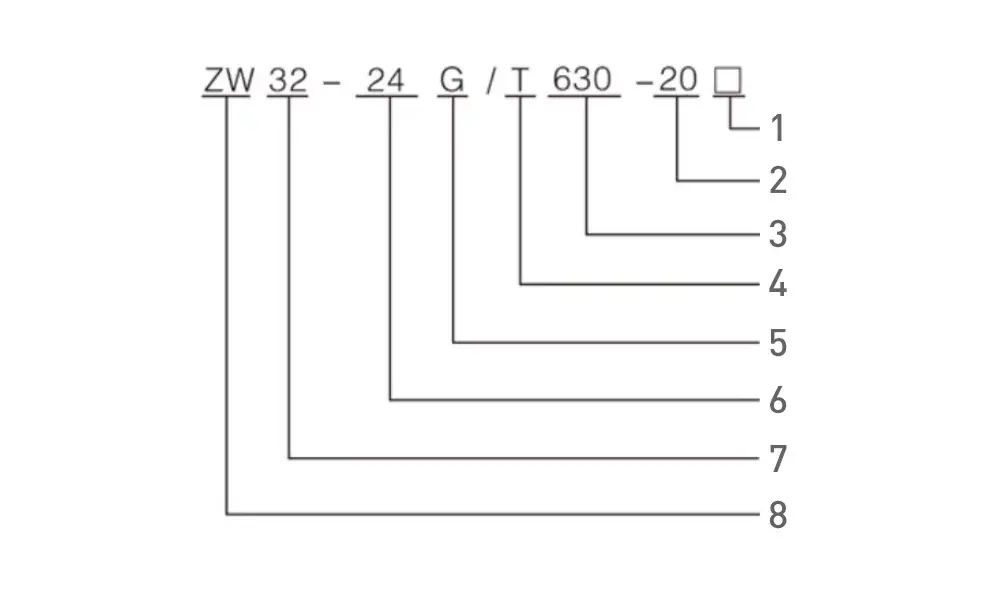

IiParameters zobuGcisa

1. Isebenza ngombane

2. Ireyithwe kwi-short-circuit breaking current (KA)

3. Ireyithiwe yangoku (A)

4. Indlela yokusebenza yasentwasahlobo

5. Ngokutshintsha okukodwa

6. Umbane olinganisiweyo (KV)

7. Yila inombolo yothotho

8. I-vacuum circuit breaker yangaphandle

Ezona mpawu

ITekhnoloji yokuCima i-Vacuum ye-Arc ephezulu

I-vacuum interrupter ngokukhawuleza icima ii-arcs zombane ngexesha lokutshintsha imisebenzi, iphucula kakhulu ukhuseleko kunye nokunciphisa ukugqoka uqhagamshelwano. Le teknoloji ibonelela ngamandla edielectric amandla kunye nokusebenza okuthembekileyo kokuphazamiseka kuwo wonke umjikelo wobomi bemveliso.

High Short-Circuit Breaking Capacity

Ngomlinganiselo olinganiselweyo we-short-circuit breaking current ukuya kuthi ga kwi-25kA, i-breaker ingakwazi ukwahlula ngokufanelekileyo iimpazamo kwaye ikhusele izixhobo zombane ezixabisekileyo kumonakalo obangelwa iimeko ezingaqhelekanga zangoku.

Okugqwesileyo kwimo engqongileyo yangaphandle

Izindlu zenziwe ngentsimbi ekumgangatho ophezulu okanye i-Dacromet-coated steel kwaye igqitywe nge-UV-resistant coatings. Oku kubonelela ngokhuseleko oluphezulu ngokuchasene nomhlwa, isitshizi setyuwa, ukufuma, uthuli, kunye neemeko zemozulu ezimaxongo.

Indlela yokuSebenza yaseNtwasahlobo ethembekileyo

Umatshini osebenza entwasahlobo unikezela ngokukhawuleza ukuvulwa kunye nokuvala ukusebenza ngengxolo ephantsi yokusebenza kunye ne-rebound encinci. Iqinisekisa ukusebenza okuzinzileyo komatshini kunye nobomi benkonzo eyandisiweyo.

Ukusetyenziswa kwamandla aphantsi

Indlela yokusebenza ifuna amandla angaphantsi kwe-70W yangaphandle, iyenza ilungele ukufakwa okude kunye nokudibanisa lula kunye neenkqubo zamandla ezigcinayo.

Usetyenziso

I-24kV yangaphandle i-vacuum breaker yesekethe isetyenziswa kakhulu apha:

• Uthungelwano lokuhambisa amandla
• Izitishi zombane
• Amashishini oshishino kunye nemigodi
• Iiprojekthi zokufakelwa kombane ezilalini
• Izikhululo zamandla eSolar photovoltaic
• Iinkqubo zokuvelisa amandla omoya
• Iiprojekthi ze-Automation grid
• Iinkqubo zothumelo kunye nokuhanjiswa kwezinto eziluncedo

Iimpawu zoLwakhiwo

1. Indawo ebiyelweyo yamandla aphezulu
I-enclosure ithatha i-stainless steel stainless okanye ukwakhiwa kwepleyiti yentsimbi. Unyango oluphezulu lwe-anti-corrosion luphucula kakhulu ukuxhathisa ukuguga kokusingqongileyo kunye nokuvezwa kweekhemikhali.

2. I-Silicone Rubber Insulation Pole
I-APG ye-insulated pole ifakwe kwi-rubber ye-silicone ye-high-performance-performance, inikezela ngeempawu ezigqwesileyo zokugquma, ukukwazi ukuchasana, kunye nokuthembeka kwexesha elide.

3. IYunithi yoMphazamisi weVacuum
Isiphazamisi sevacuum sisebenza njengeyona nto ingundoqo yokutshintsha kwaye iqinisekisa ukuphazamiseka okuthembekileyo kwangoku kunye neemfuno zokugcinwa okuncinci.

4. Intelligent Control Compatibility
Abalawuli abakrelekrele abakhethiweyo banokudityaniswa ukujonga kude, ukubonwa kwempazamo, ukutshintshela kude, kunye nonxibelelwano lwenkqubo yeSCADA.

IiNzuzo kuSebenzisi kunye nabasebenzisi boShishino

• Ukwahlukaniswa kwempazamo ngokukhawuleza kunye nokuphucula ukuthembeka kwenkqubo
• Ukwehliswa kweendleko zokugcina kunye nokusebenza
• Ubomi obude benkonzo yoomatshini kunye nombane
• Ukhuseleko oluphezulu lokusebenza kunye nokusebenza kokutshintsha
• Itekhnoloji yokuphazamiseka kwevacuum ehambelana nokusingqongileyo
• Ifanelekile kwiindawo ezirhabaxa zangaphandle
• Ukufakela okulula kunye nokugcinwa
• Igridi ehlakaniphile kunye nokuhambelana kweSCADA

IiMfuno zeNdawo yokuFakela

Ukwenza umsebenzi ogqwesileyo, i-24kV ipali ye-circuit breaker kufuneka ifakwe phantsi kwezi meko zilandelayo:

• Ubushushu be-Ambient buphakathi kwe -30°C kunye ne +40°C
• Ukuphakama okungadlulanga kwi-1500 yeemitha
• Akukho kungcangcazela kakhulu okanye ukothuka komatshini
• Akukho zirhasi ezingcolisa kakhulu okanye iindawo ezinoqhushumbo
• Ukumisa ngokufanelekileyo ngokwemigangatho yombane

Kutheni ukhetha iPali yethu ye-24kV eMouted High Voltage Circuit Breaker?

• Umvelisi wesixhobo sokutshintsha isixhobo sombane esiphakathi
• Ukulawulwa komgangatho ongqongqo kunye novavanyo lwefektri
• Iinkonzo ze-OEM kunye ne-ODM
• Itekhnoloji ethembekileyo yesiphazamisi sevacuum
• Ukhuphiswano lwamaxabiso emveliso-ngqo
• Inkxaso yokuhanjiswa kwehlabathi ngokukhawuleza
• Uncedo olubanzi lobugcisa
• Inkonzo yexesha elide emva kokuthengisa

Imibuzo ebuzwa qho

Ngowuphi owona msebenzi ungundoqo we-24kV Pole Mounted High Voltage Circuit Breaker?

Isetyenziselwa ukutshintshela imisinga yomthwalo, ukuphazamisa imisinga yomthwalo ogqithisileyo, kunye nokwahlula iimpazamo zesiphaluka esifutshane kwiinkqubo zokuhambisa amandla ombane ophakathi.

Ngaba i-breaker circuit inokulawulwa kude?

Ewe. Iiyunithi zokulawula ezikrelekrele ezikhethiweyo zinokuxhasa ukusebenza okude, ukubeka iliso, ukuxilongwa kwempazamo, kunye nonxibelelwano lwe-SCADA.

Ngaba esi saphuli sesekethe sifanelekile kwiiprojekthi zamandla elanga nawomoya?

Ewe. Isetyenziswa ngokubanzi kwizityalo zamandla avuselelekayo, kubandakanywa iifama ze-solar photovoltaic, iifama zomoya, kunye neeprojekthi zokugcina amandla.

Zeziphi izinto eziluncedo kwii-vacuum circuit breakers ngaphezu kwe-SF6 i-circuit breakers?

Izaphuli zesekethe zevacuum zihambelana nokusingqongileyo, zifuna ukulungiswa okuncinci, zinobomi obude benkonzo, kwaye ziphelise imfuno yokuphathwa kwegesi yeSF6.

Ngaba uyayixhasa i-OEM kunye neenkcukacha ezilungiselelweyo?

Ewe. Sinokubonelela ngolungelelwaniso olulungelelanisiweyo, iindlela zokusebenza, abalawuli abakrelekrele, kunye neenkonzo zophawu ngokweemfuno zeprojekthi.
