I-40.5KV Substation Circuit Breaker eneTransformer yangoku

I-ZW7-40.5 40.5KV Substation Circuit Breaker With Current Transformer is a high-voltage outdoor vacuum breaker circuit breaker eyenzelwe izitishi, izityalo zamandla, izibonelelo zoshishino, kunye nothungelwano lwamandla asezidolophini okanye asemaphandleni. Idibanisa i-high-performance vacuum interrupter kunye nabaguquli bangoku abadibeneyo ukubonelela ngokutshintsha okuthembekileyo, ukukhuselwa, ukulinganisa, kunye nemisebenzi yokulawula iinkqubo zombane eziphakathi kunye nephezulu.

I-breaker yesekethe ine-insulator ephezulu ye-porcelain ehlala i-vacuum interrupter kunye ne-porcelain ephantsi yokuxhasa insulator eqinisekisa amandla agqwesileyo omatshini kunye nokusebenza kwe-insulator. Iziguquli zangaphandle zangoku zenza kube lula ukubeka iliso ngokuchanekileyo kunye nokulungelelaniswa kokukhusela ngelixa ukwenza lula ukufakwa kunye nokugcinwa kwemisebenzi.

Yenzelwe inkonzo yangaphandle yexesha elide, le 40.5KV i-vacuum breaker yesekethe inikezela ngokutywina okugqwesileyo, ukuchasana okuqinileyo nokuguga, amandla aphezulu e-dielectric, kunye nokugqwesa ukuguquguquka kokusingqongileyo. Itekhnoloji yokuphazamiseka kwe-vacuum yayo isusa imingcipheko yomlilo kunye nokuqhuma ngelixa inikezela ubomi obude benkonzo yombane kunye noomatshini.

Ifumaneka kwi-33KV, i-35KV, kunye ne-40.5KV yokulinganisa i-voltage, uchungechunge lwe-ZW7 lusetyenziselwa ngokubanzi ukutshintshwa komthwalo wangoku, ukukhuselwa komthwalo ogqithisiweyo, ukuphazamiseka okufutshane, kunye nokuhlukaniswa kwenkqubo kwiinethiwekhi kunye nokusabalalisa.

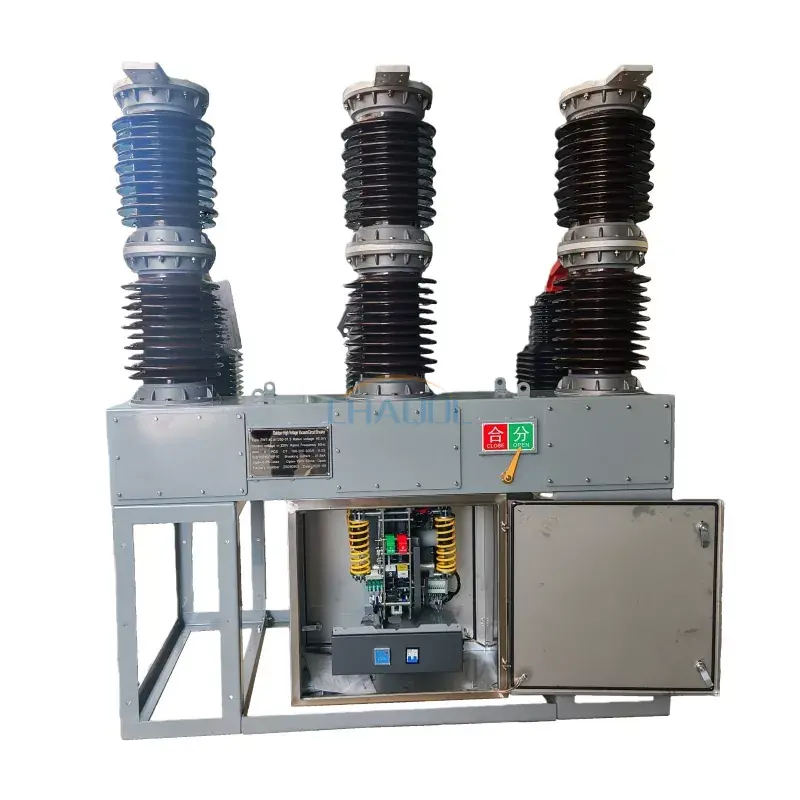

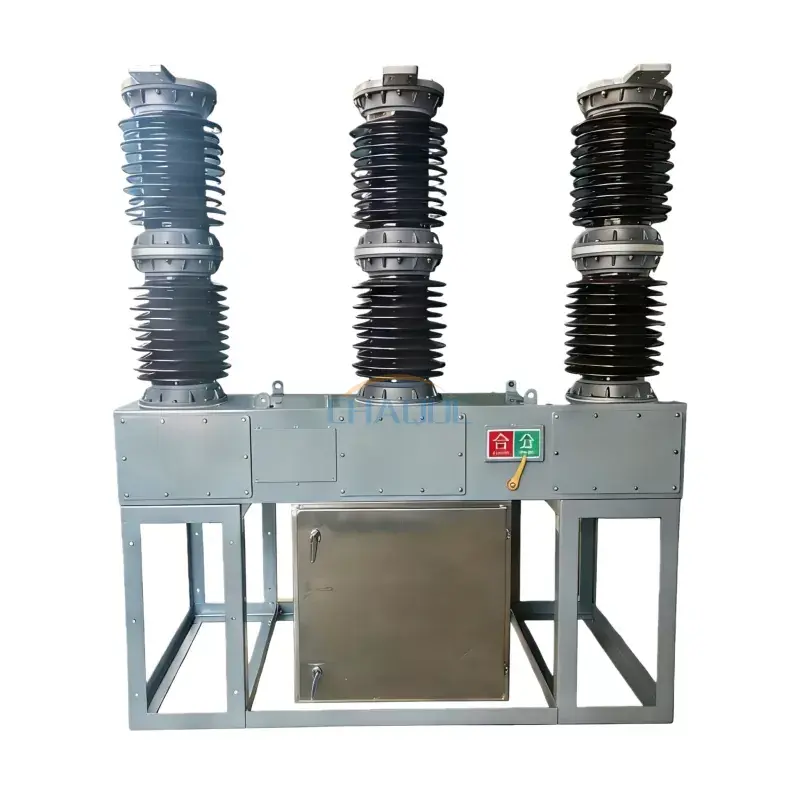

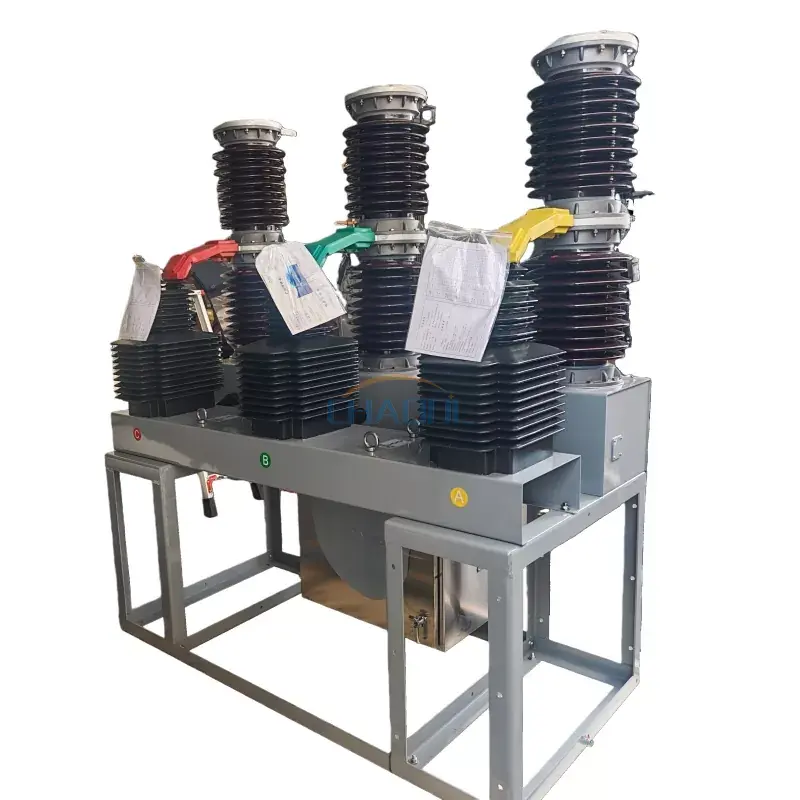

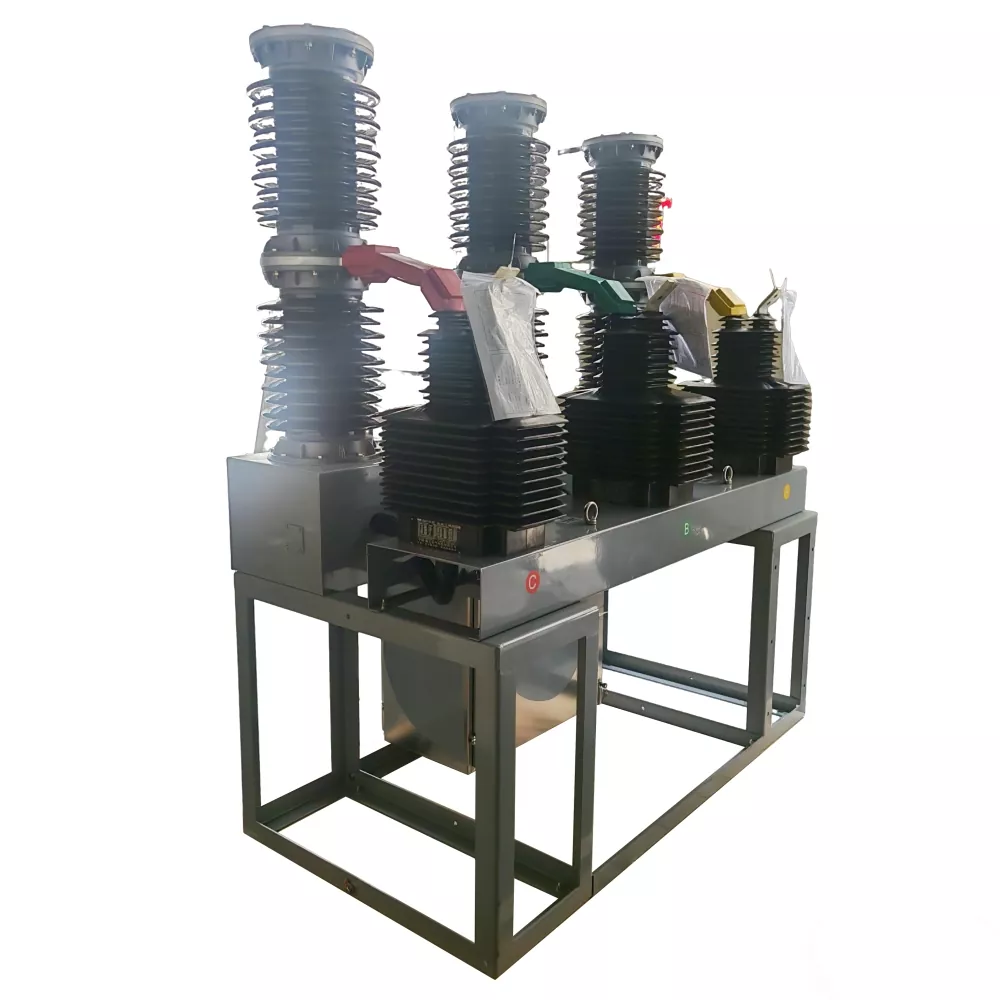

Umzobo weMveliso yeMveliso

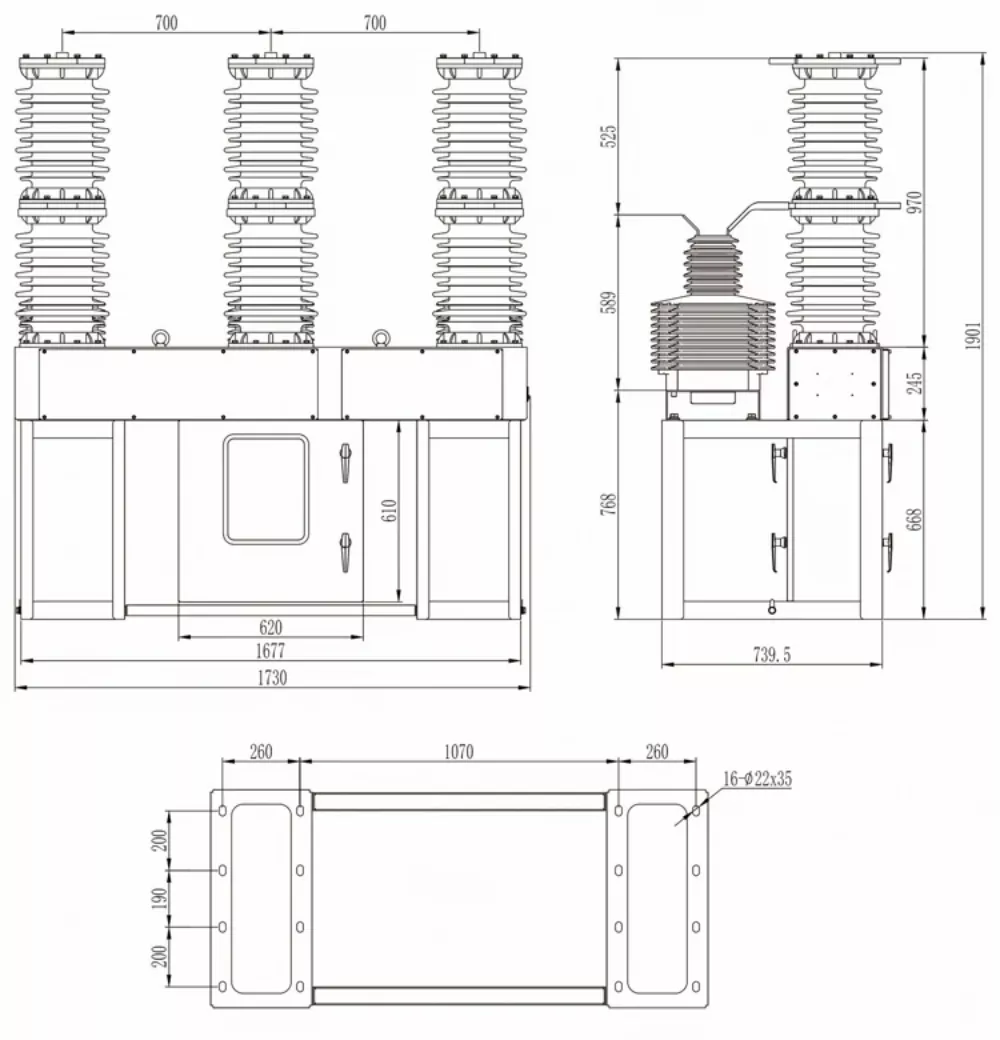

Umzobo woMda

IiParameters zobuGcisa

Iimpawu zeMveliso

• Itekhnoloji yokuphazamiseka kwe-vacuum ephezulu iqinisekisa ukuphela kwe-arc ethembekileyo kunye nokuhlukaniswa kwempazamo.
• Iinguqu zangoku ezidityanisiweyo zibonelela ngomlinganiselo ochanekileyo, ukubeka iliso, kunye nemisebenzi yokukhusela.
• Ifanelekile i-33KV, i-35KV, kunye ne-40.5KV i-medium-voltage kunye ne-high-voltage distribution distribution systems.
• Amandla aphezulu e-porcelain insulators anika ukusebenza kakuhle kwe-insulation kunye nokuzinza komatshini.
• Uyilo lwesiphazamisi sevacuum esitywiniweyo sinikezela ubomi benkonzo obude kunye neemfuno zololongo oluncinci.
• Ukumelana okugqwesileyo kokuguga, ukufuma, ungcoliseko, kunye nemekobume erhabaxa yangaphandle.
• Ixhasa zombini umsebenzi owenziwe ngesandla kunye neemoto ukudityaniswa kwenkqubo eguquguqukayo.
• Isakhiwo esizimeleyo se-transformer yangoku senza lula ukuhlolwa, ukulinganisa, ukutshintshwa, kunye nokugcinwa.
• Umthamo ophezulu wokuqhawula i-short-circuit ukuya kwi-31.5KA iqinisekisa ukhuseleko lwenkqubo yamandla ethembekileyo.
• Akukho oyile, akukho mngcipheko woqhushumbo, kunye nokusebenza okuhambelana nokusingqongileyo.

Usetyenziso

I-40.5KV Substation Circuit Breaker With Current Transformer isetyenziswa ngokubanzi kwiinkqubo zamandla aphakathi kunye ne-high-voltage ezifuna ukutshintsha okuthembekileyo, ukukhuselwa kunye nokulawula imisebenzi.

• Izitishi zombane
• Uthumelo lwamandla kunye nothungelwano lokuhambisa
• Iiprojekthi zegridi eziluncedo
• Izikhululo zombane wamanzi
• Izityalo zamandla ezishushu
• Iinkqubo zokuvelisa amandla omoya
• Iiprojekthi zamandla elanga
• Izibonelelo zemigodi kunye nesinyithi
• Amashishini okuvelisa amashishini
• Umzila kaloliwe kunye neenkqubo zothutho lwamandla ombane
• Uthungelwano lokuhambisa umbane ezidolophini nasemaphandleni

Izinto eziluncedo kwezobuGcisa

Xa kuthelekiswa ne-oil circuit breakers kunye ne-SF6 circuit breakers, i-ZW7-40.5 Outdoor Vacuum Circuit Breaker inikeza ukuthembeka okuphezulu kokusebenza, ukunciphisa iimfuno zokugcina, kunye nobomi obude benkonzo. Isiphazamisi se-vacuum sicima ngokufanelekileyo ii-arcs ngaphakathi kwegumbi lokucoca elivaliweyo, ukunciphisa ukhukuliseko loqhagamshelwano kunye nokuphucula ukusebenza kokutshintsha.

Uyilo oludityanisiweyo lwangoku lwe-transformer luxhasa ukhuseleko oluchanekileyo lwe-relay, ukubeka iliso kwimpazamo, umlinganiselo wangoku, kunye ne-automation yenkqubo, okwenza kube sisisombululo esifanelekileyo segridi yanamhlanje kunye nezicelo zokuhambisa amandla.

Ngamandla abalaseleyo e-dielectric, ukunyamezela komatshini okuphezulu, kunye nokusebenza okuzinzile phantsi kweemeko zokusingqongileyo ezifunwayo, i-40.5KV Vacuum Circuit Breaker lukhetho olukhethiweyo kwiinkampani eziluncedo, iikontraki ze-EPC, kunye neeprojekthi zeziseko zombane kwihlabathi jikelele.

Imibuzo ebuzwa qho

Isetyenziselwa ntoni i-40.5KV vacuum circuit breaker?

I-40.5KV i-vacuum circuit breaker isetyenziselwa ukukhusela nokulawula i-medium-voltage kunye ne-high-voltage iinkqubo zamandla ngokuphazamisa imisinga yomthwalo, i-currents overload, kunye ne-short-circuit-fault currents kwi-substations kunye nothungelwano lokuhambisa umbane.

Kutheni i-transformer yangoku idibaniswe ne-breaker circuit?

I-transformer yangoku edibeneyo inika umlinganiselo ochanekileyo wangoku, igalelo lokukhusela i-relay, ukubeka iliso kwimpazamo, kunye nemisebenzi yokulawula ngokuzenzekelayo, ukuphucula ukhuseleko lwenkqubo jikelele kunye nokusebenza kakuhle.

Ziziphi iingenelo ze-vacuum circuit breakers?

Izaphuli zesekethe ze-vacuum zibonelela ngokuphela kwe-arc ekhawulezayo, ubomi benkonzo ende, iimfuno zokugcina eziphantsi, ukuthembeka okuphezulu, ubuhlobo bendalo, kunye nokusebenza kombane okuphezulu xa kuthelekiswa nobuchwepheshe obuqhelekileyo.

Ngaba i-ZW7-40.5 i-circuit breaker ingafakwa ngaphandle?

Ewe. I-ZW7-40.5 Outdoor Vacuum Circuit Breaker yenzelwe ngokukodwa ukufakela ngaphandle kwaye inokumelana neemeko ezahlukeneyo zokusingqongileyo ezibandakanya ukuguquguquka kobushushu, ukufuma kunye nongcoliseko.

Ngawaphi amashishini adla ngokusebenzisa i-40.5KV substation breaker?

Ezi zaphuli zesekethe zisetyenziswa kakhulu kwizinto ezisetyenziswayo, kwizitishi, kwizityalo zokuvelisa umbane, iiprojekthi zamandla ahlaziyekayo, imisebenzi yezemigodi, amaziko oshishino, iziseko zothutho, kunye neenkqubo ezinkulu zokuhambisa umbane.
