Ingaba iSwitch ye-12KV yaNgaphandle yokuDibaniswa inokuLuphucula njani uKhuseleko loSasazo lwaMandla kunye nokuSebenza ngokuLungileyo

Njengomthengisi wezixhobo zombane oqeqeshiweyo,Anqiang Amandlainikeza iI-12KV yaNgaphandle yokuDiba iSwitshikuthungelwano losasazo oluphakathi-voltage olufuna ukwahlulwa kombane okuthembekileyo, ukufikelela ngokukhuselekileyo kugcino, kunye nokusebenza okuthembekileyo kwangaphandle. Ukuqonda umgaqo wayo wokusebenza, iinkcukacha zobugcisa, kunye neemfuno zesicelo kunceda iinjineli kunye namaqela okuthenga iimpahla ukukhetha izixhobo ezifanelekileyo kwiiprojekthi zabo zamandla.

I-12KV Outdoor Disconnecting Switch yinxalenye ebalulekileyo kwiinkqubo zokuhambisa amandla ombane ophakathi. Eyilwe ngokuyinhloko ukwahlula iisekethe zombane phantsi kweemeko zokungabikho komthwalo, inika indawo yokwahlula ebonakalayo enceda abasebenzi bolondolozo ukuba bachonge icandelo elizimeleyo lenethiwekhi. Imodeli ye-GW9-12 enikezelwa ngu-Anqiang Power ibonakalisa isakhiwo se-pole-single, i-conductive blade mechanism, kunye noyilo lokuzivalela kwizicelo ezisebenzayo zangaphandle. Eli nqaku lichaza indlela umtshini osebenza ngayo, apho usetyenziswa khona, zeziphi iiparameters zobugcisa zibalulekile ngexesha lokuthengwa kwempahla, kunye nendlela echanekileyo yokufakela kunye nokugcinwa kwenkxaso yokuthembeka kokusebenza kwexesha elide.

Isiqulatho

1. Yintoni i-12KV yokuqhawula iSwitshi yangaphandle?
2. Lusebenza Njani Utshintsho?
3. Iimpawu eziphambili kunye nezinto eziluncedo zobuNjineli
4. Usetyenziso oluqhelekileyo kuSabelo lwaMandla
5. IiParameters zobuGcisa zokuVavanya
6. Ungayikhetha njani iSwitshi yokuNqamula ekunene
7. IiNgqwalasela zokuFakelo kunye noLondolozo
8. Imibuzo ebuzwa qho
9. Ukuqukumbela

Yintoni i-12KV yokuqhawula iSwitshi yangaphandle?

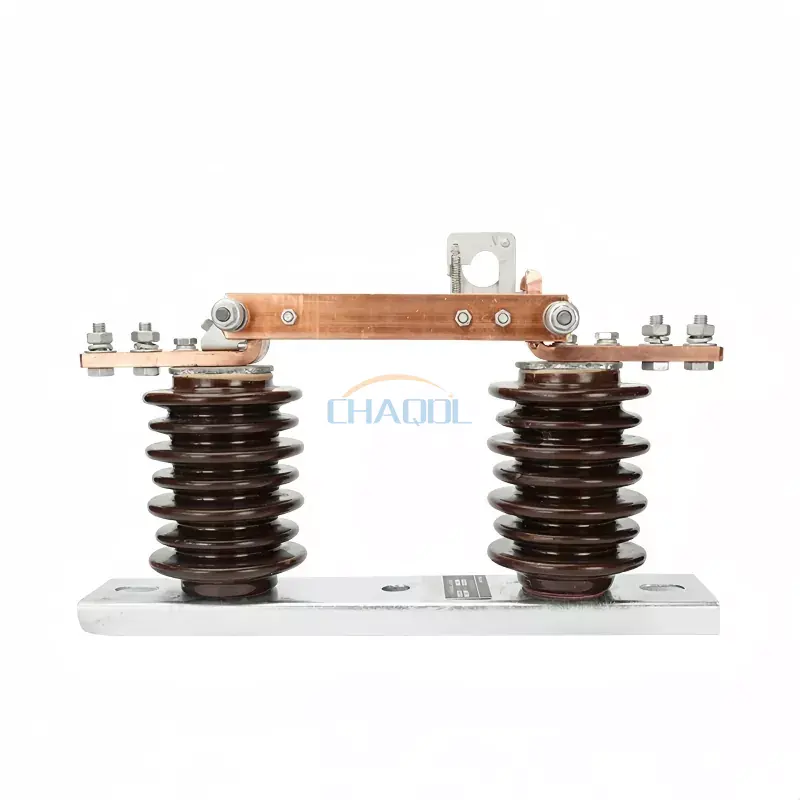

I-12KV Outdoor Disconnecting Switch sisixhobo sokubeka sodwa esinevoltheji ephezulu esetyenziswa kuthungelwano lombane lwangaphandle. Injongo yayo ephambili kukuseka i-gap yodwa xa icandelo lesekethe kufuneka lihlolwe, lilungiswe okanye ligcinwe. Isixhobo siqhele ukufakwa kwiinkqubo zokusasaza, izitishi, kunye nolunye ukufakelwa kombane ophakathi.

Imodeli ye-Anqiang Power ye-GW9-12 yenzelwe ukusebenza kwesigaba esisodwa kwiinkqubo zomgca wesigaba sesithathu. Indlela yokusebenza kwayo ivumela abasebenzi abagunyazisiweyo ukuba bavule okanye bavale iswitshi besebenzisa i-hook yokusebenza e-insulated efanelekileyo, ngokuxhomekeke kwimiyalelo yokusebenza komenzi kunye neenkqubo zokhuseleko zombane ezisebenzayo.

Ngokungafani ne-breaker circuit, i-switch yesiqhelo yokuqhawula ayenzelwanga ukuphazamisa umbane oqhelekileyo wangoku okanye i-short-circuit current. Ngoko ke kufuneka ilungelelaniswe kunye nabaphuli beesekethe ezifanelekileyo kunye nezinye izixhobo zokukhusela. Lo mahluko ubalulekile xa uyila ulandelelwano olukhuselekileyo lokutshintsha okanye uchaza izixhobo zeprojekthi entsha yokuhambisa amandla.

Ukuqonda okubanzi kokukhethwa kwezixhobo, abathengi banokuphinda baphonononge uluhlu lokutshintsha kwe-Anqiang Power's high-voltage disconnect.

Lusebenza Njani Utshintsho?

Umgaqo wokusebenza wenguqu yangaphandle yokuqhawula isekelwe kwintshukumo yomzimba yabafowunelwa be-conductive. Xa utshintsho luvaliwe, i-blade conductive blade iseka uxhulumaniso lombane olujoliswe kuyo. Xa umtshintshi uvulwa phantsi kweemeko ezivunyelweyo zokungathwali, i-blade ihlukana noqhagamshelwano olusisigxina, idala i-gap ebonakalayo yokuhlukanisa.

Uyilo lwe-GW9-12 lubandakanya i-hook yokusebenza esisigxina kunye ne-self-locking mechanism. Ezi mpawu zinceda umqhubi ukulawula isenzo sokutshintsha kunye nokunciphisa amathuba okuhamba okungalindelekanga xa isixhobo sifakwe ngokuchanekileyo kwaye sigcinwe.

Ulandelelwano lokuSebenza oluSisiseko

1. Qinisekisa iimeko zokusebenza:Abasebenzi abagunyazisiweyo bayayiqinisekisa inkqubo yokutshintsha evunyiweyo, ubume besekethe, kunye nolawulo olusebenzayo lokhuseleko.
2. Ukuphazamisa umthwalo wangoku:I-breaker circuit ehambelanayo okanye esinye isixhobo sokutshintshela esilinganiswe ngokuchanekileyo kufuneka siphazamise umsinga phambi kokuba iswitshi yokuqhawula isebenze.
3. Vula iswitshi yokukhulula:Umsebenzisi usebenzisa indlela yokusebenza ekhethiweyo ukwahlula abafowunelwa ngokwemiyalelo yomenzi.
4. Qinisekisa ukubekwa wedwa:Ilizwe elibekwe yedwa kufuneka liqinisekiswe ngeenkqubo ezimiselweyo. Uvavanyo olufanelekileyo, ukumiselwa komhlaba, kunye nemilinganiselo yokutshixa iyasetyenziswa njengoko kufuneka.
5. Buyisela inkonzo ngokuchanekileyo:Emva kokuba ulondolozo lugqityiwe kwaye zonke iimeko zokhuseleko zanelisiwe, ulandelelwano oluvunyiweyo lokutshintsha lulandelwa ukubuyisela isiphaluka kwinkonzo.

Eyona misebenzi yokutshintsha kufuneka ilandele imiyalelo yokusebenza kwenkqubo evunyiweyo. Isikhewu esibonakalayo soqhagamshelwano sisodwa asithathi indawo yokuqinisekiswa kombane, ukubeka phantsi apho kuyimfuneko, okanye amanye amanyathelo anyanzelekileyo okhuseleko lombane.

Iimpawu eziphambili kunye nezinto eziluncedo zobuNjineli

Izixhobo zombane zangaphandle kufuneka zidibanise ukuhlukaniswa kombane okuthembekileyo kunye nokuzinza komatshini kunye nokuchasana nokusingqongileyo. Iingqwalasela zoyilo ezininzi zibaluleke kakhulu xa uvavanya iswitshi yokuqhawula ngaphandle kwe-12KV.

1. Uqwalaselo lwePali enye

I-GW9-12 isebenzisa ukucwangciswa kwepoleni enye exhasa ukufakwa kwesigaba somntu ngamnye kwiinkqubo zokusasazwa kwezigaba ezintathu. Olu lungiselelo lunokufaneleka kwizakhiwo zenethiwekhi yokusabalalisa apho uyilo lofakelo lubiza izixhobo zokuzihlukanisa ezifakwe kwisigaba esahlukileyo.

2. Ukwahlulwa Okubonakalayo

Ulungelelwaniso loqhagamshelwano oluvulekileyo lunikeza isibonakaliso esibonakalayo sokuhlukana phakathi kwamacandelo okuqhuba. Oku kunceda abasebenzi bachonge isikhundla esizimeleyo ngexesha leenkqubo zolondolozo ezigunyazisiweyo, nangona ukuqinisekiswa okusemthethweni kunye nolawulo lokhuseleko luhlala luyimfuneko.

3. Indlela yokuZitshixa

Umatshini wokuzitshixa unceda ukugcina indawo ekujoliswe kuyo yomatshini kwaye unciphise umngcipheko wokusebenza ngengozi. Ukusebenza kwayo kuxhomekeke kuhlengahlengiso oluchanekileyo, ukufakela, kunye nokuhlolwa kwesiqhelo.

4. Uyilo lwe-Insulation yangaphandle

Izinto ezigqumayo kufuneka zimelane noxinzelelo lombane olunxulunyaniswa nombane olinganisiweyo wenkqubo kunye neemeko zokusingqongileyo kwindawo yofakelo. Ungcoliseko, ukufuma, utshintsho lwamaqondo obushushu, kunye nokuthathelwa ingqalelo kombane okungaphaya kombane kufuneka zonke zibandakanywe ekukhetheni izixhobo.

5. Indlela yokuSebenza ngokuSebenzayo

I-insulated yokusebenza hook inokubonelela ngendlela echanekileyo yokusebenza yofakelo olufanelekileyo. Olona lungiselelo lusebenzayo, ucoceko olufunekayo, kunye neenkqubo ezivumelekileyo kufuneka ziqinisekiswe ngokuchasene namaxwebhu esixhobo kunye nemigangatho esebenzayo yokhuseleko lombane.

• Ixhasa ukwahlukaniswa kombane ngexesha lolondolozo olucwangcisiweyo.
• Ibonelela ngendawo ecacileyo yoqhagamshelwano evulelekileyo.
• Isebenzisa ilungiselelo lokusebenza ngoomatshini elenzelwe ukutshintshwa okulawulwayo.
• Inokudityaniswa kufakelo olufanelekileyo lokusasazwa kombane ophakathi.
• Ifuna ulungelelwaniso kunye nabaphuli beesekethe kunye nenkqubo yokukhusela ebanzi.

Usetyenziso oluqhelekileyo kuSabelo lwaMandla

Isitshixo sokuqhawula sangaphandle se-12KV sisetyenziswa naphi na apho isekethe ye-voltage ephakathi ngokufanelekileyo ifuna indawo yokuzahlula. Ukufaneleka kwayo kuxhomekeke kuyilo lwesixokelelwano sombane, indawo yofakelo, iinkqubo zokusebenza, kunye neemfuno zoncedo olusebenzayo.

Imigca yokusasaza

Kwiinethiwekhi zokusasazwa kwe-overhead, ukuqhawula ukutshintshwa kunokwahlula amacandelo akhethiweyo omgca wokuhlola, ukugcinwa, okanye ukutshintshwa kwezixhobo ezicwangcisiweyo. Ukubekwa ngokuchanekileyo kunokunceda amaqela olondolozo asebenze kumacandelo anyuliweyo ngaphandle kokuchaphazela ngokungeyomfuneko inethiwekhi yonke.

Izitishi

Izitshixo zisebenzisa iiswitshi zokuqhawula ukuseka iindawo zokuzihlukanisa malunga neesekethe ezikhethiweyo kunye nezixhobo. Iinjineli kufuneka zinxibelelanise isixhobo kunye neziqhekeza zesekethe, iibhasi zebhasi, iitransfomi, iiswitshi ezisezantsi apho kufanelekileyo, kunye nolandelelwano lokusebenza kwesikhululo.

IiNkqubo zaMandla kuShishino

Iifektri, izibonelelo zokusebenza, kunye nezinye iindawo zemizi-mveliso zinokusebenzisa uthungelwano lwe-medium-voltage yokuhambisa ukubonelela ngeenguqu kunye nezixhobo zombane ezisezantsi. Umtshini wokuqhawula okhethiweyo ngokuchanekileyo unokuxhasa ulondolozo olucwangcisiweyo ngokubonelela ngendawo efanelekileyo yokwahlula.

IiProjekthi zokuGcinwa kwezinto eziluncedo

Izixhobo zombane zifuna izixhobo ezihambelana neenkqubo zazo zokutshintshela ezisekiweyo kunye nezenzo zokulondoloza. Ukhetho kufuneka lunike ingxelo ngeenkcukacha zobugcisa zenkonzo, iimeko zokusingqongileyo, iimfuno zokuhlolwa, kunye nemigangatho yesixhobo evunyiweyo.

Kwiiprojekthi ezifuna zombini uphazamiseko kunye nemisebenzi yokukhusela, iinjineli kufuneka zivavanye i-breaker circuit efanelekileyo okanye ukutshintshwa komthwalo kunokuba kucinge ukuba iswitshi yokuqhawula inokwenza wonke umsebenzi wokutshintsha.

IiParameters zobuGcisa zokuVavanya

Iinkcukacha zobuchwephesha zinquma ukuba i-switch yokuqhawula ifanelekile kuthungelwano olujoliswe kuyo. Ulwazi lwemveliso ye-Anqiang Power's GW9-12 series ichonga njenge-12KV-class outout disconnecting switch. Ishedyuli yokalisho oluneenkcukacha kufuneka iqinisekiswe ngokuchasene namaxwebhu obugcisa angoku phambi kokuba kufakwe iodolo.

Kubalulekile:Le theyibhile ingentla luluhlu lokutshekisha lokuthengwa kweempahla neenkonzo, hayi indawo yephepha eliqinisekisiweyo lemveliso. Abathengi kufuneka bacele iireyithingi ezichanekileyo zangoku, amanqanaba okugquma, iireyithingi zexesha elifutshane zokumelana, imilinganiselo, kunye nemigangatho esebenzayo yolungiselelo oluthile olucatshulweyo.

Ungayikhetha njani iSwitshi yokuNqamula ekunene

Ukukhetha i-12KV echanekileyo yoKuqhawula iSwitshi yaNgaphandle ifuna ngaphezulu kokuthelekisa ubume bombane. Iinjineli kunye namaqela okuthenga kufuneka avavanye iimfuno ezipheleleyo zombane kunye nezoomatshini phambi kokuba zigqibezele iinkcukacha.

1. Qinisekisa i-Voltage yeNkqubo kunye neyangoku

Qwalasela i-voltage yenethiwekhi yegama, ubuninzi bevoltheji yenkqubo, efunekayo ngokuqhubekayo, kunye neemfuno zolungelelwaniso lokufakelwa. La maxabiso kufuneka ahambelane nomzobo womgca omnye weprojekthi kunye neenkcukacha zobugcisa.

2. Vavanya iFault-current Conditions

Ukumisela okulindelweyo kwesekethe emfutshane yangoku kunye nesakhono esifunekayo sokumelana nexesha elifutshane. Umtshini wokuqhawula unokufuna ukuhlala uvaliwe ngelixa i-fault current ihlanjululwa zizixhobo zokukhusela, ngoko imilinganiselo yayo yokumelana kufuneka ifanele ukufakela.

3. Hlaziya iMeko yeSiza

Qwalasela ukuphakama, ubushushu bendawo engqongileyo, ukufuma, izinto ezingcolisa umoya, ukuba sesichengeni setyuwa elunxwemeni, nomthwalo owenziwe ngoomatshini. Ufakelo lwangaphandle lunokufuna ukugquma okuthe ngqo, ukukhuselwa komhlwa, okanye ulungiselelo lokuxhoma ukuhlangabezana neemeko zesiza.

4. Qinisekisa iiMfuno zokuSebenza kunye nokuQala

Ukuseka ukuba ngaba iprojekthi ifuna utshintsho oluqhutywa ngesandla, enye ilungiselelo lokusebenza, okanye utshintsho olusisiseko njengenxalenye yendibano. Iimfuno ezisisiseko kufuneka ziqwalaselwe kuyilo lwesixokelelwano lulonke kunokuba kucingelwe ukuba zibandakanyiwe kulungiselelo ngalunye olusemgangathweni.

5. Hlola iMigangatho kunye noXwebhu

Cela idatha yedatha yemveliso, imizobo yobukhulu, imiyalelo yokufakela, inkqubo kunye namaxwebhu ovavanyo lohlobo apho kuyimfuneko, kunye neenkcukacha zemigangatho efanelekileyo. Qinisekisa ukuba ulungelelwaniso olunikiweyo luyahlangabezana neemfuno zoncedo lwasekhaya okanye ugunyaziwe weprojekthi.

6. Vavanya iNkxaso yababoneleli

Ukuthengwa kwempahla okuthembekileyo kukwabandakanya ukujonga ukungaguquguquki kwemveliso, unxibelelwano lobugcisa, ukufumaneka kweendawo ezisecaleni, kunye nenkxaso emva kokuthengisa. Amandla e-Anqiang anikezela uluhlu lokuqhawula ukudibanisa kwaye unikeze isikhokelo sokukhethwa kwemveliso kwizicelo ezahlukeneyo zombane. Abathengi banokuxoxa ngeemfuno zeprojekthi ngoluhlu lwemveliso yokuqhawula.

IiNgqwalasela zokuFakelo kunye noLondolozo

Ufakelo oluchanekileyo kunye nokuhlolwa kwesiqhelo kunceda ukugcina ukuthembeka kokusebenza kweeswitshi zokuqhawula ngaphandle. Amathuba ogcino kufuneka alandele imiyalelo yomenzi, iimeko zesiza, amaza okusebenza, kunye neemfuno zoncedo olunoxanduva okanye lomsebenzi woncedo.

Uluhlu lokuHlola lokuHlola

• Qinisekisa ukuba imodeli kunye neereyithingi zihambelana namaxwebhu obunjineli avunyiweyo.
• Hlola i-insulators, abafowunelwa, izixhobo zokusebenza, kunye ne-hardware enyukayo phambi kofakelo.
• Qinisekisa ukuba isakhiwo esixhasayo sifanelekile kwimithwalo echaziweyo yomatshini.
• Gcina ucoceko olufunekayo lombane kunye nesithuba sesigaba.
• Khangela ukuba imidibaniso ifakwe ngokuchanekileyo kwaye iqiniswe kwiimfuno ezichaziweyo.
• Qinisekisa ulungelelwaniso lomatshini, ukudibana koqhagamshelwano, kunye nokusebenza kwendlela yokutshixa.
• Gqibezela iitshekhi zokugunyazisa kunye neemvavanyo zombane ezifunekayo phambi kokunika amandla.

ULuhlu lokuHlola lweMimiselo

• Hlola iindawo ezikhuselayo ukuze ufumane iintanda, ungcoliseko, umkhondo, okanye ezinye iimpawu zokuwohloka.
• Qwalasela abafowunelwa be-conductive ukuba badle umhlwa, ukunxiba okungaqhelekanga, ukufudumeza ngokugqithiseleyo, okanye ukudityaniswa kakubi koqhagamshelwano.
• Jonga amakhonkco okusebenza, amanqaku e-pivot, kunye nezixhobo zokutshixa umonakalo okanye ukukhululeka okugqithisileyo.
• Hlola iibholithi ezikhwelayo, iitheminali, kunye nezakhiwo ezixhasayo ukuba zinokonakala.
• Rekhoda iziphumo zokuhlolwa kwaye uphande ukuxhathisa okungaqhelekanga kokusebenza okanye umonakalo obonakalayo.

Wonke umsebenzi wofakelo nowokugcina kufuneka wenziwe ngabasebenzi abaqeqeshiweyo phantsi kwenkqubo yokhuseleko evunyiweyo. Isekethe mayibekwe kwindawo ekhuselekileyo engqiniweyo, kubekwe yodwa, uvavanyo lombane, ukumisa phantsi, kunye nemilinganiselo yokutshixa njengoko kufuneka. Ungaze usebenzise iswitshi yesiqhelo yokuqhawula uqhagamshelo lwangoku lomthwalo ngaphandle kokuba isixhobo siyilwe ngokukodwa kwaye sithelekelwe loo msebenzi.

Imibuzo ebuzwa qho

1. Ngowuphi owona msebenzi ungundoqo we-12KV yangaphandle yokuDityaniswa kweSwitch?

Umsebenzi wayo oyintloko kukuhlukanisa isiphaluka esifanelekileyo se-medium-voltage phantsi kweemeko zomthwalo kunye nokubonelela nge-gap ebonakalayo yoqhagamshelwano. Oku kuxhasa ukugcinwa kunye nokuhlolwa xa kusetyenziswe ngokutshintsha okufanelekileyo, ukuqinisekiswa, kunye neenkqubo zokubeka phantsi.

2. Ngaba i-12KV yokuqhawula iswitshi ingaphazamisa umthwalo wangoku?

Utshintsho oluqhelekileyo lokuqhawula alwenzelwe ukuphazamisa umbane oqhelekileyo wangoku okanye i-short-circuit current. Isaphuli sesekethe esilinganiswe ngokuchanekileyo okanye esinye isixhobo esifanelekileyo sokutshintsha kufuneka senze umsebenzi ofunekayo wokuphazamiseka phambi kokuba kusetyenziswe iswitshi yokuqhawula.

3. Imodeli ye-GW9-12 isetyenziselwa ntoni?

I-Anqiang Power ye-GW9-12 yinto yangaphandle, i-pole-pole high-voltage disconnecting switch ejoliswe kwizicelo ezifanelekileyo zokusasazwa kweeklasi ze-12KV. Ingasetyenziselwa ukusebenza kwesigaba somntu ngamnye kwiinkqubo zomgca wesigaba sesithathu, ngokuxhomekeke kuyilo oluvunyiweyo lokufakela.

4. Yiyiphi imilinganiselo yobugcisa ekufuneka abathengi babeke phambili?

Iiparamitha eziphambili zibandakanya i-voltage elinganisiweyo, ireyithingi yangoku, amandla-frequency ukumelana nombane, impembelelo yombane yokumelana nombane, ukunyamezela ixesha elifutshane, ukunyamezela komatshini, indlela yokusebenza kunye nokufaneleka kokusingqongileyo. Awona maxabiso athe ngqo kufuneka angqinisiswe kwiphepha ledatha lemodeli ekhethiweyo.

5. Kufuneka kuhlolwe kangaphi iswitshi yokuqhawula ngaphandle?

Ukuhlolwa rhoqo kuxhomekeke kwimiyalelo yogcino lomenzi, ubume bendawo yesiza, ukutshintshwa rhoqo, kunye neemfuno zosetyenziso. Ukutshekishwa rhoqo kufuneka kugqume ukugquma, unxibelelwano lwe-conductive, uqhagamshelo lomatshini, i-hardware yokunyuswa, kunye nobungqina bobushushu obugqithisileyo okanye umhlwa.

6. Yiyiphi inkcazelo efanele inikezelwe xa ucela ikowuteshini?

Ukubonelela ngenkqubo yombane, umlinganiselo ofunekayo wangoku, indawo yofakelo, iimfuno zokugquma, iimfuno zokumelana nesekethe emfutshane, indlela yokusebenza, ulungelelwaniso lomhlaba, imigangatho esebenzayo, kunye nobungakanani beprojekthi. Imizobo okanye ukucaciswa kwesixhobo kunokunceda umthengisi acebise ulungelelwaniso olufanelekileyo.

Ukuqukumbela

I-12KV Outdoor Disconnecting Switch licandelo elibalulekileyo lokuzihlukanisa kuthungelwano losasazo lwe-voltage eliphakathi. Ixabiso layo lixhomekeke ekuboneleleni indawo yokuzimela efanelekileyo yokugcina, ukuxhasa iinkqubo ezicacileyo zokutshintsha, kunye nokudibanisa nokukhusela okubanzi kunye nenkqubo yokumisa. Ukukhetha imodeli efanelekileyo kufuna ukuphononongwa ngononophelo kwemilinganiselo yombane, ukusebenza kwe-insulation, uyilo lomatshini, iimeko zesayithi, kunye nemigangatho esebenzayo. Ufakelo oluchanekileyo, ukusebenza okufanelekileyo, kunye nokuhlolwa rhoqo kubalulekile ngokulinganayo kwinkonzo ethembekileyo.
