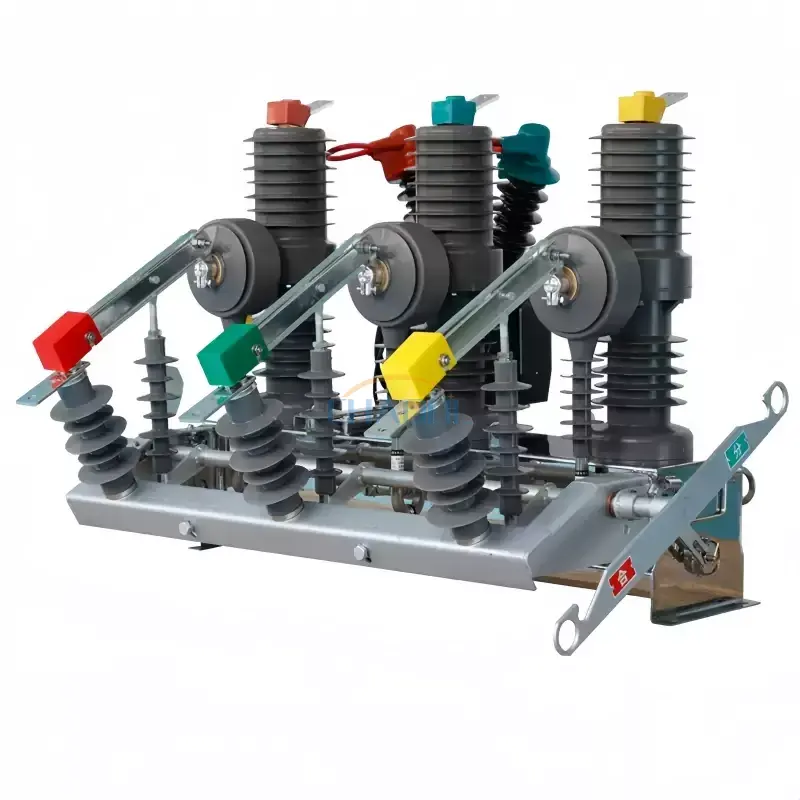

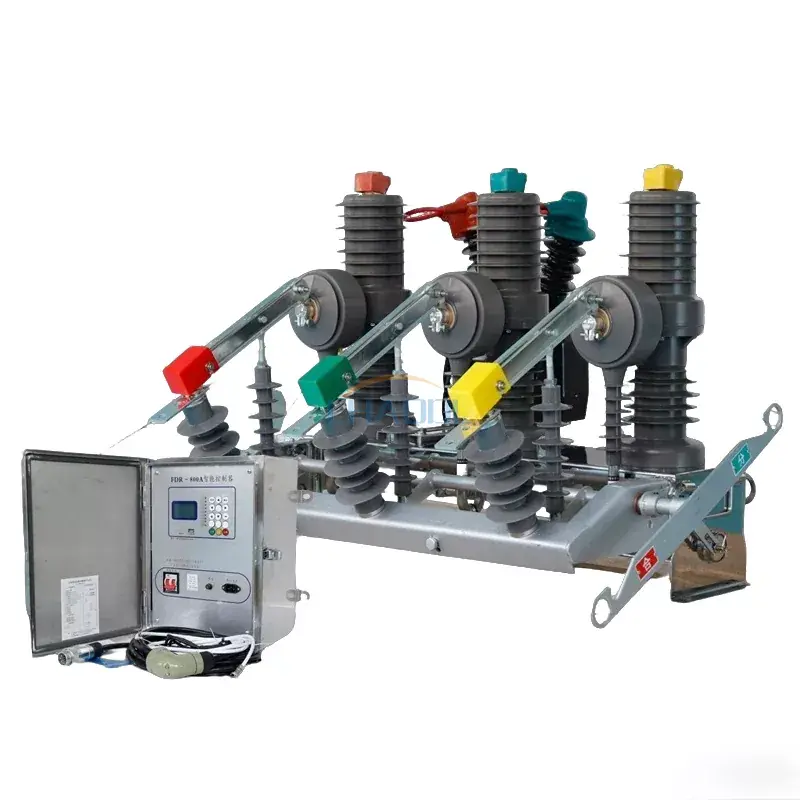

Isaphuli seSekethe yeMazibuthe eSisigxina

Model:ZW32-24G

I-Anqiang Power's yangaphandle esisigxina ye-magnetic breaker ifumene indumiso engaguqukiyo evela kubathengi baphesheya. Lo mqhekezi wesekethe ubonelela ngeenzuzo ezifana nokuphuculwa komthamo wombane kunye nokunciphisa ilahleko yegridi yamandla. Inqanaba lamandla ombane osebenzayo linokwenziwa ngokwezifiso ukuya kwi-12KV okanye i-24KV, kwaye ithunyelwa kumazwe aliqela kubandakanya i-Indonesia, iRussia, iNigeria, kunye neAngola.

Thumela uMbuzo

Ingcaciso yeMveliso

IIsaphuli seSekethe yeMazibuthe eSisigxina(Iimodeli: ZW32-12G / ZW32-24G) yi-high-performance outdoor vacuum breaker circuit breaker eyenzelwe i-12kV kunye ne-24kV i-medium-voltage network networks distribution. Inesixhobo sokusebenza semagnethi esisigxina, ibonelela ngokutshintsha ngokukhawuleza, ukuthembeka okuphezulu, ukusetyenziswa kwamandla aphantsi, kunye nokusebenza simahla. Isetyenziswa ngokubanzi ekutshintsheni imisinga yomthwalo, imisinga yomthwalo ogqithisiweyo, kunye nemisinga emfutshane yombane kwiigridi zamandla ezidolophini nasezilalini, izitishi, imisebenzi yemigodi, iinkqubo zokufakelwa kombane kaloliwe, kunye neeprojekthi zamandla ahlaziyekayo.

Xa kuthelekiswa nezaphuli zesekethe zesiqhelo ezisebenza entwasahlobo, umatshini wokusebenza wemagnethi osisigxina ubonelela ngesakhiwo esilula, iinxalenye ezincinci ezihambayo, ubomi obude benkonzo, kunye nokusebenza okungaguqukiyo kokuvula kunye nokuvala. Oku kuyenza ibe sisisombululo esifanelekileyo kwiigridi zangoku ezikrelekrele, iisistim ezizisebenzelayo zokusasaza, kunye nezicelo ezifuna ukutshintshwa rhoqo.

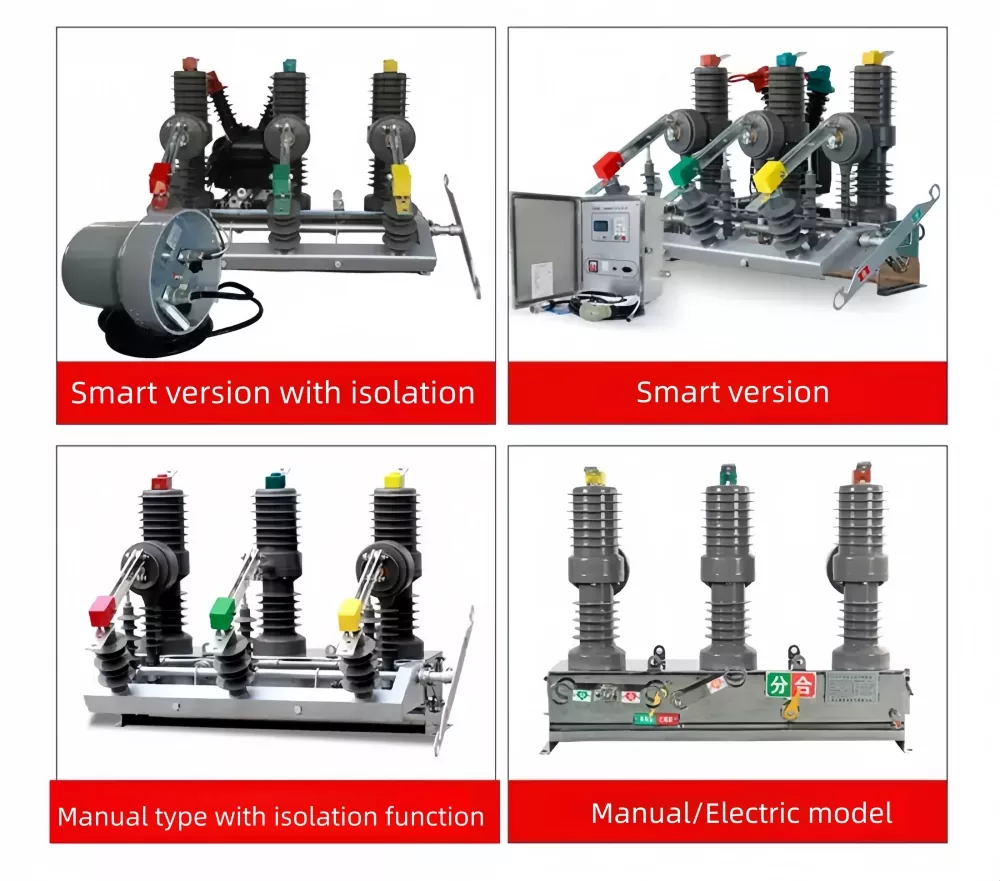

Umzekelo kunye neNkangeleko

Outdoor Permanent Magnet Circuit Breaker

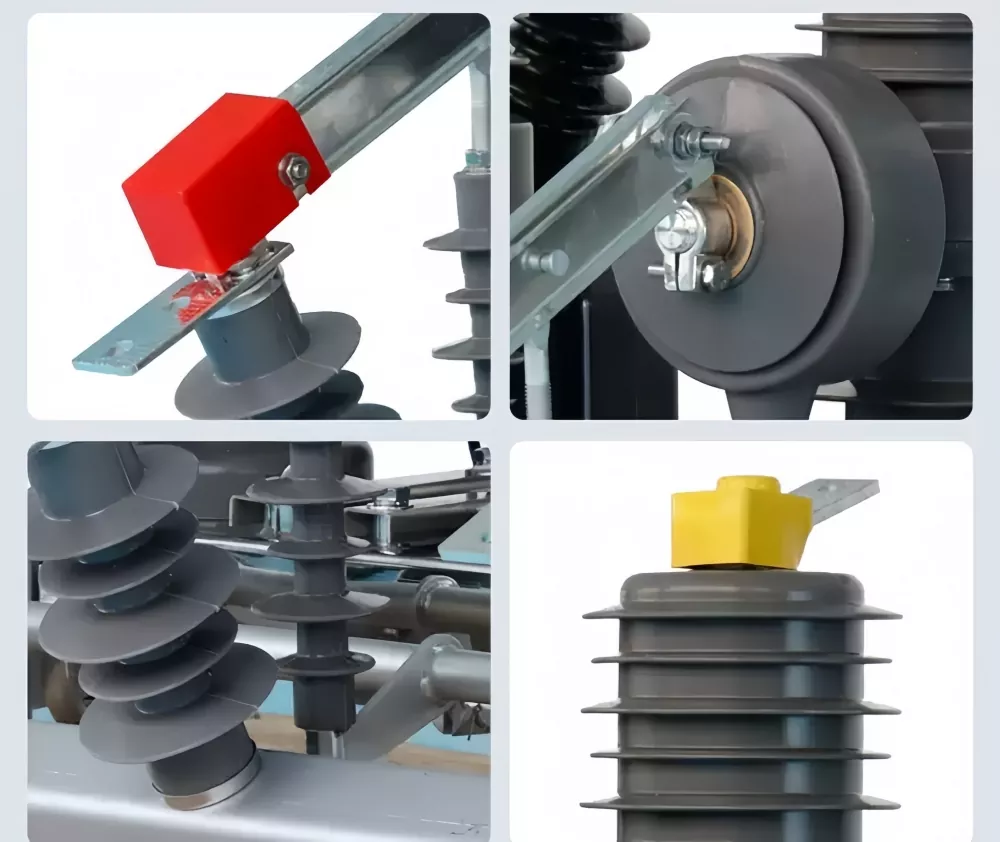

Iinkcukacha zeMveliso

Outdoor Permanent Magnet Circuit Breaker Details

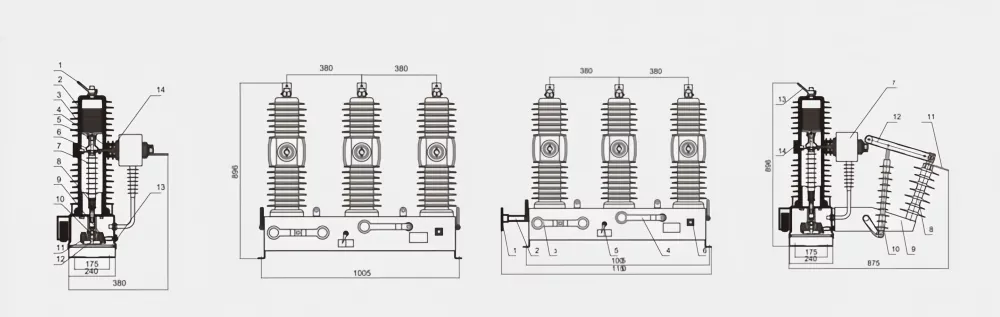

Imilinganiselo yeMveliso

Outdoor Permanent Magnet Circuit Breaker Dimensions

1-Upper outlet

2-Ivacuum isiphazamisi

I-3-Insulating tube

4-Umgca wokuphuma osezantsi

5-Ikliphu eqhubayo

6-Uqhagamshelwano oluthambileyo

7-Insulating intonga yokutsala

I-8-Qhagamshelana noxinzelelo lwentwasahlobo

9-Intwasahlobo yokuvula

Ibhodi yoqhagamshelo lwe-10-Driver

I-11-Mechanism output shaft

12-Indlela yokusebenza

13-Ibhokisi yeziko

I-14-I-transformer yangoku

1-Isiphatho sokusebenza

I-2-Isolunti eyodwa

I-3-Circuit breaker manual yokuvula kunye nokuvala isibambo

I-4-Isiphatho sokugcina amandla we-Circuit breaker

5-Ukwahlula kunye nemiyalelo yokudibanisa

Iplagi ye-6-Wiring

I-7-i-transformer yangoku

I-8-Insulator

I-9-I-Isolation rack

10-Insulating intonga yesampula

Ibhloko ye-11 yeterminal (icala legalelo)

12-Iblade yokuzahlula

Ibhloko ye-13 yeterminal (isiphelo semveliso)

14-Isaphuli-mthetho

Iimpawu zeMveliso

Indlela yokusebenza yemagnethi esisigxina enesantya esiphezulu, esizinzileyo, kunye nokusebenza ngokuthembekileyo kokutshintsha.
Uyilo lomatshini olungenakulungiswa luphelisa ukulungiswa kwesiqhelo kwaye lunciphisa kakhulu iindleko zokusebenza.
Isiphazamisi sevacuum esisebenza kakhulu sibonelela ngesakhono esibalaseleyo sokucima i-arc kunye nobomi obude bombane.
Ubomi boomatshini ukuya kuthi ga10,000 imisebenzi, iyenza ilungele ukutshintshwa rhoqo kwezicelo.
Ulwakhiwo lwangaphandle olubambeneyo olunokumelana okugqibeleleyo nokufuma, uthuli, ukuvezwa kwe-UV, kunye neemeko ezirhabaxa zokusingqongileyo.
Ixhasa ulawulo olukrelekrele, ukubeka iliso kude, kunye nokudityaniswa komthungo kunye ne-SCADA kunye neenkqubo ezizenzekelayo zokuhambisa.
IIsaphuli seSekethe yeMazibuthe eSisigxinailungele izikhululo ezisetyenziswayo, iinkqubo zamandla emizi-mveliso, ukufakelwa kombane kumzila kaloliwe, iiprojekthi zemigodi, kunye nothungelwano lokuhanjiswa kwamandla ahlaziyekayo.

Amacandelo Angundoqo

Isiphazamisi sevacuum
Indlela yokusebenza yemagnethi esisigxina
Izindlu ezikhuselayo eziphezulu
Isiguquli sangoku (ukhetho)
Ikhabhinethi yomatshini wokusebenza
Iitheminali zokuqhuba
I-insulating pull rod
Inkqubo yokugcina amandla
Isalathisi sokuma koomatshini
Umqheba wokusebenza okwenziwa ngesandla

IiParameters zobuGcisa

Into	Inkcazo
Ulinganiso lweVoltage	12kV / 24kV
Ireyithwe rhoqo	50Hz
Ikalwe ngoku	630A / 1250A
Ilinganiswe ngoMvulo oMfutshane weSekethe yangoku	20kA/25kA
Ilinganiswe Incopho Melana yangoku	50kA / 63kA
Ilinganiswe kwiSekethe emfutshane eyenza yangoku	50kA / 63kA
Ulandelelwano lokuSebenza olukalwe	O-0.3s-CO-180s-CO
Ubomi boomatshini	10,000 Imisebenzi
Ireyithwe kwiMisebenzi yokuQothulwa kweSekethe emifutshane	Amaxesha angama-20
Amandla eSekonti yeSekondi yokuQhubela iVoltage	2kV
Impulse yoMbane imelana neVoltage	125kV / 145kV
Ubunzima	115kg

Usetyenziso

IIsaphuli seSekethe yeMazibuthe eSisigxinayenzelwe iinkqubo zamandla ombane aphakathi ezifuna ukutshintsha okuthembekileyo, ulawulo olukrelekrele, kunye nozinzo lwexesha elide lokusebenza.

Uthungelwano lokuhambisa amandla ezidolophini nasezilalini
Izitishi zombane
Iinkqubo ezizenzekelayo zokusasazwa
Iziseko ezingundoqo zegridi
Iiprojekthi zokufakelwa kombane kuloliwe
Imigodi kunye nezibonelelo zemizi-mveliso enzima
Amandla omoya kunye nezityalo zamandla elanga
Iinkqubo zothumelo kunye nokuhanjiswa kwezinto eziluncedo
Iziseko zophuhliso kunye neeprojekthi zamandla zikamasipala

UmGaqo wokuSebenza

IIsaphuli seSekethe yeMazibuthe eSisigxinaidibanisa isiphazamisi sevacuum kunye ne-actuator yemagnethi esisigxina. Ngexesha lokusebenza okuqhelekileyo, i-actuator ilawula ngokuchanekileyo ukuvulwa kunye nokuvala abafowunelwa usebenzisa amandla ombane wombane. Xa iphoso lenzeka, i-vacuum interrupter ivala ngokukhawuleza i-arc, iqinisekisa ukuphazamiseka okukhuselekileyo kwephutha langoku. Xa kuthelekiswa neendlela eziqhelekileyo zasentwasahlobo, i-activator yemagnethi esisigxina inika impendulo ekhawulezayo, ukusebenza ngokuchanekileyo, ukusetyenziswa kwamandla aphantsi, kunye nokuthembeka okukhulu koomatshini.

Kutheni Khetha iSigxina seSaphuli seSekethe yeMagnet?

Indlela yokusebenza simahla
Ukusetyenziswa kwamandla aphantsi okusebenza
Ubomi obude benkonzo
Ukuhambelana okuphezulu kokusebenza
Ifanelekile kwizicelo zokutshintsha okuqhelekileyo
Ukunciphisa ukunxiba koomatshini
Ukuhambelana okugqwesileyo kunye neenkqubo zokulawula igridi ezikrelekrele

Imibuzo ebuzwa qho

Yintoni iSaphuli seSekethe yeMagnet eSisigxina?

Sisaphuli sesekethe esine-voltage ephakathi esisebenzisa isixhobo sokusebenza semagnethi esisigxina endaweni yendlela yemveli yasentwasahlobo, ebonelela ngokuthembeka okuphezulu, ukugcinwa okuphantsi, kunye nobomi benkonzo obude.

Zeziphi iingenelo zendlela yokusebenza umazibuthe esisigxina?

Ii-activators zemagnethi ezisisigxina zineendawo ezimbalwa ezihambayo, ukusetyenziswa kwamandla aphantsi, impendulo ekhawulezayo, ukuphuculwa kozinzo koomatshini, kwaye azifuni kulungiswa kubomi babo benkonzo.

Sisetyenziswa phi esi saphuli-mthetho?

Isetyenziswa ngokubanzi kwizitishi ezingaphantsi, uthungelwano oluluncedo lokuhambisa, iigridi ezihlakaniphile, iiprojekthi zamandla ahlaziyekayo, iinkqubo zobonelelo lwamandla kaloliwe, imisebenzi yezemigodi, kunye neenkqubo zokusasaza umbane kwimizi-mveliso.

Ngaba lo mqhekezi wesekethe uxhasa ukubekwa esweni okude?

Ewe. Inokuthi idityaniswe ne-SCADA, iinkqubo ezizenzekelayo zokusasaza, kunye nezixhobo zokukhusela ezihlakaniphile zokubeka iliso elikude, ulawulo olukude, kunye nezicelo zegridi ezihlakaniphile.
