10KV Indoor Transformer yangoku

Model:LZZBJ9-10

I-Anqiang Power iphuhliswe ngokuzimeleyo i-10KV i-transformer yangaphakathi yangaphakathi yimveliso yangaphakathi evalelwe ngokupheleleyo kunye ne-epoxy resin insulation ekhuselekileyo. Ilungele umlinganiselo wangoku kunye namandla kunye nokukhuselwa kwe-relay kwi-10KV nangaphantsi, i-50Hz okanye i-60Hz ilinganiswe kwiisekethe zefrikhwensi. Singayenza ngokwezifiso ngokuhambelana neenkcukacha zabathengi.

Thumela uMbuzo

Ingcaciso yeMveliso

I-10KV Indoor Current Transformer (imodeli LZZBJ9-10) yenzelwe umlinganiselo ochanekileyo wangoku kunye nokukhuselwa kwiinkqubo zamandla zangaphakathi ze-voltage. Ngokuqhelekileyo ifakwe kwiipaneli ze-switchgear, iikhabhinethi zemitha, kunye neendawo ezincinci ezidibeneyo apho imveliso yesignali ezinzileyo kunye nokuthembeka kwe-insulation kuyadingeka phantsi kokusebenza okuqhubekayo.

Ekuhanjisweni kwe-automation kunye nothungelwano lwamandla oshishino, i-10KV Indoor Current Transformer idlala indima ebalulekileyo ekuguquleni i-primary current ephezulu ibe yimiqondiso yesibini esemgangathweni yezixhobo zemitha kunye nokukhusela okukhuselweyo. Isakhiwo sayo se-epoxy resin cast siphucula amandla omatshini kwaye siqinisekisa ukusebenza okuzinzileyo kwiindawo ezinomswakama okanye ezinothuli zangaphakathi.

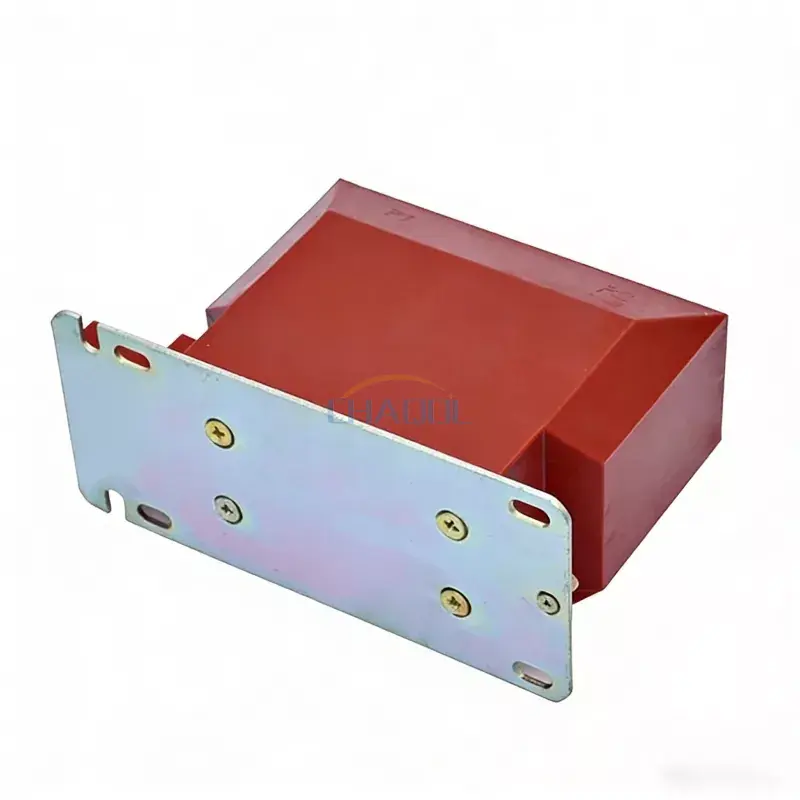

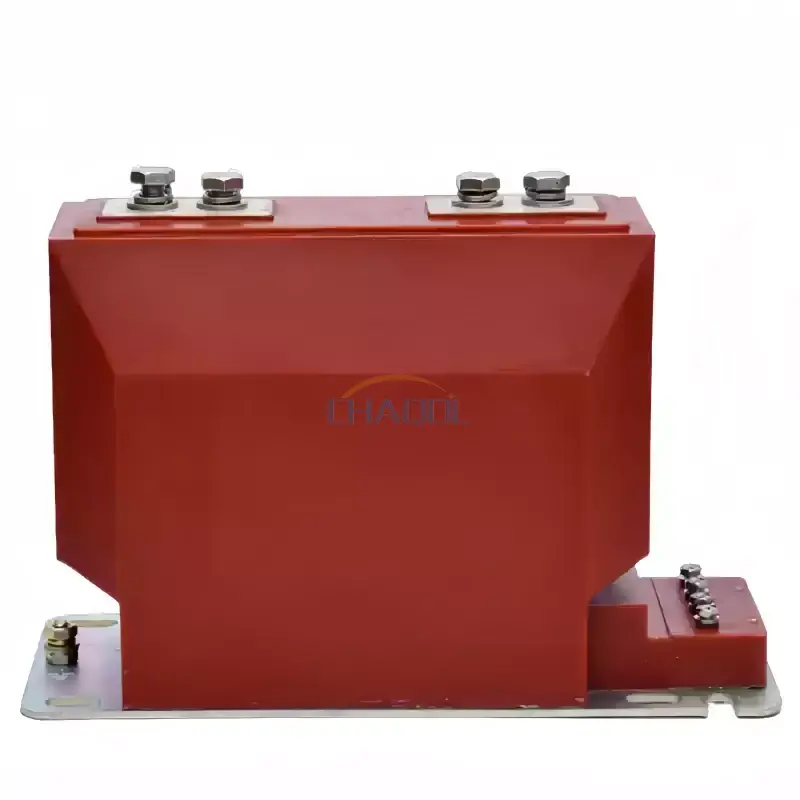

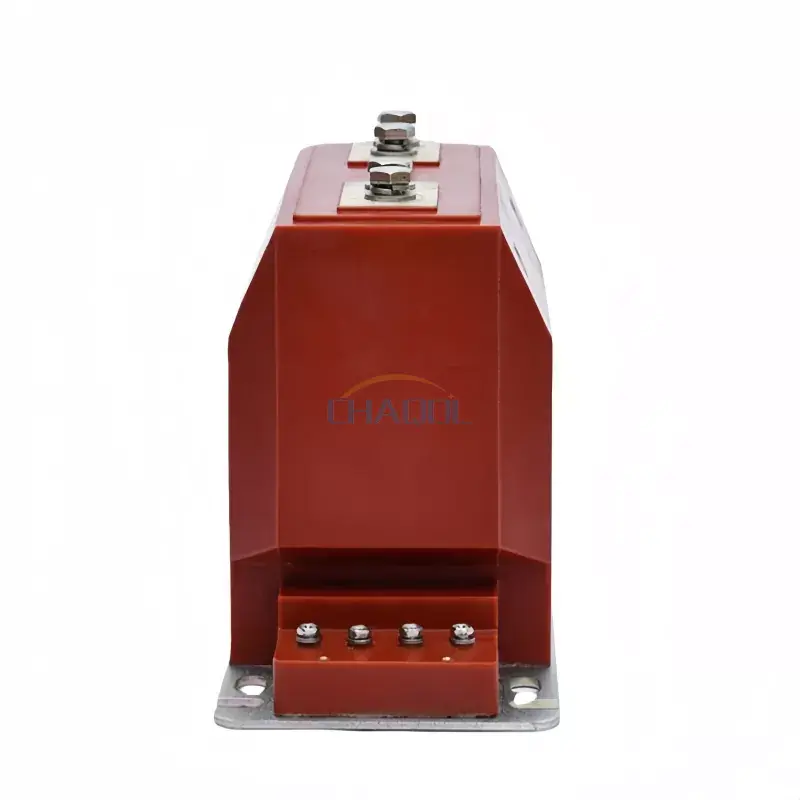

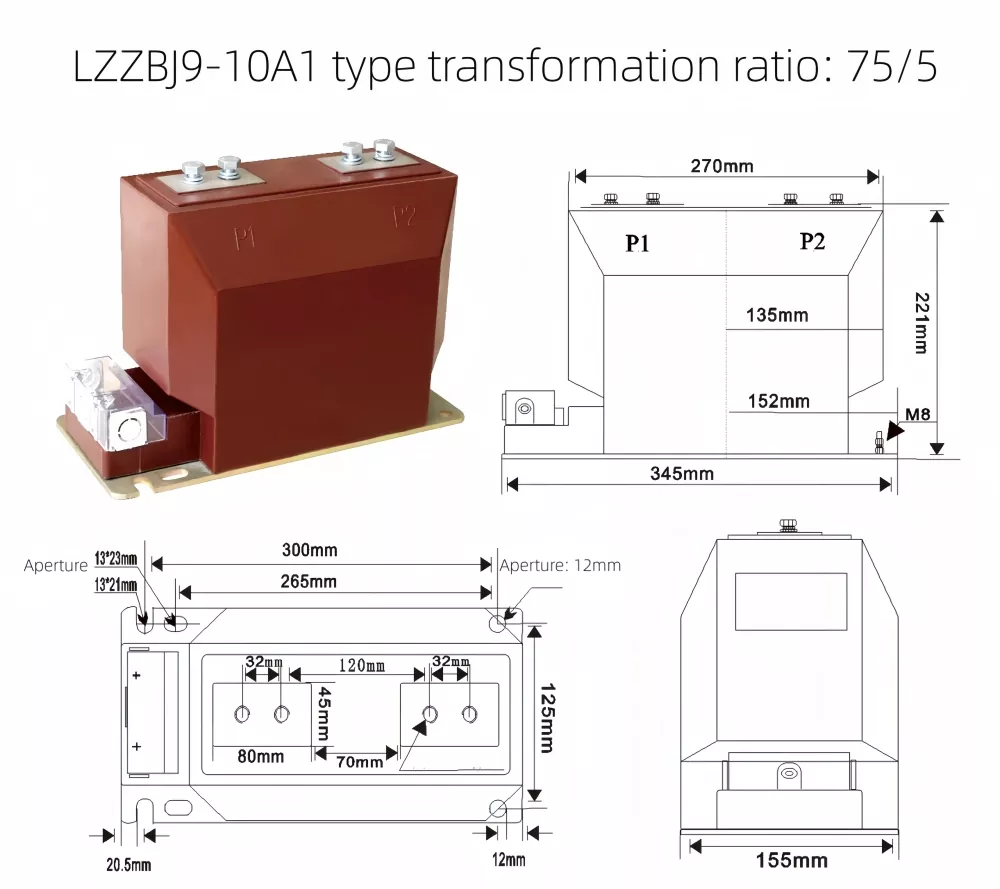

Umboniso wemveliso kunye nomzobo wemilinganiselo

10KV Indoor Current Transformer

Uyilo lobuNjineli kunye noLwakhiwo oluSebenzayo

Olu ngcelele lwamkela inkqubo evalelwe ngokupheleleyo ye-epoxy resin, edibanisa umbindi wentsimbi, ukujija okwesibini, kunye nenkqubo yokugquma ibe ngumzimba obambeneyo. Uyilo lunciphisa umngcipheko wokukhupha kunye nokwandisa amandla e-dielectric, okwenza ukuba ilungele ukusebenza kwexesha elide kwi-switchgear enamandla.

I-10KV ye-Indoor Current Transformer nayo ixhotyiswe ngebhokisi ye-terminal eqinisiweyo yokukhusela i-wiring yesibini, kunye nesiseko somhlaba esiqinisekisa ukufakela okukhuselekileyo kunye nokuthotyelwa kwemigangatho yokhuseleko lombane kwiindawo zoshishino.

Iiparamitha zobuGcisa

Imodeli ye-LZZBJ9-10 isekela ulungelelwaniso oluphambili lwangoku kunye neeklasi zokuchaneka ukuhlangabezana neemfuno ezahlukeneyo zemitha kunye nokukhusela kwiinkqubo zokuhambisa amandla.

Umzekelo	Ilinganiswe engundoqo yangoku	Ukuchaneka kwinqanaba lokudibanisa	Isiphumo esilinganiselweyo	Ilinganiswe ngexesha elifutshane lobushushu bombane	Ireyithwe uzinzo oluguquguqukayo lwangoku
LZZBJ9-10A	5A	0.2/10P10 0.5/10P10 0.2/10P10 0.5/10P10	10/15VA 10/15VA 10/15VA 10/15VA	0.45KA/s	1.13KA/s
	10A			0.9KA/s	2.25KA/s
	15A			1.35KA/s	3.38KA/s
	20A			1.8KA/s	4.5KA/s
	30A			2.7KA/s	6.75KA/s
	40A			3.6KA/s	9KA/s
	50A			4.5KA/s	11.25KA/s
	75A			6.75KA/s	16.88KA/s
	100A			9KA/s	22.5KA/s
	150A			13.5KA/s	33.75KA/s
	200A			18KA/s	45KA/s
	300A			24.5KA/s	61.25KA/s
	400A			24.5KA/s	61.25KA/s
	500A			32KA/s	80KA/s
	600A			32KA/s	80KA/s
	800A			32KA/s	80KA/s
	1000A			50KA/s	125KA/s
	1200A			50KA/s	125KA/s
	1500A			50KA/s	125KA/s
	2000A			50KA/s	125KA/s
	2500A			50KA/s	125KA/s

Ilinganiswe ngoku yesibini: 5A okanye 1A

Inqanaba lokugquma elilinganisiweyo: 12/42/75KV

Iimeko zeSicelo

Olu hlobo lwe-transformer yangoku lusetyenziswa ngokubanzi kwiikhabhinethi zokusasaza amandla, izitishi zangaphakathi zangaphakathi, iinkqubo ze-industrial automation systems, kunye neenkqubo zokulawula amandla. Ilungele ngokukhethekileyo iindawo ezifuna ukuchaneka komlinganiselo ophezulu kunye nokuzinza kwexesha elide phantsi kweemeko zomthwalo oqhubekayo.

I-10KV Indoor Current Transformer idla ngokudityaniswa kunye neerelays zokukhusela, iimitha zamandla, kunye neenkqubo zokubeka iliso kwiziseko ezingundoqo zegridi kunye nothungelwano lwamandla oshishino.

Ukufakela kunye noYilo loKhuseleko

Isiseko semveliso siyilwe kunye nemingxuma emininzi yokunyuka kunye neendawo zokugcina umhlaba, ukuqinisekisa ukulungiswa okuzinzile kunye nokhuseleko lombane ngexesha lokusebenza. Ibhokisi ye-terminal yesibini inika ukhuseleko olongezelelweyo malunga nokudibana ngengozi kunye nokuphazamiseka kwangaphandle.

Ubume bayo obubambekayo buvumela ukufakwa lula kwiinkqubo ezinqamlekileyo zokutshintsha indawo, ukunciphisa ubunzima be-wiring kunye nokuphucula ukusebenza kakuhle.

FAQ

I-Q1: Yintoni umsebenzi oyintloko wale nguqu yangoku?
A: Iguqula iprayimari yangoku ephezulu ibengumgangatho osezantsi wesibini wangoku wokulinganisa kunye nokhuseleko kwiinkqubo zangaphakathi zombane ophakathi.

I-Q2: Iphi i-10KV yangaphakathi ye-Indoor Transformer yangoku idla ngokufakwa?
A: Isetyenziswa ikakhulu kwi-switchgear yangaphakathi, iikhabhathi zokusasaza, kunye nezikhululo ezixineneyo kushishino kunye neenkqubo zamandla eziluncedo.

I-Q3: Ziziphi iingenelo zayo eziphambili xa kuthelekiswa neeCTs eziqhelekileyo?
A: Ibonelela nge-epoxy resin insulation, uyilo olubambeneyo, ukuchaneka okuphezulu, kunye nokumelana okuqinileyo nokufuma kunye nothuli, kuyenza ilungele ukusebenza ixesha elide.

I-Q4: Ngaba inokuxhasa imida eyahlukeneyo yangoku?
A: Ewe, iireyithingi eziphambili zangoku ziyafumaneka ukuze zihambelane neemfuno zomthwalo kunye nenkqubo.

I-Q5: Ngaba ifanelekile kwizicelo zegridi ezihlakaniphile?
A: Ewe, isetyenziswa ngokubanzi kwiinkqubo zokulinganisa i-smart kunye nothungelwano lokusabalalisa oluzenzekelayo ngenxa yemveliso yayo yesignali ezinzileyo.

I-Q6: Ngaba ifuna ukugcinwa rhoqo?
A: Akukho kugcinwa rhoqo kufunwayo. Ukuhlolwa rhoqo kweetheminali kunye nemeko yokufakelwa kwe-insulation ngokuqhelekileyo yanele.
