Zero Ulandelelwano Umguquleli wangoku

Model:LXK-Φ80-200

I-Anqiang Power ephuhliswe ngokuzimeleyo ye-Zero Sequence Current Transformer ifanelekile kwiinkqubo zamandla kunye ne-50Hz okanye i-60Hz kunye ne-voltage elinganisiweyo ye-0.5KV nangaphantsi, ukuze isetyenziswe kumandla kunye nokulinganisa kwamandla kunye nokukhusela i-relay. Ibonisa ukumelana nobushushu obuphezulu, ukusebenza kakuhle kwe-insulation, ubungakanani obubambeneyo, kunye nofakelo olulula.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Zero Sequence Current Transformer yenzelwe ukufumanisa impazamo yomhlaba kunye nokulungelelaniswa kokukhusela kwiinkqubo zamandla ombane ophakathi. Ngokuqhelekileyo isetyenziswa kuthungelwano losasazo lwe-10kV ukujonga intsalela yangoku eveliswa phantsi kweemeko ezingalungelelananga okanye iimpazamo, inceda ukhuselo lokuhanjiswa ngokukhawuleza luhlukanise iisekethe ezingalunganga kunye nokuphucula ukhuseleko lwenkqubo kunye nokuthembeka.

Lo mzekelo (LXK-Φ80-200) usebenzisa iteknoloji ye-epoxy resin vacuum casting kunye nesakhiwo esiqhekezayo, esivumela ukufakela ngaphandle kokuqhawula iintambo eziphambili. Ingundoqo iveliswa kwi-high-grade-rolled-rolled silicon steel, ngelixa i-winding isebenzisa ii-conductor zethusi ezingenayo i-oxygen ukuqinisekisa ukusebenza okuzinzile kwamagnetic kunye nokulahlekelwa okuphantsi ngexesha lokusebenza kwexesha elide.

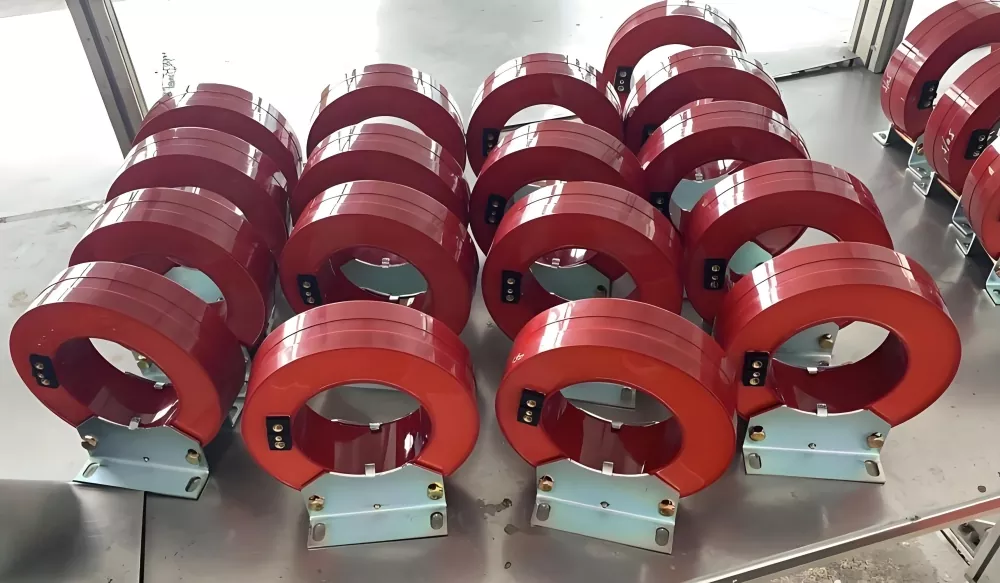

Iifoto zemveliso

Zero Sequence Current Transformer

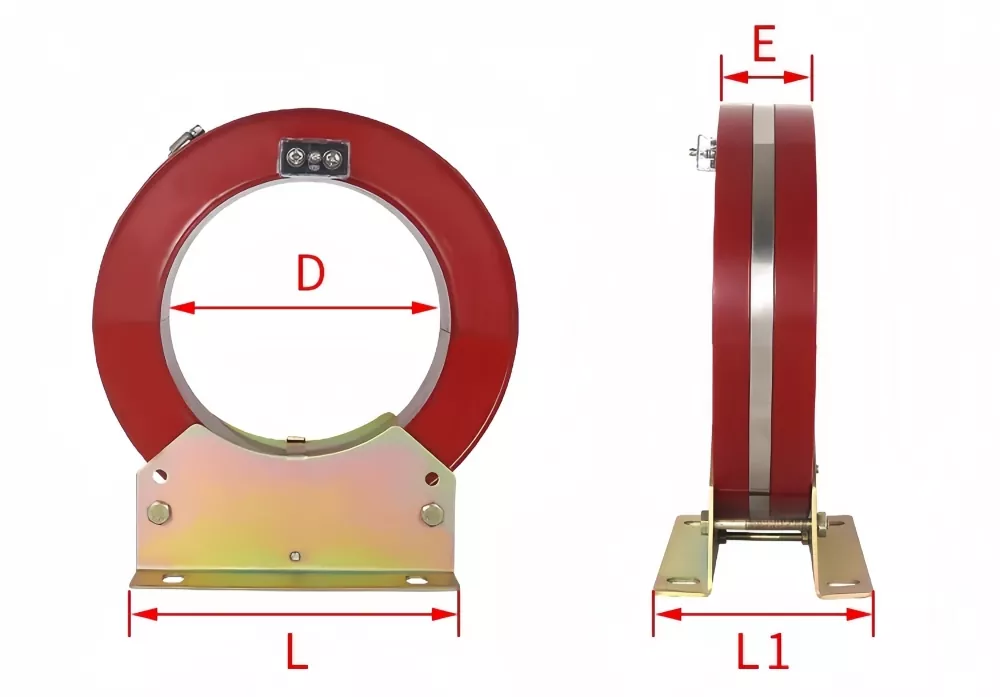

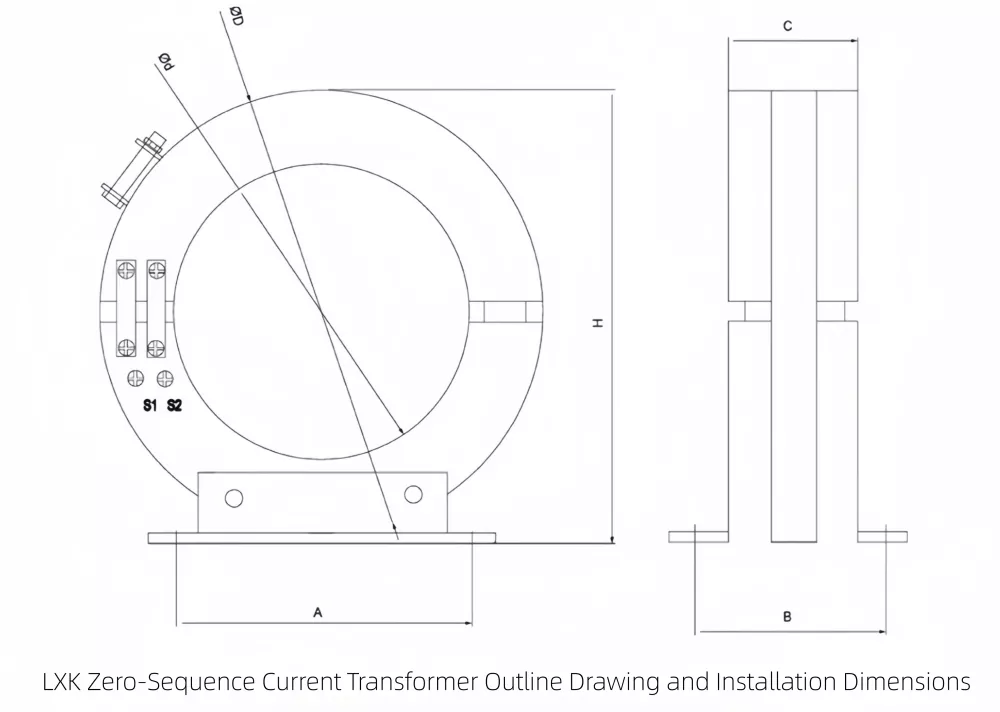

Imbonakalo yemveliso kunye nomzobo wemilinganiselo

Zero Sequence Current Transformer

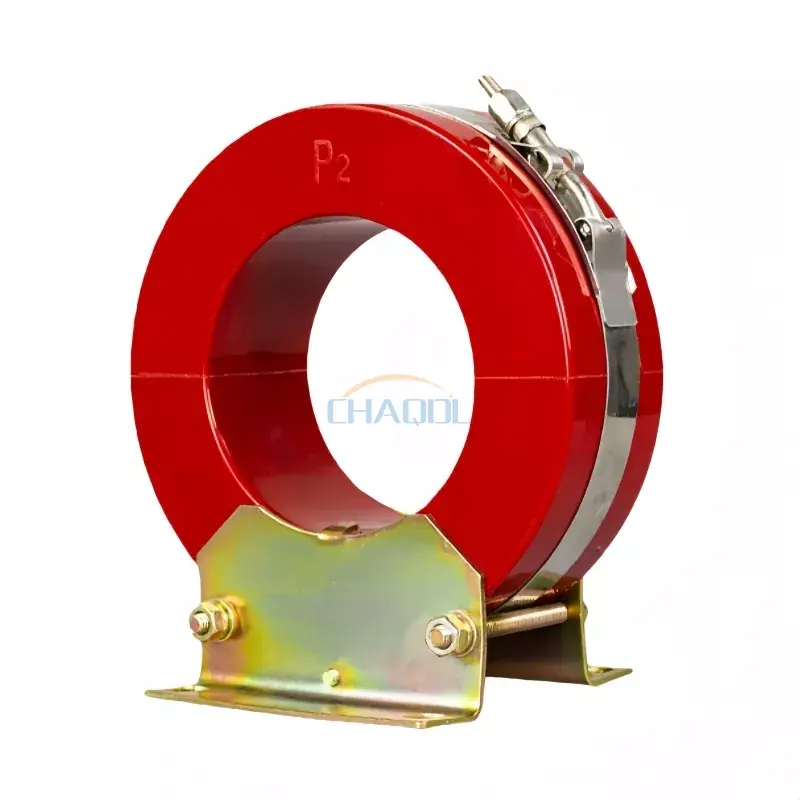

Inzuzo ephambili yale Zero Sequence Current Transformer yi-split-core structure, evumela ukufakela ngaphandle kokuqhawula iintambo eziphambili. Uyilo olungundoqo olunamacandelo amabini, oludityaniswe nokulungiswa kwe-clamping, luphucula ngokubonakalayo ukusebenza kakuhle kofakelo kwisiza kwiiprojekthi zokubuyisela kunye nokugcina.

IiNkcazo zeMveliso	D	E	L	L1
LXK-80	Φ80	58	130	123
LXK-100	Φ100	58	130	122
I-LXK-120	Φ120	57	130	120
I-LXK-150	Φ150	58	190	123
I-LXK-180	Φ180	58	190	125
LXK-200	Φ200	60	280	129
LXK-240	Φ240	80	280	167
LXK-260	Φ260	55	280	120
LXK-300	Φ300	80	280	170

Relay iiparamitha zobugcisa

Imodeli yokudlulisa	Relay coil uxhumano indlela	Ixabiso lesikali sodluliselo	Ulandelelwano lwexabiso langoku (A)
DD-11/60 DD-1/60	uqhagamshelwano lwechungechunge	15*1	2.4-4.5
		30*1
	ngokuhambelanayo	15*2	3-5
		30*2
	uqhagamshelwano lwechungechunge	15*1	3-5
		30*1
	ngokuhambelanayo	15*2	3-6
		30*2

Inqanaba lokugquma elilinganisiweyo: 0.5/3KV

Iimpawu zeMveliso

I-split-core epoxy resin structure ivumela ukufakwa ngokukhawuleza ngaphandle kokususa iintambo eziphambili, ukunciphisa ixesha lokunciphisa ukugcinwa kunye neeprojekthi zokubuyisela kwakhona. Uyilo lukwaphucula ukuzinza komatshini kunye nokuthembeka kwe-insulation ixesha elide kwiindawo zombane ezinzima.

Isixhobo sinikezela ukusebenza komlinganiselo ozinzileyo phantsi kweemeko eziphantsi kunye neziphezulu zokushiyeka kwangoku, okwenza ukuba zilungele iinkqubo zokukhusela kuthungelwano losasazo lwamashishini, izitishi, kunye neendibano ze-compact switchgear.

Iimeko zokusebenza eziqhelekileyo

1. Ufakelo: Ukusetyenziswa kwangaphakathi

2. Uluhlu lobushushu: -5℃ ukuya ku-40℃, umndilili wemihla ngemihla ≤ 30℃

3. Okusingqongileyo: Iindawo ezingonakaliyo nezingangcolisekiyo

FAQ

I-Q1: Yintoni umsebenzi oyintloko we-Zero Sequence Current Transformer?
A: Ibona ukungalingani kwangoku okubangelwa ziziphoso zomhlaba kwiinkqubo zesigaba sesithathu kwaye inikezela ngemiqondiso yeenkqubo zokukhusela i-relay ukuhlukanisa iisekethe eziphosakeleyo.

I-Q2: Ngaba inokufakwa ngaphandle kokuvala inkqubo?
A: Ewe, uyilo lwe-split-core luvumela ufakelo malunga neentambo ezikhoyo ngaphandle kokuqhawula.

I-Q3: Ngaba ireyithingi yangoku ilungisiwe okanye inokwenziwa ngokwezifiso?
A: Umlinganiselo ophambili wangoku unokwenziwa ngokwezifiso ngokusekelwe kwiimfuno zenkqubo.

I-Q4: Luluphi uhlobo lweenkqubo zokukhusela ezihambelanayo?
A: Iyahambelana ne-fault relays yomhlaba, iipaneli zokukhusela, kunye neenkqubo zokubeka iliso ze-switchgear.

I-Q5: Ziziphi izinto ezisetyenziselwa kwi-core kunye ne-winding?
A: Isebenzisa i-silicon cores yentsimbi epholileyo kunye ne-oxygen-free windings yobhedu yokulahlekelwa okuphantsi kunye nokusebenza okuphezulu.

I-Q6: Iqhele ukufakwa phi?
A: Ngokuqhelekileyo ifakwe kwiiyunithi eziphambili zendandatho, iikhabhinethi zokusabalalisa, ii-transformers, kunye neepaneli zokukhusela i-circuit breaker.
