I-oyile Entywiliselweyo I-Instrument Transformer edibeneyo

Model:JLS-35, 10, 6,3

Amandla ka-Anqiang ngumvelisi we-Oil Immersed Combined Instrument Transformer. Lo mguquli ufanelekile kwiinkqubo zamandla ze-AC zesigaba sesithathu kunye ne-frequency elinganisiweyo ye-50Hz okanye i-60Hz kunye ne-voltages elinganisiweyo ye-3KV, 6KV, 10KV, kunye ne-35KV. Imveliso ibonakalisa ukuchaneka okuphezulu, ubunzima obulula, ukufakwa lula, kunye nobuchule bokulwa nobusela.

Thumela uMbuzo

Ingcaciso yeMveliso

Esi siguquli se-oyile esidityanisiweyo esidityanisiweyo se-oyile, esikwabizwa ngokuba yibhokisi yokulinganisa i-oyile entywiliselwe kwi-voltage ephezulu, iphuhliswe ngokuzimeleyo ngu-Anqiang Electric kwaye ifanelekile kusetyenziso lwangaphakathi nangaphandle. Ibhokisi yokulinganisa i-metering yesigaba sesithathu iqukethe i-voltage yesigaba esisodwa kunye ne-transformers yangoku, ngelixa ibhokisi ye-metering yesigaba sesine iqukethe i-voltage yesigaba esisodwa kunye nabaguquli bangoku. Ezi zifakwe kwi-enclosure yebhokisi, kunye ne-terminals eziphambili kunye nesekondari zisebenzisa i-porcelain bushings efakwe kwipaneli. Imitha yombane ifakwe kumphezulu ongaphandle ngeenjongo zokulinganisa.

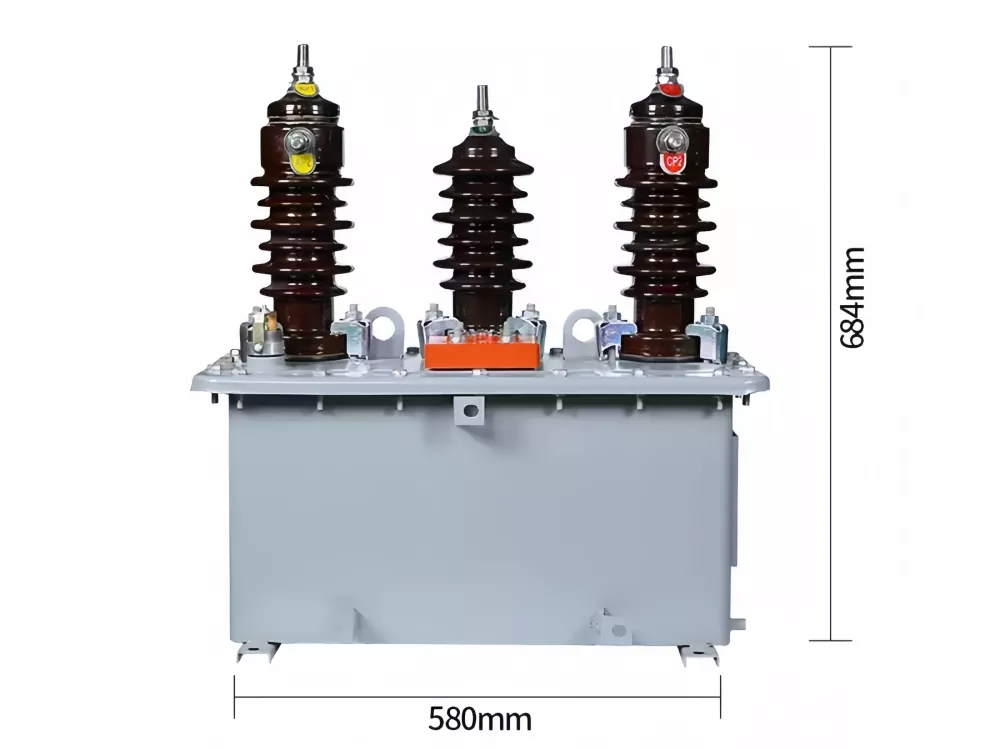

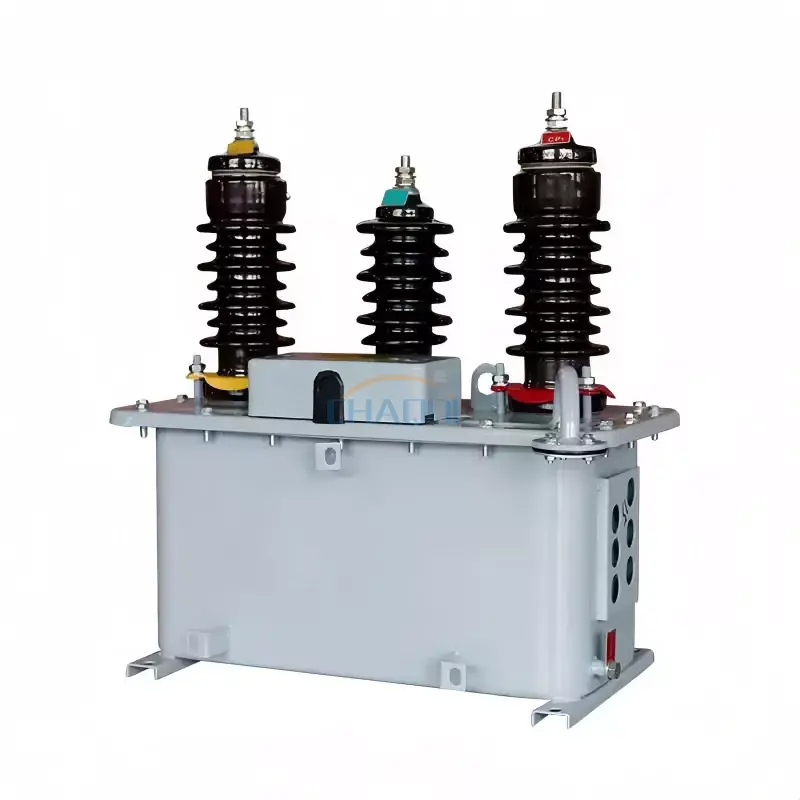

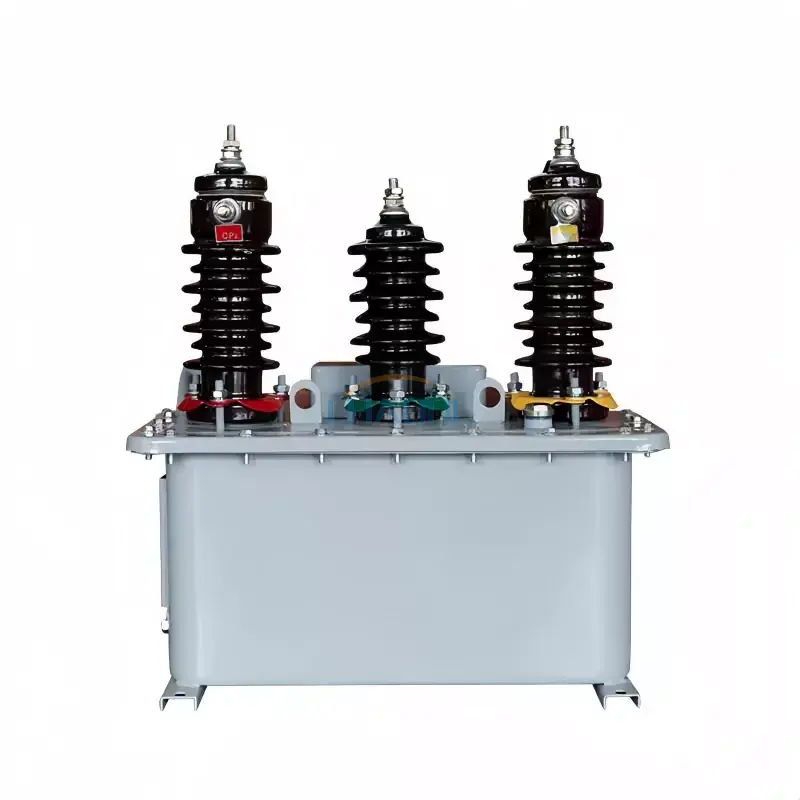

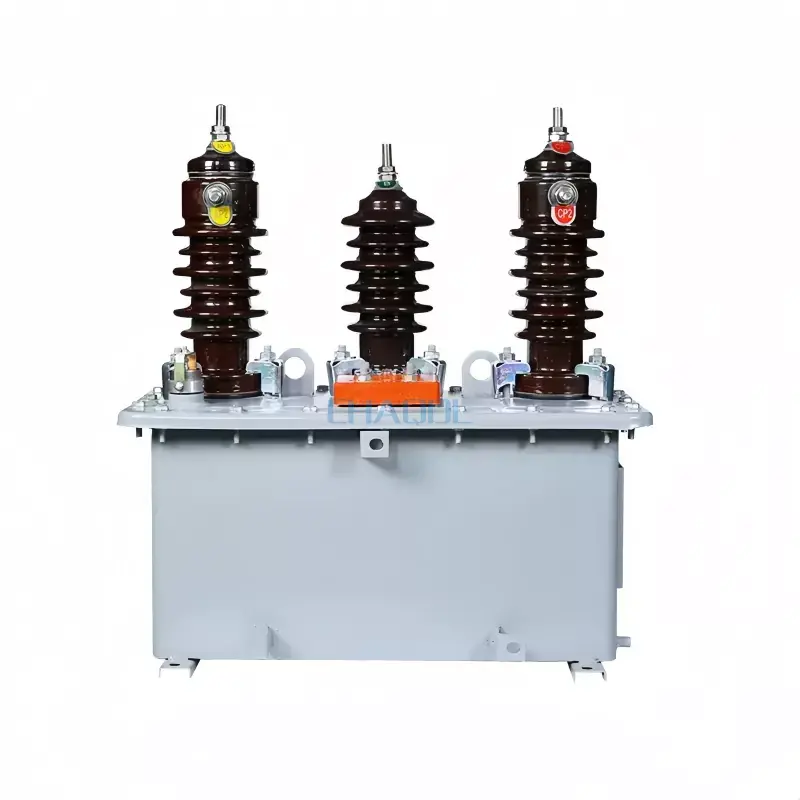

Umboniso womfanekiso wemveliso

Oil Immersed Combined Instrument Transformer

Igama lemveliso	I-oyile intywiliselwe i-transformer yesixhobo esidibeneyo	Umzekelo weMveliso	JLS-10
Inqanaba lokuchaneka	0.5/0.2 ibakala	Umbane olinganisiweyo	6/10/35KV
Ilinganiswe rhoqo	50Hz	Umlinganiselo wejometri	Umlinganiselo wombane: 6000/100

IiNgcaciso zobuGcisa

Iiparamitha zobuchwephesha zecandelo lombane le-JLS-35, 10, 6, kunye ne-3 i-oyile-intywiliselwe izixhobo ezidityanisiweyo zokuguqula izixhobo

Umzekelo weMveliso	JLS-35	JLS-10	JLS-6	JLS-3
Ulinganiso lombane lokuqala	35KV	10KV	6KV	3KV
Ubuninzi bombane	40.5KV	11.5KV	6.9KV	3.5KV
Ilinganiswe umbane wesibini	100KV
Ubuninzi bomthamo	1000VA	460VA	320VA	320VA
Umbane wexesha elinye umelana novavanyo lombane	80	38	32	25
Inqanaba lokufakwa kwe-insulation	41/95/200	12/42/75	7.2/32/60	3.6/25/40

Iiparamitha zobuchwephesha zecandelo langoku le-JLS-35, i-10, i-6, kunye ne-3 i-oil-immersed edityanisiweyo yokuguqula izixhobo

Ilinganiswe engundoqo yangoku		Ilinganiswe ngoku yesibini	FS ezininzi	1s uzinzo thermal ngoku multiplier	Ilinganiswe uzinzo oluguquguqukayo lwangoku
Umlinganiselo omnye oguquguqukayo	0.5, 1.2, 5.5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 120, 150, 200, 250, 300, 400, 600, 800	5A	10	70	120
Umlinganiselo ophindwe kabini	2.5-5.5-10, 7

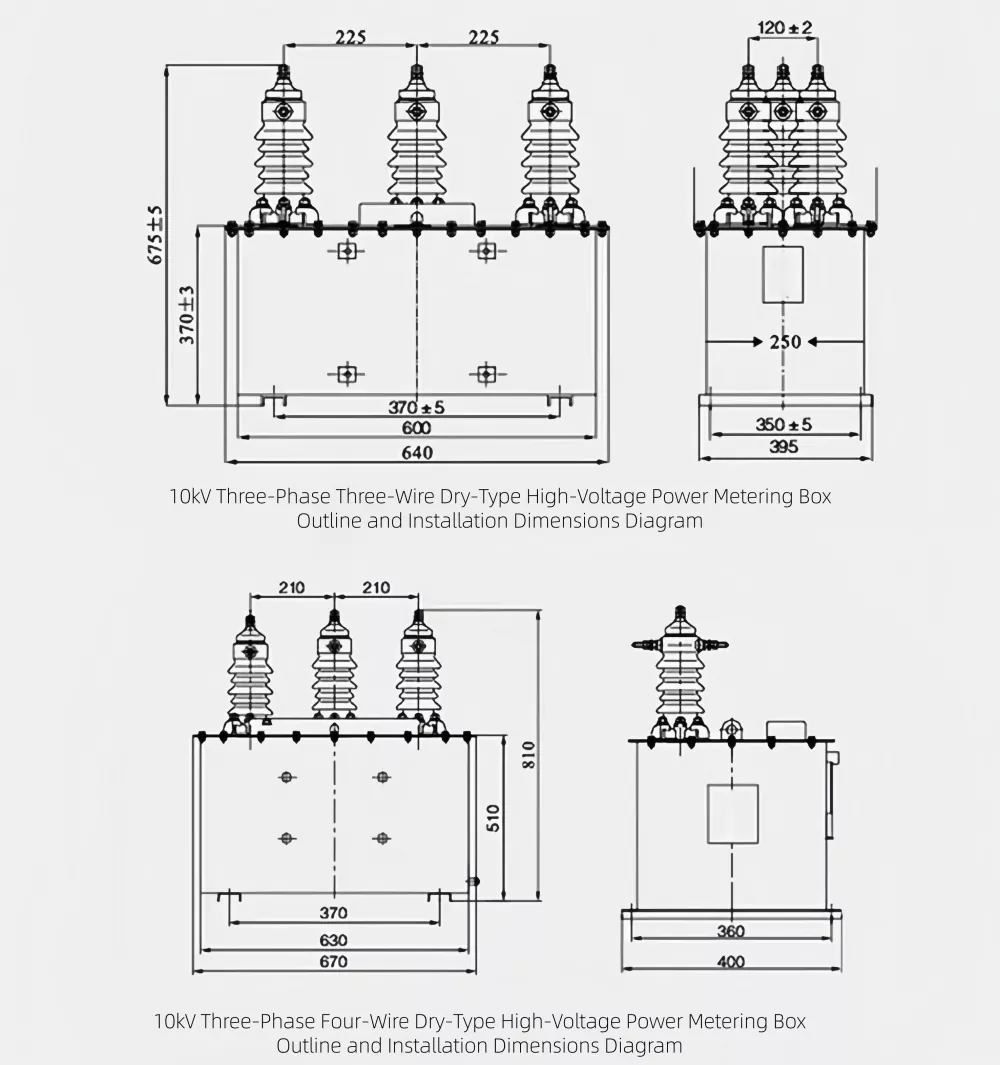

Umzobo wemilinganiselo yeemveliso

Oil Immersed Combined Instrument Transformer

Iithegi ezishushu: Isiguquli seSixhobo esiNxilisiweyo esiDityanisiweyo, i-oyile eNxilisiweyo yesiGuquli sesiXhobo, isiGuquli seSixhobo esiDityanisiweyo
