24kV Isiguquli saMandla saNgaphandle

Model:JDZW-24

I-Anqiang Power iphuhliswe ngokuzimeleyo i-24KV i-voltage yangaphandle isiguquli sisigaba esinye, esinamavili amaninzi, esivaleleke ngokupheleleyo, ngaphandle kwe-epoxy resin cast transformer. Ilungele ukusetyenziswa kwiinkqubo zamandla kunye ne-frequency elinganisiweyo ye-50Hz okanye i-60Hz kunye ne-voltage elinganisiweyo ye-6KV, i-10KV, i-17.5KV, kunye ne-24KV yokulinganisa amandla ombane kunye neenjongo zokukhusela i-relay.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Anqiang Power ye-24KV yangaphandle i-voltage transformers zizixhobo zokusebenza zangaphandle eziphezulu. Ifumaneka kwiimodeli ze-JDZW-6, i-10, i-17.5, kunye ne-24, yenzelwe ukubonelela ngombane oqhelekileyo we-voltmeters, iimitha zamandla, ii-relays zomhlaba, kunye ne-detectors yokuvuza komhlaba. I-Anqiang isebenzise ngempumelelo ii-voltage zohlobo lwe-JDZW kwiiprojekthi ezininzi, ebonisa amandla abo okuhlangabezana neemfuno zamashishini ahlukeneyo kunye nokuziqhelanisa neemeko ezahlukeneyo. I-Anqiang Electric inokwenza ngokwezifiso ii-transformers ngokweenkcukacha zobugcisa bomsebenzisi.

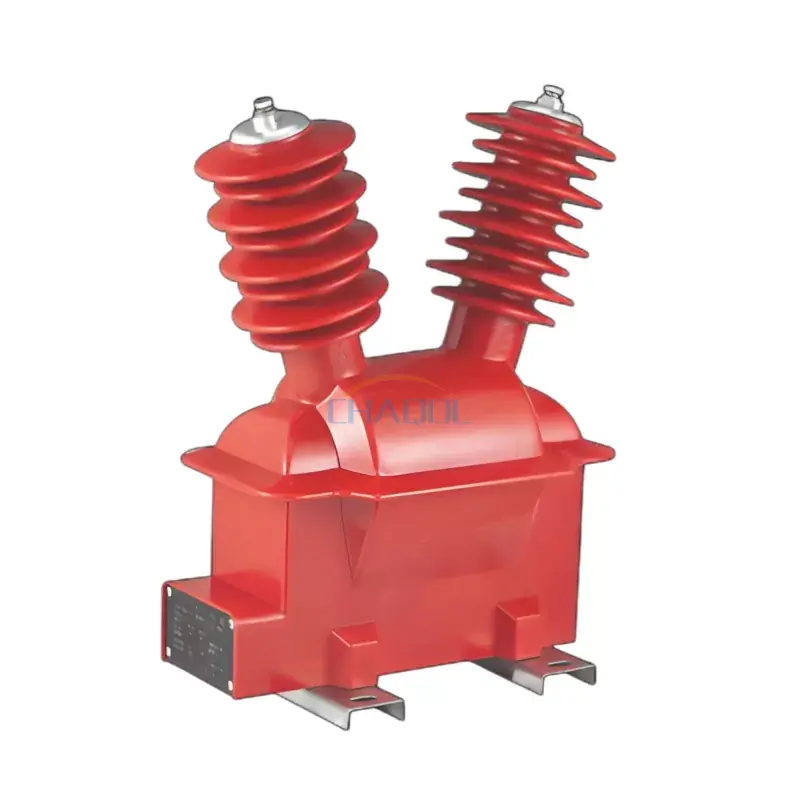

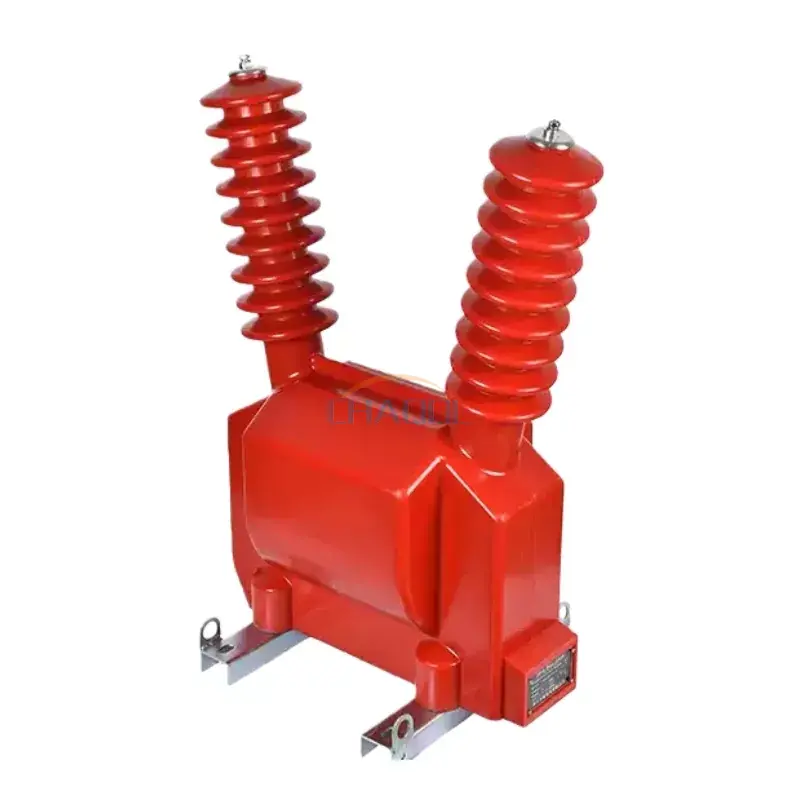

Imveliso yokubonisa imifanekiso

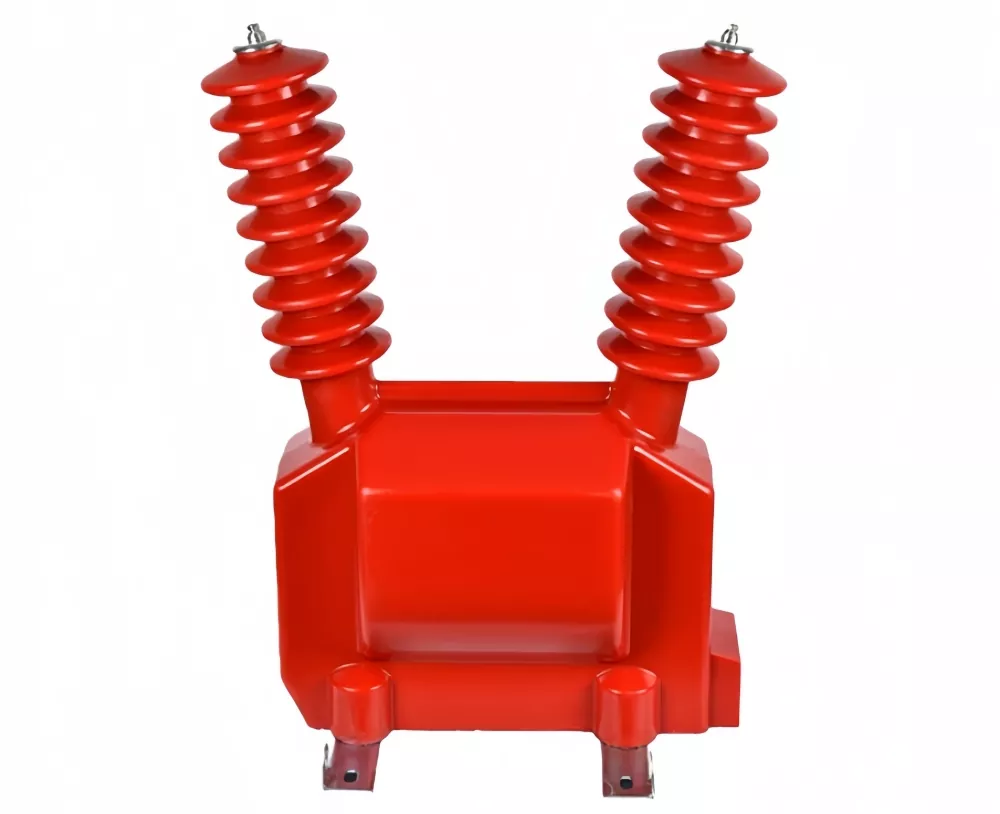

24kV Outdoor Voltage Transformer

IiParameters zobuGcisa

Ukusebenzisa iiparamitha zobugcisa zombane olinganisiweyo we-6KV kunye ne-10KV njengesalathiso.

Umzekelo weMveliso		I-JDZW-6R	I-JDZW-10R
Umlinganiselo olinganisiweyo wombane (A)		6000/100	10000/100	10000/220	1000/100/100	10000/100/220
Iklasi yokuchaneka kunye nokulinganiswa kwesiphumo sesibini	0.2	30	30	30	/	/
	0.5	80	80	80	/	/
	1级	200	200	200	/	/
	3级	240	240	240	/	/
	0.2/0.2 0.2/0.2	/	/	/	20/22 20/30	0.2/3-30/500 0.5/3-80/500
	0.5/0.5	/	/	/	25/25	0.2/3-30/500 0.5/3-80/500
	6P	/	/	/	/	/
Esona siphumo siphezulu (VA)		500	500	500	400/400	300/500
Inqanaba lokugquma elilinganisiweyo (VA)		7.2/32/60	12/42/75

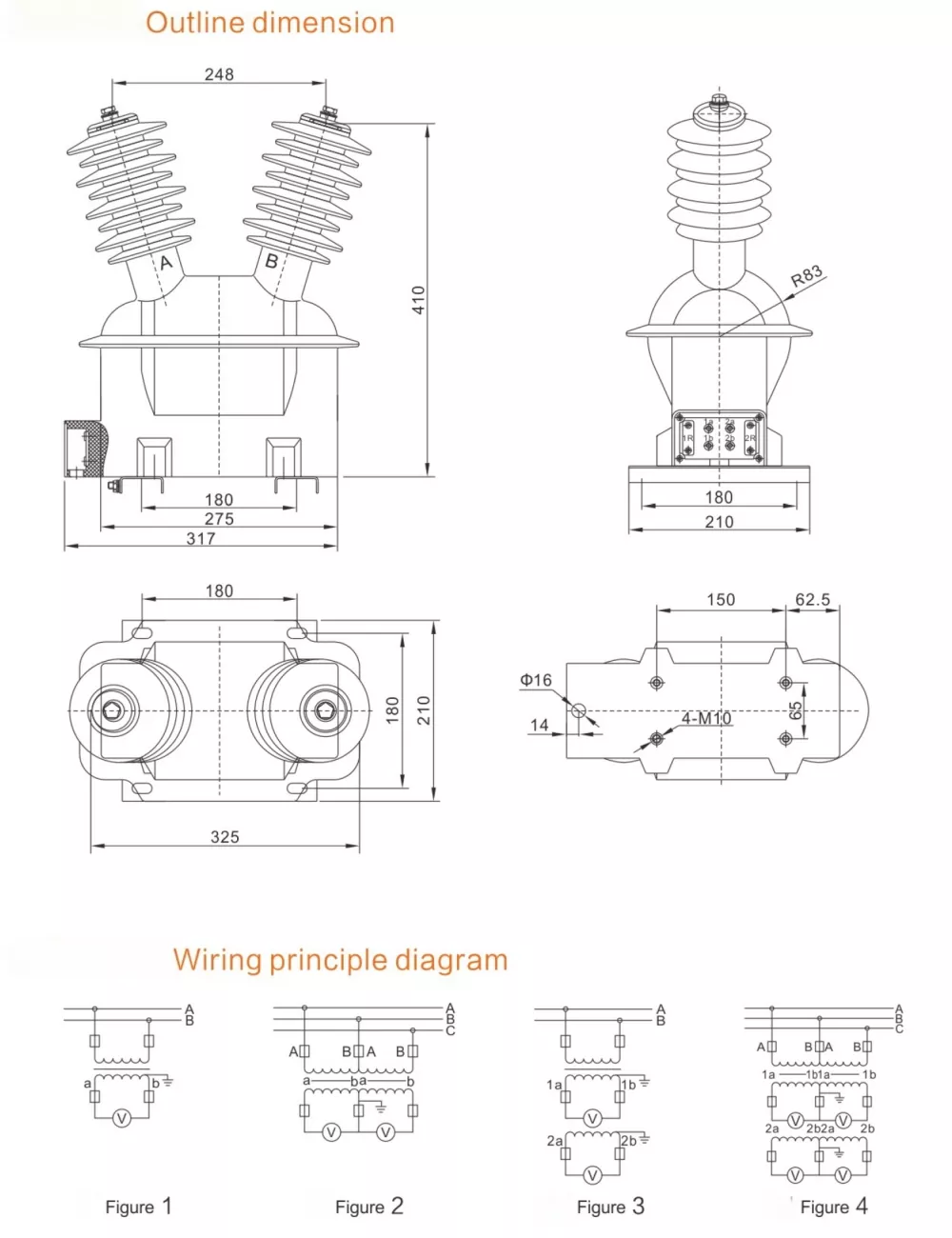

Umzobo wemveliso kunye nemilinganiselo yokufakela

24kV Outdoor Voltage Transformer

Iithegi ezishushu: I-24kV yaNgaphandle yeTransformer yaMandla, uMboneleli weTransformer waNgaphandle, uGuquguquli oLungelelwe
