NgeTransformer yangoku engundoqo

Model:LMZC-10

Amandla ka-Anqiang ngumvelisi waseTshayina ngokusebenzisa iinguqu eziphambili zangoku. Ezi ziguquli zangoku zifanelekile kwiinkqubo zamandla e-AC kunye nombane osebenzayo ongaphantsi kwe-35KV kwaye zisetyenziselwa umlinganiselo wangoku kunye nokukhuselwa kweesekethe kwizixhobo zokuhambisa amandla. Sinokwenza ngokwezifiso iinguqu zangoku ezingundoqo kumanqanaba ombane anje nge-10KV, 24KV, kunye ne-35KV ngokweemfuno zabathengi.

Thumela uMbuzo

Ingcaciso yeMveliso

Amandla e-Anqiang aphuhlisa uhlobo oluphambili Ngokusebenzisa i-Core Current Transformer LMZC-10 esekelwe kwiimfuno zesicelo sentsimi yeenkqubo zokuhambisa amandla zanamhlanje. Eyenzelwe i-medium-voltage switchgear environments ezifana ne-GIS, i-RMU, kunye ne-compact substations, imveliso ibonelela ngokusebenza komlinganiselo ozinzile phantsi kweemeko zokusebenza ezinzima. Yamkela isakhiwo esigqunywe ngokupheleleyo kunye nendlu ye-ABS engatshiyo kunye nesivalo setheminali esitywiniweyo esiselubala ukuphucula ukhuseleko kunye nokubonakala ngexesha locingo kunye nokugcinwa.

Kwimijikelezo esebenzayo yokulinganisa kunye nokhuseleko, isetyenziswa kakhulu kwisampulu yexesha lokwenyani kunye nokhuseleko lwerelay kwiinkqubo zamandla. I-split-core okanye i-ring-type-type ivumela ukufakwa ngokuthe ngqo kwiintambo eziphambili okanye iibhasi zebhasi ngaphandle kokuqhawula umqhubi oyintloko, ukuphucula ukusebenza kakuhle ngexesha lokubuyisela okanye ukulungiswa kweeprojekthi.

Uyilo loLwakhiwo kunye noMgaqo wokuSebenza

Yakhiwe nge-toroidal silicon yensimbi engundoqo kunye ne-epoxy resin casting insulation. I-conductor ephambili isebenza njenge-single-turn winding, ephucula kakhulu ukusebenza kakuhle kokudibanisa magnetic kunye nokunciphisa ukulahlekelwa kwamandla ngexesha lokusebenza.

I-winding yesibini yenziwe nge-high-conductivity yobhedu yocingo ukuze kuqinisekiswe ukuveliswa kwangoku okuzinzileyo kunye nokuchaneka kokulinganisa. Isakhiwo se-epoxy resin esitywinwe ngokupheleleyo siphakamisa ukuxhathisa ukufuma, ukukhuselwa kothuli, kunye nokuzinza kwexesha elide lomatshini.

Kwizicelo zobunjineli bombane, i- Through Core Current Transformer ikhethwa ngenxa yesakhiwo sayo esincinci kunye nokusebenza okuthembekileyo kwiindawo zokusebenza eziqhubekayo.

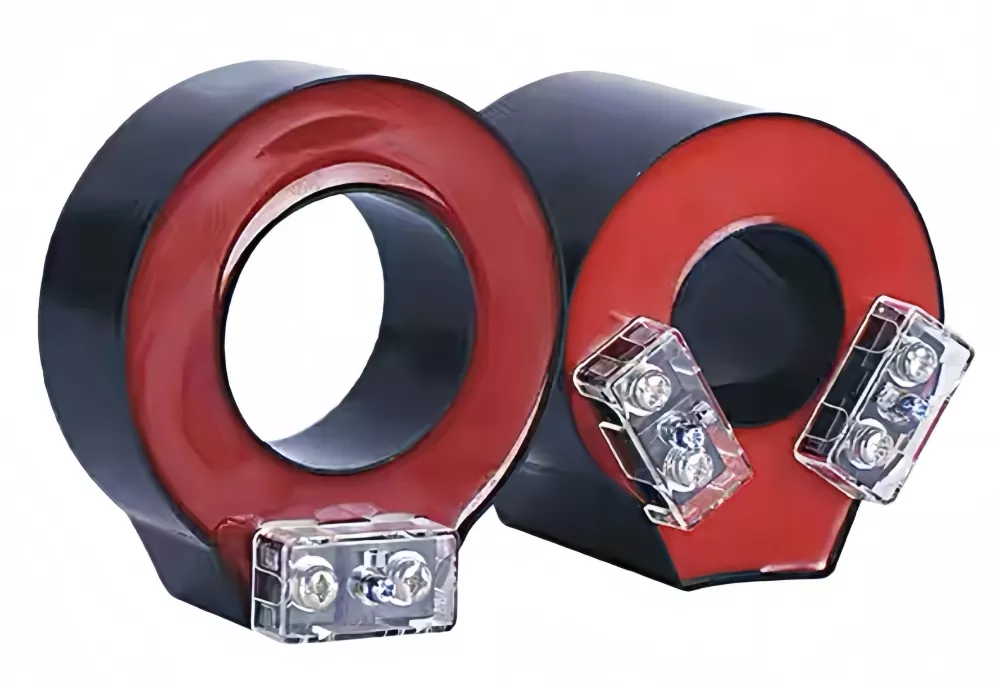

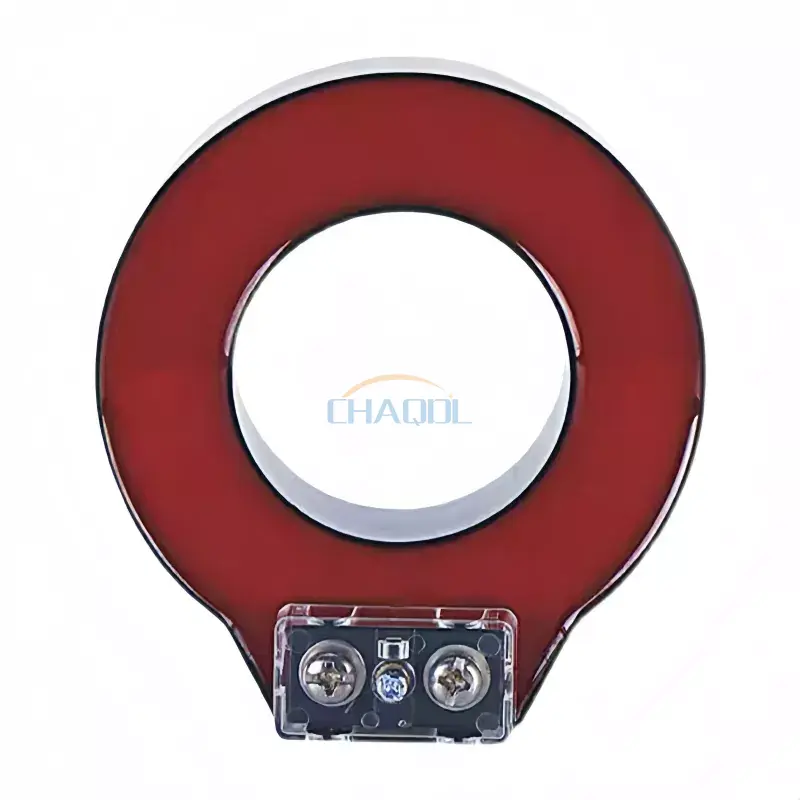

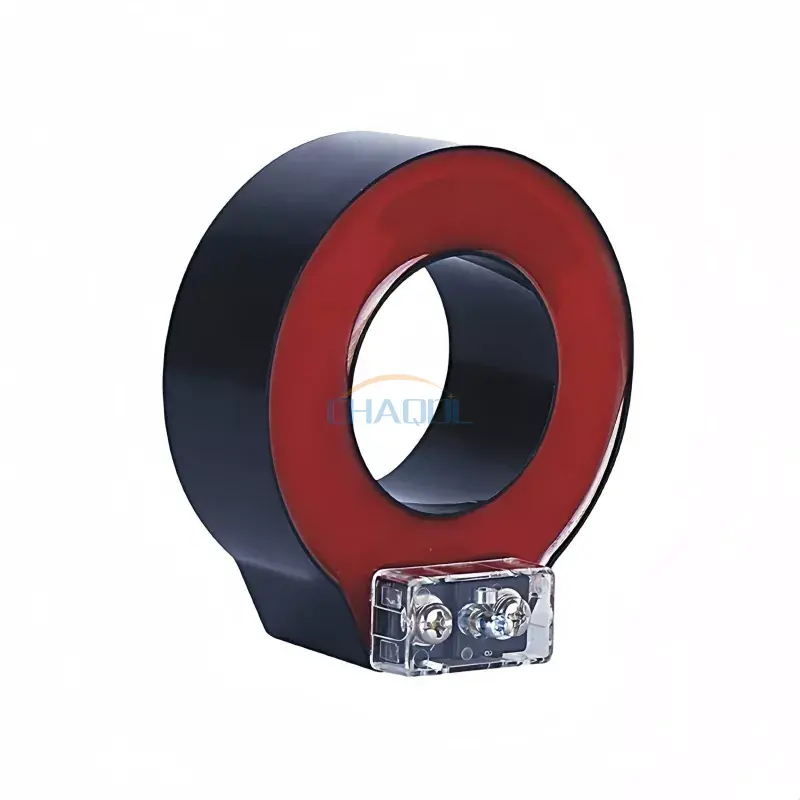

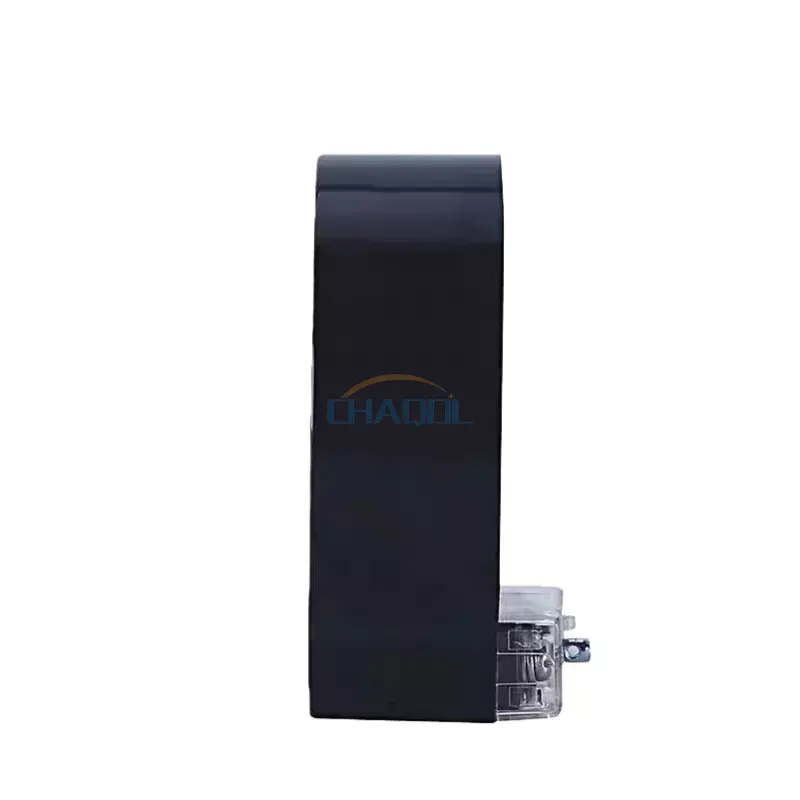

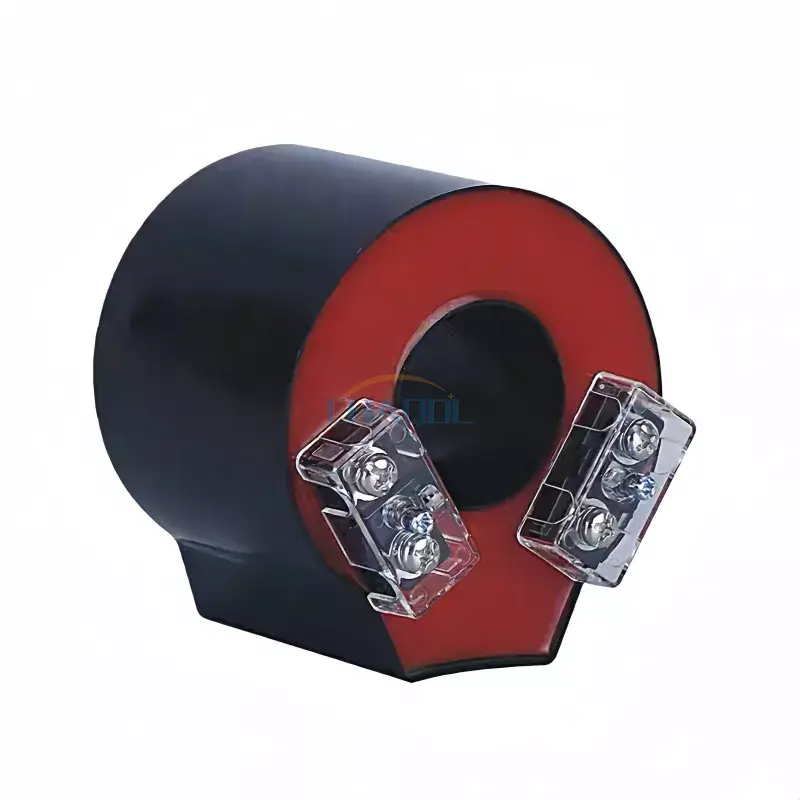

Umboniso womfanekiso wemveliso

Through Core Current Transformer

Igama lemveliso	Ngokusebenzisa i-core transformer yangoku	Umzekelo weMveliso	I-LMZC-10
Ilinganiswe rhoqo	50/60Hz	Imathiriyeli yemveliso	ABS idangatye retardant
Ukulinganisa okuchasene nokungcola	Inqanaba lesi-2	Isibini sangoku	5A/1A
Ubushushu obugciniwe	-350℃-550℃	Ukuphakama	≤1000 yeemitha

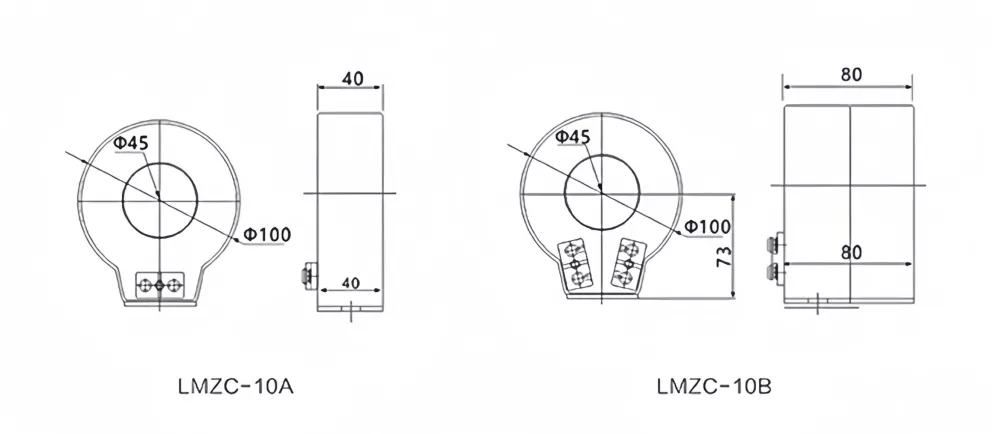

Umzobo wemilinganiselo yeemveliso

Through Core Current Transformer

Iiparamitha zobuGcisa

Umzekelo	Sebenzisa	Ukulinganisa i-transformer yangoku			I-transformer yangoku ekhuselayo			I-dual-winding current transformer
	Ilinganiswe engundoqo yangoku	Iklasi yokuchaneka kunye nomthwalo olinganisiweyo (VA)			Iklasi yokuchaneka kunye nomthwalo olinganisiweyo (VA)			Iklasi yokuchaneka kunye nomthwalo olinganisiweyo (VA)
	Ilinganiswe engundoqo yangoku	0.2s	0.2	0.5	10P 5	10P10	10P15	0.5	1	10P10	10P5
LMZC-10-3	75	__	__	__	__	__	__	__	__	__	__
	100	__	__	__	2.5	__	__	__	__	__	__
	150	2.5	2.5	2.5	2.5	__	__	__	__	__	__
	200	2.5	2.5	2.5	3.75	__	__	__	__	__	__
	300	5	5	5	5	__	__	__	__	__	__
	400	5	5	5	5	2.5	__	__	__	__	__
	500	10	10	10	7.5	2.5	__	__	__	__	__
	600	10	10	10	10	5	__	__	__	__	__
LMZC-10-4	50	__	__	2.5	__	__	__	__	__	__	__
	75	2.5	3.75	3.75	2.5	__	__	__	__	__	__
	100	5	5	5	5	2.5	1.5	__	__	__	__
	150	5	5	5	7.5	3.75	1.5	__	__	__	__
	200	7.5	7.5	7.5	10	5	2.5	5	5	__	2.5
	300	10	10	15	15	7.5	5	7.5	7.5	__	3.75
	400	15	20	20	20	10	7.5	7.5	7.5	2.5	5
	500	20	25	25	25	10	7.5	10	10	2.5	5
	600	20	25	30	25	10	7.5	10	10	3.75	7.5

Umda wesicelo kunye namanqaku ofakelo

Olu chungechunge lusetyenziswa ngokubanzi kwiikhabhinethi zokusabalalisa i-voltage ephantsi, iipaneli zokulinganisa iimitha, kunye neenkqubo ezizenzekelayo zoshishino. I- Through Core Current Transformer ifaneleke ngokukodwa kwiiprojekthi zokubuyisela kwakhona apho iibhasi okanye iintambo ezikhoyo zingenako ukuqhawuka ngexesha lofakelo. Ixhasa ukusebenza okuqhubekayo kwiindawo zangaphakathi kunye nomswakama ozinzileyo kunye nokulawula ukushisa.

Umda wosetyenziso

Ukusetyenziswa ngokubanzi kwiinkqubo zamandla ombane ezifuna ukubeka iliso ngoku ngokuchanekileyo kunye nokulungelelaniswa kokhuseleko. Ilungele ukufakwa kwimizi-mveliso kunye nosetyenziso lwesikali.

Iinkqubo zokutshintsha amandla ombane aphantsi naphakathi
Iikhabhinethi zokuhambisa amandla kunye neepaneli zokulinganisa
Ukhuseleko lwesitishi esincinci kunye neenkqubo zokubeka iliso
Iinkqubo zolawulo lwamandla okuzisebenzela kwimizi-mveliso
Iinkqubo zokuvelisa amandla ahlaziyiweyo

IiMfuno zoFakelo

Ukufakela okufanelekileyo kubalulekile ukuqinisekisa ukuchaneka komlinganiselo kunye nokusebenza ngokukhuselekileyo. I-conductor ephambili kufuneka idlule kumbindi we-core ukuze igcine ukuhanjiswa kwe-magnetic flux elinganayo.

Gcina i-conductor ibekwe embindini wefestile engundoqo
Musa ukushiya isiphaluka sesibini sivulekile ngexesha lokusebenza
Qinisekisa ukusekwa okuthembekileyo kwetheminali yesibini
Sebenzisa i-hardware efakwe kwi-insulated ukuzinza komatshini

Iinzuzo zokuSebenza

Xa kuthelekiswa neziguquli eziqhelekileyo zangoku, i- Through Core Current Transformer ibonelela ngokuphuculweyo kokusebenza kunye nokuzinza kwexesha elide kwiinkqubo zokulinganisa umbane.

Ukuchaneka komlinganiselo ophezulu kunye nempendulo yomgca ozinzileyo
Ilahleko esezantsi engundoqo kunye nokusebenza okuphuculweyo kwe-electromagnetic
Ukufakwa kwe-epoxy resin ukwenzela ukomelezwa kokusingqongileyo
Uyilo olubambeneyo olulungele indawo enyiniweyo yokufakela
Ubomi benkonzo ende kunye neemfuno zokugcinwa okuncinci

FAQ

I-Q1: Yintoni umsebenzi oyintloko wale mveliso?
A: Isetyenziselwa umlinganiselo wangoku kunye nokukhuselwa kwiinkqubo zombane, ngakumbi ekuhanjisweni nasekufakweni kweemitha.

I-Q2: Ngaba inokufakwa ngaphandle kokuvala inkqubo?
A: Ewe, uyilo lwayo lwe-split-core luvumela ufakelo ngaphandle kokuqhawula umqhubi ophambili.

I-Q3: Ziziphi iinkqubo ezihambelanayo?
A: Ifanelekile kwi-switchgear ephantsi kunye nephakathi, kuquka i-RMU kunye neepaneli zokulawula.

I-Q4: Ithini inqanaba lokugquma?
A: Inqanaba lokufakelwa kwe-insulation lenzelwe iindawo zokusasazwa kwamashishini kwaye liqinisekisa ukusebenza ngokukhuselekileyo phantsi kweemeko zombane ezilinganisiweyo.

I-Q5: Ngaba inokusetyenziswa ngaphandle?
A: Ikakhulu yenzelwe ukusetyenziswa kwangaphakathi; ukufakwa kwangaphandle kufuna indawo evaliweyo eyongezelelweyo yokukhusela.

I-Q6: Ifuna kangaphi ulondolozo?
A: Phantsi kweemeko eziqhelekileyo zokusebenza, ukuhlolwa ngamaxesha kwanele, ngaphandle kokugcinwa rhoqo okufunekayo.

Inqaku lokugqibela: Oku ngokusebenzisa i-Core Current Transformer yenzelwe ukusebenza okuzinzile kwexesha elide kwiinkqubo zanamhlanje zokuhambisa amandla, ukuqinisekisa ukulinganisa okuthembekileyo kunye nokusebenza kokukhusela.
